CR50G-HRSQT (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9812- )3C#

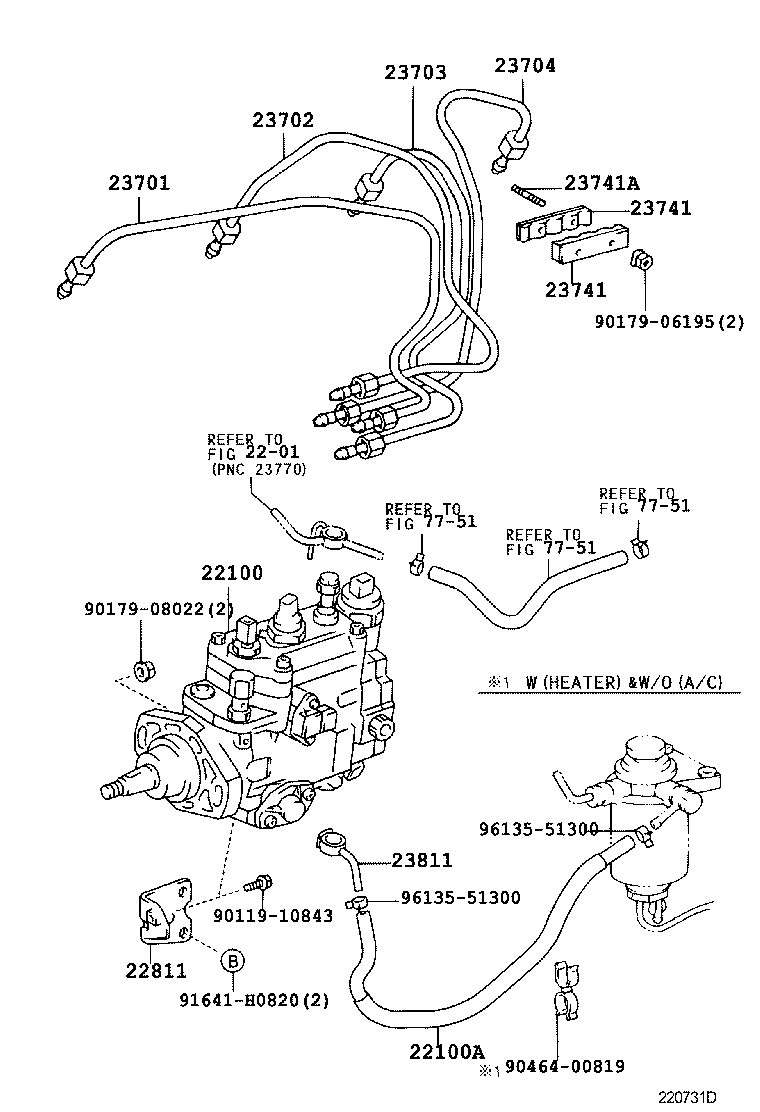

Click highlighted areas on diagram

diagram 2201 22100 22100A 22811 23701 23702 23703 23704 23741 23741 23741A 23811 7751 7751 7751 9011910843 9017906195 9017908022 9046400819 91641H0820 9613551300 9613551300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-6E260

3CTE..CR40,50

 1
22100-6E080

3CT..CR40,50..ATM

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-64280

3CTE..CR40,50

 1
23271-64240

2C,3CT..CR4#,5#

*H,L=525

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-64020

3CTE..CR40,50

 1
22811-64020

2C,3CT..CR4#,5#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-64130

2C,3CT..CR4#,5#

 1
23701-64130

3CTE..CR40,50

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-64130

3CTE..CR40,50

 1
23702-64130

2C,3CT..CR4#,5#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-64110

2C,3CT..CR4#,5#

 1
23703-64110

3CTE..CR40,50

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-64130

2C,3CT..CR4#,5#

 1
23704-64130

3CTE..CR40,50

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64020

2C,3CT..CR4#,5#

 2
23741-64020

3CTE..CR40,50

 2
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64020

2C,3CT..CR4#,5#

 2
23741-64020

3CTE..CR40,50

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06275

2C,3CT..CR4#,5#

 2
90116-06275

3CTE..CR40,50

 2
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-64130

3CTE..CR40,50

 1
Common parts
90119-10843
90179-06195
90179-08022
90464-00819
91641-H0820
96135-51300
Linked diagrams
2201
7751
