CR50G-HRSEX5 (1996)
Toyota Lite/Townace Noah,V
ILLUST NO. 1 OF 2(9610-9812)
ﾌﾛﾝﾄ---ﾏﾆﾕｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87138C - RESISTOR, BLOWER | ||||
| 87138-28160 |
CR4#,5#,KR42,SR40,50..(05S,06S,08S)..(D,E,N,V) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28290 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28460 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 88502-28440 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28470 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 88502-28450 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28560 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-28570 |
CR4#,5#,KR42,SR40,50..05S,08S |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22240 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28140 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-28170 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28670 |
SR40,50..06S,08S |
1 | ||
| 88650-28660 |
CR40,50..08S |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-2R090 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| Common parts | ||||
| 88897-22110 | ||||
| 89639-28060 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90159-60383 | ||||
| 90179-06127 | ||||
| 90179-06239 | ||||
| 90480-26022 | ||||
| 93385-16016 | ||||
| 93567-15016 | ||||
| 93568-55014 | ||||

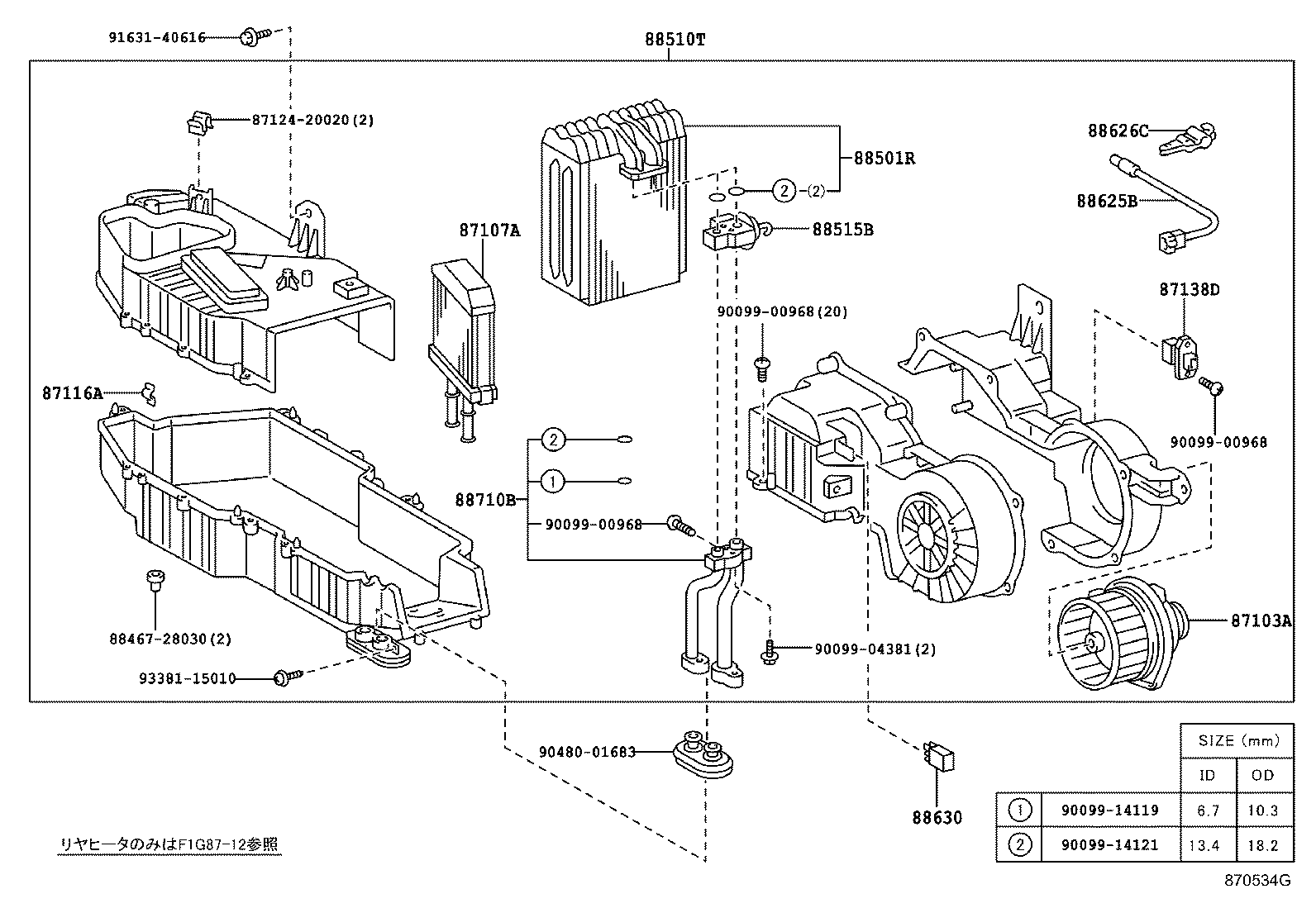

ILLUST NO. 2 OF 2(9610- )CR4#,5#,SR40,50
ﾘﾔ---ﾏﾆﾕｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28180 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
CR40,50,SR40,50..07S,08S |
4 | ||
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-28170 |
CR40,50,SR40,50..08S |
1 | ||
| 87138-28180 |
CR40,50,SR40,50..08S ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28300 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 87030-28090 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87030-28100 |
CR40,50,SR40,50..08S ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87030-28120 |
CR40,50,SR40,50..08S ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28120 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-28180 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 88626C - HOLDER, THERMISTOR, REAR | ||||
| 88626-33010 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02012 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-2R190 |
CR40,50,SR40,50..07S,08S |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 88467-28030 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-01683 | ||||
| 91631-40616 | ||||
| 93381-15010 | ||||
ILLUST NO. 1 OF 2(9610-9812)
ﾌﾛﾝﾄ---ｵ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87165C - CONTROL, BLOWER MOTOR | ||||
| 87165-33010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 87165-32010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28290 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28460 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 88502-28440 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28470 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 88502-28450 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28560 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 88510-28570 |
CR4#,5#,KR42,SR40,50..05S,08S |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22240 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28140 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-28170 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28670 |
SR40,50..06S,08S |
1 | ||
| 88650-28660 |
CR40,50..08S |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-2R090 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| Common parts | ||||
| 88897-22110 | ||||
| 89639-28060 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90159-60383 | ||||
| 90179-06127 | ||||
| 90179-06239 | ||||
| 90480-26022 | ||||
| 93315-13010 | ||||
| 93385-16016 | ||||
| 93567-15016 | ||||
| 93568-55014 | ||||

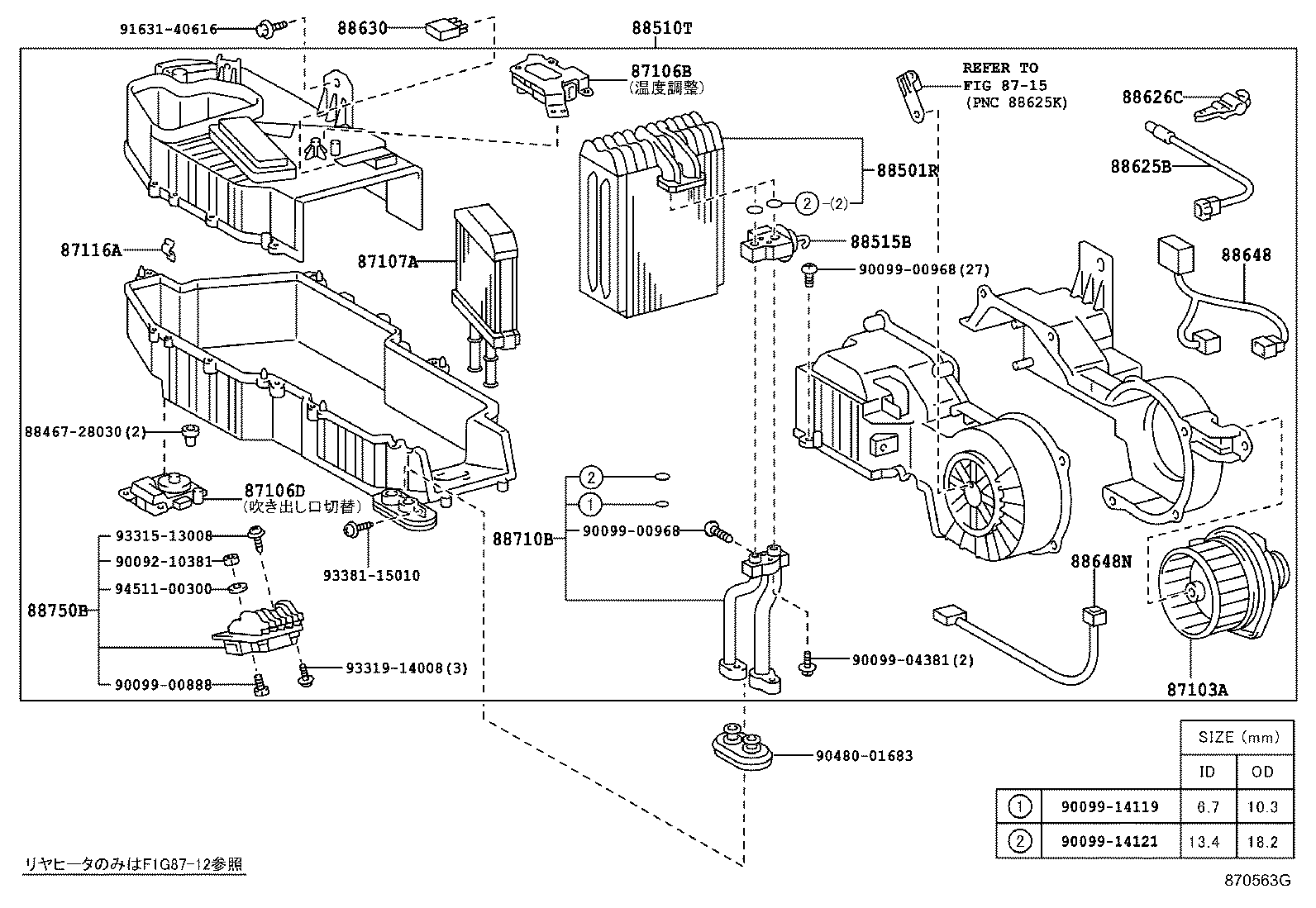

ILLUST NO. 2 OF 2(9610- )CR4#,5#,SR40,50
ﾘﾔ---ｵ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87106B - SERVO SUB-ASSY, DAMPER(FOR COOLING UNIT) | ||||
| 87106-28060 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 87106D - SERVO SUB-ASSY, DAMPER, NO.1 | ||||
| 87106-28070 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28180 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
CR40,50,SR40,50..07S,08S |
4 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-28300 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 87030-28090 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87030-28100 |
CR40,50,SR40,50..08S ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 87030-28120 |
CR40,50,SR40,50..08S ｶﾝﾚｲﾁ ｼﾖｳ & ﾏﾆﾕｱﾙ ｴｱｺﾝ |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-28120 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88625B - THERMISTOR, COOLER NO.3 | ||||
| 88625-28180 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 88626C - HOLDER, THERMISTOR, REAR | ||||
| 88626-33010 |
CR40,50,SR40,50..E,Q,V |
2 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02012 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-28250 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 88648N - WIRING, COOLER, NO.2 | ||||
| 88648-28260 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-2R190 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-28040 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| Common parts | ||||
| 88467-28030 | ||||
| 90092-10381 | ||||
| 90099-00888 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90480-01683 | ||||
| 91631-40616 | ||||
| 93315-13008 | ||||
| 93319-14008 | ||||
| 93381-15010 | ||||
| 94511-00300 | ||||
| Linked diagrams | ||||
| 8715 | ||||
