CR50G-HRSEX5 (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

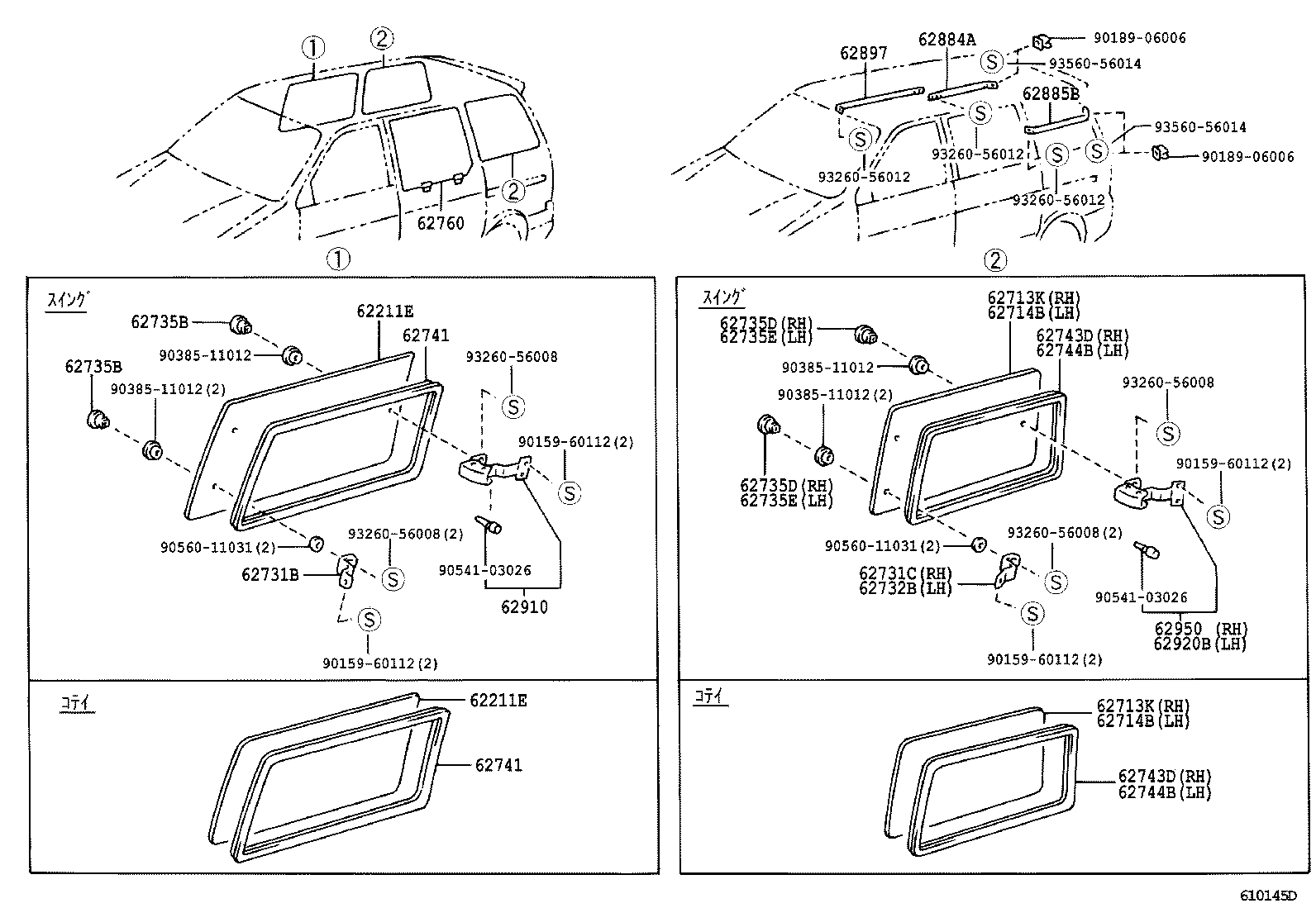

ILLUST NO. 1 OF 2(9610- )4D

Click highlighted areas on diagram

diagram 62211E 62211E 62713K 62713K 62714B 62714B 62731B 62731C 62732B 62735B 62735B 62735D 62735D 62735E 62735E 62741 62741 62743D 62743D 62744B 62744B 62760 62884A 62885B 62897 62910 62920B 62950 9015960112 9015960112 9015960112 9015960112 9018906006 9018906006 9038511012 9038511012 9038511012 9038511012 9054103026 9054103026 9056011031 9056011031 9326056008 9326056008 9326056008 9326056008 9326056012 9326056012 9326056012 9356056014 9356056014
Part # Description Qty Price
62211E - GLASS, SIDE WINDOW, REAR RH
62211-28280

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62211-28240

CR41,51,KR42..4D..06S..CBU;CR40,50,KR41,SR40,50..4D..(06S,08S)..(B,D,E)

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62211-28280

CR40,50,SR40,50..Q,V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62211E - GLASS, SIDE WINDOW, REAR RH
62211-28280

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62211-28240

CR41,51,KR42..4D..06S..CBU;CR40,50,KR41,SR40,50..4D..(06S,08S)..(B,D,E)

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62211-28280

CR40,50,SR40,50..Q,V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62713K - GLASS, SIDE WINDOW, REAR RH
62713-28280

CR40,50,SR40,50..Q,V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62713-28250

CR40,50,SR40,50..Q,V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62713-28290

CR40,50,SR40,50..ATM..E

*TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62713-28230

CR40,50,SR40,50..E

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62713-28250

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62713K - GLASS, SIDE WINDOW, REAR RH
62713-28280

CR40,50,SR40,50..Q,V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62713-28250

CR40,50,SR40,50..Q,V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62713-28290

CR40,50,SR40,50..ATM..E

*TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62713-28230

CR40,50,SR40,50..E

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62713-28250

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62714B - GLASS, SIDE WINDOW, REAR LH
62714-28170

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62714-28140

CR40,50,SR40,50..Q,V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62714-28150

CR40,50,SR40,50..E

*TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62714-28140

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62714-28120

CR51..5D..03S;CR40,50,SR40,50..E;CR41..HRF..5D..D..V1

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62714-28180

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62714-28200

CR40,50,SR40,50..ATM..E

*TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62714B - GLASS, SIDE WINDOW, REAR LH
62714-28170

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62714-28140

CR40,50,SR40,50..Q,V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62714-28150

CR40,50,SR40,50..E

*TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62714-28140

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62714-28120

CR51..5D..03S;CR40,50,SR40,50..E;CR41..HRF..5D..D..V1

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62714-28180

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62714-28200

CR40,50,SR40,50..ATM..E

*TT,厚さ=3.5,ｸﾞﾘｰﾝ,ｱﾘ(ﾀﾞｲﾊﾞｼﾃｲ ｱﾝﾃﾅ)

 1
62731B - HINGE, SIDE FRONT WINDOW, LOWER
62731-28050

CR41,51,KR42..4D..06S..CBU;CR40,50,KR41,SR40,50..4D..(06S,07S,08S)

 2
62731C - HINGE, QUARTER WINDOW, RH
62732-28070

CR40,50,SR40,50..E,Q,V

 2
62732B - HINGE, SIDE REAR WINDOW, UPPER
62732-28080

CR51..5D..03S;CR41..HRF..5D..D..V1;CR40,50,SR40,50..E,Q,V

 2
62735B - RETAINER, SIDE FRONT WINDOW HINGE, RH
62735-10030

CR41,51,KR42..4D..06S..CBU;CR40,50,KR41,SR40,50..4D..(06S,07S,08S)

 3
62735B - RETAINER, SIDE FRONT WINDOW HINGE, RH
62735-10030

CR41,51,KR42..4D..06S..CBU;CR40,50,KR41,SR40,50..4D..(06S,07S,08S)

 3
62735D - RETAINER, SIDE REAR WINDOW HINGE, RH
62735-10030

CR51..5D..03S;CR41..HRF..5D..D..V1;CR40,50,SR40,50..E,Q,V

 3
62735D - RETAINER, SIDE REAR WINDOW HINGE, RH
62735-10030

CR51..5D..03S;CR41..HRF..5D..D..V1;CR40,50,SR40,50..E,Q,V

 3
62735E - RETAINER, SIDE REAR WINDOW HINGE, LH
62735-10030

CR51..5D..03S;CR41..HRF..5D..D..V1;CR40,50,SR40,50..E,Q,V

 3
62735E - RETAINER, SIDE REAR WINDOW HINGE, LH
62735-10030

CR51..5D..03S;CR41..HRF..5D..D..V1;CR40,50,SR40,50..E,Q,V

 3
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-28060

CR41,51,KR42..4D..06S..CBU;CR40,50,KR41,SR40,50..4D..(06S,07S,08S)

 1
62741 - WEATHERSTRIP, QUARTER WINDOW, RH
62741-28060

CR41,51,KR42..4D..06S..CBU;CR40,50,KR41,SR40,50..4D..(06S,07S,08S)

 1
62743D - WEATHERSTRIP, SIDE REAR WINDOW, RH
62743-28030

CR51..5D..03S;CR41..HRF..5D..D..V1;CR40,50,SR40,50..E,Q,V

 1
62743D - WEATHERSTRIP, SIDE REAR WINDOW, RH
62743-28030

CR51..5D..03S;CR41..HRF..5D..D..V1;CR40,50,SR40,50..E,Q,V

 1
62744B - WEATHERSTRIP, SIDE REAR WINDOW, LH
62744-28030

CR51..5D..03S;CR41..HRF..5D..D..V1;CR40,50,SR40,50..E,Q,V

 1
62744B - WEATHERSTRIP, SIDE REAR WINDOW, LH
62744-28030

CR51..5D..03S;CR41..HRF..5D..D..V1;CR40,50,SR40,50..E,Q,V

 1
62760 - WINDOW ASSY, SLIDE DOOR, LH
62760-28290

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..(06S,08S)..(B,D,E)

*TT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62760-28320

CR40,50,SR40,50..V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62760-28320

CR40,50,SR40,50..Q,V

*SERT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
62910 - LOCK ASSY, QUARTER OR SIDE WINDOW, RH
62910-28030G0

CR40,50,SR40,50..E,Q

SAGE,TRIM6#

 1
62910-28030B0

CR41,51,KR42..4D..06S..CBU;CR40,50,KR41,SR40,50..4D..(06S,07S,08S)

MOON MIST,TRIM1#

 1
62920B - LOCK ASSY, SIDE REAR WINDOW, LH
62950-28050B0

CR51..5D..03S;CR41..HRF..5D..D..V1;CR40,50,SR40,50..E,Q,V

MOON MIST,TRIM1#

 1
62950-28050G0

CR40,50,SR40,50..E,Q

SAGE,TRIM6#

 1
62950 - LOCK ASSY, SIDE REAR WINDOW
62950-28070B0

CR40,50,SR40,50..E,Q,V

MOON MIST,TRIM1#

 1
62950-28070G0

CR40,50,SR40,50..E,Q

SAGE,TRIM6#

 1
Common parts
90159-60112
90189-06006
90385-11012
90541-03026
90560-11031
93260-56008
93260-56012
93560-56014
