CR50G-HRSEX5 (1996)
Toyota Lite/Townace Noah,V
Production
Oct 1996
-
Dec 1998
Engine
3CT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9610-9812)3CT

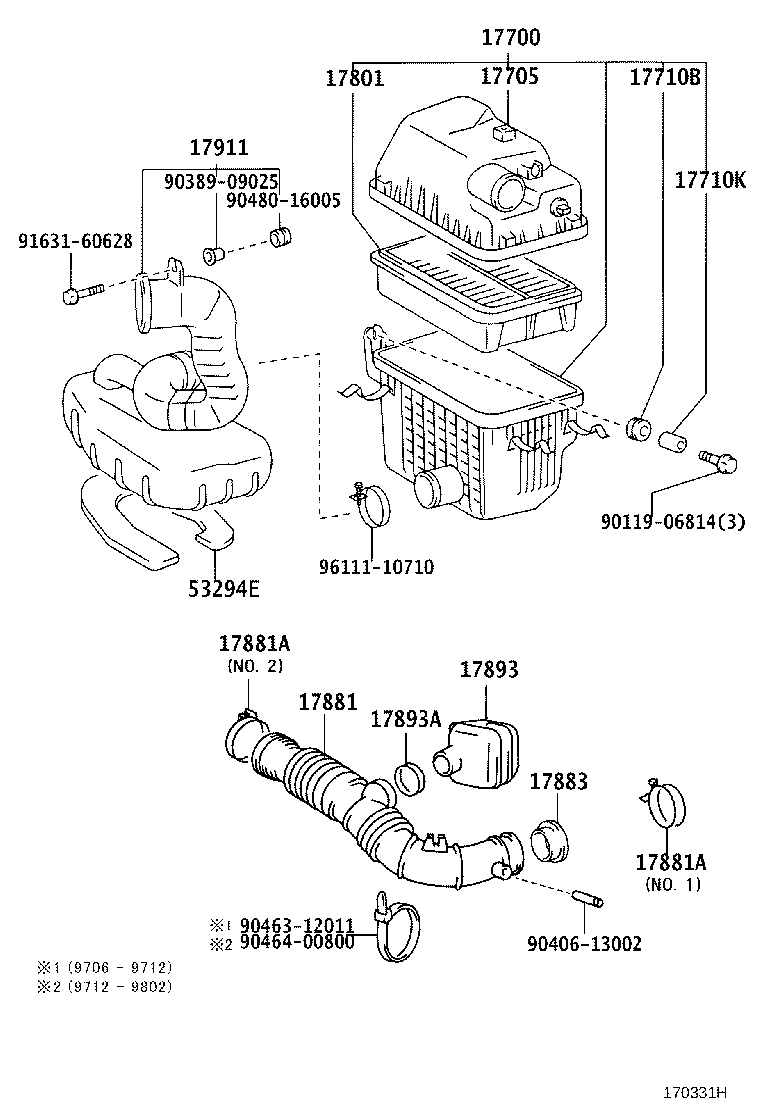

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-64370 |
2C,3CT..CR4#,5# |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-64250 |
2C,3CT..CR4#,5# |
1 | ||
| 17710B - GROMMET | ||||
| 90480-11015 |
2C,3CT..CR4#,5# |
3 | ||
| 17710K - COLLAR(FOR AIR CLEANER) | ||||
| 90387-09064 |
2C,3CT..CR4#,5# |
3 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-55020 |
2C,3CT..CR4#,5# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-64330 |
3CT..CR40,50 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-65007 |
3CT..CR40,50 NO.1 |
1 | ||
| 96111-10750 |
2C,3CT..CR4#,5# NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 90460-65007 |
3CT..CR40,50 NO.1 |
1 | ||
| 96111-10750 |
2C,3CT..CR4#,5# NO.2 |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17883-64050 |
3CT..CR40,50 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-64040 |
3CT..CR40,50 |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10690 |
3CT..CR40,50 |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-28050 |
3CT..CR40,50 |
1 | ||
| 53294E - SEAL, COOL AIR INTAKE PIPE | ||||
| 53294-28010 |
SR40,50 |
1 | ||
| Common parts | ||||
| 90119-06814 | ||||
| 90389-09025 | ||||
| 90406-13002 | ||||
| 90463-12011 | ||||
| 90464-00800 | ||||
| 90480-16005 | ||||
| 91631-60628 | ||||
| 96111-10710 | ||||
