CR50G-HRSEX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

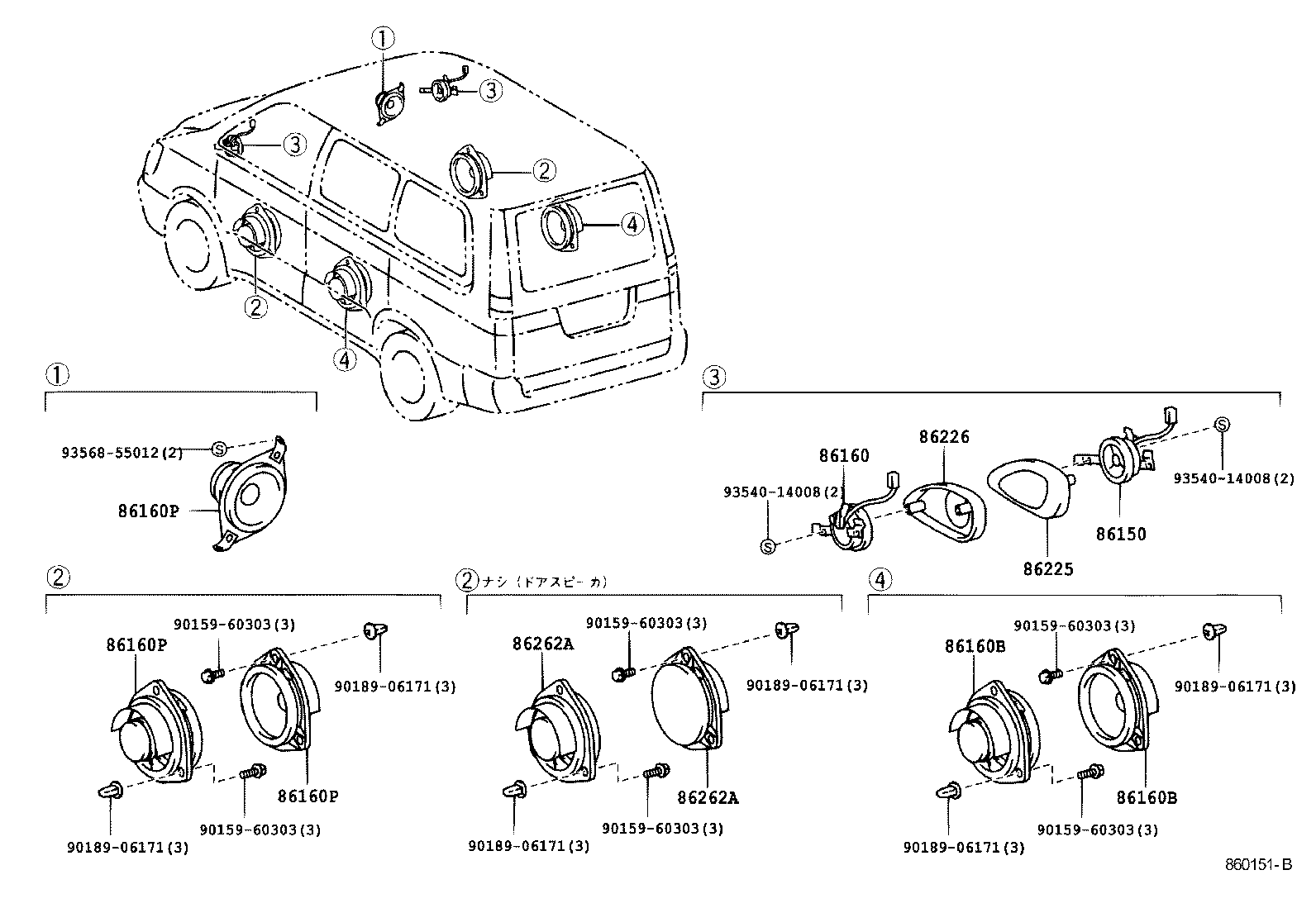

Click highlighted areas on diagram

diagram 86150 86160 86160B 86160B 86160P 86160P 86160P 86225 86226 86262A 86262A 9015960303 9015960303 9015960303 9015960303 9015960303 9015960303 9018906171 9018906171 9018906171 9018906171 9018906171 9018906171 9354014008 9354014008 9356855012
Part # Description Qty Price
86150 - SPEAKER ASSY, W/BOX, NO.1
86150-28020

CR40,50,SR40,50..E,Q,V

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-28400

CR40,50,SR40,50..E,Q,V

 1
86160B - SPEAKER ASSY, REAR
86160-28460

CR40,50,SR40,50..E,Q,V

 2
86160B - SPEAKER ASSY, REAR
86160-28460

CR40,50,SR40,50..E,Q,V

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-28430

CR4#,5#,KR4#,SR40,50

ﾌﾛﾝﾄﾄﾞｱ

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-28430

CR4#,5#,KR4#,SR40,50

ﾌﾛﾝﾄﾄﾞｱ

 2
86160P - SPEAKER ASSY, FRONT NO.2
86160-28430

CR4#,5#,KR4#,SR40,50

ﾌﾛﾝﾄﾄﾞｱ

 2
86225 - COVER, SPEAKER, RH
86225-28070B0

CR40,50,SR40,50..E,Q,V

MOON MIST,TRIM1#

 1
86225-28070G0

CR40,50,SR40,50..E,Q

SAGE,TRIM6#

 1
86226 - COVER, SPEAKER, LH
86226-28070B0

CR40,50,SR40,50..E,Q,V

MOON MIST,TRIM1#

 1
86226-28070G0

CR40,50,SR40,50..E,Q

SAGE,TRIM6#

 1
Common parts
90159-60303
90189-06171
93540-14008
93568-55012
