CR50G-HRSEX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

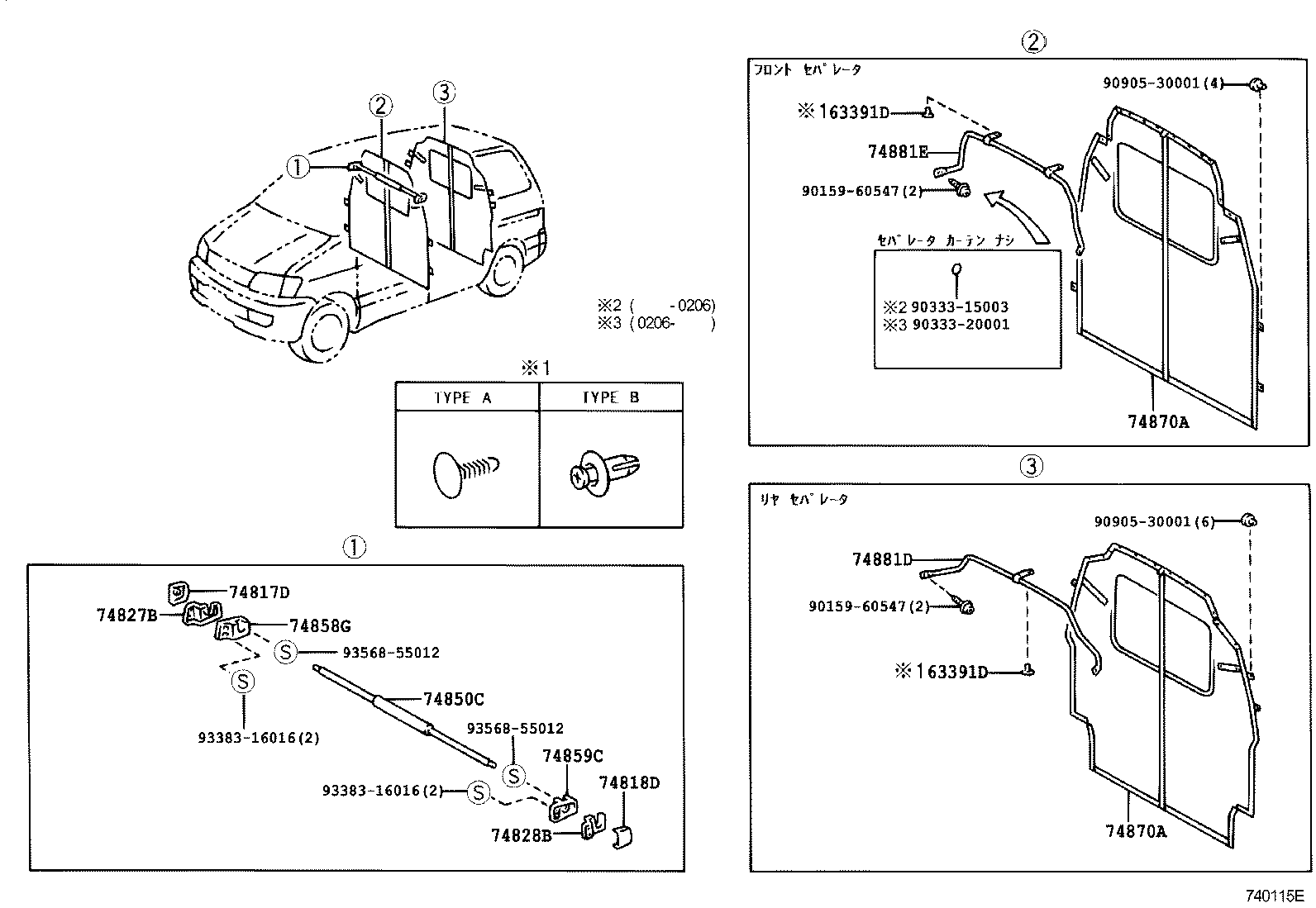

Click highlighted areas on diagram

diagram 63391D 63391D 74817D 74818D 74827B 74828B 74850C 74858G 74859C 74870A 74870A 74881D 74881E 9015960547 9015960547 9033315003 9033320001 9090530001 9090530001 9338316016 9338316016 9356855012 9356855012
Part # Description Qty Price
63391D - CLIP(FOR SEPARATOR CURTAIN RAIL)
90467-08198B0

CR4#,5#,KR4#,SR40,50..B,D,N

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MOON MIST,TRIM1#,ﾘﾔ

 1
63391D - CLIP(FOR SEPARATOR CURTAIN RAIL)
90467-08198B0

CR4#,5#,KR4#,SR40,50..B,D,N

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MOON MIST,TRIM1#,ﾘﾔ

 1
Common parts
90159-60547
90333-15003
90333-20001
90905-30001
93383-16016
93568-55012
