CR50G-HRSET5 (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9812- )3CTE

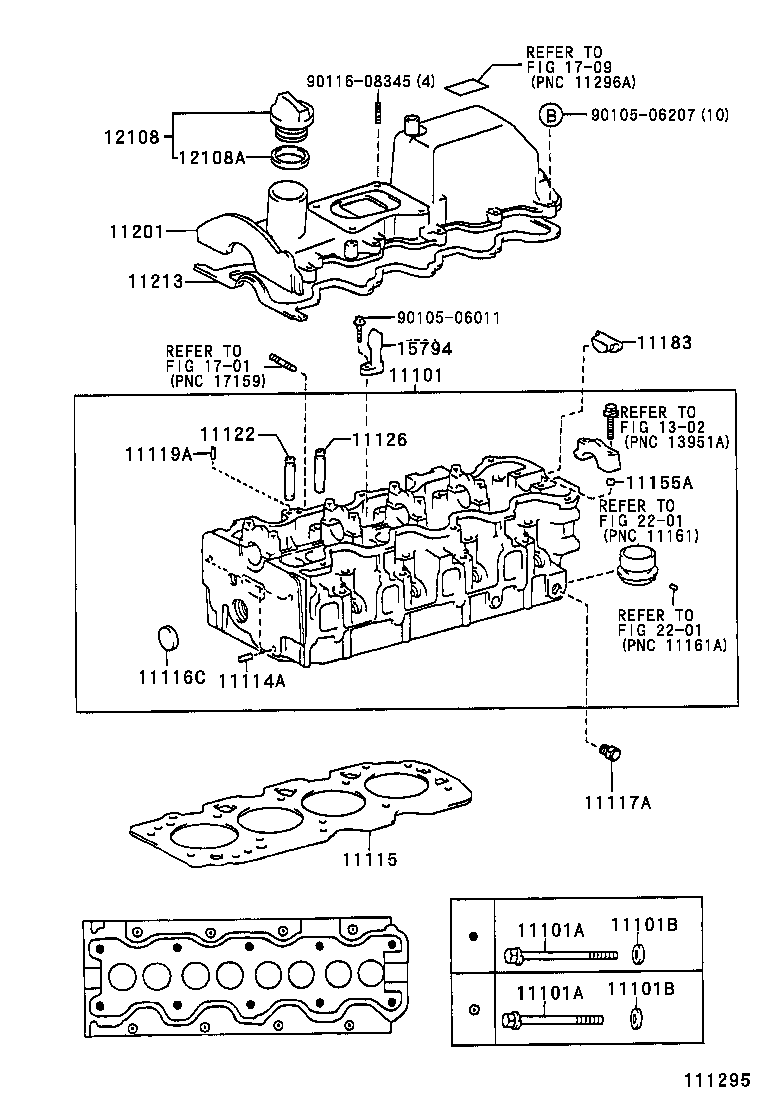

Click highlighted areas on diagram

diagram 11101 11101A 11101A 11101B 11101B 11114A 11115 11116C 11117A 11119A 11122 11126 11155A 11183 11201 11213 12108 12108A 1302 15794 1701 1709 2201 2201 9010506011 9010506207 9011608345
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-64261

3CT..CR40,50

 1
11101-64360

3CTE..CR40,50

 1
11101-64400

3CTE..CR40,50

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02099

2C,3CT..CR4#,5#

*11−1.25PX145−53

 10
90910-02131

3CTE..CR40,50

*11−1.25PX123−53

 8
90910-02130

3CTE..CR40,50

*11−1.25PX145−53

 10
90910-02097

2C,3CT..CR4#,5#

*11−1.25PX123−53

 8
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02099

2C,3CT..CR4#,5#

*11−1.25PX145−53

 10
90910-02131

3CTE..CR40,50

*11−1.25PX123−53

 8
90910-02130

3CTE..CR40,50

*11−1.25PX145−53

 10
90910-02097

2C,3CT..CR4#,5#

*11−1.25PX123−53

 8
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

2C,3CT..CR4#,5#

 18
90201-12222

3CTE..CR40,50

 18
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-12222

2C,3CT..CR4#,5#

 18
90201-12222

3CTE..CR40,50

 18
11114A - PIN, STRAIGHT
90250-06068

3CTE..CR40,50

長さ=11,外径=6

 3
90250-06068

2C,3CT..CR4#,5#

長さ=11,外径=6

 3
11115 - GASKET, CYLINDER HEAD
11115-64130

3CT..CR40,50

 1
11115-6419001

3CTE..CR40,50

MARK 1,修理書参照

 1
11115-6419003

3CTE..CR40,50

MARK 3,修理書参照

 1
11115-6419005

3CTE..CR40,50

MARK 5,修理書参照

 1
11116C - PLUG, TIGHT, NO.3
96411-63000

3CTE..CR40,50

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-53007

3CTE..CR40,50

 1
11119A - PIN, STRAIGHT, NO.1
90250-06013

3CTE..CR40,50

長さ=16,外径=6

 2
90250-06013

2C,3CT..CR4#,5#

長さ=16,外径=6

 2
11122 - BUSH, INTAKE VALVE GUIDE
11123-64010

2C,3CT..CR4#,5#

O/S 0.05

 4
11123-64010

3CTE..CR40,50

O/S 0.05

 4
11122-64010

3CTE..CR40,50

STD

 4
11122-64010

2C,3CT..CR4#,5#

STD

 4
11126 - BUSH, EXHAUST VALVE GUIDE
11126-64010

2C,3CT..CR4#,5#

STD

 4
11127-64010

2C,3CT..CR4#,5#

O/S 0.05

 4
11127-64030

3CTE..CR40,50

O/S 0.05

 4
11126-64030

3CTE..CR40,50

STD

 4
11155A - PIN, RING W/HEAD
90253-11021

2C,3CT..CR4#,5#

 10
90253-11021

3CTE..CR40,50

 10
11183 - PLUG, SEMICIRCULAR
11183-64010

2C,3CT..CR4#,5#

 1
11183-64010

3CTE..CR40,50

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-64150

2C,3CT..CR4#,5#

 1
11201-64170

3CTE..CR40,50

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-64061

3CTE..CR40,50

 1
11213-64061

2C,3CT..CR4#,5#

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-50040

3CTE..CR40,50

 1
12180-55010

2C,3CT..CR4#,5#

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

2C,3CT..CR4#,5#

 1
12195-50010

3CTE..CR40,50

 1
15794 - NOZZLE, CYLINDER HEAD OIL
15794-64011

2C,3CT..CR4#,5#

 1
15794-64011

3CTE..CR40,50

 1
Common parts
90105-06011
90105-06207
90116-08345
Linked diagrams
1302
1701
1709
2201
