CR50G-HRMEX (1996)
Toyota Lite/Townace Noah,V

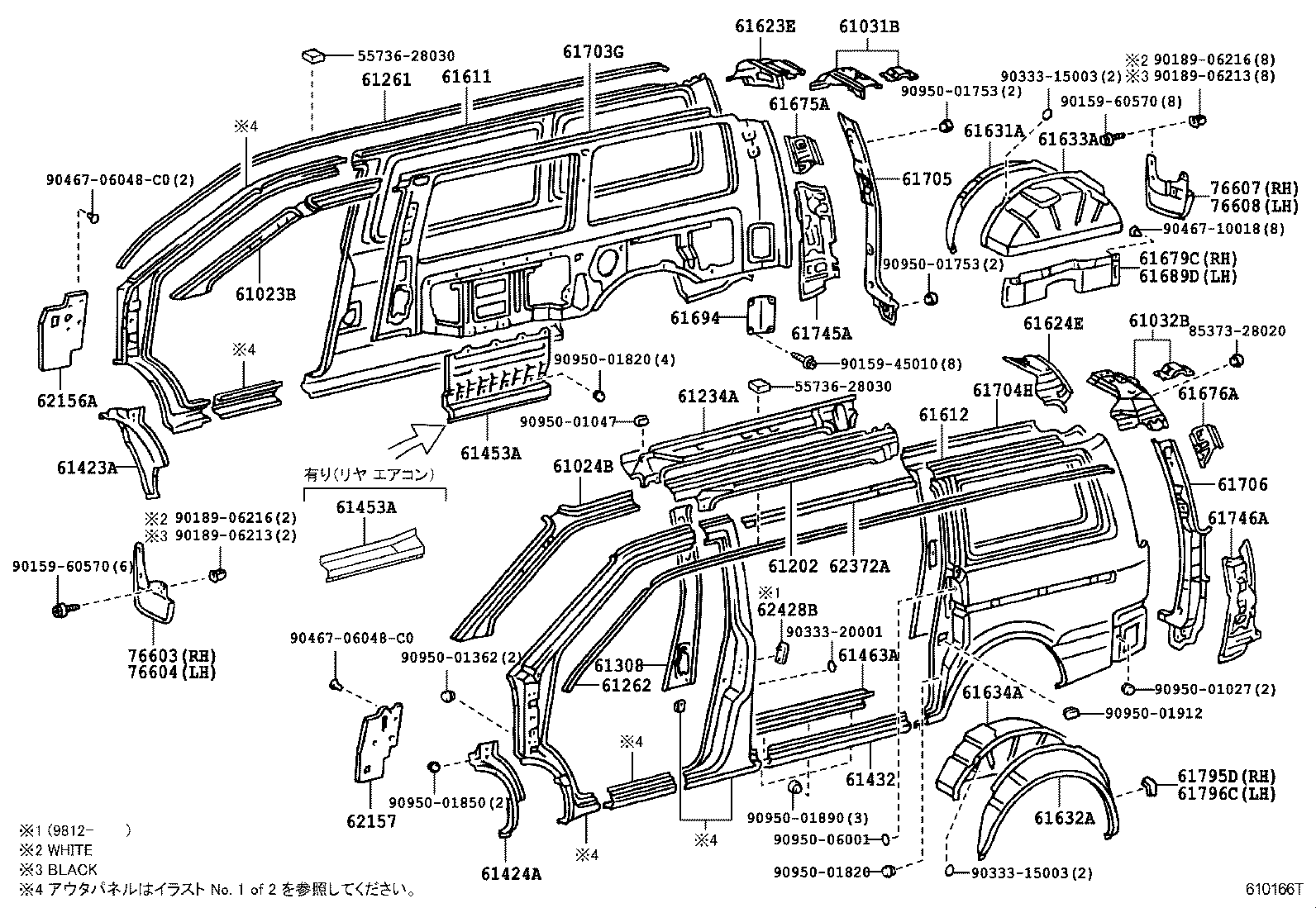

ILLUST NO. 2 OF 2(9610- )4D
ｲﾝﾅﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-28120 |
CR4#,5#,KR4#,SR40,50..B,D,E,N,Q |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-28120 |
CR4#,5#,KR4#,SR40,50..B,D,E,N,Q |
1 | ||
| 61031B - EXTENSION SUB-ASSY, QUARTER PANEL, RH | ||||
| 61031-28020 |
CR4#,5#,KR4#,SR40,50..HRF |
1 | ||
| 61032B - EXTENSION SUB-ASSY, QUARTER PANEL, LH | ||||
| 61032-28020 |
CR41..HRF..N;CR41..HRF..4D;CR41..5D..D..SJL;CR51..HRF..(05S,06S);CR40,50,KR4#,SR40,50..HRF |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-28070 |
CR40,50,SR40,50 |
1 | ||
| 61234-28070 |
CR40,50,SR40,50..V;CR40,50,SR40,50..HRF..(E,Q);CR51,KR41..HRF..5D..ATM..D..V1 ｱﾘ(ﾂｲﾝﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-28360 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 61308-28380 |
CR40,50,SR40,50..D |
1 | ||
| 61308-28400 |
SR40,50..B |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61432 - PANEL, ROCKER, OUTER REAR LH | ||||
| 61432-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 61453A - PANEL, ROCKER INNER, REAR RH | ||||
| 61453-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 61463A - PANEL, ROCKER, INNER REAR LH | ||||
| 61463-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-2J240 |
CR41,51,KR42..4D..CBU;CR40,50,KR41,SR40,50..4D |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-28570 |
CR41,51,KR4#..CBU;CR40,50,SR40,50..HRF |
1 | ||
| 61602-28571 |
CR41,51,KR42..CBU;CR40,50,KR41,SR40,50 |
1 | ||
| 61623E - EXTENSION, QUARTER INNER PANEL, REAR RH | ||||
| 61623-28060 |
CR4#,5#,KR4#,SR40,50..HRF |
1 | ||
| 61624E - EXTENSION, QUARTER INNER PANEL, REAR LH | ||||
| 61624-28060 |
CR4#,5#,KR4#,SR40,50..HRF |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 61675A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH | ||||
| 61077-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 61676A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH | ||||
| 61078-28060 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-2J550 |
CR40,50,SR40,50..D |
1 | ||
| 61703-2J510 |
CR40,50,SR40,50..E,Q |
1 | ||
| 61703-2J530 |
CR40,50,SR40,50..HRF..(E,Q) ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 61703-2J560 |
SR40,50..4D..B |
1 | ||
| 61704H - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-2J320 |
CR40,50,SR40,50..E,Q |
1 | ||
| 61704-2J360 |
CR40,50,SR40,50..D |
1 | ||
| 61704-2J340 |
CR40,50,SR40,50..HRF..(E,Q) ｱﾘ(ﾑ-ﾝﾙ-ﾌ) |
1 | ||
| 61704-2J370 |
SR40,50..B |
1 | ||
| 61705 - PANEL SUB-ASSY, ROOF SIDE, INNER RH | ||||
| 61705-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61706 - PANEL SUB-ASSY, ROOF SIDE, INNER LH | ||||
| 61706-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 62156A - INSULATOR, COWL SIDE, RH | ||||
| 62156-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 62157 - INSULATOR, COWL SIDE, LH | ||||
| 62157-28010 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 62372A - RETAINER, ROOF SIDE RAIL WEATHER STRIP, REAR LH | ||||
| 62372-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH | ||||
| 76621-28080 |
CR5#,SR50 |
1 | ||
| 76621-28100A0 |
CR50,SR50..E,Q WHITE,056 |
1 | ||
| 76621-28100B0 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),SILVER PEARL ME.,1A7 |
1 | ||
| 76621-28100B2 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),CRYSTAL PEARL ME,1C1 |
1 | ||
| 76621-28100B1 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),BLUISH SILVER ME.,2EP |
1 | ||
| 76621-28100B3 |
CR50,SR50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 76621-28100B1 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),BLUISGH SILVER ME,2EP |
1 | ||
| 76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH | ||||
| 76622-28100B0 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),SILVER PEARL ME.,1A7 |
1 | ||
| 76622-28100A0 |
CR50,SR50..E,Q WHITE,056 |
1 | ||
| 76622-28080 |
CR5#,SR50 |
1 | ||
| 76622-28100B3 |
CR50,SR50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 76622-28100B2 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),CRYSTAL PEARL ME,1C1 |
1 | ||
| 76622-28100B1 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),BLUISH SILVER ME.,2EP |
1 | ||
| 76622-28100B1 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),BLUISGH SILVER ME,2EP |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76625-28110B1 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),BLUISGH SILVER ME,2EP |
1 | ||
| 76625-28110B1 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),BLUISH SILVER ME.,2EP |
1 | ||
| 76625-28110B0 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),SILVER PEARL ME.,1A7 |
1 | ||
| 76625-28080 |
CR5#,SR50 |
1 | ||
| 76625-28110A0 |
CR50,SR50..E,Q WHITE,056 |
1 | ||
| 76625-28110B2 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),CRYSTAL PEARL ME,1C1 |
1 | ||
| 76625-28110B3 |
CR50,SR50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76626-28110B1 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),BLUISH SILVER ME.,2EP |
1 | ||
| 76626-28110B2 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),CRYSTAL PEARL ME,1C1 |
1 | ||
| 76626-28110B0 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),SILVER PEARL ME.,1A7 |
1 | ||
| 76626-28110B1 |
CR50,SR50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),BLUISGH SILVER ME,2EP |
1 | ||
| 76626-28110A0 |
CR50,SR50..E,Q WHITE,056 |
1 | ||
| 76626-28080 |
CR5#,SR50 |
1 | ||
| 76626-28110B3 |
CR50,SR50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| Common parts | ||||
| 55736-28030 | ||||
| 85373-28020 | ||||
| 90159-45010 | ||||
| 90159-60570 | ||||
| 90189-06213 | ||||
| 90189-06216 | ||||
| 90333-15003 | ||||
| 90333-20001 | ||||
| 90467-06048C0 | ||||
| 90467-10018 | ||||
| 90950-01027 | ||||
| 90950-01047 | ||||
| 90950-01362 | ||||
| 90950-01753 | ||||
| 90950-01820 | ||||
| 90950-01850 | ||||
| 90950-01890 | ||||
| 90950-01912 | ||||
| 90950-06001 | ||||

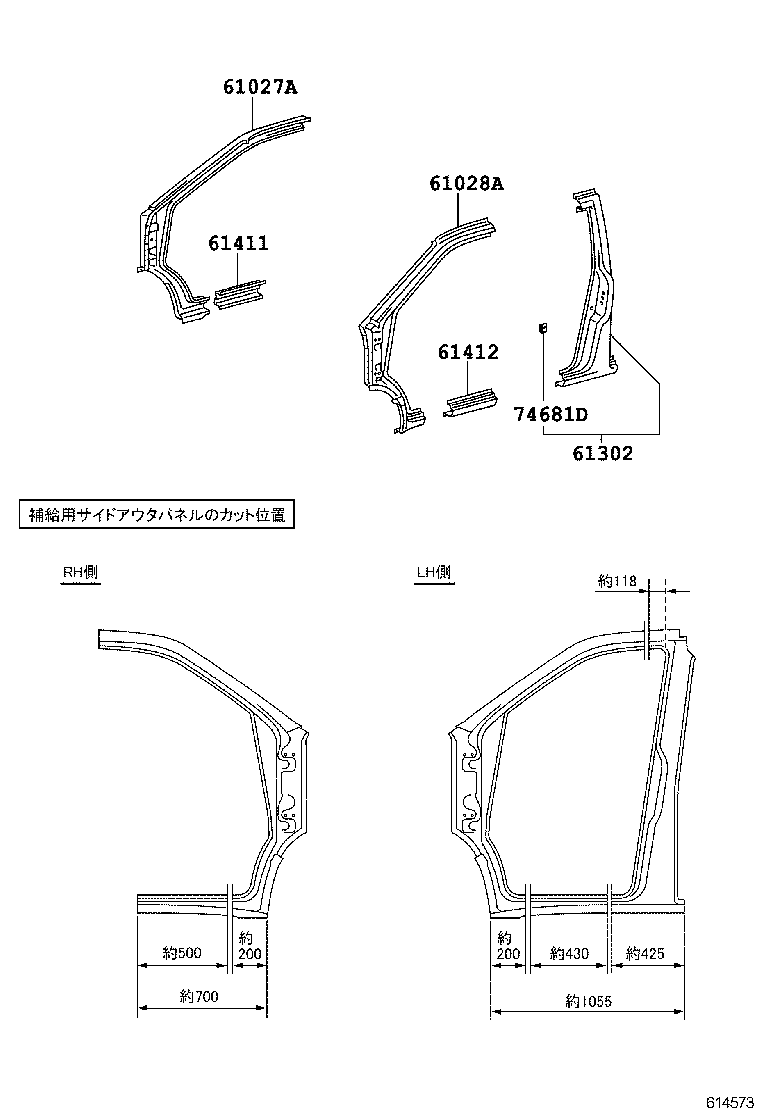

ILLUST NO. 1 OF 2(9610- )4D
ｱｳﾀﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61027A - PILLAR SUB-ASSY, FRONT BODY, OUTER RH | ||||
| 61021-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61028A - PILLAR SUB-ASSY, FRONT BODY, OUTER LH | ||||
| 61022-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-28150 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 74681D - RETAINER, ASSIST GRIP LH | ||||
| 74681-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
