CR50G-HRMEX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9812)CR5#,SR50 ; (9812- )CR52,KR52,SR50..03S,05S,06S

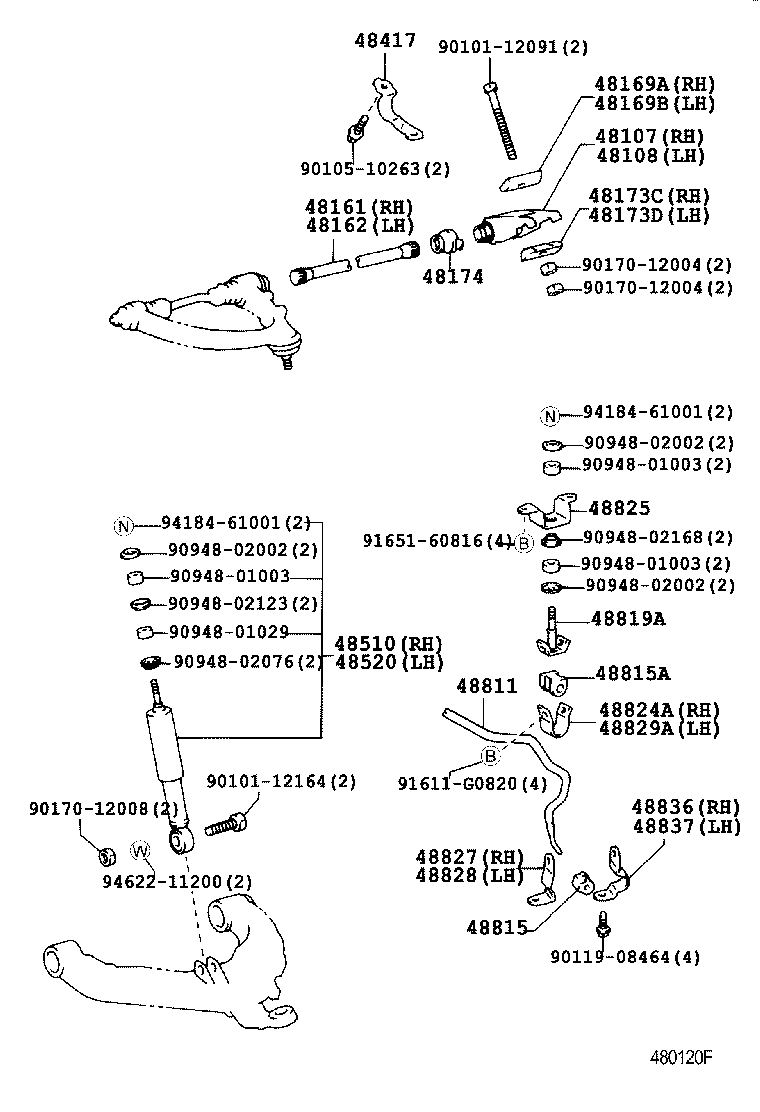

Click highlighted areas on diagram

diagram 48107 48108 48161 48162 48169A 48169B 48173C 48173D 48174 48417 48510 48520 48811 48815 48815A 48819A 48824A 48825 48827 48828 48829A 48836 48837 9010112091 9010112164 9010510263 9011908464 9017012004 9017012004 9017012008 9094801003 9094801003 9094801003 9094801029 9094802002 9094802002 9094802002 9094802076 9094802123 9094802168 91611G0820 9165160816 9418461001 9418461001 9462211200
Part # Description Qty Price
48107 - ARM SUB-ASSY, ANCHOR, RH
48107-28020

CR4#,5#,KR4#,SR40,50

 1
48108 - ARM SUB-ASSY, ANCHOR, LH
48108-27030

CR4#,5#,KR4#,SR40,50

 1
48161 - SPRING, TORSION BAR, RH
48161-28080

CR5#,SR50

 1
48162 - SPRING, TORSION BAR, LH
48162-28080

CR5#,SR50

 1
48169A - SWIVEL, ANCHOR ARM, RH
48169-28030

CR4#,5#,KR4#,SR40,50

 1
48169B - SWIVEL, ANCHOR ARM, LH
48169-28040

CR4#,5#,KR4#,SR40,50

 1
48173C - SEAT, ANCHOR ARM ADJUSTER, RH
48173-27010

CR4#,5#,KR4#,SR40,50

 1
48173D - SEAT, ANCHOR ARM ADJUSTER, LH
48173-27010

CR4#,5#,KR4#,SR40,50

 1
48174 - COVER, TORSION BAR DUST
48175-27010

CR4#,5#,KR4#,SR40,50

 2
48417 - BRACKET, SPRING
48417-28040

CR4#,5#,KR4#,SR40,50

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48500-29675

CR50,SR50

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48500-29675

CR50,SR50

 1
48811 - BAR, STABILIZER, FRONT
48811-28150

CR5#,SR50

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-28030

CR5#,SR50

 2
48815A - BUSH, FRONT STABILIZER BAR, NO.2
48815-28070

CR5#,SR50

 2
48819A - BOLT, FRONT STABILIZER
48819-28020

CR5#,SR50

 2
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-28120

CR5#,SR50

 1
48825 - BRACKET, STABILIZER, NO.2
48825-28040

CR5#,SR50

 2
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48827-28020

CR5#,SR50

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48827-28020

CR5#,SR50

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-28120

CR5#,SR50

 1
48836 - BRACKET, FRONT STABILIZER END, RH
48836-28020

CR5#,SR50

 1
48837 - BRACKET, FRONT STABILIZER END, LH
48836-28020

CR5#,SR50

 1
Common parts
90101-12091
90101-12164
90105-10263
90119-08464
90170-12004
90170-12008
90948-01003
90948-01029
90948-02002
90948-02076
90948-02123
90948-02168
91611-G0820
91651-60816
94184-61001
94622-11200
