CR50G-HFSQX (1996)
Toyota Lite/Townace Noah,V
ILLUST NO. 1 OF 5(9610-9812)
ﾌﾛﾝﾄ---ﾌﾟﾂｼﾕｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-28320 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-28650 |
CR40,50,SR40,50..E,Q,V ﾘﾔ |
1 | ||
| 55900-28690 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 55900-28640 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-28650 |
CR40,50,SR40,50..E,Q,V ﾘﾔ |
1 | ||
| 55900-28690 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 55900-28640 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 55900E - BULB, AIR CONDITIONER CONTROL, NO.2 | ||||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
CR4#,5#,KR4#,SR40,50..B,D,N |
4 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..Q A/C |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-28110 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-28130 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60180 |
CR40,50,SR40,50..E,Q,V A/C |
1 | ||
| 55905-28120 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93567-55020 | ||||
| 93568-55016 | ||||
ILLUST NO. 3 OF 5(9610-9812)
ﾌﾛﾝﾄﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55835A - DUCT, HEATER TO REGISTER, CENTER | ||||
| 55835-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55844-28070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55846-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-28130 |
CR40,50,SR40,50..07S,08S |
1 | ||
| Common parts | ||||
| 90159-60383 | ||||
| 90179-06239 | ||||
| 90183-05094 | ||||
| 90467-05142 | ||||
| 90480-26022 | ||||
| 90950-01897 | ||||
| 93568-55016 | ||||
ILLUST NO. 5 OF 5(9610- )CR4#,5#,SR40,50

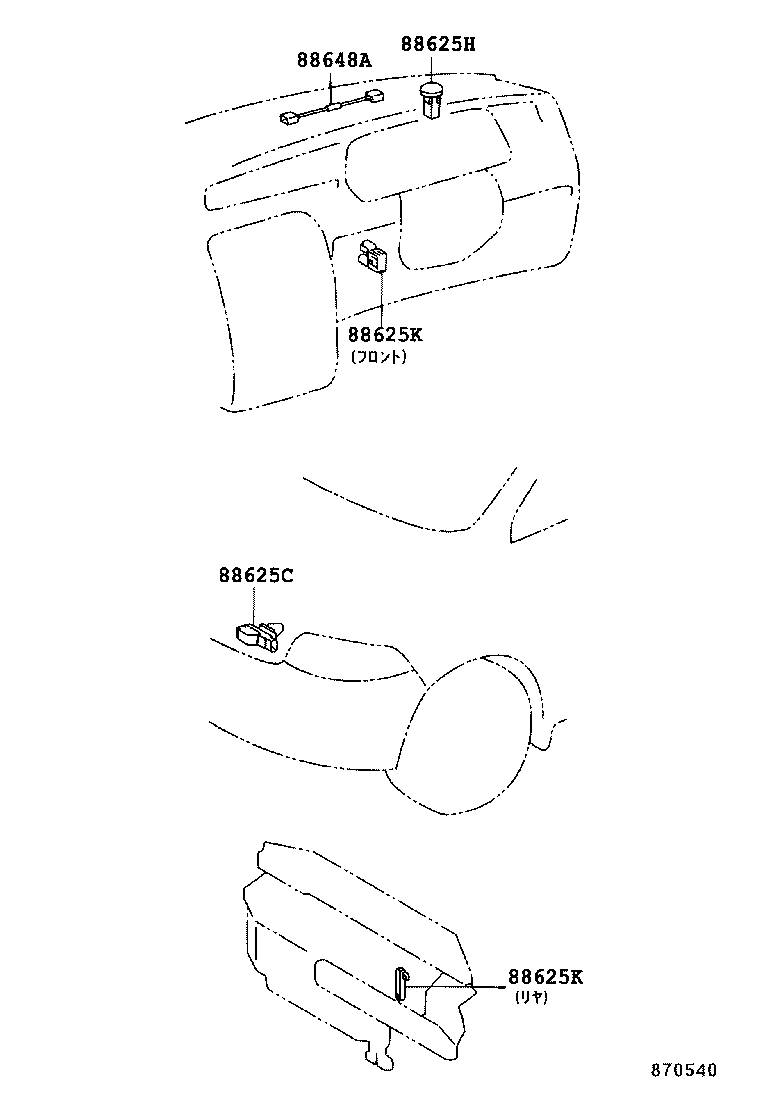

ｵ-ﾄｴｱｺﾝ ｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-3A080 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-32160 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 88625K - THERMISTOR, COOLER | ||||
| 88625-33010 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 88625-28160 |
CR40,50,SR40,50..E,Q,V ﾘﾔ |
1 | ||
| 88625K - THERMISTOR, COOLER | ||||
| 88625-33010 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄ |
1 | ||
| 88625-28160 |
CR40,50,SR40,50..E,Q,V ﾘﾔ |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-28240 |
CR40,50,SR40,50..E,Q,V |
1 | ||
ILLUST NO. 4 OF 5(9610- )CR4#,5#,SR40,50

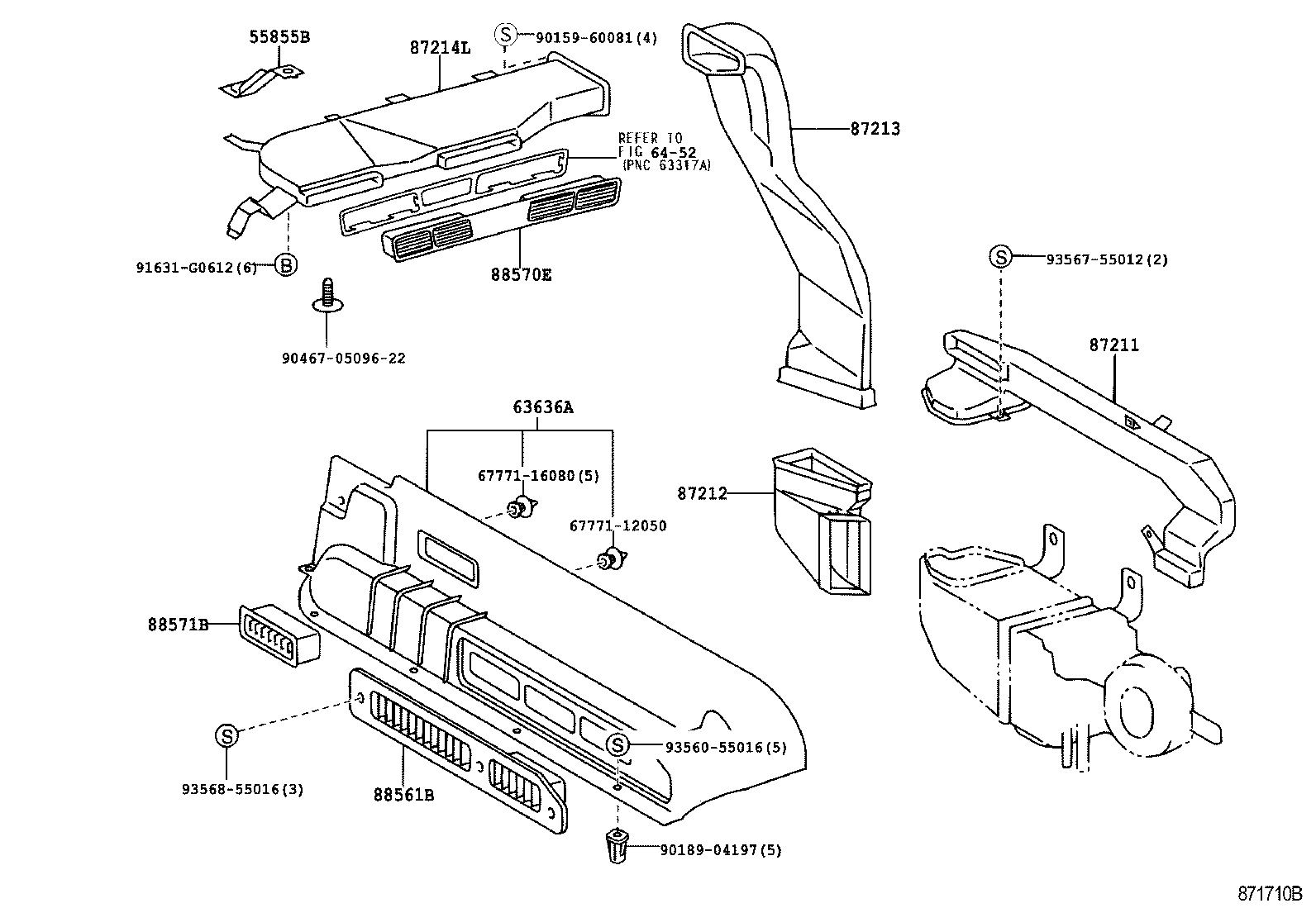

ﾘﾔﾀﾞｸﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55855B - BRACKET, AIR DUCT REGISTER MOUNTING | ||||
| 55855-28030 |
CR40,50,SR40,50..07S,08S |
3 | ||
| 63636A - COVER, REAR COOLER UNIT | ||||
| 63636-28010B1 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
1 | ||
| 63636-28020B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-28130 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-28030 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-28050 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 87214L - BRACKET, AIR DUCT | ||||
| 87214-28030 |
CR40,50,SR40,50..HRF..(E,Q) |
1 | ||
| 88561B - GRILLE, COOLER AIR INLET | ||||
| 88560-28110G2 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 88560-28110B4 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-28130B0 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
1 | ||
| 88570-28131G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 88570-28131B0 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
1 | ||
| 88570-28120B5 |
CR40,50,SR40,50..07S,08S MOON MIST,TRIM1# |
1 | ||
| 88570-28120G3 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 88570-28130G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 88571B - GRILLE, AIR OUTLET | ||||
| 87125-28040G1 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 87125-28040B1 |
CR40,50,SR40,50..07S,08S MD.MOON MIST,TRIM1# |
1 | ||
| Common parts | ||||
| 67771-12050 | ||||
| 67771-16080 | ||||
| 90159-60081 | ||||
| 90189-04197 | ||||
| 90467-0509622 | ||||
| 91631-G0612 | ||||
| 93560-55016 | ||||
| 93567-55012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 6452 | ||||
ILLUST NO. 2 OF 5(9610- )CR4#,5#,SR40,50

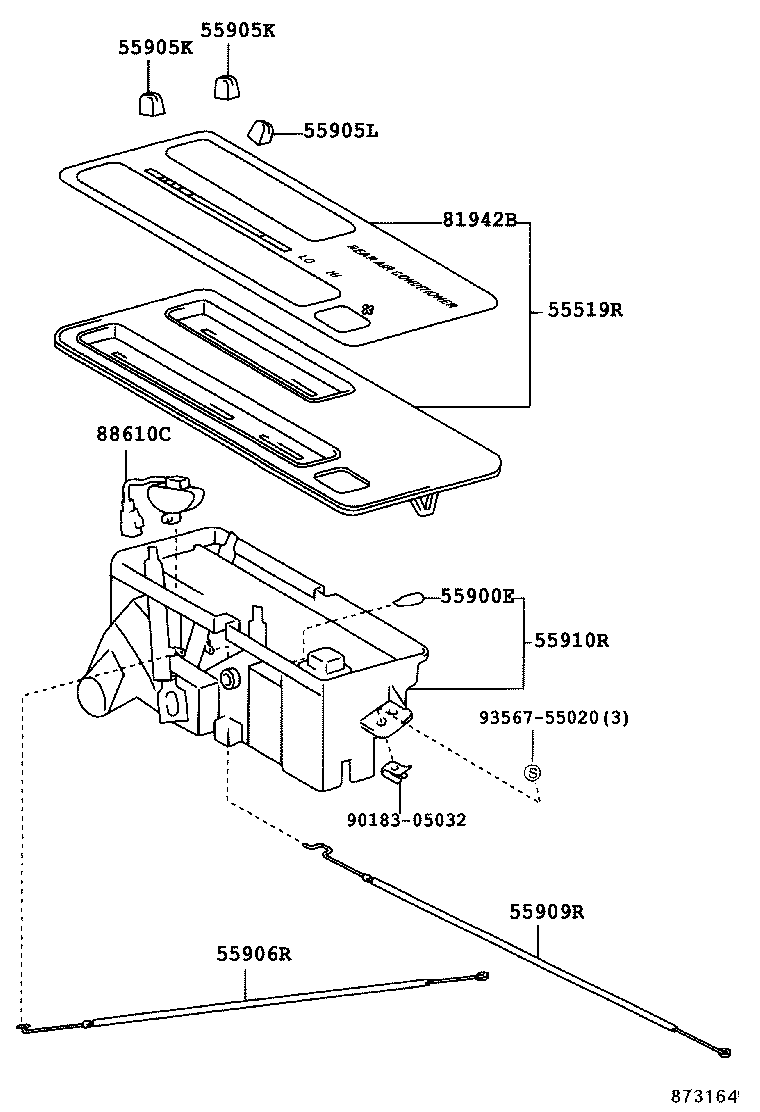

ﾘﾔｺﾝﾄﾛ-ﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519R - PLATE, HEATER CONTROL NAME | ||||
| 55519-28320 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
1 | ||
| 55900E - BULB, AIR CONDITIONER CONTROL, NO.2 | ||||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
4 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93567-55020 | ||||
ILLUST NO. 1 OF 5(9801-9812)
ﾌﾛﾝﾄ---ﾀﾞｲﾔﾙｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
CR4#,5#,KR4#,SR40,50..B,D,N |
4 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60190 |
CR40,50,SR40,50..E,Q,V ﾌﾛﾝﾄﾃﾞﾌｯｶﾞ |
1 | ||
| 55905-60230 |
CR40,50,SR40,50..E,Q,V 内気/外気 |
1 | ||
| 55905-28090 |
CR40,50,SR40,50..E,Q,V ﾘﾔ ﾌｧﾝ |
1 | ||
| 55905-28080 |
CR40,50,SR40,50..E,Q,V ﾓｰﾄﾞ |
1 | ||
| 55905-60220 |
CR40,50,SR40,50..E,Q,V OFF |
1 | ||
| 55905-60240 |
CR40,50,SR40,50..E,Q,V ｵｰﾄ |
1 | ||
| 55905-28100 |
CR40,50,SR40,50..Q A/C |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-28330 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16200 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 5(9610-9801)
ﾌﾛﾝﾄ---ﾀﾞｲﾔﾙｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
CR4#,5#,KR4#,SR40,50..B,D,N |
4 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-28330 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16200 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93568-55016 | ||||
ILLUST NO. 1 OF 5(9611- )
ﾌﾛﾝﾄ---ﾚﾊﾞ-ｼｷ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-16110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90981-11014 |
CR4#,5#,KR4#,SR40,50..B,D,N 14V 1.4W,*DH OR *LHC |
1 | ||
| 90010-05101 |
CR40,50,SR40,50..E,Q,V 14V 1.12W,ｸﾞﾘｰﾝｷｬｯﾌﾟ付き,14V 1.12W,*PHC |
4 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-89115 |
CR4#,5#,KR4#,SR40,50..B,D,N |
4 | ||
| 55905-60170 |
CR40,50,SR40,50..E,Q,V ｱﾘ(ｵ-ﾄｴｱｺﾝ) |
2 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-28210 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-28110 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-28330 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-16200 |
CR4#,5#,KR4#,SR40,50..B,D,N |
1 | ||
| Common parts | ||||
| 90183-05032 | ||||
| 93568-55016 | ||||
