CR50G-HFSQX (1996)
Toyota Lite/Townace Noah,V

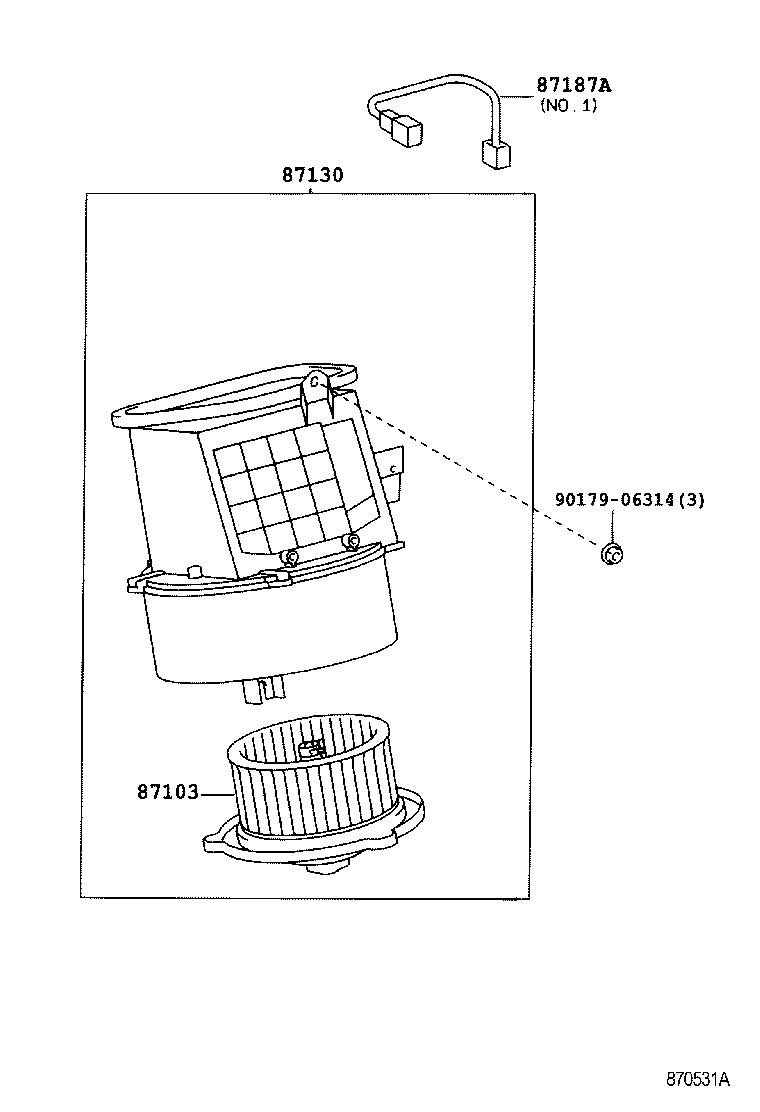

ILLUST NO. 1 OF 3(9610- )
ﾌﾛﾝﾄﾋ-ﾀ ﾌﾞﾛﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-22120 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87103-20110 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28380 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-28020 |
CR4#,5#,KR4#,SR40,50 NO.1 |
1 | ||
| 87187-28030 |
CR40,50,SR40,50..E,Q,V NO.2 |
1 | ||
| Common parts | ||||
| 90179-06314 | ||||
ILLUST NO. 3 OF 3(9611- )
ﾘﾔﾋ-ﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91621-G0614 | ||||
ILLUST NO. 1 OF 3(9610- )CR4#,5#,KR4#,SR40,50

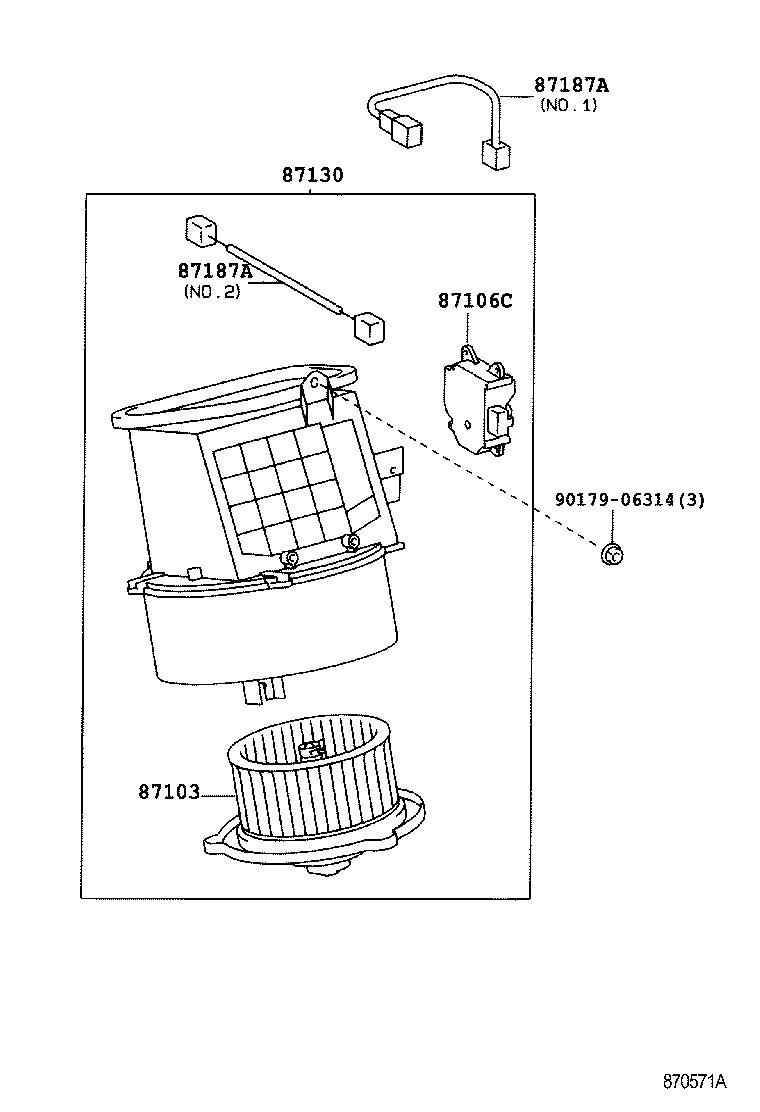

ﾌﾛﾝﾄﾋ-ﾀ ﾌﾞﾛﾜ---ｵ-ﾄ ｴｱｺﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-22120 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87103-20110 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-28050 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-28380 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-28020 |
CR4#,5#,KR4#,SR40,50 NO.1 |
1 | ||
| 87187-28030 |
CR40,50,SR40,50..E,Q,V NO.2 |
1 | ||
| 87187A - WIRE, BLOWER MOTOR LEAD | ||||
| 87187-28020 |
CR4#,5#,KR4#,SR40,50 NO.1 |
1 | ||
| 87187-28030 |
CR40,50,SR40,50..E,Q,V NO.2 |
1 | ||
| Common parts | ||||
| 90179-06314 | ||||
ILLUST NO. 2 OF 3(9610-9812)
ﾌﾛﾝﾄ ﾕﾆﾂﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87107-28160 |
CR4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87114-28061 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87114-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-28490 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W,ﾊﾞｯﾃﾘ=105D31R |
1 | ||
| 87150-28530 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87150-28550 |
SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87150-28531 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87150-28551 |
SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87150-28491 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W |
1 | ||
| 87150-28481 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87150-28540 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W,ﾊﾞｯﾃﾘ=105D31R |
1 | ||
| 87150-28541 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W |
1 | ||
| 87150-28480 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87190C - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-28010 |
CR4#,5#,KR4# |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-28170 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-28160 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87220A - DUCT ASSY, HEATER RADIATOR AIR | ||||
| 87220-28010 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87710C - HEATER ASSY, QUICK | ||||
| 87710-28040 |
CR4#,5# PTC ﾋ-ﾀ=160W |
1 | ||
| 87710-28051 |
CR4#,5# PTC ﾋ-ﾀ=250W |
1 | ||
| 87710-28050 |
CR4#,5# PTC ﾋ-ﾀ=250W |
1 | ||
| 87710-28041 |
CR4#,5# PTC ﾋ-ﾀ=160W |
1 | ||
| Common parts | ||||
| 90179-06239 | ||||
| 90467-05142 | ||||
| 90480-01410 | ||||
ILLUST NO. 2 OF 3(9610-9812)
ﾌﾛﾝﾄ ﾕﾆﾂﾄ---ｱﾘ(ﾃﾝﾊﾟﾗﾁﾔ ｺﾝﾄﾛ-ﾙ ｽｲﾂﾁ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87107-28160 |
CR4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87114-28061 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87114-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-28490 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W,ﾊﾞｯﾃﾘ=105D31R |
1 | ||
| 87150-28530 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87150-28550 |
SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87150-28531 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87150-28551 |
SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87150-28491 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W |
1 | ||
| 87150-28481 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87150-28540 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W,ﾊﾞｯﾃﾘ=105D31R |
1 | ||
| 87150-28541 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W |
1 | ||
| 87150-28480 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87190C - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-28010 |
CR4#,5#,KR4# |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-28170 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-28160 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87220A - DUCT ASSY, HEATER RADIATOR AIR | ||||
| 87220-28010 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| Common parts | ||||
| 90179-06239 | ||||
| 90467-05142 | ||||
| 90480-01410 | ||||
ILLUST NO. 2 OF 3(9610-9812)
ﾌﾛﾝﾄ ﾕﾆﾂﾄ(ｵ-ﾄ ｴｱｺﾝ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-28030 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 87106M - SERVO SUB-ASSY, DAMPER, NO.2 | ||||
| 87106-28040 |
CR40,50,SR40,50..E,Q,V |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87107-28160 |
CR4#,5# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87114 - COVER, HEATER | ||||
| 87114-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87114-28061 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87114-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-28490 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W,ﾊﾞｯﾃﾘ=105D31R |
1 | ||
| 87150-28530 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87150-28550 |
SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87150-28531 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87150-28551 |
SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87150-28491 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W |
1 | ||
| 87150-28481 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87150-28540 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W,ﾊﾞｯﾃﾘ=105D31R |
1 | ||
| 87150-28541 |
CR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ & PTC ﾋ-ﾀ=250W |
1 | ||
| 87150-28480 |
CR4#,5#..D,E,N,V ﾏﾆﾕｱﾙ ｴｱｺﾝ & PTC ﾋ-ﾀ=160W |
1 | ||
| 87190C - SWITCH ASSY, TEMPERATURE CONTROL | ||||
| 87190-28010 |
CR4#,5#,KR4# |
1 | ||
| 87211E - DUCT, AIR | ||||
| 87211-28170 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87211F - DUCT, AIR | ||||
| 87211-28160 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 87220A - DUCT ASSY, HEATER RADIATOR AIR | ||||
| 87220-28010 |
CR40,50,SR40,50..E,Q,V ｵ-ﾄ ｴｱｺﾝ |
1 | ||
| 87710C - HEATER ASSY, QUICK | ||||
| 87710-28040 |
CR4#,5# PTC ﾋ-ﾀ=160W |
1 | ||
| 87710-28051 |
CR4#,5# PTC ﾋ-ﾀ=250W |
1 | ||
| 87710-28050 |
CR4#,5# PTC ﾋ-ﾀ=250W |
1 | ||
| 87710-28041 |
CR4#,5# PTC ﾋ-ﾀ=160W |
1 | ||
| 88650D - AMPLIFIER ASSY | ||||
| 88650-28650 |
CR40,50,SR40,50..Q |
1 | ||
| 88650-28750 |
CR40,50..Q ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| Common parts | ||||
| 90179-06239 | ||||
| 90467-05142 | ||||
| 90480-01410 | ||||
