CR50G-HFSQX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )CR5#,KR52,SR50

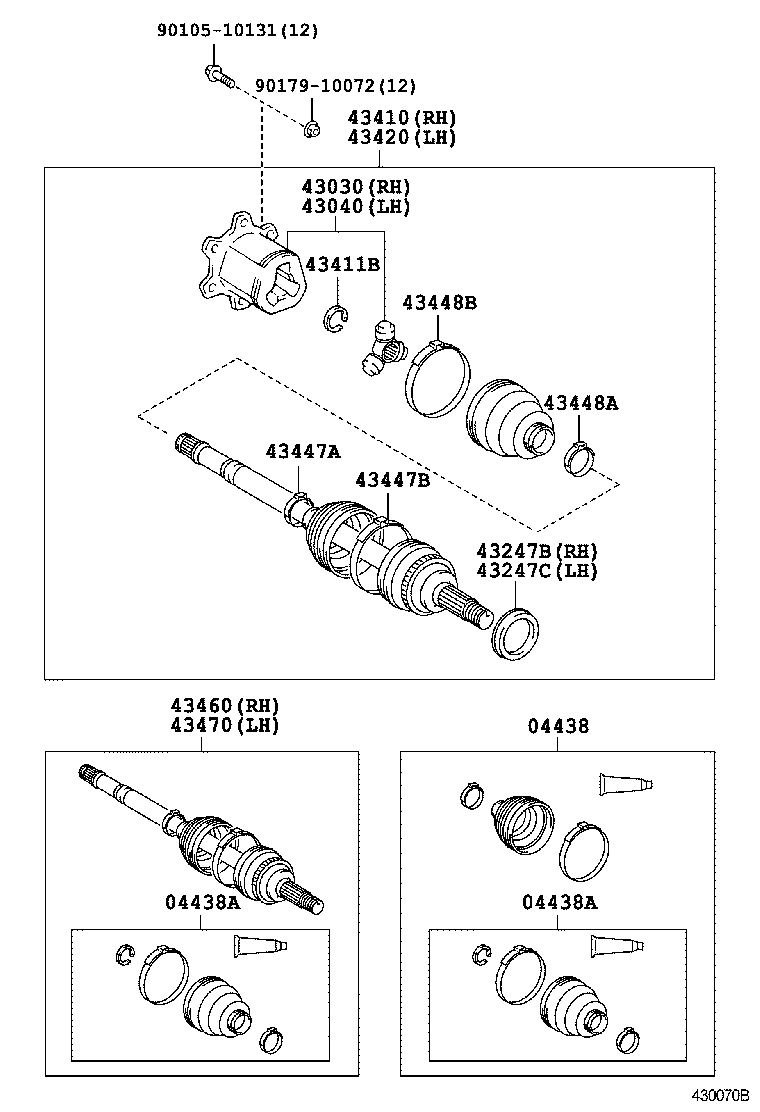

Click highlighted areas on diagram

diagram 04438 04438A 04438A 43030 43040 43247B 43247C 43410 43411B 43420 43447A 43447B 43448A 43448B 43460 43470 9010510131 9017910072
Part # Description Qty Price
04438 - BOOT KIT, FRONT DRIVE SHAFT
04437-20020

CR5#,SR50

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-28011

CR5#,SR50

 2
04438A - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT
04438-28011

CR5#,SR50

 2
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43403-28010

CR5#,SR50

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43403-28010

CR5#,SR50

 1
43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247-28010

CR5#,SR50

 1
43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43247-28010

CR5#,SR50

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-28021

CR5#,SR50

ｱﾘ(ABS)

 1
43410-28020

CR5#,SR50

ｱﾘ(ABS)

 1
43411B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER)
90520-26028

CR5#,SR50

 2
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-28021

CR5#,SR50

ｱﾘ(ABS)

 1
43420-28020

CR5#,SR50

ｱﾘ(ABS)

 1
43447A - CLAMP, NO.1 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-16030

CR5#,SR50

 2
43447B - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT SETTING
42345-16070

CR5#,SR50

 2
43448A - CLAMP, NO.1 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-16030

CR5#,SR50

 2
43448B - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT SETTING)
42345-16090

CR5#,SR50

 2
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43460-29305

CR5#,SR50

ｱﾘ(ABS)

 1
43460-29306

CR5#,SR50

ｱﾘ(ABS)

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-29486

CR5#,SR50

ｱﾘ(ABS)

 1
43470-29485

CR5#,SR50

ｱﾘ(ABS)

 1
Common parts
90105-10131
90179-10072
