CR50G-HFSQT (1998)
Toyota Lite/Townace Noah,V

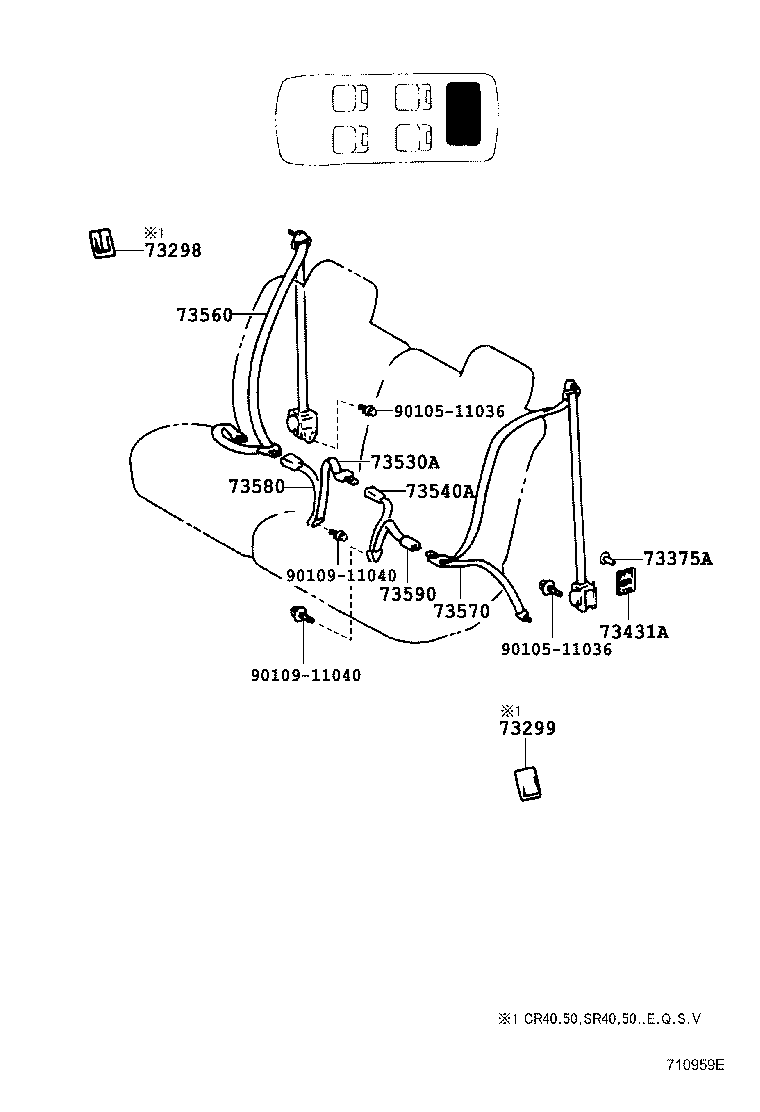

ILLUST NO. 6 OF 6(9610-0111)07S,08S
ﾘﾔ NO.2ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73298 - COVER, QUARTER TRIM BELT HOLE, NO.2 RH | ||||
| 73299-28010B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73299-28010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73299-28010B0 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 73299-28010B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73299-28010G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73299 - COVER, QUARTER TRIM BELT HOLE, NO.2 LH | ||||
| 73299-28020G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73299-28020B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73299-28020B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73299-28020B0 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 73299-28020G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73375A - CLIP, REAR SEAT BELT COVER | ||||
| 90467-05063B3 |
CR40,50,SR40,50..B,D BLUISH GRAY,TRIM1# |
4 | ||
| 73431A - COVER, REAR SEAT BELT RETRACTOR | ||||
| 73431-28010B0 |
CR40,50,SR40,50..B,D MD.MOON MIST,TRIM1# |
2 | ||
| 73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH | ||||
| 73530-28090B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73530-28090B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73530-28090G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73530-28090G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73530-28090B0 |
CR40,50,SR40,50..D,S,V BLUISH GRAY,TRIM1# |
1 | ||
| 73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH | ||||
| 73540-28070B0 |
CR40,50,SR40,50..D,S,V BLUISH GRAY,TRIM1# |
1 | ||
| 73540-28070G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73540-28070B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73540-28070G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73540-28070B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH | ||||
| 73560-28240G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73560-28240B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73560-28270B0 |
CR40,50,SR40,50..S,V BLUISH GRAY,TRIM1# |
1 | ||
| 73560-28270G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73560-28280B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73560-28270B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH | ||||
| 73570-28270B0 |
CR40,50,SR40,50..S,V BLUISH GRAY,TRIM1# |
1 | ||
| 73570-28240G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73570-28240B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73570-28280B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73570-28270B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73570-28270G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH | ||||
| 73580-28160B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73580-28160B0 |
CR40,50,SR40,50..D,S,V BLUISH GRAY,TRIM1# |
1 | ||
| 73580-28160G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73580-28160G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 72580-28160B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH | ||||
| 73580-28160B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73580-28160G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73580-28160B0 |
CR40,50,SR40,50..D,S,V BLUISH GRAY,TRIM1# |
1 | ||
| 73580-28160B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73580-28160G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
| 90109-11040 | ||||

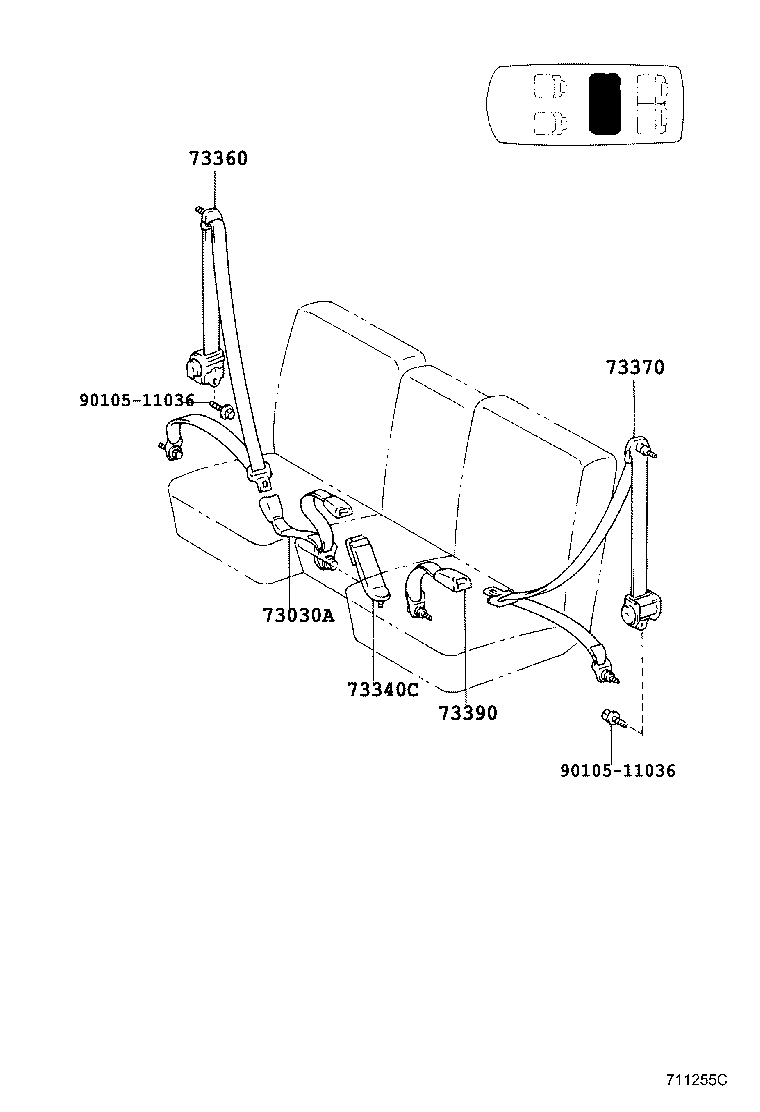

ILLUST NO. 4 OF 6(9812-0111)CR40,50,SR40,50
ﾘﾔ NO.1ｼｰﾄ(ﾀﾝﾌﾞﾙ ｼｰﾄ ﾀｲﾌﾟ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73030A - BELT ASSY, REAR SEAT LAP TYPE, RH | ||||
| 73030-28100B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73040-28100B0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(X), *(Y) & ｱﾘ(ﾘﾔ NO.1 ｼ-ﾄ=TYPE B(ﾀﾝﾌﾞﾙ ｼ-ﾄ)),BLUISH GRAY,TRIM10 |
1 | ||
| 73040-28100B0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S) & ｱﾘ(ﾘﾔ NO.1 ｼ-ﾄ=TYPE B(ﾀﾝﾌﾞﾙ ｼ-ﾄ)),BLUISH GRAY,TRIM10 |
1 | ||
| 73040-28100G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73340C - BELT ASSY, REAR SEAT LAP TYPE, CENTER LH | ||||
| 73340-28071B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73340-28071G0 |
CR40,50,SR40,50..E DARK AGATE,TRIM6# |
1 | ||
| 73340-28071B0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(X), *(Y) & ｱﾘ(ﾘﾔ NO.1 ｼ-ﾄ=TYPE B(ﾀﾝﾌﾞﾙ ｼ-ﾄ)),BLUISH GRAY,TRIM10 |
1 | ||
| 73340-28071B0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S) & ｱﾘ(ﾘﾔ NO.1 ｼ-ﾄ=TYPE B(ﾀﾝﾌﾞﾙ ｼ-ﾄ)),BLUISH GRAY,TRIM10 |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-28530B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73360-28560B0 |
CR40,50,SR40,50..D,S,V BLUISH GRAY,TRIM1# |
1 | ||
| 73360-28460B0 |
SR40,50..4D..B BLUISH GRAY,TRIM1# |
1 | ||
| 73360-28560G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73360-28560B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73360-28530G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-28430B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28430G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370-28470B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28380G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370-28380B0 |
CR40,50,SR40,50..S,V BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28370B0 |
SR40,50..B BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28380B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-28261B0 |
SR40,50..B BLUISH GRAY,TRIM1# |
1 | ||
| 73390-28200G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73390-28210B0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S) & ｱﾘ(ﾘﾔ NO.1 ｼ-ﾄ=TYPE B(ﾀﾝﾌﾞﾙ ｼ-ﾄ)),BLUISH GRAY,TRIM10 |
1 | ||
| 73390-28210B0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(X), *(Y) & ｱﾘ(ﾘﾔ NO.1 ｼ-ﾄ=TYPE B(ﾀﾝﾌﾞﾙ ｼ-ﾄ)),BLUISH GRAY,TRIM10 |
1 | ||
| 73390-28201B0 |
CR40,50,SR40,50..D,S BLUISH GRAY,TRIM1# |
1 | ||
| 73390-28210G0 |
CR40,50,SR40,50..E ｱﾘ(ﾘﾔ NO.1 ｼ-ﾄ=TYPE B(ﾀﾝﾌﾞﾙ ｼ-ﾄ)),DARK AGATE,TRIM6# |
1 | ||
| 73390-28210B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ & ｱﾘ(ﾘﾔ NO.1 ｼｰﾄ=TYPE B(ﾀﾝﾌﾞﾙｼｰﾄ)),MD.MOON MIST,TRIM10 |
1 | ||
| 73390-28200B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73390-28201B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73390-28201G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||

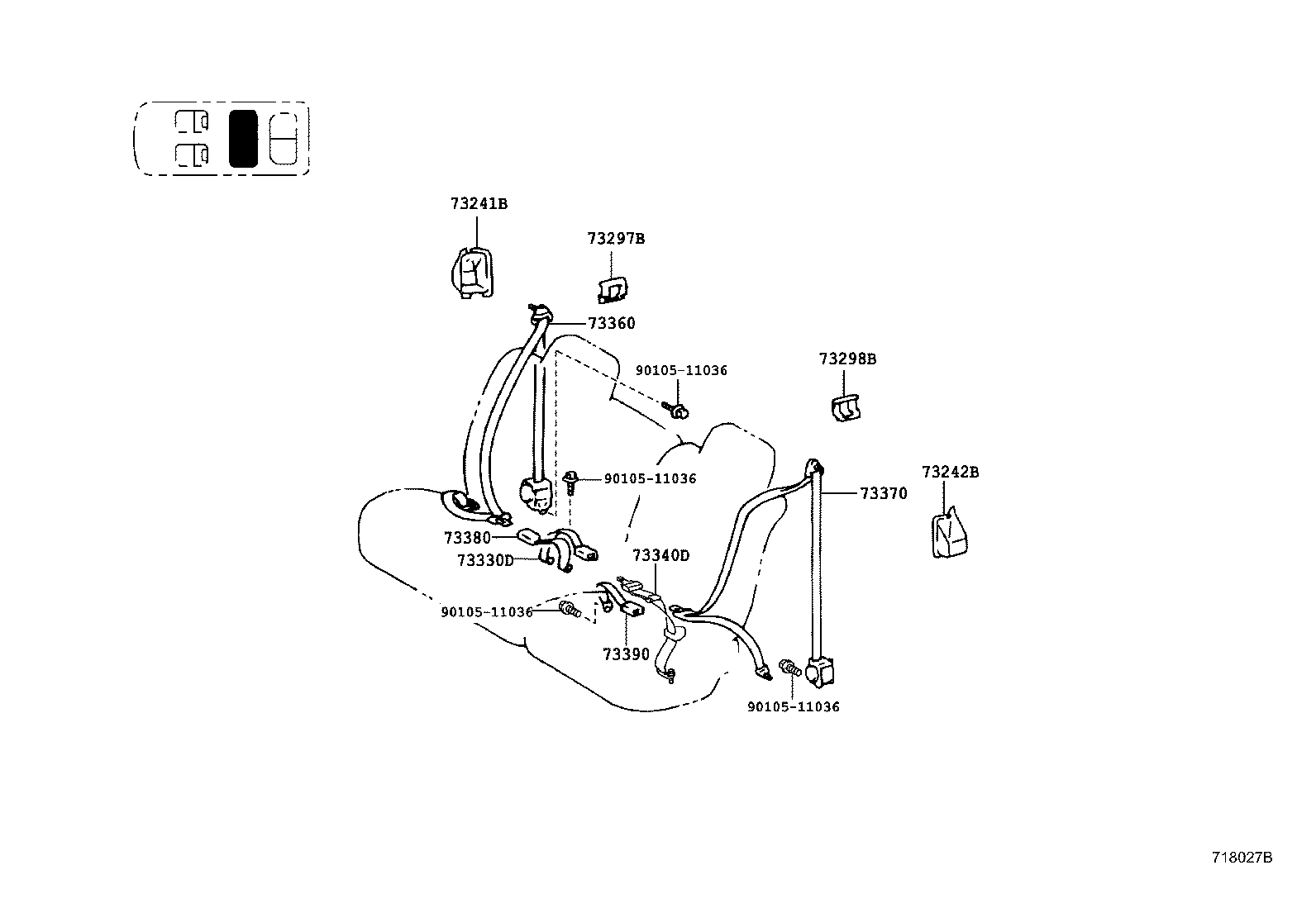

ILLUST NO. 3 OF 6(9610-0111)CR40,50,SR40,50..D
ﾘﾔ NO.1ｼｰﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 73241B - CASE, SEAT BELT RETRACTOR, RH(FOR NO.2 SEAT) | ||||
| 73241-28080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73241-28080 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73242B - CASE, SEAT BELT RETRACTOR, LH(FOR NO.2 SEAT) | ||||
| 73242-28071 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73242-28070 |
CR40,50,SR40,50..07S,08S |
1 | ||
| 73297B - COVER, QUARTER TRIM BELT HOLE, RH | ||||
| 73297-28040B1 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73297-28040G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73297-28040B1 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 73297-28040G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73297-28040B1 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73297-28060B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
1 | ||
| 73298B - COVER, QUARTER TRIM BELT HOLE, LH | ||||
| 73297-28050B0 |
CR40,50,SR40,50..E,Q,V MOON MIST,TRIM1# |
1 | ||
| 73298-28050B0 |
CR40,50,SR40,50..D MD.MOON MIST,TRIM1# |
1 | ||
| 73297-28050B0 |
CR40,50,SR40,50..S,V MOON MIST,TRIM1# |
1 | ||
| 73297-28050B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73297-28050G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73297-28050G0 |
CR40,50,SR40,50..E,Q SAGE,TRIM6# |
1 | ||
| 73330D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER RH | ||||
| 73330-28120G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73330-28121B0 |
CR40,50,SR40,50..D,S BLUISH GRAY,TRIM1# |
1 | ||
| 73330-28141B0 |
SR40,50..B BLUISH GRAY,TRIM1# |
1 | ||
| 73330-28121B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73340D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER LH | ||||
| 73340-28070G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73340-28071B0 |
CR40,50,SR40,50..S BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28070B0 |
CR40,50,SR40,50..(E,V)..CBU BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28131B0 |
SR40,50..B BLUISH GRAY,TRIM1# |
1 | ||
| 73340-28071B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73340-28121B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH | ||||
| 73360-28530B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73360-28560B0 |
CR40,50,SR40,50..D,S,V BLUISH GRAY,TRIM1# |
1 | ||
| 73360-28460B0 |
SR40,50..4D..B BLUISH GRAY,TRIM1# |
1 | ||
| 73360-28560G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73360-28560B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73360-28530G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH | ||||
| 73370-28430B0 |
CR40,50,SR40,50..E,Q,V BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28430G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370-28470B0 |
CR40,50,SR40,50..D BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28380G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73370-28380B0 |
CR40,50,SR40,50..S,V BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28370B0 |
SR40,50..B BLUISH GRAY,TRIM1# |
1 | ||
| 73370-28380B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH | ||||
| 73390-28200G0 |
CR40,50,SR40,50..Q DARK AGATE,TRIM6# |
1 | ||
| 73380-28250G0 |
CR40,50,SR40,50..E..CBU DARK AGATE,TRIM6# |
1 | ||
| 73390-28200B0 |
CR40,50,SR40,50..Q BLUISH GRAY,TRIM1# |
1 | ||
| 73380-28251B0 |
CR40,50,SR40,50..D,S BLUISH GRAY,TRIM1# |
1 | ||
| 73390-28201G0 |
CR40,50,SR40,50..IV5;CR40,50,SR40,50..07S DARK AGATE,TRIM6# |
1 | ||
| 73380-28251B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73380-28261B0 |
SR40,50..B BLUISH GRAY,TRIM1# |
1 | ||
| 73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH | ||||
| 73380-28261B0 |
SR40,50..B BLUISH GRAY,TRIM1# |
1 | ||
| 73390-28200G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| 73390-28210B0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S) & ｱﾘ(ﾘﾔ NO.1 ｼ-ﾄ=TYPE B(ﾀﾝﾌﾞﾙ ｼ-ﾄ)),BLUISH GRAY,TRIM10 |
1 | ||
| 73390-28210B0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(X), *(Y) & ｱﾘ(ﾘﾔ NO.1 ｼ-ﾄ=TYPE B(ﾀﾝﾌﾞﾙ ｼ-ﾄ)),BLUISH GRAY,TRIM10 |
1 | ||
| 73390-28201B0 |
CR40,50,SR40,50..D,S BLUISH GRAY,TRIM1# |
1 | ||
| 73390-28210G0 |
CR40,50,SR40,50..E ｱﾘ(ﾘﾔ NO.1 ｼ-ﾄ=TYPE B(ﾀﾝﾌﾞﾙ ｼ-ﾄ)),DARK AGATE,TRIM6# |
1 | ||
| 73390-28210B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ & ｱﾘ(ﾘﾔ NO.1 ｼｰﾄ=TYPE B(ﾀﾝﾌﾞﾙｼｰﾄ)),MD.MOON MIST,TRIM10 |
1 | ||
| 73390-28200B0 |
CR40,50,SR40,50..07S,08S BLUISH GRAY,TRIM1# |
1 | ||
| 73390-28201B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 73390-28201G0 |
CR40,50,SR40,50..E,Q DARK AGATE,TRIM6# |
1 | ||
| Common parts | ||||
| 90105-11036 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
