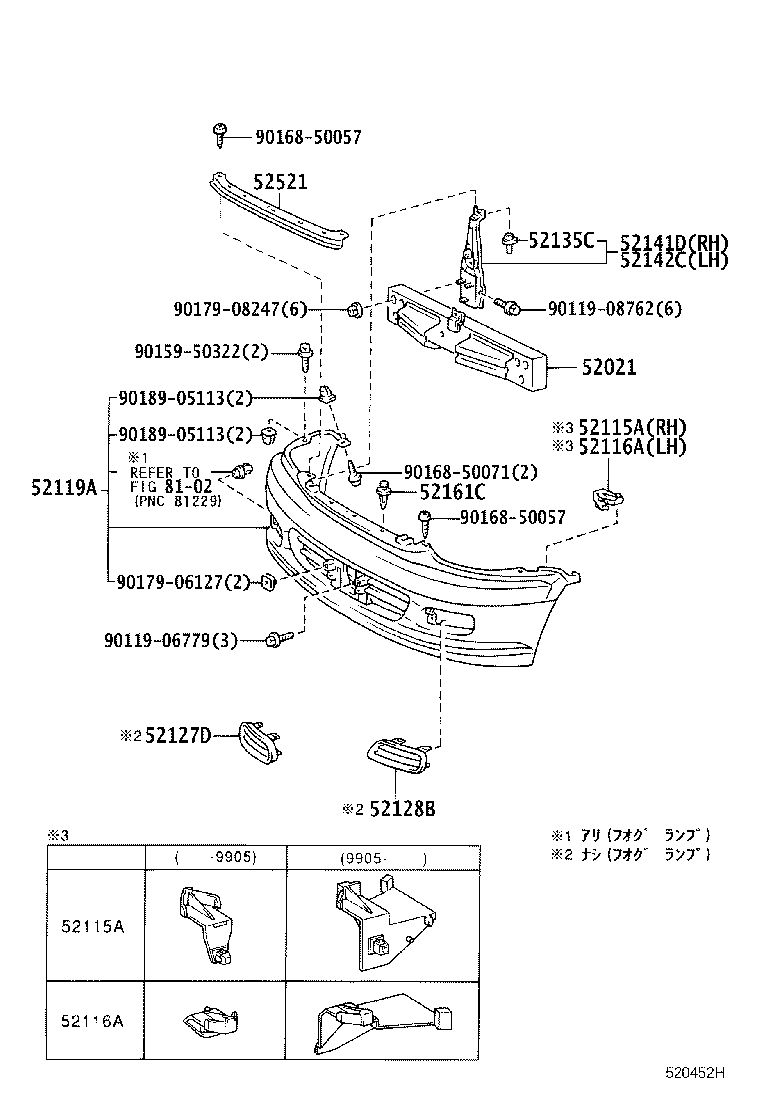

CR50G-HFSQT (1998)
Toyota Lite/Townace Noah,V
(9812- )S
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28130 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52021-28180 |
CR40,50,SR40,50 |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-28040 |
CR40,50,SR40,50..S |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-28030 |
CR40,50,SR40,50..S |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52115-28060 |
CR4#,5#,KR42,SR40,50 |
1 | ||
| 52115-28061 |
CR40,50,SR40,50 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52116-28020 |
CR4#,5#,KR42,SR40,50 |
1 | ||
| 52116-28021 |
CR40,50,SR40,50 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52101-28060B1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DARK GRAY ME.,1B5 |
1 | ||
| 52101-28060B0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BLUISH SILVER ME.,1A0 |
1 | ||
| 52101-28070B1 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DARK GRAY ME.,1B5 |
1 | ||
| 52101-28060G0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),LIGHT OLIVE ME.,6Q3 |
1 | ||
| 52101-28090C0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),HARBOR SIDE TONING,2CM |
1 | ||
| 52101-28070B0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BLUISH SILVER ME.,1A0 |
1 | ||
| 52101-28080C0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),HARBOR SIDE TONING,2CM |
1 | ||
| 52101-28080C1 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),SHINNING PARM TONING,2CP |
1 | ||
| 52101-28090C1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),SHINNING PARM TONING,2CP |
1 | ||
| 52101-28070G0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),LIGHT OLIVE ME.,6Q3 |
1 | ||
| 52119-28440B1 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ,DK.GRAY ME.,1B5 |
1 | ||
| 52101-28080C2 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),MISTY TOPAZ TONING,2CQ |
1 | ||
| 52119-28410G0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,LT.OLIVE ME.,6Q3 |
1 | ||
| 52119-28410B1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,DK.GRAY ME.,1B5 |
1 | ||
| 52119-28270C2 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,MISTY TOPAZ TONING,2CQ |
1 | ||
| 52101-28090C2 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),MISTY TOPAZ TONING,2CQ |
1 | ||
| 52119-28440G0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ,LT.OLIVE ME.,6Q3 |
1 | ||
| 52119-28470C2 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,MISTY TOPAZ TONING,2CQ |
1 | ||
| 52119-28470C1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,SHINNING PARM TONING,2CP |
1 | ||
| 52119-28270C1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,SHINNING PARM TONING,2CP |
1 | ||
| 52119-28410B0 |
CR40,50,SR40,50..D,E ﾀｳﾝｴ-ｽ,BLUISH SILVER ME.,1A0 |
1 | ||
| 52119-28440B0 |
CR40,50,SR40,50..D,E ﾗｲﾄｴ-ｽ,BLUISH SILVER ME.,1A0 |
1 | ||
| 52119-28270C0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,HARBOR SIDE TONING,2CM |
1 | ||
| 52119-28470C0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,HARBOR SIDE TONING,2CM |
1 | ||
| 52119-28790A2 |
SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾒﾓﾘｱﾙｴﾃﾞｲｼﾖﾝ *(X),*(Y),WHITE PEARL MC.,042 |
1 | ||
| 52119-28740A2 |
SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ﾒﾓﾘｱﾙｴﾃﾞｲｼﾖﾝ *(G),*(H),WHITE PEARL MC.,042 |
1 | ||
| 52119-28730B0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 52119-28730A1 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),WHITE PEARL M.M.,042 |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(J),*(K),SILVER ME.,1C0 |
1 | ||
| 52119-28740A2 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(J),*(K),WHITE PEARL MC.,042 |
1 | ||
| 52119-28790A2 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(F),*(N),WHITE PEARL MC.,042 |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(J),*(K),WHITE,056 |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(F),*(N),WHITE,056 |
1 | ||
| 52119-28740A2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),WHITE PEARL MC.,042 |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(F),*(N),SILVER ME.,1C0 |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),WHITE,056 |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28730C0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),BLACK ME.,205 |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),WHITE,056 |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),SILVER ME.,1C0 |
1 | ||
| 52119-28740F0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28790A2 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),WHITE PEARL MC.,042 |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),SILVER ME.,1C0 |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0 |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056 |
1 | ||
| 52119-28740F0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28790F0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28730C0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),BLACK ME.,205 |
1 | ||
| 52119-28790A2 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042 |
1 | ||
| 52119-28730A1 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),WHITE PEARL M.M.,042 |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28790A2 |
SR40,50..E..CBU ﾀｳﾝｴ-ｽ, ｽﾍﾟｼﾔﾙｴﾃﾞｲｼﾖﾝ *(D),*(E),WHITE PEARL MC.,042 |
1 | ||
| 52119-28730B0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),SILVER ME.,1C0 |
1 | ||
| 52119-28740A2 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042 |
1 | ||
| 52101-28100C2 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28790F0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056 |
1 | ||
| 52119-28740B0 |
SR40,50..E..CBU ﾗｲﾄｴ-ｽ, 10 MILLION ｾﾚｸｼﾖﾝ *(A),*(B),SILVER ME.,1C0 |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0 |
1 | ||
| 52119-28790B0 |
SR40,50..E..CBU ﾀｳﾝｴ-ｽ, ｽﾍﾟｼﾔﾙｴﾃﾞｲｼﾖﾝ *(D),*(E),SILVER ME.,1C0 |
1 | ||
| 52101-28110A0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE,056 |
1 | ||
| 52101-28140C0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28740A2 |
SR40,50..E..CBU ﾗｲﾄｴ-ｽ, 10 MILLION ｾﾚｸｼﾖﾝ *(A),*(B),WHITE PEARL MC.,042 |
1 | ||
| 52101-28110E0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BEIGE M.M.OP.,4N9 |
1 | ||
| 52101-28120B0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0 |
1 | ||
| 52101-28110B0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0 |
1 | ||
| 52101-28140C2 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28740B1 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(D),*(E),CRYSTAL SILVER MC.,1C1 |
1 | ||
| 52101-28120A0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE,056 |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..D,E,Q ﾗｲﾄｴ-ｽ,WHITE,056 |
1 | ||
| 52119-28730A0 |
CR40,50,SR40,50..S WHITE,056 |
1 | ||
| 52101-28120E0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BEIGE M.M.OP.,4N9 |
1 | ||
| 52101-28140C1 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),JASPER GLOW TONING,2EN |
1 | ||
| 52101-28100C1 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),JASPER GLOW TONING,2EN |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),NIGHT STORM TONNING,2GE |
1 | ||
| 52101-28100C0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28760C2 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..D,E,Q ﾗｲﾄｴ-ｽ,SILVER ME.,1C0 |
1 | ||
| 52119-28750 |
CR40,50,SR40,50..B,D,E,Q ﾗｲﾄｴ-ｽ |
1 | ||
| 52119-28760C0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28740E0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,BEIGE M.M.OP.,4N9 |
1 | ||
| 52119-28800 |
CR40,50,SR40,50..B,D,E,Q ﾀｳﾝｴ-ｽ |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(D),*(E),NIGHT STORM TONNING2,2GE |
1 | ||
| 52119-28760C1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,JASPER GLOW TONING,2EN |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..D,E,Q ﾀｳﾝｴ-ｽ,WHITE,056 |
1 | ||
| 52119-28730B0 |
CR40,50,SR40,50..S SILVER ME.,1C0 |
1 | ||
| 52119-28810C0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(A),*(B),NIGHT STORM TONNING2,2GE |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..D,E,Q ﾀｳﾝｴ-ｽ,SILVER ME.,1C0 |
1 | ||
| 52119-28790B1 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(A),*(B),CRYSTAL SILVER MC.,1C1 |
1 | ||
| 52119-28790E0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,BEIGE M.M.OP.,4N9 |
1 | ||
| 52119-28810C2 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28810C1 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,JASPER GLOW TONING,2EN |
1 | ||
| 52135C - BRACKET, FRONT BUMPER ARM MOUNTING | ||||
| 52135-28030 |
CR40,50,SR40,50 |
2 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-28070 |
CR40,50,SR40,50 |
1 | ||
| 52141-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52142-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52142-28070 |
CR40,50,SR40,50 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
CR40,50,SR40,50..B,D,E,Q |
3 | ||
| 52161-16010 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 52161-16010 |
CR40,50,SR40,50..S |
8 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
CR40,50,SR40,50..B,D,E,Q |
3 | ||
| 52161-16010 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 52161-16010 |
CR40,50,SR40,50..S |
8 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52521-28050 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 90119-06779 | ||||
| 90119-08762 | ||||
| 90159-50322 | ||||
| 90168-50057 | ||||
| 90168-50071 | ||||
| 90179-06127 | ||||
| 90179-08247 | ||||
| 90189-05113 | ||||
| Linked diagrams | ||||
| 8102 | ||||

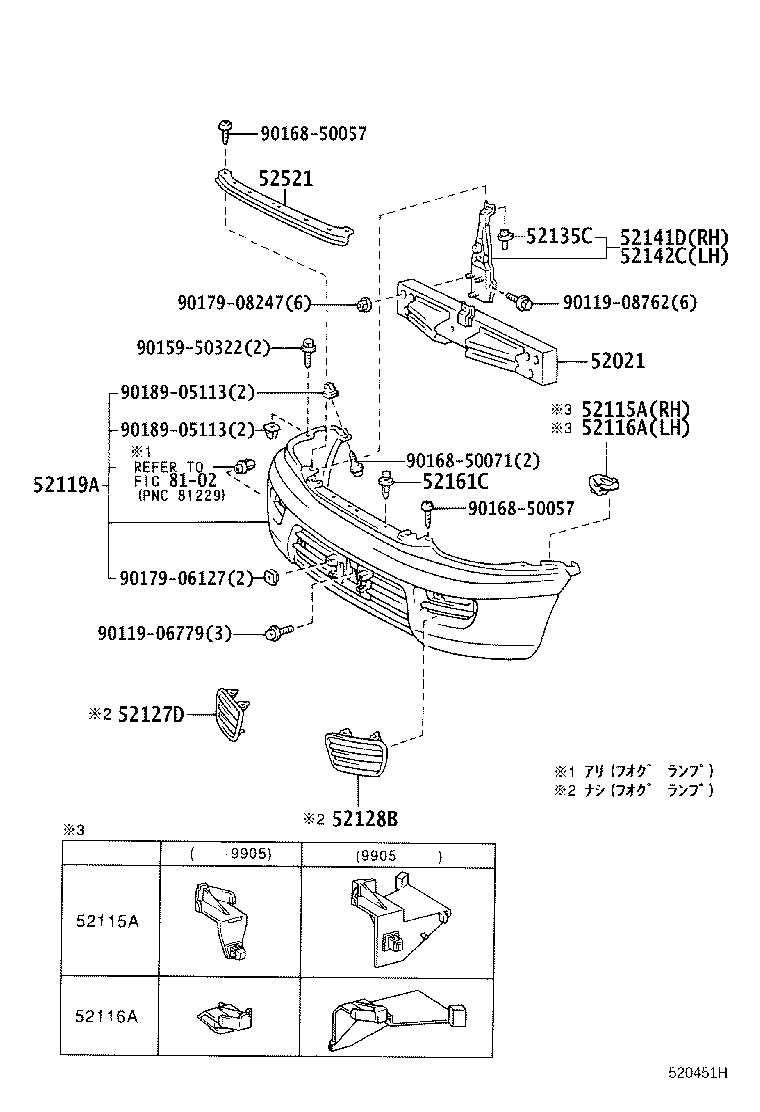

(9812- )B,D,E,N,Q
ﾗｲﾄｴ-ｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28130 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52021-28180 |
CR40,50,SR40,50 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52115-28060 |
CR4#,5#,KR42,SR40,50 |
1 | ||
| 52115-28061 |
CR40,50,SR40,50 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52116-28020 |
CR4#,5#,KR42,SR40,50 |
1 | ||
| 52116-28021 |
CR40,50,SR40,50 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52101-28060B1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DARK GRAY ME.,1B5 |
1 | ||
| 52101-28060B0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BLUISH SILVER ME.,1A0 |
1 | ||
| 52101-28070B1 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DARK GRAY ME.,1B5 |
1 | ||
| 52101-28060G0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),LIGHT OLIVE ME.,6Q3 |
1 | ||
| 52101-28090C0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),HARBOR SIDE TONING,2CM |
1 | ||
| 52101-28070B0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BLUISH SILVER ME.,1A0 |
1 | ||
| 52101-28080C0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),HARBOR SIDE TONING,2CM |
1 | ||
| 52101-28080C1 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),SHINNING PARM TONING,2CP |
1 | ||
| 52101-28090C1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),SHINNING PARM TONING,2CP |
1 | ||
| 52101-28070G0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),LIGHT OLIVE ME.,6Q3 |
1 | ||
| 52119-28440B1 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ,DK.GRAY ME.,1B5 |
1 | ||
| 52101-28080C2 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),MISTY TOPAZ TONING,2CQ |
1 | ||
| 52119-28410G0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,LT.OLIVE ME.,6Q3 |
1 | ||
| 52119-28410B1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,DK.GRAY ME.,1B5 |
1 | ||
| 52119-28270C2 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,MISTY TOPAZ TONING,2CQ |
1 | ||
| 52101-28090C2 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),MISTY TOPAZ TONING,2CQ |
1 | ||
| 52119-28440G0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ,LT.OLIVE ME.,6Q3 |
1 | ||
| 52119-28470C2 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,MISTY TOPAZ TONING,2CQ |
1 | ||
| 52119-28470C1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,SHINNING PARM TONING,2CP |
1 | ||
| 52119-28270C1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,SHINNING PARM TONING,2CP |
1 | ||
| 52119-28410B0 |
CR40,50,SR40,50..D,E ﾀｳﾝｴ-ｽ,BLUISH SILVER ME.,1A0 |
1 | ||
| 52119-28440B0 |
CR40,50,SR40,50..D,E ﾗｲﾄｴ-ｽ,BLUISH SILVER ME.,1A0 |
1 | ||
| 52119-28270C0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,HARBOR SIDE TONING,2CM |
1 | ||
| 52119-28470C0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,HARBOR SIDE TONING,2CM |
1 | ||
| 52119-28790A2 |
SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾒﾓﾘｱﾙｴﾃﾞｲｼﾖﾝ *(X),*(Y),WHITE PEARL MC.,042 |
1 | ||
| 52119-28740A2 |
SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ﾒﾓﾘｱﾙｴﾃﾞｲｼﾖﾝ *(G),*(H),WHITE PEARL MC.,042 |
1 | ||
| 52119-28730B0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 52119-28730A1 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),WHITE PEARL M.M.,042 |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(J),*(K),SILVER ME.,1C0 |
1 | ||
| 52119-28740A2 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(J),*(K),WHITE PEARL MC.,042 |
1 | ||
| 52119-28790A2 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(F),*(N),WHITE PEARL MC.,042 |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(J),*(K),WHITE,056 |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(F),*(N),WHITE,056 |
1 | ||
| 52119-28740A2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),WHITE PEARL MC.,042 |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(F),*(N),SILVER ME.,1C0 |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),WHITE,056 |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28730C0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),BLACK ME.,205 |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),WHITE,056 |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),SILVER ME.,1C0 |
1 | ||
| 52119-28740F0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28790A2 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),WHITE PEARL MC.,042 |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),SILVER ME.,1C0 |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0 |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056 |
1 | ||
| 52119-28740F0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28790F0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28730C0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),BLACK ME.,205 |
1 | ||
| 52119-28790A2 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042 |
1 | ||
| 52119-28730A1 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),WHITE PEARL M.M.,042 |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28790A2 |
SR40,50..E..CBU ﾀｳﾝｴ-ｽ, ｽﾍﾟｼﾔﾙｴﾃﾞｲｼﾖﾝ *(D),*(E),WHITE PEARL MC.,042 |
1 | ||
| 52119-28730B0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),SILVER ME.,1C0 |
1 | ||
| 52119-28740A2 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042 |
1 | ||
| 52101-28100C2 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28790F0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056 |
1 | ||
| 52119-28740B0 |
SR40,50..E..CBU ﾗｲﾄｴ-ｽ, 10 MILLION ｾﾚｸｼﾖﾝ *(A),*(B),SILVER ME.,1C0 |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0 |
1 | ||
| 52119-28790B0 |
SR40,50..E..CBU ﾀｳﾝｴ-ｽ, ｽﾍﾟｼﾔﾙｴﾃﾞｲｼﾖﾝ *(D),*(E),SILVER ME.,1C0 |
1 | ||
| 52101-28110A0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE,056 |
1 | ||
| 52101-28140C0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28740A2 |
SR40,50..E..CBU ﾗｲﾄｴ-ｽ, 10 MILLION ｾﾚｸｼﾖﾝ *(A),*(B),WHITE PEARL MC.,042 |
1 | ||
| 52101-28110E0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BEIGE M.M.OP.,4N9 |
1 | ||
| 52101-28120B0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0 |
1 | ||
| 52101-28110B0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0 |
1 | ||
| 52101-28140C2 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28740B1 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(D),*(E),CRYSTAL SILVER MC.,1C1 |
1 | ||
| 52101-28120A0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE,056 |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..D,E,Q ﾗｲﾄｴ-ｽ,WHITE,056 |
1 | ||
| 52119-28730A0 |
CR40,50,SR40,50..S WHITE,056 |
1 | ||
| 52101-28120E0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BEIGE M.M.OP.,4N9 |
1 | ||
| 52101-28140C1 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),JASPER GLOW TONING,2EN |
1 | ||
| 52101-28100C1 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),JASPER GLOW TONING,2EN |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),NIGHT STORM TONNING,2GE |
1 | ||
| 52101-28100C0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28760C2 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..D,E,Q ﾗｲﾄｴ-ｽ,SILVER ME.,1C0 |
1 | ||
| 52119-28750 |
CR40,50,SR40,50..B,D,E,Q ﾗｲﾄｴ-ｽ |
1 | ||
| 52119-28760C0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28740E0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,BEIGE M.M.OP.,4N9 |
1 | ||
| 52119-28800 |
CR40,50,SR40,50..B,D,E,Q ﾀｳﾝｴ-ｽ |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(D),*(E),NIGHT STORM TONNING2,2GE |
1 | ||
| 52119-28760C1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,JASPER GLOW TONING,2EN |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..D,E,Q ﾀｳﾝｴ-ｽ,WHITE,056 |
1 | ||
| 52119-28730B0 |
CR40,50,SR40,50..S SILVER ME.,1C0 |
1 | ||
| 52119-28810C0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(A),*(B),NIGHT STORM TONNING2,2GE |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..D,E,Q ﾀｳﾝｴ-ｽ,SILVER ME.,1C0 |
1 | ||
| 52119-28790B1 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(A),*(B),CRYSTAL SILVER MC.,1C1 |
1 | ||
| 52119-28790E0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,BEIGE M.M.OP.,4N9 |
1 | ||
| 52119-28810C2 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28810C1 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,JASPER GLOW TONING,2EN |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28060 |
SR40,50..B ﾀｳﾝｴ-ｽ |
1 | ||
| 52127-28070 |
SR40,50..B ﾗｲﾄｴ-ｽ |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28030 |
SR40,50..B ﾀｳﾝｴ-ｽ |
1 | ||
| 52128-28040 |
SR40,50..B ﾗｲﾄｴ-ｽ |
1 | ||
| 52135C - BRACKET, FRONT BUMPER ARM MOUNTING | ||||
| 52135-28030 |
CR40,50,SR40,50 |
2 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-28070 |
CR40,50,SR40,50 |
1 | ||
| 52141-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52142-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52142-28070 |
CR40,50,SR40,50 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
CR40,50,SR40,50..B,D,E,Q |
3 | ||
| 52161-16010 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 52161-16010 |
CR40,50,SR40,50..S |
8 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52521-28050 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 90119-06779 | ||||
| 90119-08762 | ||||
| 90159-50322 | ||||
| 90168-50057 | ||||
| 90168-50071 | ||||
| 90179-06127 | ||||
| 90179-08247 | ||||
| 90189-05113 | ||||
| Linked diagrams | ||||
| 8102 | ||||
(9812- )B,D,E,N,Q
ﾀｳﾝｴ-ｽ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-28130 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52021-28180 |
CR40,50,SR40,50 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52115-28060 |
CR4#,5#,KR42,SR40,50 |
1 | ||
| 52115-28061 |
CR40,50,SR40,50 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52116-28020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52116-28020 |
CR4#,5#,KR42,SR40,50 |
1 | ||
| 52116-28021 |
CR40,50,SR40,50 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52101-28060B1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DARK GRAY ME.,1B5 |
1 | ||
| 52101-28060B0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BLUISH SILVER ME.,1A0 |
1 | ||
| 52101-28070B1 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),DARK GRAY ME.,1B5 |
1 | ||
| 52101-28060G0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),LIGHT OLIVE ME.,6Q3 |
1 | ||
| 52101-28090C0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),HARBOR SIDE TONING,2CM |
1 | ||
| 52101-28070B0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),BLUISH SILVER ME.,1A0 |
1 | ||
| 52101-28080C0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),HARBOR SIDE TONING,2CM |
1 | ||
| 52101-28080C1 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),SHINNING PARM TONING,2CP |
1 | ||
| 52101-28090C1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),SHINNING PARM TONING,2CP |
1 | ||
| 52101-28070G0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),LIGHT OLIVE ME.,6Q3 |
1 | ||
| 52119-28440B1 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ,DK.GRAY ME.,1B5 |
1 | ||
| 52101-28080C2 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),MISTY TOPAZ TONING,2CQ |
1 | ||
| 52119-28410G0 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,LT.OLIVE ME.,6Q3 |
1 | ||
| 52119-28410B1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,DK.GRAY ME.,1B5 |
1 | ||
| 52119-28270C2 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,MISTY TOPAZ TONING,2CQ |
1 | ||
| 52101-28090C2 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽｿﾅ-),MISTY TOPAZ TONING,2CQ |
1 | ||
| 52119-28440G0 |
CR40,50,SR40,50..E ﾗｲﾄｴ-ｽ,LT.OLIVE ME.,6Q3 |
1 | ||
| 52119-28470C2 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,MISTY TOPAZ TONING,2CQ |
1 | ||
| 52119-28470C1 |
CR40,50,SR40,50..E ﾀｳﾝｴ-ｽ,SHINNING PARM TONING,2CP |
1 | ||
| 52119-28270C1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,SHINNING PARM TONING,2CP |
1 | ||
| 52119-28410B0 |
CR40,50,SR40,50..D,E ﾀｳﾝｴ-ｽ,BLUISH SILVER ME.,1A0 |
1 | ||
| 52119-28440B0 |
CR40,50,SR40,50..D,E ﾗｲﾄｴ-ｽ,BLUISH SILVER ME.,1A0 |
1 | ||
| 52119-28270C0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,HARBOR SIDE TONING,2CM |
1 | ||
| 52119-28470C0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,HARBOR SIDE TONING,2CM |
1 | ||
| 52119-28790A2 |
SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾒﾓﾘｱﾙｴﾃﾞｲｼﾖﾝ *(X),*(Y),WHITE PEARL MC.,042 |
1 | ||
| 52119-28740A2 |
SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ﾒﾓﾘｱﾙｴﾃﾞｲｼﾖﾝ *(G),*(H),WHITE PEARL MC.,042 |
1 | ||
| 52119-28730B0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 52119-28730A1 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),WHITE PEARL M.M.,042 |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(J),*(K),SILVER ME.,1C0 |
1 | ||
| 52119-28740A2 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(J),*(K),WHITE PEARL MC.,042 |
1 | ||
| 52119-28790A2 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(F),*(N),WHITE PEARL MC.,042 |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(J),*(K),WHITE,056 |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(F),*(N),WHITE,056 |
1 | ||
| 52119-28740A2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),WHITE PEARL MC.,042 |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(F),*(N),SILVER ME.,1C0 |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),WHITE,056 |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28730C0 |
SR40,50..S ﾘﾐﾃﾂﾄﾞ *(P), *(Q), *(R), *(S),BLACK ME.,205 |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),WHITE,056 |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),SILVER ME.,1C0 |
1 | ||
| 52119-28740F0 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(L),*(M),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28790A2 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),WHITE PEARL MC.,042 |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),SILVER ME.,1C0 |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0 |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056 |
1 | ||
| 52119-28740F0 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28790F0 |
CR40,50,SR40,50..E..CBU ﾘﾓ ﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(Z),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28730C0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),BLACK ME.,205 |
1 | ||
| 52119-28790A2 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042 |
1 | ||
| 52119-28730A1 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),WHITE PEARL M.M.,042 |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴｰｽ,ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N),NIGHT STORM TONNING,2GE |
1 | ||
| 52119-28790A2 |
SR40,50..E..CBU ﾀｳﾝｴ-ｽ, ｽﾍﾟｼﾔﾙｴﾃﾞｲｼﾖﾝ *(D),*(E),WHITE PEARL MC.,042 |
1 | ||
| 52119-28730B0 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y),SILVER ME.,1C0 |
1 | ||
| 52119-28740A2 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾗｲﾄｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE PEARL MC.,042 |
1 | ||
| 52101-28100C2 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28790F0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),CHAMPAGNE ME.,583 |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),WHITE,056 |
1 | ||
| 52119-28740B0 |
SR40,50..E..CBU ﾗｲﾄｴ-ｽ, 10 MILLION ｾﾚｸｼﾖﾝ *(A),*(B),SILVER ME.,1C0 |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),SILVER ME.,1C0 |
1 | ||
| 52119-28790B0 |
SR40,50..E..CBU ﾀｳﾝｴ-ｽ, ｽﾍﾟｼﾔﾙｴﾃﾞｲｼﾖﾝ *(D),*(E),SILVER ME.,1C0 |
1 | ||
| 52101-28110A0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE,056 |
1 | ||
| 52101-28140C0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28740A2 |
SR40,50..E..CBU ﾗｲﾄｴ-ｽ, 10 MILLION ｾﾚｸｼﾖﾝ *(A),*(B),WHITE PEARL MC.,042 |
1 | ||
| 52101-28110E0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BEIGE M.M.OP.,4N9 |
1 | ||
| 52101-28120B0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0 |
1 | ||
| 52101-28110B0 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),SILVER ME.,1C0 |
1 | ||
| 52101-28140C2 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28740B1 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(D),*(E),CRYSTAL SILVER MC.,1C1 |
1 | ||
| 52101-28120A0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),WHITE,056 |
1 | ||
| 52119-28740A0 |
CR40,50,SR40,50..D,E,Q ﾗｲﾄｴ-ｽ,WHITE,056 |
1 | ||
| 52119-28730A0 |
CR40,50,SR40,50..S WHITE,056 |
1 | ||
| 52101-28120E0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),BEIGE M.M.OP.,4N9 |
1 | ||
| 52101-28140C1 |
CR40,50,SR40,50..Q ﾗｲﾄｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),JASPER GLOW TONING,2EN |
1 | ||
| 52101-28100C1 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),JASPER GLOW TONING,2EN |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ, Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ﾀｳﾝｴ-ｽ, ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I),NIGHT STORM TONNING,2GE |
1 | ||
| 52101-28100C0 |
CR40,50,SR40,50..Q ﾀｳﾝｴ-ｽ & ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-),PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28760C2 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28740B0 |
CR40,50,SR40,50..D,E,Q ﾗｲﾄｴ-ｽ,SILVER ME.,1C0 |
1 | ||
| 52119-28750 |
CR40,50,SR40,50..B,D,E,Q ﾗｲﾄｴ-ｽ |
1 | ||
| 52119-28760C0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28740E0 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,BEIGE M.M.OP.,4N9 |
1 | ||
| 52119-28800 |
CR40,50,SR40,50..B,D,E,Q ﾀｳﾝｴ-ｽ |
1 | ||
| 52119-28760C3 |
CR40,50,SR40,50..E..CBU ﾗｲﾄｴ-ｽ,ｴｸｻ-ﾌﾞ *(D),*(E),NIGHT STORM TONNING2,2GE |
1 | ||
| 52119-28760C1 |
CR40,50,SR40,50..E,Q ﾗｲﾄｴ-ｽ,JASPER GLOW TONING,2EN |
1 | ||
| 52119-28790A0 |
CR40,50,SR40,50..D,E,Q ﾀｳﾝｴ-ｽ,WHITE,056 |
1 | ||
| 52119-28730B0 |
CR40,50,SR40,50..S SILVER ME.,1C0 |
1 | ||
| 52119-28810C0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52119-28810C3 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(A),*(B),NIGHT STORM TONNING2,2GE |
1 | ||
| 52119-28790B0 |
CR40,50,SR40,50..D,E,Q ﾀｳﾝｴ-ｽ,SILVER ME.,1C0 |
1 | ||
| 52119-28790B1 |
CR40,50,SR40,50..E..CBU ﾀｳﾝｴ-ｽ,ﾘﾓ *(A),*(B),CRYSTAL SILVER MC.,1C1 |
1 | ||
| 52119-28790E0 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,BEIGE M.M.OP.,4N9 |
1 | ||
| 52119-28810C2 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,OCEAN CRUISE TONING,2EU |
1 | ||
| 52119-28810C1 |
CR40,50,SR40,50..E,Q ﾀｳﾝｴ-ｽ,JASPER GLOW TONING,2EN |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-28060 |
SR40,50..B ﾀｳﾝｴ-ｽ |
1 | ||
| 52127-28070 |
SR40,50..B ﾗｲﾄｴ-ｽ |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-28030 |
SR40,50..B ﾀｳﾝｴ-ｽ |
1 | ||
| 52128-28040 |
SR40,50..B ﾗｲﾄｴ-ｽ |
1 | ||
| 52135C - BRACKET, FRONT BUMPER ARM MOUNTING | ||||
| 52135-28030 |
CR40,50,SR40,50 |
2 | ||
| 52141D - STAY, FRONT BUMPER, RH | ||||
| 52141-28070 |
CR40,50,SR40,50 |
1 | ||
| 52141-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52142C - STAY, FRONT BUMPER, LH | ||||
| 52142-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52142-28070 |
CR40,50,SR40,50 |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
CR40,50,SR40,50..B,D,E,Q |
3 | ||
| 52161-16010 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 52161-16010 |
CR40,50,SR40,50..S |
8 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52521-28050 |
CR40,50,SR40,50 |
1 | ||
| Common parts | ||||
| 90119-06779 | ||||
| 90119-08762 | ||||
| 90159-50322 | ||||
| 90168-50057 | ||||
| 90168-50071 | ||||
| 90179-06127 | ||||
| 90179-08247 | ||||
| 90189-05113 | ||||
| Linked diagrams | ||||
| 8102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
