CR50G-HFSQT (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9812- )CR40,50

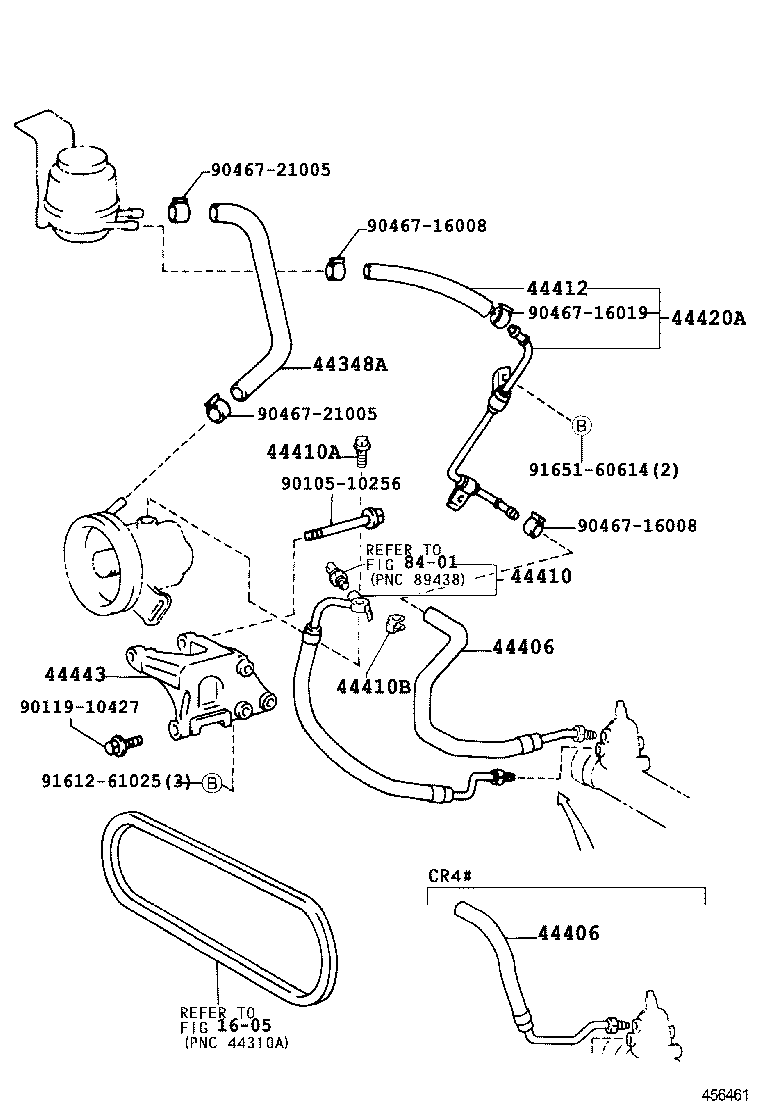

Click highlighted areas on diagram

diagram 1605 44348A 44406 44406 44410 44410A 44410B 44412 44420A 44443 8401 9010510256 9011910427 9046716008 9046716008 9046716019 9046721005 9046721005 9161261025 9165160614
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-28210

CR4#,5#

 1
44348-28200

SR40,50

 1
44348-28200

SR40,50

 1
44348-28210

CR40,50

 1
44406 - TUBE SUB-ASSY, RETURN
44406-28250

CR5#,SR50

 1
44406-28250

CR50,SR50

 1
44406 - TUBE SUB-ASSY, RETURN
44406-28250

CR5#,SR50

 1
44406-28250

CR50,SR50

 1
44410 - TUBE ASSY, PRESSURE FEED
44410-28430

CR40,50

 1
44410A - BOLT, UNION(FOR PRESSURE FEED TUBE)
90401-16034

CR40,50

 1
44410B - GASKET(FOR PRESSURE FEED TUBE)
44327-26020

CR40,50

 1
44412 - HOSE, RETURN
90445-18138

CR40,50,SR40,50

 1
90445-18138

CR4#,5#,SR40,50

 1
44420A - TUBE ASSY, RETURN
44420-28050

CR40,50,SR40,50

 1
44420-28050

CR4#,5#,SR40,50

 1
44443 - BRACKET, PUMP
44443-28030

CR4#,5#

 1
44443-28030

CR40,50

 1
Common parts
90105-10256
90119-10427
90467-16008
90467-16019
90467-21005
91612-61025
91651-60614
Linked diagrams
1605
8401
