CR50G-HFSQT (1998)
Toyota Lite/Townace Noah,V

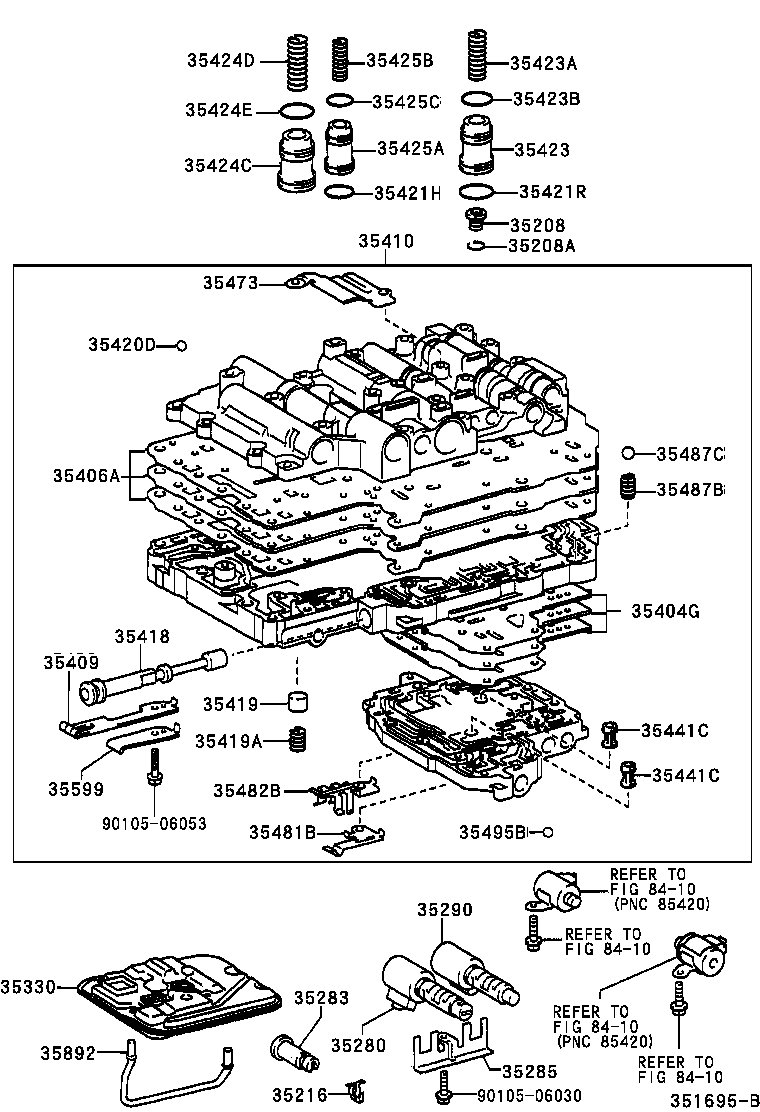

ILLUST NO. 1 OF 4(9812- )CR40,50,SR40,50..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-28010 |
CR4#,5#,KR42..ATM |
1 | ||
| 35208-26010 |
SR40,50..ATM |
1 | ||
| 35208-28010 |
KR42,52,SR40,50..ATM |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
CR4#,5#,KR42,SR40,50..ATM |
1 | ||
| 90521-22004 |
CR4#,5#,KR42,52,SR40,50..ATM |
1 | ||
| 35216 - STOPPER, VALVE SLEEVE | ||||
| 35216-28010 |
CR40,50 |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-22010 |
SR40,50..ATM |
1 | ||
| 35283 - SLEEVE, LOCK UP CONTROL SOLENOID | ||||
| 35283-28010 |
CR40,50 |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-22010 |
SR40,50..ATM |
1 | ||
| 35285-28010 |
CR40,50 |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-22010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-22032 |
CR40,50,SR40,50..ATM |
1 | ||
| 35404G - PLATE SUB-ASSY, VALVE BODY, NO.2 | ||||
| 35404-22010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35406A - PLATE SUB-ASSY, VALVE BODY | ||||
| 35406-28020 |
CR40,50 |
1 | ||
| 35406-28010 |
SR40,50..ATM |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-35010 |
CR4#,5#,KR42,SR40,50..ATM |
1 | ||
| 35409-22040 |
CR40,50,SR40,50..ATM |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-28410 |
CR40,50 |
1 | ||
| 35410-28400 |
SR40,50..ATM |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-24010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35418-30050 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35419-50010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-16083 |
CR4#,5#,KR42,SR40,50..ATM |
1 | ||
| 90501-09145 |
CR40,50,SR40,50..ATM |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22030 |
CR40,50,SR40,50..ATM 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35495-22020 |
CR4#,5#,KR4#,SR40,50..ATM 外径=5.535,ﾗﾊﾞｰ |
1 | ||
| 35496-22030 |
CR40,50,SR40,50..ATM 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26012 |
CR40,50,SR40,50..ATM |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26012 |
CR40,50,SR40,50..ATM |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35421-26010 |
CR4#,5#,KR42,SR40,50..ATM |
1 | ||
| 35421-26010 |
CR4#,5#,KR42,52,SR40,50..ATM |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-28025 |
CR40,50..ATM |
1 | ||
| 90501-25033 |
CR41,51,KR42,SR40,50..ATM |
1 | ||
| 90501-25033 |
CR40,50,KR42..ATM |
1 | ||
| 90501-25037 |
KR52,SR40,50..ATM |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
CR40,50,SR40,50..ATM |
1 | ||
| 90301-23194 |
CR4#,5#,KR4#,SR40,50..ATM 上側 |
1 | ||
| 90301-29187 |
CR4#,5#,KR4#,SR40,50..ATM 下側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35424-26010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35421-22030 |
CR4#,5#,KR42,52,SR40,50..ATM |
1 | ||
| 35424D - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90501-20162 |
CR40,50,SR40,50..ATM |
1 | ||
| 90501-19017 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
CR4#,5#,KR42,52,SR40,50..ATM 上側 |
1 | ||
| 90301-26190 |
CR4#,5#,KR4#,SR40,50..ATM 下側 |
1 | ||
| 90301-22185 |
CR4#,5#,KR4#,SR40,50..ATM 上側 |
1 | ||
| 90301-26012 |
CR4#,5#,KR42,52,SR40,50..ATM 下側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35423-30010 |
KR41,SR40,50..ATM |
1 | ||
| 35441-30010 |
CR4#,5#,KR42..ATM |
1 | ||
| 35441-30010 |
CR4#,5#,KR42,52,SR40,50..ATM |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-18041 |
KR41,SR40,50..ATM 内側 |
1 | ||
| 90501-18105 |
SR40,50..ATM 外側 |
1 | ||
| 90501-28030 |
CR40,50,SR40,50..ATM |
1 | ||
| 90501-27016 |
CR4#,5#..ATM |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-18186 |
CR4#,5#,KR4#,SR40,50..ATM 上側 |
1 | ||
| 90301-26190 |
CR4#,5#,KR4#,SR40,50..ATM 下側 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-50030 |
CR40,50,SR40,50..ATM |
2 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-50030 |
CR40,50,SR40,50..ATM |
2 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35473-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-22020 |
SR40,50..ATM |
1 | ||
| 35487B - BALL, CHECK, NO.4 | ||||
| 35487-30010 |
CR4#,5#,KR42,SR40,50..ATM |
1 | ||
| 35487-30010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35487C - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90504-05006 |
CR4#,5#,KR42,SR40,50..ATM |
1 | ||
| 90504-05006 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
CR40,50 |
12 | ||
| 35495-22020 |
SR40,50..ATM |
11 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22040 |
CR40,50,SR40,50..ATM |
1 | ||
| 35599-28010 |
CR4#,5#,KR42,SR40,50..ATM |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-22010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35892-28020 |
CR40,50,SR40,50..ATM |
1 | ||

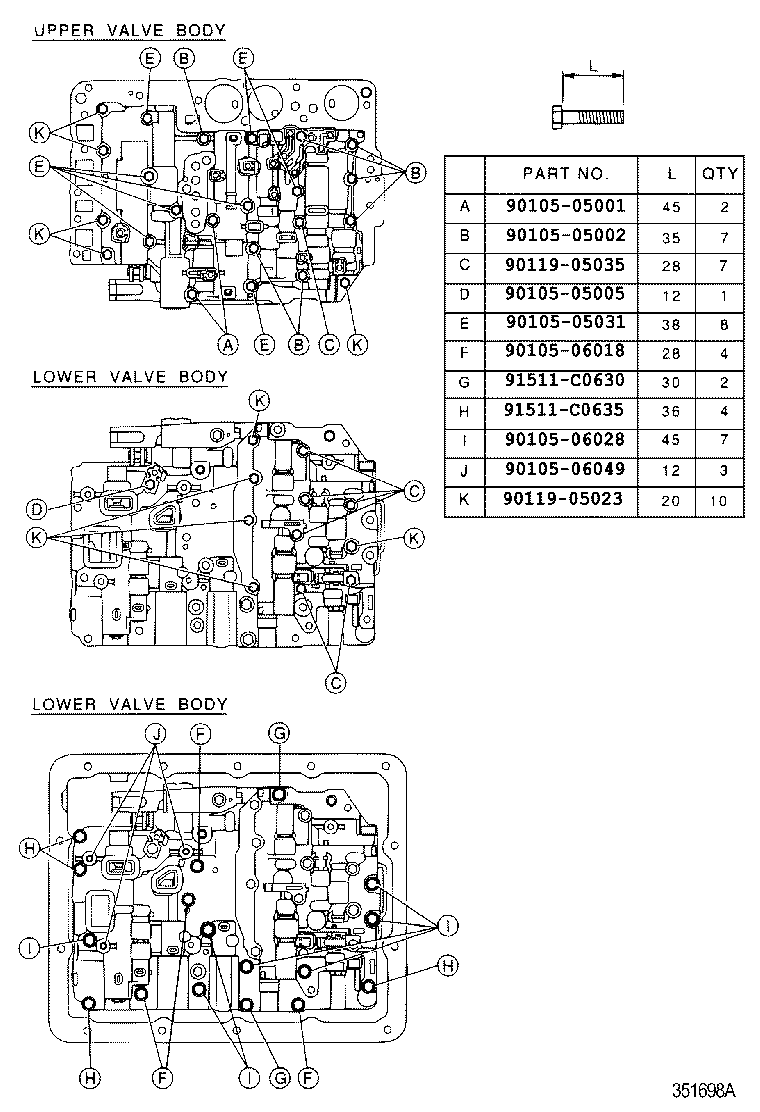

| Common parts | ||||
| 90105-06030 | ||||
| 90105-06053 | ||||
| Linked diagrams | ||||
| 8410 | ||||

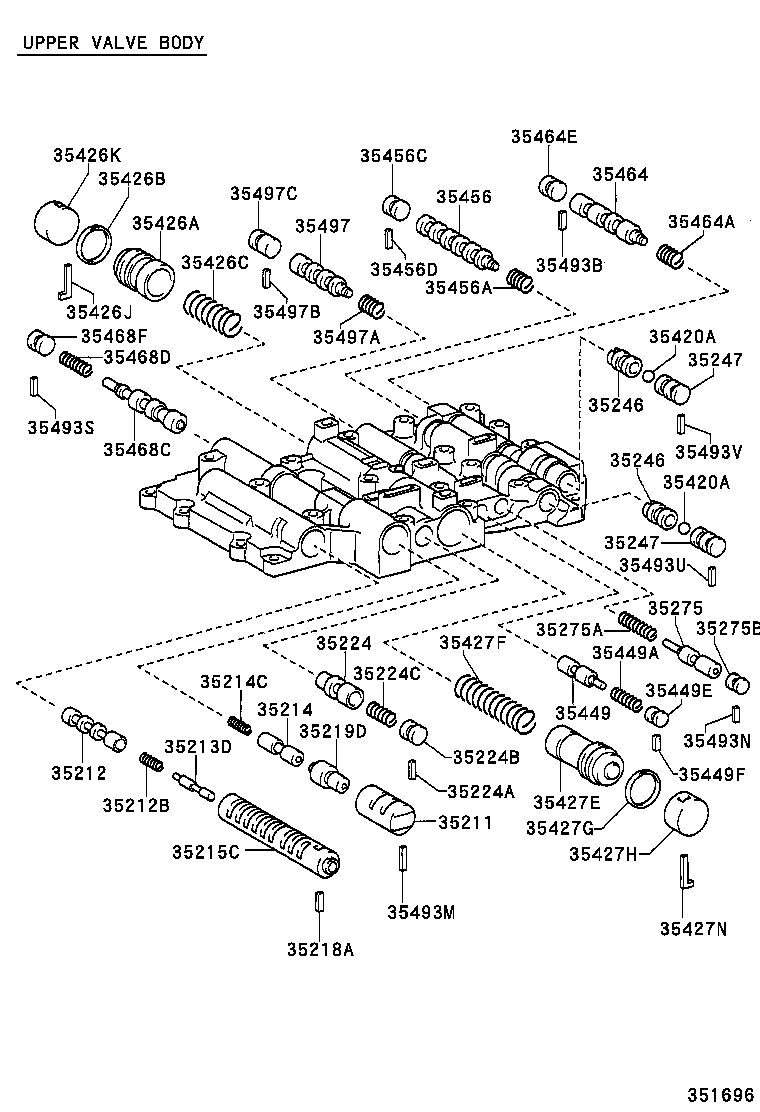

ILLUST NO. 2 OF 4(9812- )CR40,50,SR40,50..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-14010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35211-22010 |
SR40,50..ATM |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35202-30020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35212-30050 |
CR40,50,SR40,50..ATM |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-07017 |
CR40,50,SR40,50..ATM |
1 | ||
| 90501-06057 |
CR40,50,SR40,50..ATM |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-50010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-50010 |
SR40,50..ATM |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-07111 |
SR40,50..ATM |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90282-03016 |
CR40,50,SR40,50..ATM |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-50010 |
SR40,50..ATM |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-30010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 35493-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-05020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06056 |
CR40,50,SR40,50..ATM |
1 | ||
| 35246 - VALVE, CHECK, NO.1 | ||||
| 35246-30010 |
CR40,50,SR40,50..ATM |
2 | ||
| 35246 - VALVE, CHECK, NO.1 | ||||
| 35246-30010 |
CR40,50,SR40,50..ATM |
2 | ||
| 35247 - VALVE, CHECK, NO.2 | ||||
| 35247-30010 |
CR40,50,SR40,50..ATM |
2 | ||
| 35247 - VALVE, CHECK, NO.2 | ||||
| 35247-30010 |
CR40,50,SR40,50..ATM |
2 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-30010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-12143 |
CR40,50,SR40,50..ATM |
1 | ||
| 35275B - PLUG (FOR SOLENOID MODULATOR VALVE) | ||||
| 90339-04030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-06004 |
CR40,50,SR40,50..ATM |
2 | ||
| 90360-13024 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-06004 |
CR40,50,SR40,50..ATM |
2 | ||
| 90360-13024 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-22010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 35232-50010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90905-01045 |
CR40,50,SR40,50..ATM |
1 | ||
| 35426J - SEAT, C-0 ACCUMULATOR PISTON PLUG | ||||
| 35493-22040 |
CR40,50,SR40,50..ATM |
1 | ||
| 35426K - PLUG, C-0 ACCUMULATOR PISTON | ||||
| 90339-24002 |
CR40,50,SR40,50..ATM |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-20161 |
CR40,50,SR40,50..ATM |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 35232-50010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35427H - PLUG, B-0 ACCUMULATOR PISTON | ||||
| 90339-24002 |
CR40,50,SR40,50..ATM |
1 | ||
| 35427N - SEAT, B-0 ACCUMULATOR PISTON PLUG | ||||
| 35493-22040 |
CR40,50,SR40,50..ATM |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35447-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-10219 |
CR40,50,SR40,50..ATM |
1 | ||
| 35449E - PLUG, SEQUENCE VALVE | ||||
| 90339-04030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35449F - SEAT, REVERSE SEQUENCE VALVE PLUG | ||||
| 35493-30030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-22010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35456-12020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08724 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 90501-08135 |
CR40,50,SR40,50..ATM |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-22010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 90339-05019 |
CR40,50,SR40,50..ATM |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-22020 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35438-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12040 |
CR40,50,SR40,50..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06684 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 90501-08135 |
CR40,50,SR40,50..ATM |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05019 |
CR40,50,SR40,50..ATM |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-24010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35204-30010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 90501-12170 |
CR40,50,SR40,50..ATM |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-22010 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35438-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35493M - SEAT, LOCK UP CONTROL VALVE PLUG | ||||
| 35493-50050 |
SR40,50..ATM |
1 | ||
| 35493N - SEAT, SOLENOID MODULATOR VALVE PLUG | ||||
| 35493-30030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG | ||||
| 35493-50050 |
CR40,50,SR40,50..ATM |
1 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 35493-30030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35493V - SEAT, CHECK VALVE, NO.2 | ||||
| 35438-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30020 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 35497-12020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-08135 |
CR40,50,SR40,50..ATM |
1 | ||
| 90501-11010 |
SR40,50..ATM |
1 | ||
| 90501-11005 |
CR4#,5#,KR4#..ATM |
1 | ||
| 35497B - SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 35438-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90334-13001 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 90339-05033 |
CR40,50,SR40,50..ATM |
1 | ||

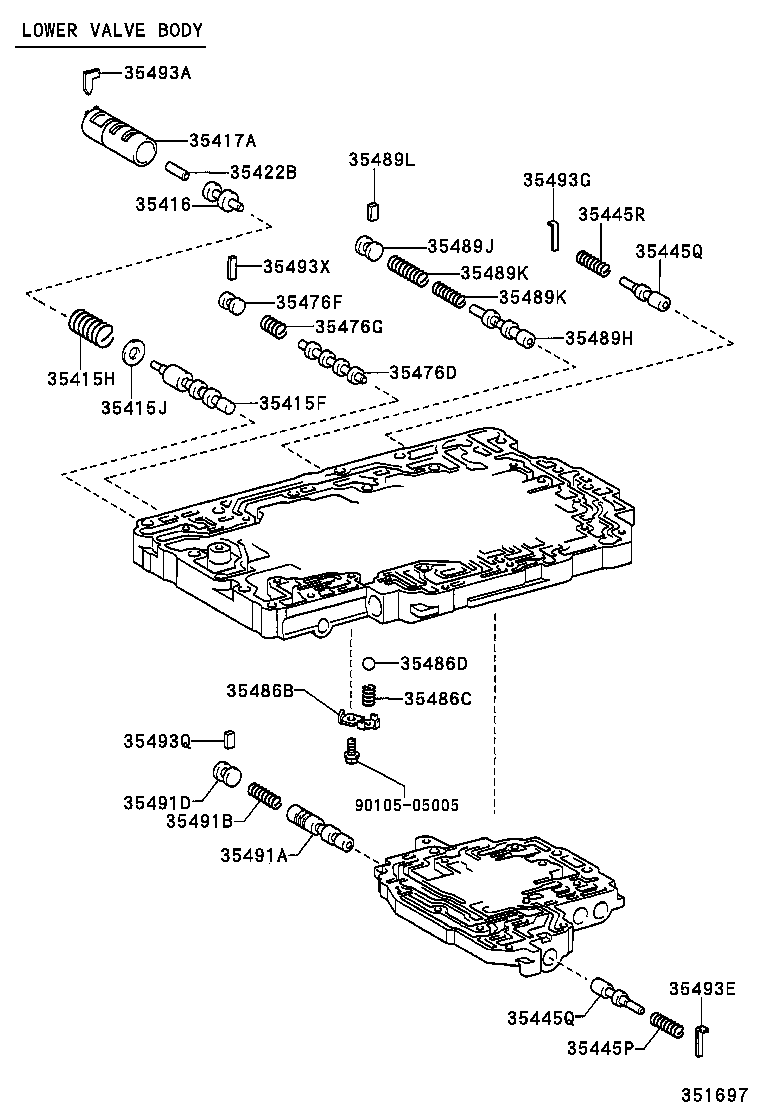

ILLUST NO. 3 OF 4(9812- )CR40,50,SR40,50..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-22030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-15028 |
CR40,50,SR40,50..ATM |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90560-08099 |
CR40,50,SR40,50..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-22030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35416-30010 |
CR4#,5#..ATM |
1 | ||
| 35416-24010 |
KR4#,SR40,50..ATM |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-22050 |
CR40,50,SR40,50..ATM |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10140 |
CR40,50,SR40,50..ATM |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-50010 |
CR40,50,SR40,50..ATM |
2 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-50010 |
CR40,50,SR40,50..ATM |
2 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-08179 |
CR40,50 |
1 | ||
| 90501-08195 |
SR40,50..ATM |
1 | ||
| 35476D - VALVE, CUT OFF | ||||
| 35284-50010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35476F - PLUG (FOR CUT OFF VALVE) | ||||
| 90339-04030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35476G - SPRING, COMPRESSION (FOR CUT OFF VALVE) | ||||
| 90501-06055 |
CR40,50,SR40,50..ATM |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-50010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-11061 |
CR40,50,SR40,50..ATM |
1 | ||
| 35486D - BALL (FOR PRESSURE RELIFE VALVE) | ||||
| 90360-08003 |
CR40,50,SR40,50..ATM |
1 | ||
| 35489H - VALVE, C-1 ORIFICE CONTROL | ||||
| 35489-30030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35489J - PLUG (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90339-05014 |
CR40,50,SR40,50..ATM |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08196 |
CR40,50,SR40,50..ATM 外側 |
1 | ||
| 90501-08121 |
CR40,50,SR40,50..ATM 内側 |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08196 |
CR40,50,SR40,50..ATM 外側 |
1 | ||
| 90501-08121 |
CR40,50,SR40,50..ATM 内側 |
1 | ||
| 35489L - KEY, STRAIGHT (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 35493-30030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-22020 |
CR40,50,SR40,50..ATM |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-07135 |
CR40,50,SR40,50..ATM |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-05014 |
CR40,50,SR40,50..ATM |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
CR40,50,SR40,50..ATM |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-22030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35493-22030 |
CR40,50,SR40,50..ATM |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 35493-30040 |
CR40,50,SR40,50..ATM |
1 | ||
| 35493X - SEAT, CUT OFF VALAE | ||||
| 35493-50050 |
CR40,50,SR40,50..ATM |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
ILLUST NO. 4 OF 4(9812- )CR40,50,SR40,50..ATM
A44DE,A44DF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05005 | ||||
| 90105-05031 | ||||
| 90105-06018 | ||||
| 90105-06028 | ||||
| 90105-06049 | ||||
| 90119-05023 | ||||
| 90119-05035 | ||||
| 91511-C0630 | ||||
| 91511-C0635 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
