CR50G-HFSQT (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9812- )3CTE

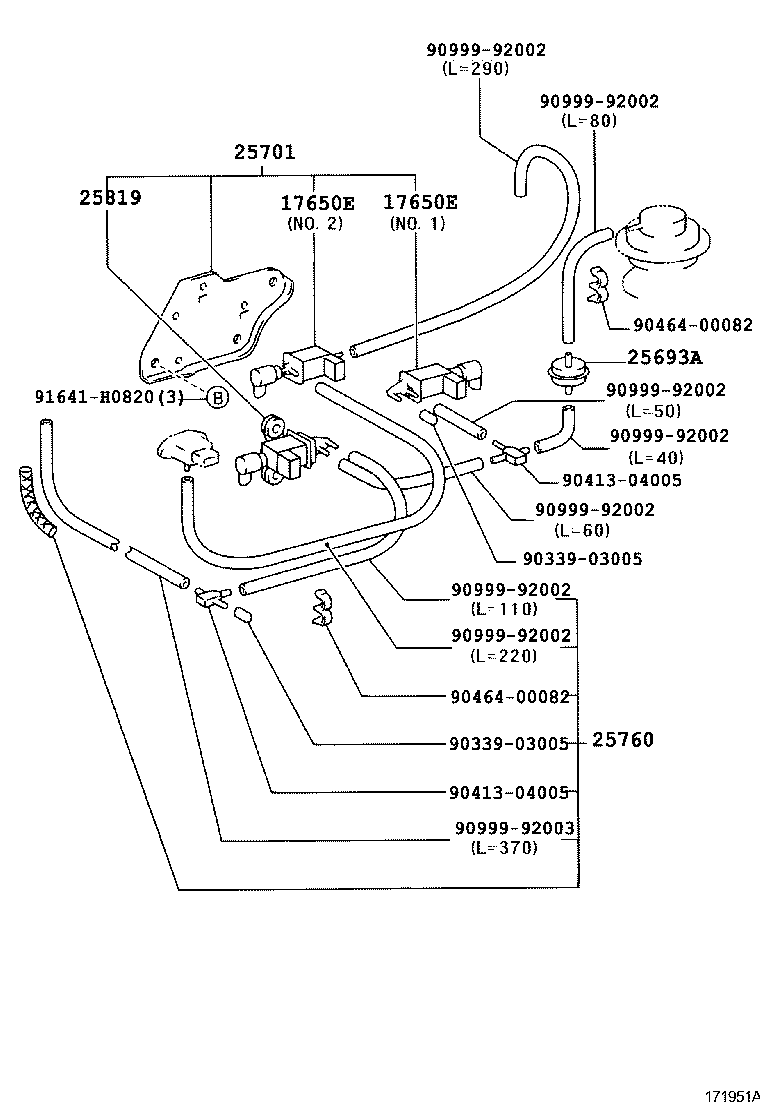

Click highlighted areas on diagram

diagram 17650E 17650E 25693A 25701 25760 25819 9033903005 9033903005 9041304005 9041304005 9046400082 9046400082 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9099992003 91641H0820
Part # Description Qty Price
17650E - VALVE, VACUUM SWITCHING
90910-12207

3CTE..CR40,50

NO.1

 1
90910-12208

3CTE..CR40,50

NO.2

 1
17650E - VALVE, VACUUM SWITCHING
90910-12207

3CTE..CR40,50

NO.1

 1
90910-12208

3CTE..CR40,50

NO.2

 1
25693A - DAMPER, EGR VACUUM MODULATOR
25693-64010

3CT..CR40,50;2C..CR41..ATM

 1
25693-64010

3CTE..CR40,50

 1
25701 - VALVE SET, EMISSION CONTROL
25701-64040

3CTE..CR40,50

 1
25701-64010

3CT..CR40,50

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-64300

3CTE..CR40,50

 1
25760-64110

3CT..CR40,50

 1
25819 - VALVE ASSY, VACUUM REGULATING
25819-64160

3CTE..CR40,50

 1
Common parts
90339-03005
90413-04005
90464-00082
90999-92002
90999-92003
91641-H0820
