CR50G-GRSVX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-0111)CR40,50,SR40,50

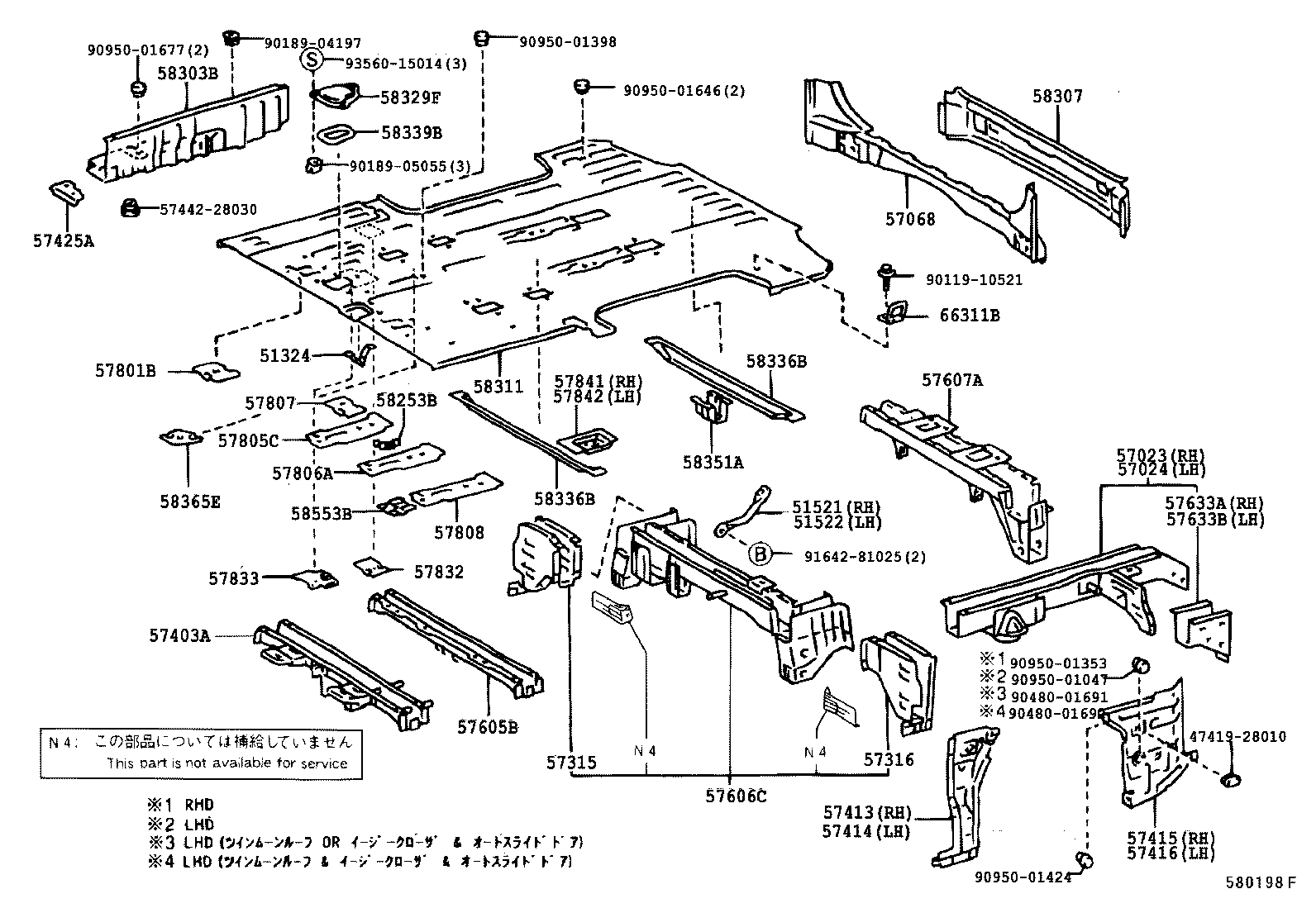

Click highlighted areas on diagram

diagram 4741928010 51324 51521 51522 57023 57024 57068 57315 57316 57403A 57413 57414 57415 57416 57425A 5744228030 57605B 57606C 57607A 57633A 57633B 57801B 57805C 57806A 57807 57808 57832 57833 57841 57842 58253B 58303B 58307 58311 58329F 58336B 58336B 58339B 58351A 58365E 58553B 66311B 9011910521 9018904197 9018905055 9048001691 9048001692 9095001047 9095001353 9095001398 9095001424 9095001646 9095001677 9164281025 9356015014
Part # Description Qty Price
51324 - BRACKET, PARKING CABLE SUPPORT, LH
51324-28010

CR41,KR4#..V1;CR40,5#,SR40,50

 1
57023 - MEMBER SUB-ASSY, REAR SIDE, RH
57023-28400

CR5#,SR50

 1
57024 - MEMBER SUB-ASSY, REAR SIDE, LH
57024-28430

CR5#,SR50

 1
57068 - MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER
57068-28110

CR41,KR4#..V1;CR40,5#,SR40,50

 1
57315 - OUTRIGGER, NO.3 RH
57305-28030

CR5#,SR50;SR40..4D..B;CR41,KR4#..4D..V1

 1
57316 - OUTRIGGER, NO.3 LH
57306-28020

CR5#,SR50;SR40..4D..B;CR41,KR4#..4D..V1

 1
57403A - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.3
57403-28010

CR4#,5#,KR42,SR40,50..05S,07S,08S

 1
57413 - RAIL, FLOOR SIDE, CENTER RH
57405-28140

CR40,50,SR40,50..07S,08S

 1
57405-28200

SR40,50..4D..B;CR41,51,KR4#..4D..06S..CBU..V1

 1
57414 - RAIL, FLOOR SIDE, CENTER LH
57406-28130

CR41,51,KR42..(05S,06S)..CBU;CR40,50,KR41,SR40,50..06S,07S,08S

 1
57415 - RAIL, FLOOR SIDE, REAR RH
57047-28100

CR41,KR4#..V1;CR40,5#,SR40,50

 1
57416 - RAIL, FLOOR SIDE, REAR LH
57048-28050

CR40,50,SR40,50..07S,08S

 1
57048-28050

CR41,KR4#..V1;CR40,5#,SR40,50

 1
57425A - PLATE, REAR STEP, FRONT RH
57425-28010

CR4#,5#,KR4#,SR40,50

 1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-28270

CR40,50,SR40,50..08S..CBU

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57606-28430

CR50,SR50..08S..CBU

 1
57607A - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57607-28100

CR50,SR50..07S,08S

 1
57633A - EXTENSION, REAR FLOOR SIDE MEMBER, REAR RH
57633-28010

CR4#,5#,KR4#,SR40,50

 1
57633B - EXTENSION, REAR FLOOR SIDE MEMBER, REAR LH
57633-28010

CR4#,5#,KR4#,SR40,50

 1
57801B - REINFORCEMENT SUB-ASSY, REAR NO.1 SEAT LEG, FRONT NO.1
57801-28020

SR40,50..B

 1
57801-28030

CR40,50,SR40,50..08S..CBU

 1
57805C - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.1
57805-28060

CR40,50,SR40,50..08S..CBU

 1
57805-28050

SR40,50..B

 1
57806A - REINFORCE SUB-ASSY, NO.1 SEAT LEG, REAR NO.2
57806-28080

CR40,50,SR40,50..08S..CBU

 1
57806-28070

SR40,50..B

 1
57806-28080

CR40,50,SR40,50..08S

 1
57807 - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.3
57807-28020

CR40,50,SR40,50..08S..CBU

 1
57808 - REINFORCEMENT SUB-ASSY, NO.1 SEAT LEG, REAR NO.4
57808-28090

CR40,50,SR40,50..08S..CBU

 1
57832 - REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.2
57832-28060

SR40,50..B

 1
57841 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57841-28030

CR40,50,SR40,50..07S,08S

 1
57842 - REINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
57842-28030

CR40,50,SR40,50..07S,08S

 1
58253B - BRACKET, PARKING CABLE CLAMP
58253-28020

CR40,50,SR40,50..08S

 1
58253-28020

CR40,50,SR40,50..08S..CBU

 1
58303B - STEP SUB-ASSY, REAR FLOOR, RH
58303-28040

CR40,50,SR40,50..07S,08S

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-28050

CR4#,5#,KR4#,SR40,50..B,D,E,N,Q

 1
58307-28060

CR40,50,SR40,50..V

 1
58311 - PAN, REAR FLOOR
58311-28730

CR40,50,SR40,50..D

 1
58311-28740

SR40,50..4D..B

 1
58311-28720

CR40,50,SR40,50..(E,V)..CBU

 1
58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2
58329-28010

CR4#,5#,KR4#,SR40,50

 1
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-28020

CR41,KR4#..V1;CR40,5#,SR40,50

 2
58336B - REINFORCEMENT, REAR FLOOR PAN
58336-28020

CR41,KR4#..V1;CR40,5#,SR40,50

 2
58339B - PACKING, REAR FLOOR SERVICE HOLE
58339-28020

CR4#,5#,KR4#,SR40,50

 1
58351A - BRACKET, SPARE WHEEL CARRIER
51938-28080

CR41,KR4#..V1;CR40,5#,SR40,50

 2
58553B - REINFORCEMENT, REAR SEAT BELT, NO.3
58553-28010

CR40,50,SR40,50..E,V

 1
58553-28010

CR40,50,SR40,50..(E,V)..CBU

 1
Common parts
47419-28010
57442-28030
90119-10521
90189-04197
90189-05055
90480-01691
90480-01692
90950-01047
90950-01353
90950-01398
90950-01424
90950-01646
90950-01677
91642-81025
93560-15014
