CR50G-GRSVT (1998)
Toyota Lite/Townace Noah,V

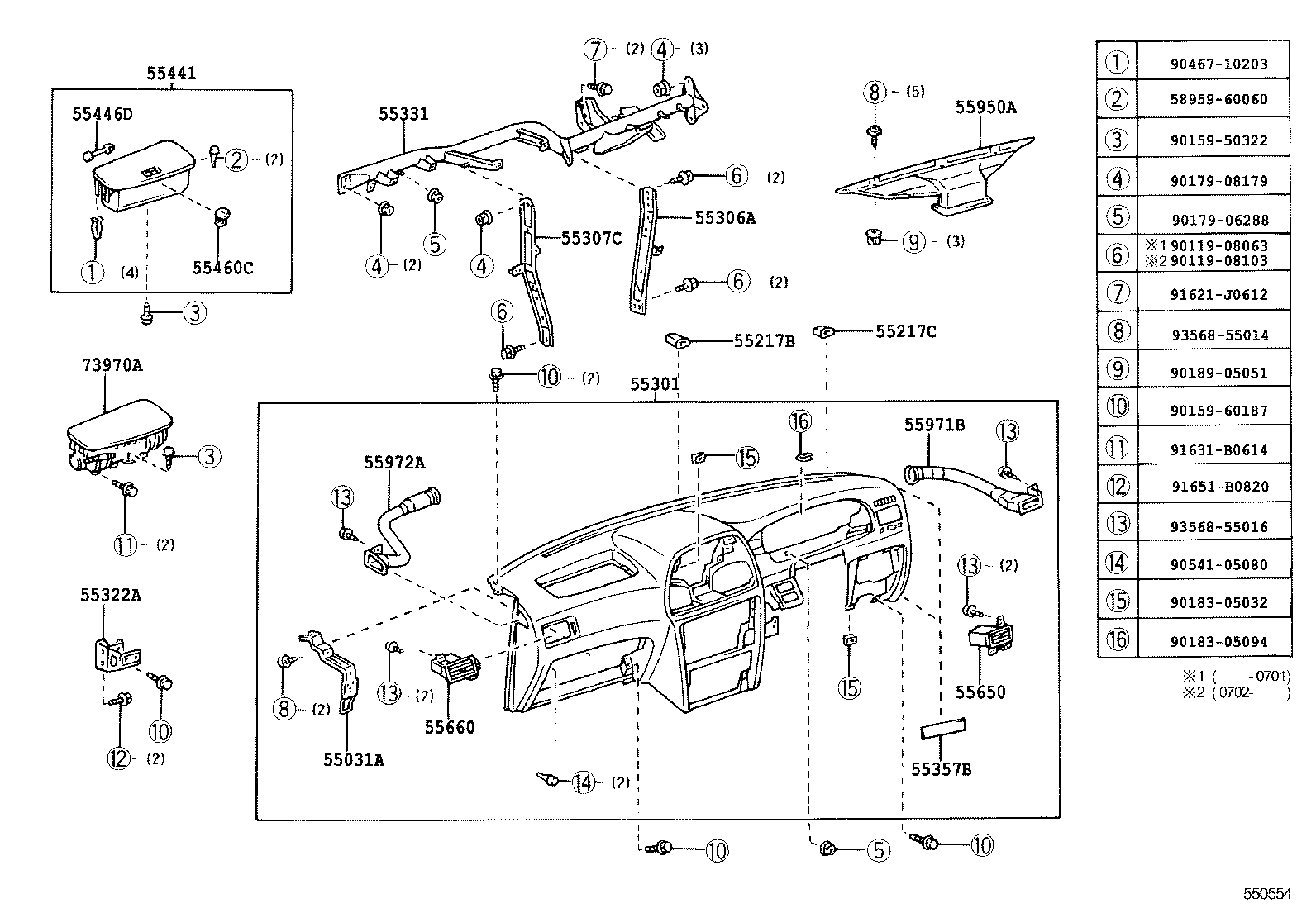

ILLUST NO. 1 OF 2(9812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55031A - STAY SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55031-28030 |
CR40,50,SR40,50 |
1 | ||
| 55217B - RETAINER, DASH PANEL SILENCER | ||||
| 55217-28010 |
CR40,50,SR40,50 |
1 | ||
| 55217-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55217C - RETAINER, DASH PANEL SILENCER, NO.2 | ||||
| 55217-28020 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 55217-28020 |
CR40,50,SR40,50 |
4 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-28230B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55301-28300B0 |
CR40,50,SR40,50..D,S,V ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ),MD.MOON MIST,TRIM1# |
1 | ||
| 55301-28230G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55301-28300B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55301-28300B0 |
SR40,50..B MD.MOON MIST,TRIM1# |
1 | ||
| 55301-28300G0 |
CR40,50,SR40,50..E,Q DK. SAGE,TRIM6# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-28090 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55306-28130 |
CR40,50,SR40,50 |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55307-28110 |
CR40,50,SR40,50 |
1 | ||
| 55322A - BRACKET, INSTRUMENT PANEL, NO.2 | ||||
| 55322-28060 |
CR40,50,SR40,50 |
1 | ||
| 55322-28060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-28040 |
CR4#,5#,KR4#,SR40,50 ｱﾘ(*80) |
1 | ||
| 55330-28090 |
CR40,50,SR40,50 ｱﾘ(SRS ｳﾝﾃﾝｾｷ ｴｱﾊﾞﾂｸﾞ & SRS ｼﾞﾖｼﾕｾｷ ｴｱﾊﾞﾂｸﾞ) |
1 | ||
| 55330-28080 |
CR40,50,SR40,50 |
1 | ||
| 55357B - CUSHION, INSTRUMENT PANEL, NO.3 | ||||
| 55357-28010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 55357-28010 |
CR40,50,SR40,50..07S,08S |
4 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-28040B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55440-28040B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55440-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55446D - SHAFT, INSTRUMENT PANEL BOX | ||||
| 55446-28010 |
CR40,50,SR40,50 |
2 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-28010B0 |
CR40,50,SR40,50..E MD.MOON MIST,TRIM6# |
1 | ||
| 55460-28010B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-28080B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55650-28070G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55650-28080G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55650-28070B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55650-28080B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-28090B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55660-28070B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55660-28090B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55660-28070G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55660-28090G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-28090 |
CR40,50,SR40,50 |
1 | ||
| 55950-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55971B - DUCT, SIDE DEFROSTER NOZZLE, NO.1 | ||||
| 55971-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55971-28040 |
CR40,50,SR40,50 |
1 | ||
| 55972A - DUCT, SIDE DEFROSTER NOZZLE, NO.2 | ||||
| 55972-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55972-28040 |
CR40,50,SR40,50 |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 73970-28070B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 73970-28070G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 73970-28070B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 90119-08063 | ||||
| 90119-08103 | ||||
| 90159-50322 | ||||
| 90159-60187 | ||||
| 90179-06288 | ||||
| 90179-08179 | ||||
| 90183-05032 | ||||
| 90183-05094 | ||||
| 90189-05051 | ||||
| 90467-10203 | ||||
| 90541-05080 | ||||
| 91621-J0612 | ||||
| 91631-B0614 | ||||
| 91651-B0820 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||

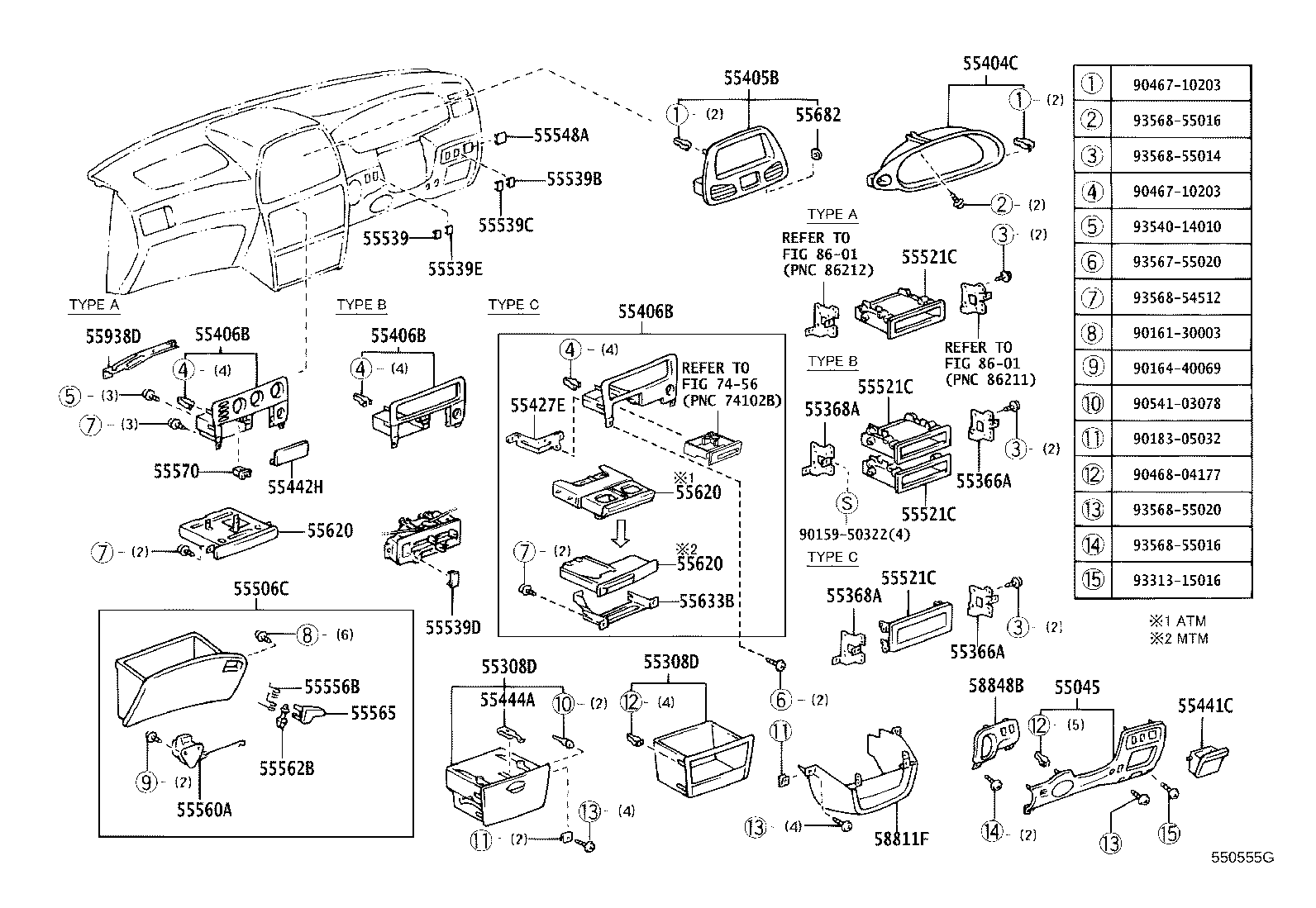

ILLUST NO. 2 OF 2(9812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-28070B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55045-28060B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55045-28060G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55045-28070G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55045-28070B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-28070B0 |
CR40,50,SR40,50..B,D MD.MOON MIST,TRIM1# |
1 | ||
| 55308-28080B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55308-28080G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55308-28080B0 |
CR40,50,SR40,50..S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55308D - BOX SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-28070B0 |
CR40,50,SR40,50..B,D MD.MOON MIST,TRIM1# |
1 | ||
| 55308-28080B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55308-28080G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55308-28080B0 |
CR40,50,SR40,50..S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 86211-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 86211-28080 |
CR40,50,SR40,50 |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 86211-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 86211-28080 |
CR40,50,SR40,50 |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 86212-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 86212-28080 |
CR40,50,SR40,50 |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 86212-28040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 86212-28080 |
CR40,50,SR40,50 |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-28150 |
CR40,50,SR40,50..V |
1 | ||
| 55404-28250 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N) |
1 | ||
| 55404-28230 |
CR40,50,SR40,50..S,V |
1 | ||
| 55404-28250 |
CR40,50,SR40,50..E..CBU Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I) |
1 | ||
| 55404-28130 |
CR40,50,SR40,50..E,Q |
1 | ||
| 55404-28260 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y) |
1 | ||
| 55404-28250 |
CR40,50,SR40,50..E..CBU ﾘﾓ/ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(L),*(Z),*(M) |
1 | ||
| 55404-28210 |
CR40,50,SR40,50..B,D |
1 | ||
| 55404-28220 |
CR40,50,SR40,50..E,Q ﾓｸﾒ |
1 | ||
| 55404-28240 |
CR40,50,SR40,50..E |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-28150 |
CR40,50,SR40,50..V |
1 | ||
| 55405-28230 |
CR40,50,SR40,50..E,Q ﾓｸﾒ |
1 | ||
| 55405-28330 |
SR40,50..S ﾛ-ﾄﾞﾂｱﾗ-ﾘﾐﾃﾂﾄﾞ *(G),*(H),*(X),*(Y) |
1 | ||
| 55405-28280 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(F), *(N) |
1 | ||
| 55405-28130 |
CR40,50,SR40,50..E,Q |
1 | ||
| 55405-28280 |
CR40,50,SR40,50..E..CBU ﾘﾓ/ｴｸｻ-ﾌﾞﾅﾋﾞｽﾍﾟｼﾔﾙ *(V),*(L),*(Z),*(M) |
1 | ||
| 55405-28260 |
CR40,50,SR40,50..E |
1 | ||
| 55405-28250 |
CR40,50,SR40,50..S,V |
1 | ||
| 55405-28240 |
CR40,50,SR40,50..B,D |
1 | ||
| 55405-28340 |
CR40,50,SR40,50..E..CBU Gﾘﾐﾃﾂﾄﾞ *(P),(Q) OR ｽ-ﾊﾟ-ｴｸｽﾄﾗﾘﾐﾃﾂﾄﾞ *(S),*(I) |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-28030B0 |
CR40,50,SR40,50..ATM..(B,D) TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM1# |
1 | ||
| 55413-28020B0 |
CR40,50,SR40,50..S,V TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD. MOON MIST,TRIM1# |
1 | ||
| 55413-28010B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ & TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM10 |
1 | ||
| 55413-28010G0 |
CR40,50,SR40,50..E,Q TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK. SAGE,TRIM6# |
1 | ||
| 55413-28020G0 |
CR40,50,SR40,50..E TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK. SAGE,TRIM6# |
1 | ||
| 55413-28010B0 |
CR40,50,SR40,50..S,V TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD. MOON MIST,TRIM1# |
1 | ||
| 55413-28020B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM10 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-28030B0 |
CR40,50,SR40,50..ATM..(B,D) TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM1# |
1 | ||
| 55413-28020B0 |
CR40,50,SR40,50..S,V TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD. MOON MIST,TRIM1# |
1 | ||
| 55413-28010B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ & TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM10 |
1 | ||
| 55413-28010G0 |
CR40,50,SR40,50..E,Q TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK. SAGE,TRIM6# |
1 | ||
| 55413-28020G0 |
CR40,50,SR40,50..E TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK. SAGE,TRIM6# |
1 | ||
| 55413-28010B0 |
CR40,50,SR40,50..S,V TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD. MOON MIST,TRIM1# |
1 | ||
| 55413-28020B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM10 |
1 | ||
| 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER | ||||
| 55406-28030B0 |
CR40,50,SR40,50..ATM..(B,D) TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM1# |
1 | ||
| 55413-28020B0 |
CR40,50,SR40,50..S,V TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD. MOON MIST,TRIM1# |
1 | ||
| 55413-28010B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ & TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM10 |
1 | ||
| 55413-28010G0 |
CR40,50,SR40,50..E,Q TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK. SAGE,TRIM6# |
1 | ||
| 55413-28020G0 |
CR40,50,SR40,50..E TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,DK. SAGE,TRIM6# |
1 | ||
| 55413-28010B0 |
CR40,50,SR40,50..S,V TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,MD. MOON MIST,TRIM1# |
1 | ||
| 55413-28020B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ & TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ,MD.MOON MIST,TRIM10 |
1 | ||
| 55427E - BRACKET, CLUSTER FINISH PANEL, NO.2 | ||||
| 55427-28020 |
CR40,50,SR40,50..B,D |
1 | ||
| 55441C - BOX, INSTRUMENT PANEL COIN | ||||
| 55441-28030B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55441-28030B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55441-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55442H - DOOR, INSTRUMENT PANEL | ||||
| 55442-28040B0 |
CR40,50,SR40,50..S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55442-28040B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55442-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 55506C - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55506-28100B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55506-28110B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55506-28100B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55506-28100G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55506-28110G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CR40,50,SR40,50..B,D TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55522-52020 |
CR40,50,SR40,50..E,Q,S,V TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521-16030 |
CR40,50,SR40,50..B,D TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 55521-16030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CR40,50,SR40,50..B,D TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55522-52020 |
CR40,50,SR40,50..E,Q,S,V TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521-16030 |
CR40,50,SR40,50..B,D TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 55521-16030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CR40,50,SR40,50..B,D TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55522-52020 |
CR40,50,SR40,50..E,Q,S,V TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521-16030 |
CR40,50,SR40,50..B,D TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 55521-16030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-16030 |
CR40,50,SR40,50..B,D TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55522-52020 |
CR40,50,SR40,50..E,Q,S,V TYPE C:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 55521-16030 |
CR40,50,SR40,50..B,D TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
2 | ||
| 55521-16030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080G2 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55539-20080B2 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-20080G2 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55539-20080B2 |
CR40,50,SR40,50..B,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55524-28030 |
CR41,51,KR4#;CR40,50,SR40,50..B,E,Q,V |
1 | ||
| 55539-20080B2 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55539-20080G2 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55539-20080B2 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080G2 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55539-20080B2 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55539-20080B2 |
CR41,51,KR4#..D;CR40,50,SR40,50..B,E,Q,V MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55547-28020B2 |
CR40,50,SR40,50..B,D MD.MOON MIST,TRIM1# |
1 | ||
| 55556B - SPRING, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55556-28020 |
CR40,50,SR40,50 |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-18010B1 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 55560-28020 |
CR40,50,SR40,50 |
1 | ||
| 55560-18010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55562B - PIN, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55562-28010 |
CR40,50,SR40,50 |
2 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-28010B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55565-28010G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55565-28010B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55570 - LOCK ASSY, CASSETTE BOX | ||||
| 55570-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-28050 |
CR40,50,SR40,50..ATM..(B,D) |
1 | ||
| 55620-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55620-28040B0 |
CR40,50,SR40,50..S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55620-28030 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 55620-28040B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-28050 |
CR40,50,SR40,50..ATM..(B,D) |
1 | ||
| 55620-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55620-28040B0 |
CR40,50,SR40,50..S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55620-28030 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 55620-28040B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55620 - HOLDER ASSY, INSTRUMENT PANEL CUP | ||||
| 55620-28050 |
CR40,50,SR40,50..ATM..(B,D) |
1 | ||
| 55620-28040G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 55620-28040B0 |
CR40,50,SR40,50..S,V MD.MOON MIST,TRIM1# |
1 | ||
| 55620-28030 |
CR4#,5#,KR4#,SR40,50..ATM |
1 | ||
| 55620-28040B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 55633B - SUPPORT, INSTRUMENT PANEL CUP HOLDER | ||||
| 55633-28060 |
CR40,50,SR40,50..B,D |
1 | ||
| 55682 - SPRING, INSTRUMENT PANEL REGISTER SUPPORT | ||||
| 55682-12140 |
CR40,50,SR40,50 |
2 | ||
| 55938D - BRACKET, HEATER CONTROL | ||||
| 55938-28010 |
CR40,50,SR40,50..E,Q,S,V |
1 | ||
| 58811F - BOX, CONSOL | ||||
| 58811-28120B0 |
CR4#,5#,KR4#,SR40,50 MD.MOON MIST,TRIM1# |
1 | ||
| 58811-28120G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 58810-28290B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| 58810-28290B0 |
CR40,50,SR40,50..B,D,S,V MD.MOON MIST,TRIM1# |
1 | ||
| 58810-28290G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 58848B - COVER, SHIFT LEVER HOLE | ||||
| 58848-28030G0 |
CR40,50,SR40,50..E,Q DK.SAGE,TRIM6# |
1 | ||
| 58848-28030B0 |
CR40,50,SR40,50..ATM..(B,D,S,V) MD.MOON MIST,TRIM1# |
1 | ||
| 58848-28030B0 |
SR40,50..E..CBU ﾓﾃﾞﾘｽﾀ,MD.MOON MIST,TRIM10 |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90161-30003 | ||||
| 90164-40069 | ||||
| 90183-05032 | ||||
| 90467-10203 | ||||
| 90468-04177 | ||||
| 90541-03078 | ||||
| 93313-15016 | ||||
| 93540-14010 | ||||
| 93567-55020 | ||||
| 93568-54512 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||
| 93568-55020 | ||||
| Linked diagrams | ||||
| 7456 | ||||
| 8601 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
