CR50G-GRSVT (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9812- )3C#

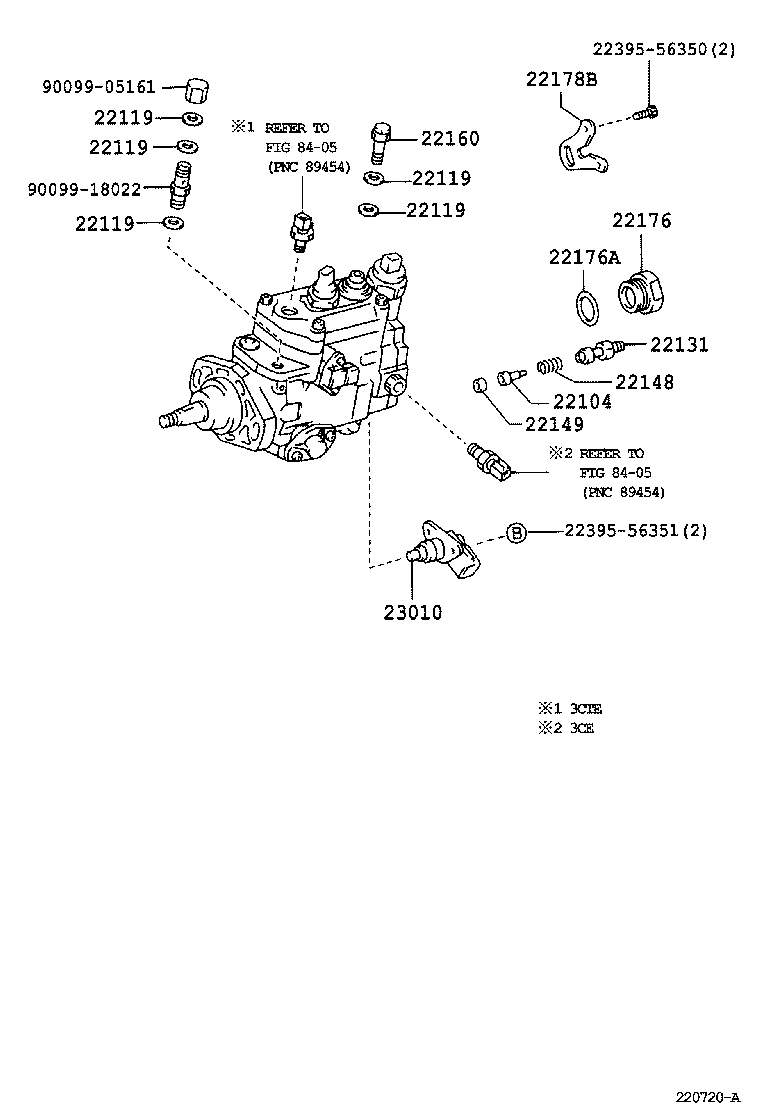

Click highlighted areas on diagram

diagram 22104 22119 22119 22119 22119 22119 22131 22148 22149 22160 22176 22176A 22178B 2239556350 2239556351 23010 9009905161 9009918022
Part # Description Qty Price
22104 - VALVE SUB-ASSY, INJECTION PUMP DELIVERY
22104-6A640

3CTE..CR40,50

 4
22104-6D670

3CT..CR40,50

 4
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

3CT..CR40,50;2C..CR51..MTM

 6
90201-12109

3CTE..CR40,50

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

3CT..CR40,50;2C..CR51..MTM

 6
90201-12109

3CTE..CR40,50

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

3CT..CR40,50;2C..CR51..MTM

 6
90201-12109

3CTE..CR40,50

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

3CT..CR40,50;2C..CR51..MTM

 6
90201-12109

3CTE..CR40,50

 5
22119 - WASHER, AIR BLEEDER NIPPLE
90201-12109

3CT..CR40,50;2C..CR51..MTM

 6
90201-12109

3CTE..CR40,50

 5
22131 - HOLDER, DELIVERY VALVE
22190-6A680

3CTE..CR40,50

 4
22190-6A680

2C,3CT..CR4#,5#

 4
22148 - SPRING, DELIVERY VALVE
22148-54010

2C,3CT..CR4#,5#

 4
22148-54010

3CTE..CR40,50

 4
22149 - GASKET, DELIVERY VALVE
22149-56351

3CTE..CR40,50

 4
22149-56351

2C,3CT..CR4#,5#

 4
22160 - SCREW SUB-ASSY, OVERFLOW
22160-54271

3CTE..CR40,50

 1
22160-64010

2C,3CT..CR4#,5#

 1
22176 - PLUG, DISTRIBUTIVE HEAD
22176-54640

3CTE..CR40,50

 1
22176-54020

2C,3CT..CR4#,5#

 1
22176A - RING, O(FOR DISTRIBUTIVE HEAD PLUG)
22193-54772

2C,3CT..CR4#,5#

 1
22193-54772

3CTE..CR40,50

 1
22178B - BRACKET(FOR INJECTION PUMP ASSY)
22178-64010

2C,3CT..CR4#,5#

 1
22178-64010

3CTE..CR40,50

 1
23010 - VALVE ASSY, TIMING CONTROL
23010-67010

3CTE..CR40,50

 1
Common parts
22395-56350
22395-56351
90099-05161
90099-18022
