CR50G-GRSEX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

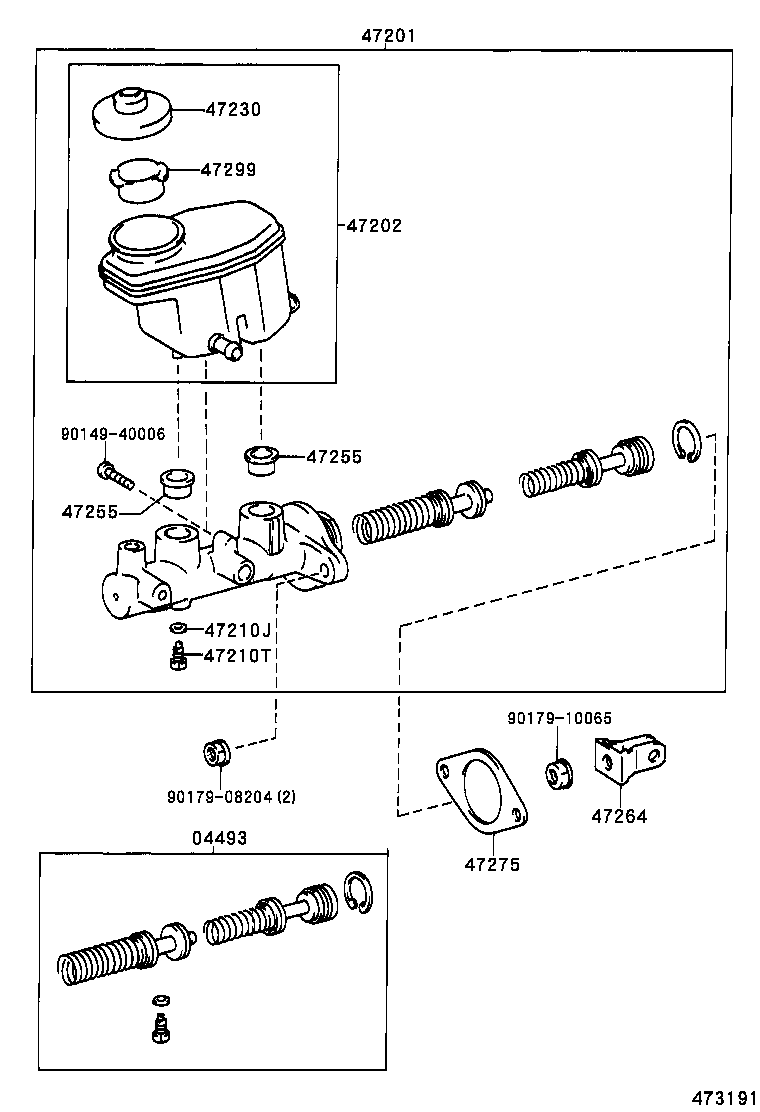

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47275 47299 9014940006 9017908204 9017910065
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-28140

CR50,SR50;CR40,SR40..E,Q,V

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-28500

CR50,SR50..ATM

ｱﾘ(ABS)

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47220-26250

CR4#,5#,KR4#,SR40,50..ATM

 1
47210J - GASKET(FOR MASTER CYLINDER)
90029-43001

CR50,SR50;CR40,SR40..E,Q,V

 1
90430-06104

CR4#,5#,KR4#,SR40,50

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

CR4#,5#,KR4#,SR40,50

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-12040

CR4#,5#,KR4#,SR40,50

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

CR4#,5#,KR4#,SR40,50

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

CR4#,5#,KR4#,SR40,50

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-20060

CR4#,5#,KR4#,SR40,50

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-12020

CR4#,5#,KR4#,SR40,50

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-20060

CR4#,5#,KR4#,SR40,50

 1
Common parts
90149-40006
90179-08204
90179-10065
