CR50G-GRSEX (1996)
Toyota Lite/Townace Noah,V

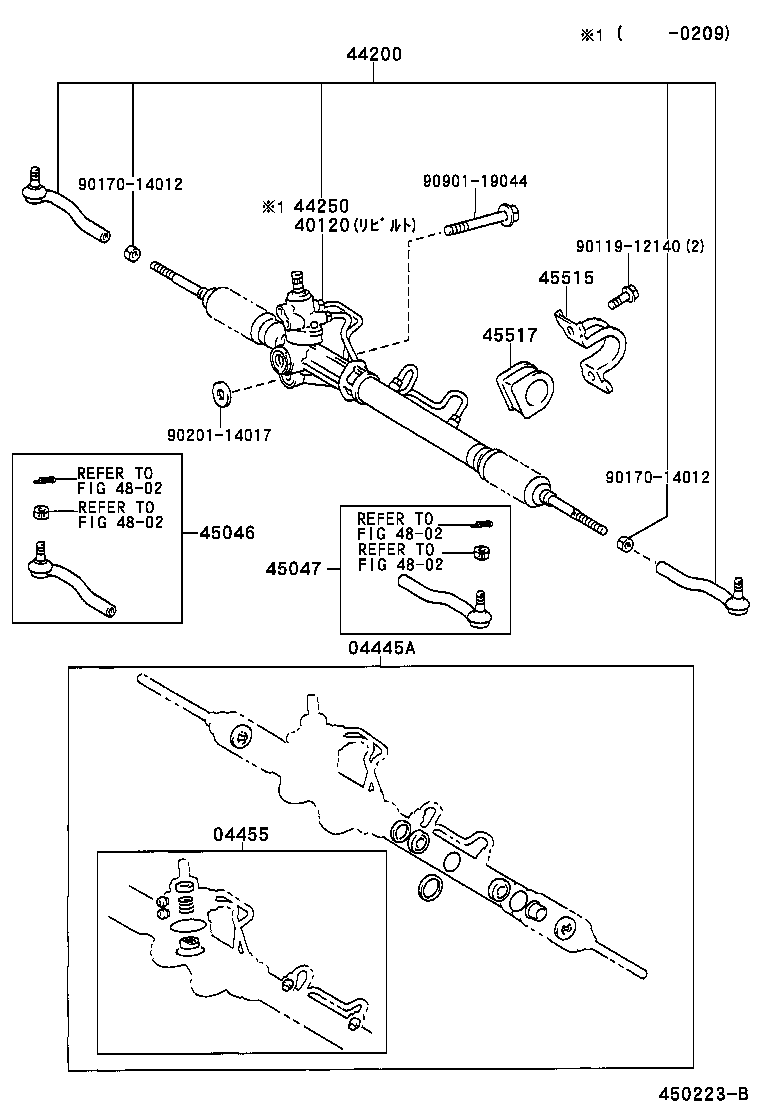

ILLUST NO. 1 OF 2(9610- )CR5#,KR52,SR50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-28070 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE | ||||
| 04455-26030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 40120 - GEAR ASSY,POWER STEERING,REBUILT | ||||
| 40120-28310 |
CR5#,SR50 TOYODA KOKI |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-28310 |
CR5#,SR50 |
1 | ||
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29355 |
CR5#,SR50 |
1 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45047-29115 |
CR5#,SR50 |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-27060 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-38010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| Common parts | ||||
| 90119-12140 | ||||
| 90170-14012 | ||||
| 90201-14017 | ||||
| 90901-19044 | ||||
| Linked diagrams | ||||
| 4802 | ||||

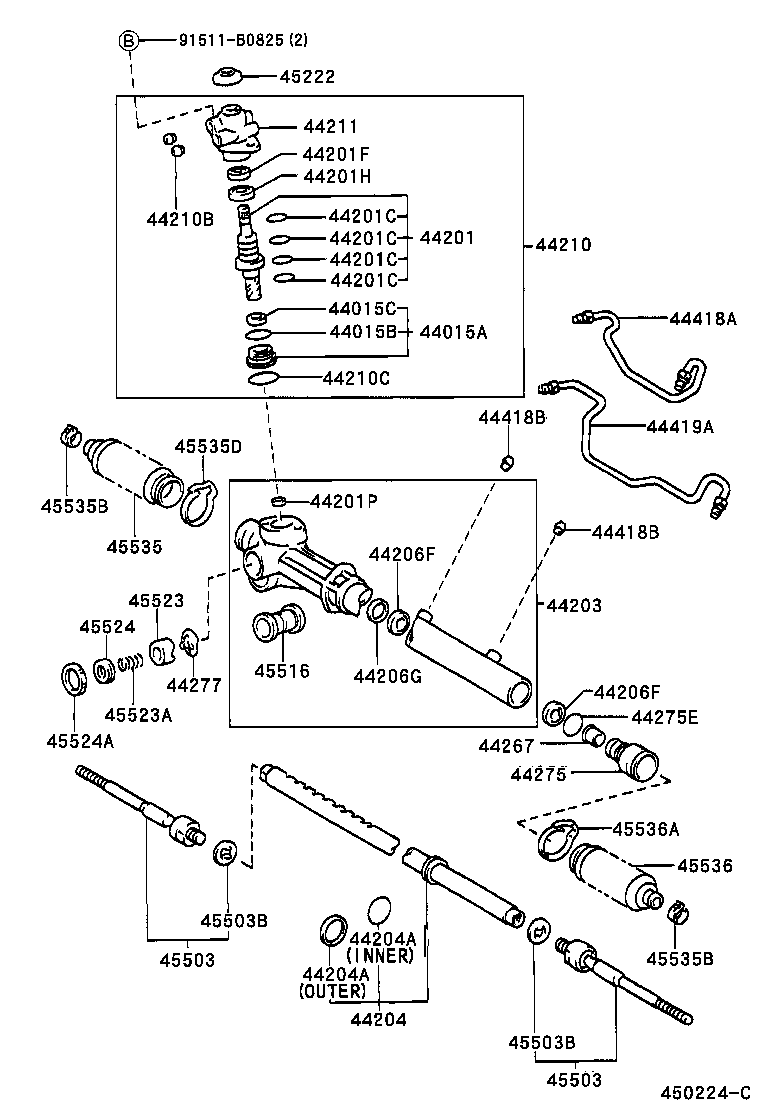

ILLUST NO. 2 OF 2(9610- )CR5#,KR52,SR50
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44015A - NUT SUB-ASSY, BEARING GUIDE | ||||
| 44015-22020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44015B - RING, O(FOR BEARING GUIDE NUT) | ||||
| 90301-43002 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44015C - SEAL, OIL(FOR BEARING GUIDE NUT) | ||||
| 90310-25004 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-28230 |
CR5#,SR50 |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33007 |
CR4#,5#,KR4#,SR40,50 |
4 | ||
| 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19002 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) | ||||
| 90363-19003 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) | ||||
| 90364-13003 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44203 - HOUSING SUB-ASSY, POWER STEERING RACK | ||||
| 44203-28290 |
CR5#,SR50 |
1 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-28110 |
CR5#,SR50 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-41001 |
CR4#,5#,KR4#,SR40,50 外側 |
1 | ||
| 90301-37007 |
CR4#,5#,KR4#,SR40,50 内側 |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-41001 |
CR4#,5#,KR4#,SR40,50 外側 |
1 | ||
| 90301-37007 |
CR4#,5#,KR4#,SR40,50 内側 |
1 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-26018 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90310-26018 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE) | ||||
| 90560-27013 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-28280 |
CR5#,SR50 |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-06005 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-51001 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-20180 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44267 - GUIDE, RACK END | ||||
| 44267-22020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44275 - STOPPER, CYLINDER END | ||||
| 44275-22020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44275E - RING, O(FOR RACK END GUIDE) | ||||
| 90301-40004 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44277 - SEAT, RACK GUIDE | ||||
| 44277-22020 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-28140 |
CR5#,SR50 |
1 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 44418B - SEAT, UNION(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90410-04002 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-28120 |
CR5#,SR50 |
1 | ||
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-32010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29685 |
CR5#,SR50 |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-29685 |
CR5#,SR50 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
CR4#,5#,KR4#,SR40,50 外径=38 |
2 | ||
| 45503B - WASHER, CLAW(FOR STEERING RACK END) | ||||
| 90214-14007 |
CR4#,5#,KR4#,SR40,50 外径=38 |
2 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-22040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-26074 |
CR5#,SR50 |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-20040 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36002 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-22080 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-19012 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) | ||||
| 90460-49004 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45535-22080 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) | ||||
| 90460-49004 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| Common parts | ||||
| 91511-B0825 | ||||
