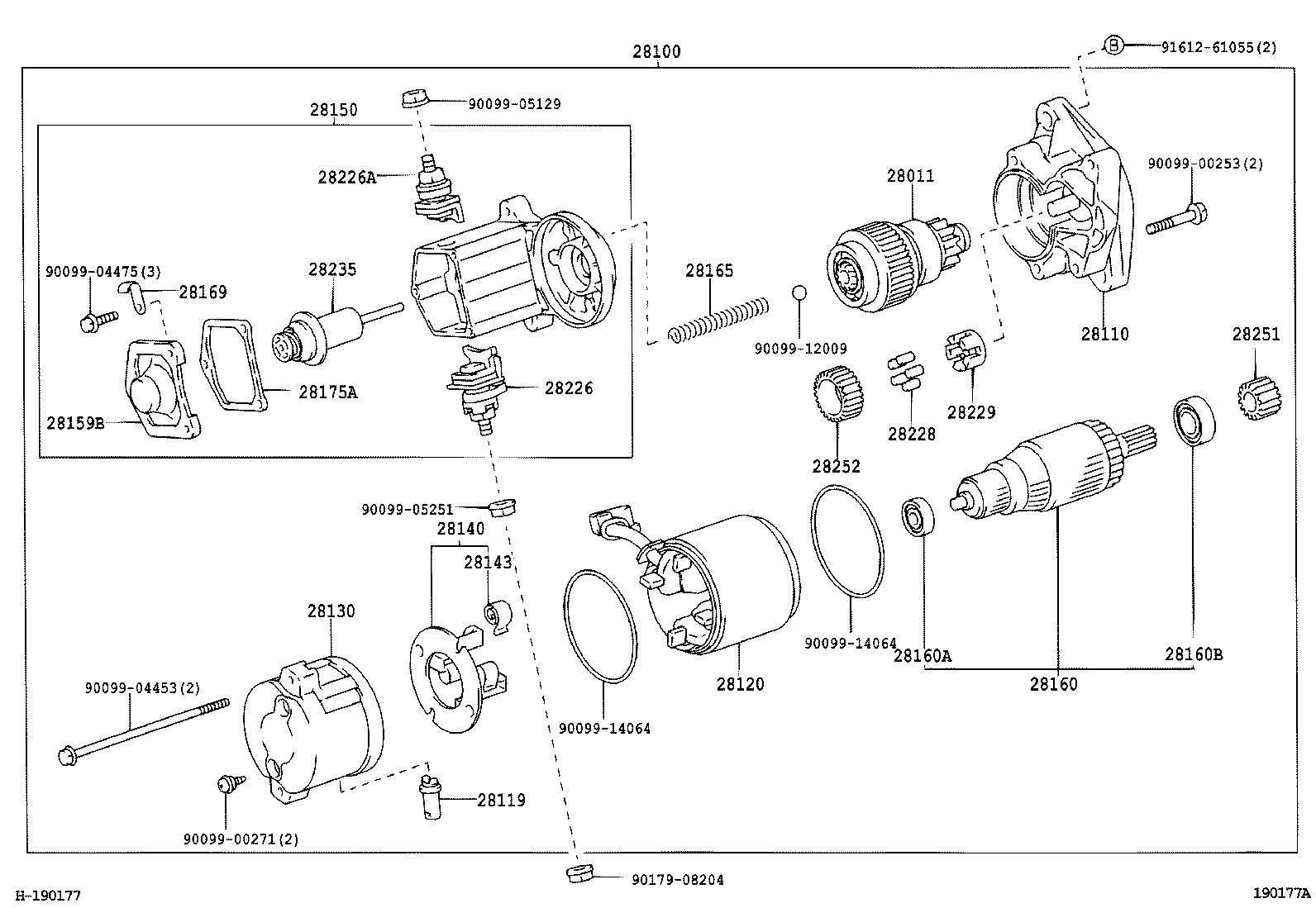

CR50G-GRSEX (1996)
Toyota Lite/Townace Noah,V
(9610-9812)3CT
12V 2.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64280 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28011-64020 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64390 |
2C,3CT..CR4#,5# 12V 2.2KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-64380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-64290 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28110-64280 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-74110 |
2C,3CT..CR4#,5# 12V 1.4KW,2.0KW |
1 | ||
| 28199-46080 |
2C,3CT..CR4#,5# 12V 2.2KW |
2 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28120-64040 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-75120 |
3CT..CR40,50 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28140-64040 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-54380 |
3CT..CR40,50 12V 2.0KW |
4 | ||
| 90099-17115 |
2C,3CT..CR4#,5# 12V 2.2KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64390 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28150-64380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28150-64310 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-64180 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28159-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28159-10040 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28160-64041 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 90099-10208 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10143 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 90099-10197 |
2C,3CT..CR4#,5# 12V 1.4KW,2.0KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 12V 1.0KW,2.2KW |
1 | ||
| 28165-76070 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54380 |
3CT..CR40,50 |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 12V 1.0KW,2.2KW |
1 | ||
| 28175-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-64280 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28226-76100 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28226-54350 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28226-66060 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 12V 1.0KW,2.0KW,2.2KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28229-26040 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 12V 1.0KW,2.2KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 12V 1.0KW,2.2KW |
1 | ||
| 28235-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28254-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-64040 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28254-64130 |
2C,3CT..CR4#,5# 12V 1.4KW,2.0KW |
1 | ||
| Common parts | ||||
| 90099-00253 | ||||
| 90099-00271 | ||||
| 90099-04453 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90099-14064 | ||||
| 90179-08204 | ||||
| 91612-61055 | ||||

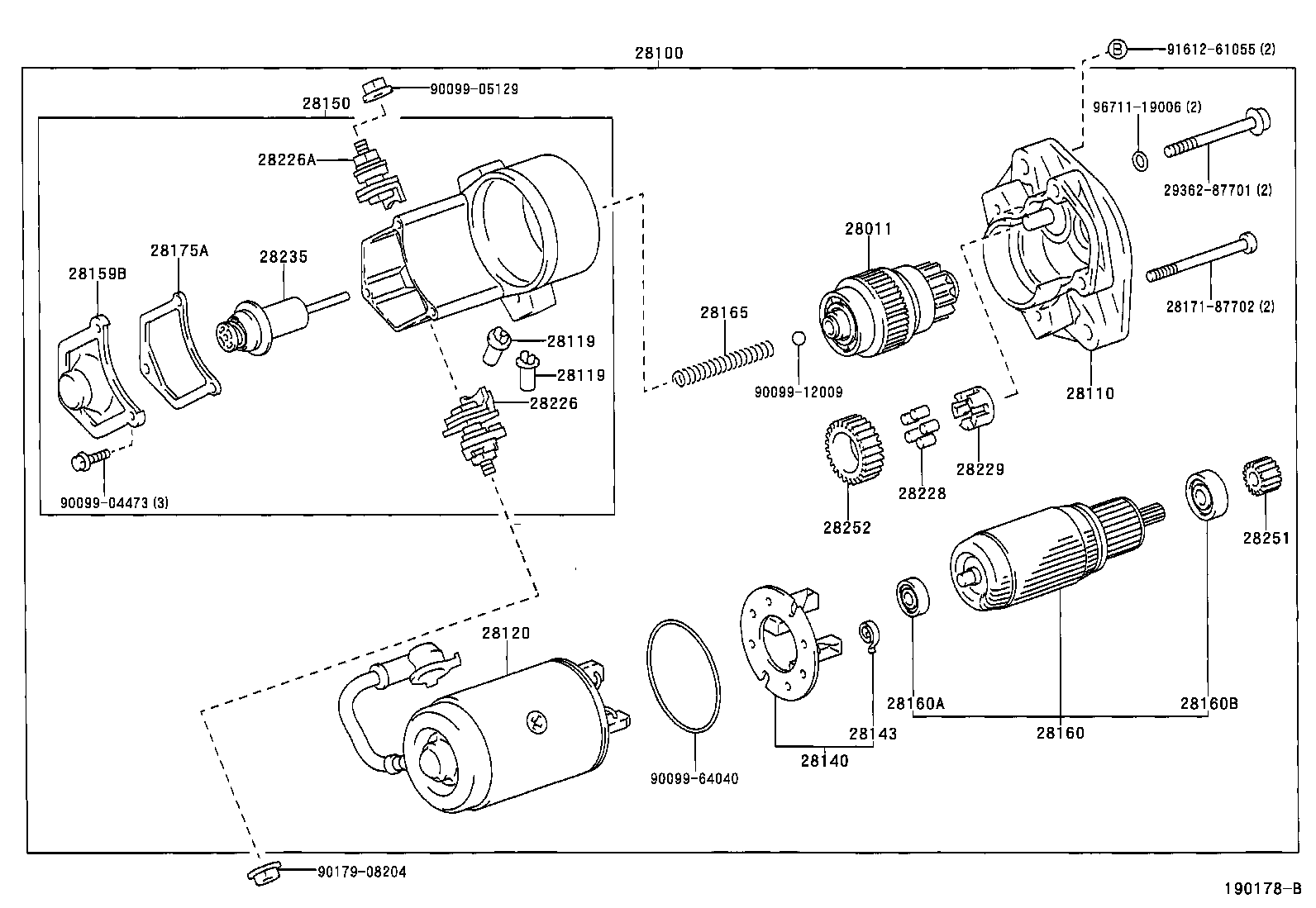

(9610- )2C,3CT#,3CE
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-64280 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28011-64020 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-64390 |
2C,3CT..CR4#,5# 12V 2.2KW,ｶﾝﾚｲﾁｼﾖｳ |
1 | ||
| 28100-64380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28115-64290 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28110-64280 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-74110 |
2C,3CT..CR4#,5# 12V 1.4KW,2.0KW |
1 | ||
| 28199-46080 |
2C,3CT..CR4#,5# 12V 2.2KW |
2 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-74110 |
2C,3CT..CR4#,5# 12V 1.4KW,2.0KW |
1 | ||
| 28199-46080 |
2C,3CT..CR4#,5# 12V 2.2KW |
2 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28120-64040 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28140-64040 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-54380 |
3CT..CR40,50 12V 2.0KW |
4 | ||
| 90099-17115 |
2C,3CT..CR4#,5# 12V 2.2KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-64390 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28150-64380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28150-64310 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-64180 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28159-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28159-10040 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28160-64041 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-54070 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 90099-10208 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28160B - BEARING, STARTER ARMATURE, NO.2 | ||||
| 90099-10143 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 90099-10197 |
2C,3CT..CR4#,5# 12V 1.4KW,2.0KW |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 12V 1.0KW,2.2KW |
1 | ||
| 28165-76070 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-10040 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 12V 1.0KW,2.2KW |
1 | ||
| 28175-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-64280 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28226-76100 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28226-54350 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28226-66060 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 12V 1.0KW,2.0KW,2.2KW |
1 | ||
| 28228 - ROLLER, STARTER IDLE GEAR CLUTCH | ||||
| 28228-26040 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 |
5 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28229-26040 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 12V 1.0KW,2.2KW |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-35080 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 12V 1.0KW,2.2KW |
1 | ||
| 28235-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28251 - PINION, STARTER DRIVE | ||||
| 28251-54070 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28254-54380 |
3CT..CR40,50 12V 2.0KW |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-64040 |
2C,3CT..CR4#,5# 12V 2.2KW |
1 | ||
| 28254-64130 |
2C,3CT..CR4#,5# 12V 1.4KW,2.0KW |
1 | ||
| Common parts | ||||
| 28171-87702 | ||||
| 29362-87701 | ||||
| 90099-04473 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90099-64040 | ||||
| 90179-08204 | ||||
| 91612-61055 | ||||
| 96711-19006 | ||||
