CR50G-GRSEX (1996)
Toyota Lite/Townace Noah,V
Production
Oct 1996
-
Dec 1998
Engine
3CT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9610- )2C,3CT,3CE

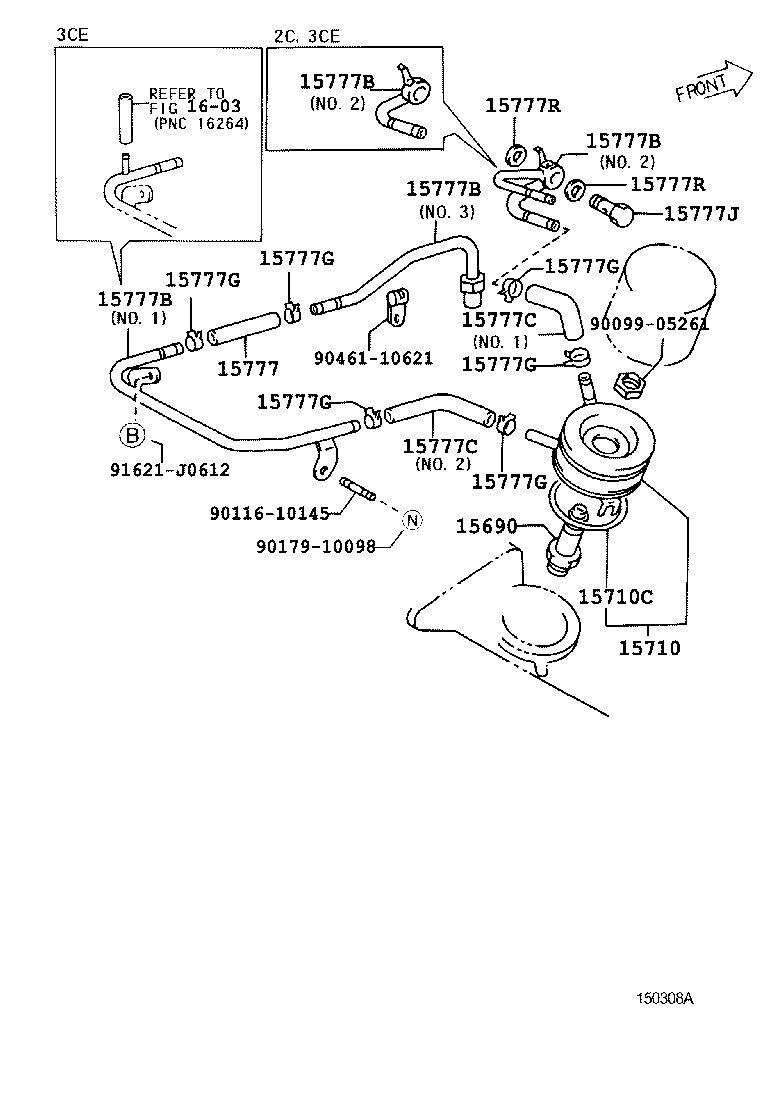

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15690 - VALVE ASSY, OIL COOLER RELIEF | ||||
| 15695-64010 |
3CT..CR40,50 |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| 15710-64180 |
3CT..CR40,50 |
1 | ||
| 15710-64181 |
3CT..CR40,50 |
1 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 90301-67004 |
2C,3CT..CR4#,5# |
1 | ||
| 90301-67003 |
2C,3CT..CR4#,5# |
1 | ||
| 15777 - HOSE, OIL COOLER | ||||
| 90445-21006 |
2C,3CT..CR4#,5# |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15767-64100 |
2C,3CT..CR4#,5# NO.1 |
1 | ||
| 15769-64011 |
2C,3CT..CR4#,5# NO.3 |
1 | ||
| 15768-64150 |
3CT..CR40,50 NO.2 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15767-64100 |
2C,3CT..CR4#,5# NO.1 |
1 | ||
| 15769-64011 |
2C,3CT..CR4#,5# NO.3 |
1 | ||
| 15768-64150 |
3CT..CR40,50 NO.2 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15767-64100 |
2C,3CT..CR4#,5# NO.1 |
1 | ||
| 15769-64011 |
2C,3CT..CR4#,5# NO.3 |
1 | ||
| 15768-64150 |
3CT..CR40,50 NO.2 |
1 | ||
| 15777B - PIPE, OIL COOLER | ||||
| 15767-64100 |
2C,3CT..CR4#,5# NO.1 |
1 | ||
| 15769-64011 |
2C,3CT..CR4#,5# NO.3 |
1 | ||
| 15768-64150 |
3CT..CR40,50 NO.2 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15778-64070 |
2C,3CT..CR4#,5# NO.2 |
1 | ||
| 15777-64080 |
2C,3CT..CR4#,5# NO.1 |
1 | ||
| 15777C - HOSE, OIL COOLER | ||||
| 15778-64070 |
2C,3CT..CR4#,5# NO.2 |
1 | ||
| 15777-64080 |
2C,3CT..CR4#,5# NO.1 |
1 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C,3CT..CR4#,5# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C,3CT..CR4#,5# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C,3CT..CR4#,5# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C,3CT..CR4#,5# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C,3CT..CR4#,5# |
6 | ||
| 15777G - CLAMP OR CRIP, HOSE | ||||
| 90467-20005 |
2C,3CT..CR4#,5# |
6 | ||
| 15777J - BOLT, UNION(FOR OIL COOLER PIPE) | ||||
| 90401-20010 |
3CT..CR40,50 |
1 | ||
| 15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20014 |
2C,3CT..CR4#,5# |
2 | ||
| 15777R - GASKET(FOR OIL COOLER PIPE UNION BOLT) | ||||
| 90430-20014 |
2C,3CT..CR4#,5# |
2 | ||
| Common parts | ||||
| 90099-05261 | ||||
| 90116-10145 | ||||
| 90179-10098 | ||||
| 90461-10621 | ||||
| 91621-J0612 | ||||
| Linked diagrams | ||||
| 1603 | ||||
