CR50G-GRSET (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9812- )CR40,50

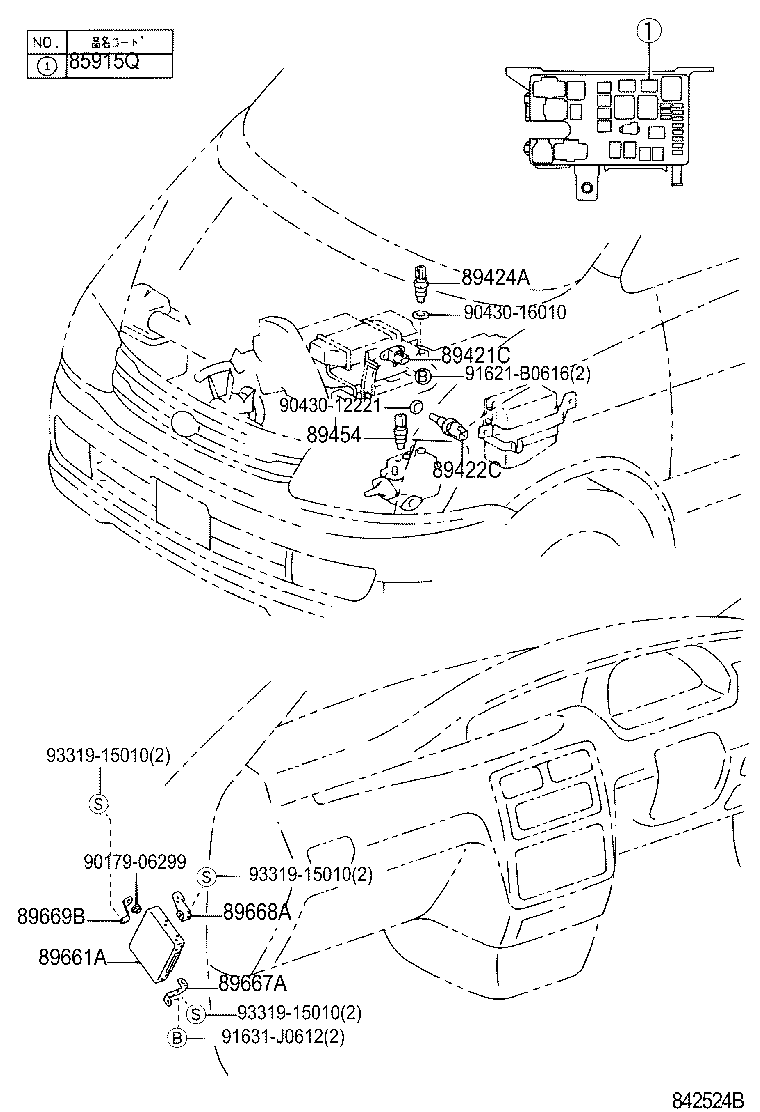

Click highlighted areas on diagram

diagram 85915Q 89421C 89422C 89424A 89454 89661A 89667A 89668A 89669B 9017906299 9043012221 9043016010 91621B0616 91631J0612 9331915010 9331915010 9331915010
Part # Description Qty Price
85915Q - RELAY, COMPUTER (FOR DIESEL)
90987-02012

CR40,50

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-60030

CR40,50

 1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-35010

CR40,50

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010

CR40,50

 1
89661A - COMPUTER, ENGINE CONTROL
89661-28440

CR40,50

DENSO

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-28050

CR40,50

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-28050

CR40,50

 1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-28050

CR40,50

 1
Common parts
90179-06299
90430-12221
90430-16010
91621-B0616
91631-J0612
93319-15010
