CR50G-GRSET (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Nov 2001
Engine 3CTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9812- )3CTE

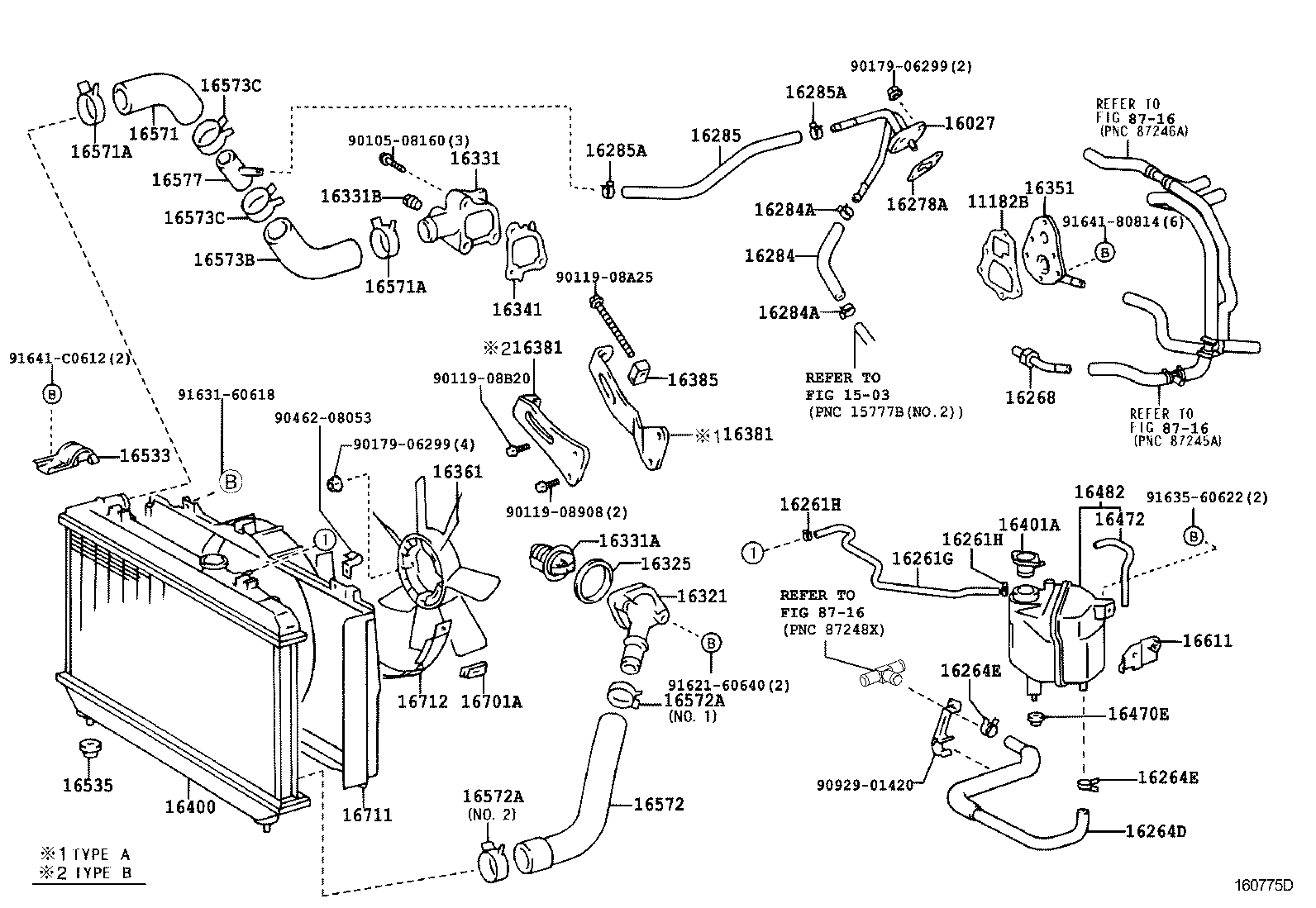

Click highlighted areas on diagram

diagram 11182B 1503 16027 16261G 16261H 16261H 16264D 16264E 16264E 16268 16278A 16284 16284A 16284A 16285 16285A 16285A 16321 16325 16331 16331A 16331B 16341 16351 16361 16381 16381 16385 16400 16401A 16470E 16472 16482 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16573B 16573C 16573C 16577 16611 16701A 16711 16712 8716 8716 8716 9010508160 9011908908 9011908A25 9011908B20 9017906299 9017906299 9046208053 9092901420 9162160640 9163160618 9163560622 9164180814 91641C0612
Part # Description Qty Price
11182B - GASKET, CYLINDER HEAD REAR PLATE
11182-64021

2C,3CT..CR4#,5#

 1
11182-64021

3CTE..CR40,50

 1
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-64080

3CT..CR40,50

 1
16027-64080

3CTE..CR40,50

 1
16261G - HOSE, WATER BY-PASS, NO.1
16261-64160

3CTE..CR40,50

 1
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96135-51300

3CTE..CR40,50

 2
16261H - CLIP(FOR WATER BY-PASS HOSE NO.1)
96135-51300

3CTE..CR40,50

 2
16264D - HOSE, WATER BY-PASS, NO.2
16264-64180

3CTE..CR40,50

 1
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-22011

3CTE..CR40,50

 2
16264E - CLIP(FOR WATER BY-PASS HOSE NO.2)
90467-22011

3CTE..CR40,50

 2
16268 - PIPE, WATER BY-PASS, NO.1
16268-64080

2C,3CT..CR4#,5#

 1
16268-64100

3CTE..CR40,50

 1
16278A - GASKET, WATER BY-PASS
16347-42020

3CTE..CR40,50

 1
16347-42020

3CT..CR40,50

 1
16284 - HOSE, TURBO WATER, NO.1
16284-64080

3CT..CR40,50

 1
16284-64080

3CTE..CR40,50

 1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022

3CTE..CR40,50

 2
90467-15022

3CT..CR40,50

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022

3CTE..CR40,50

 2
90467-15022

3CT..CR40,50

 2
16285 - HOSE, TURBO WATER, NO.2
16285-64041

3CTE..CR40,50

 1
16285-64040

3CT..CR40,50

ｲﾗｽﾄ参照

 1
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-15022

3CT..CR40,50

 2
90467-15022

3CTE..CR40,50

 2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-15022

3CT..CR40,50

 2
90467-15022

3CTE..CR40,50

 2
16321 - INLET, WATER
16321-64080

2C,3CT..CR4#,5#

 1
16321-64080

3CTE..CR40,50

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-63011

3CTE..CR40,50

 1
16325-63011

2C,3CT..CR4#,5#

 1
16331 - OUTLET, WATER
16331-64130

2C,3CT..CR4#,5#

 1
16331-64130

3CTE..CR40,50

 1
16331A - THERMOSTAT
90916-03046

2C,3CT..CR4#,5#

*WAX 82−95

 1
90916-03046

3CTE..CR40,50

*WAX 82−95

 1
16331B - PLUG(FOR WATER OUTLET)
90345-53030

3CTE..CR40,50

 1
90345-53030

2C,3CT..CR4#,5#

 1
16341 - GASKET, WATER OUTLET
16341-64021

3CTE..CR40,50

 1
16341-64021

2C,3CT..CR4#,5#

 1
16351 - OUTLET, WATER BY-PASS
16351-64020

3CTE..CR40,50

 1
16351-64010

2C,3CT..CR4#,5#

 1
16361 - FAN
16361-56070

2C,3CT..CR4#,5#

 1
16361-67020

3CTE..CR40,50

 1
16381 - BAR, FAN BELT ADJUSTING
16381-64110

3CT..CR40,50

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
16381-64110

3CTE..CR40,50

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
16381-64140

3CTE..CR40,50

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
16381-64140

2C,3CT..CR4#,5#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
16381 - BAR, FAN BELT ADJUSTING
16381-64110

3CT..CR40,50

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
16381-64110

3CTE..CR40,50

TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ

 1
16381-64140

3CTE..CR40,50

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
16381-64140

2C,3CT..CR4#,5#

TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-64030

2C,3CT..CR4#,5#

 1
16385-64030

3CTE..CR40,50

 1
16400 - RADIATOR ASSY
16400-6A190

3CTE..CR40,50

 1
16400-6A130

3CT..CR40,50..ATM

 1
16401A - CAP SUB-ASSY, RADIATOR RESERVE TANK
16401-5B440

3CTE..CR40,50

 1
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90480-20014

3CTE..CR40,50

 1
90480-20014

2C,3CT..CR4#,5#

 1
16472 - HOSE, BREATHER
90445-12078

3CTE..CR40,50

*H,L=200

 1
16482 - TANK SUB-ASSY, RADIATOR RESERVE
16480-64190

3CTE..CR40,50

 1
16533 - SUPPORT, RADIATOR, UPPER
16505-64010

2C,3CT..CR4#,5#

 2
16505-64010

3CTE..CR40,50

 2
16535 - SUPPORT, RADIATOR, LOWER
90480-40016

2C,3CT..CR4#,5#

 2
90480-40016

3CTE..CR40,50

 2
16571 - HOSE, RADIATOR, INLET
16571-64270

3CT..CR40,50

PNC 16285参照

 1
16571-64271

3CTE..CR40,50

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

2C,3CT..CR4#,5#

 2
90467-41002

3CTE..CR40,50

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-42001

2C,3CT..CR4#,5#

 2
90467-41002

3CTE..CR40,50

 2
16572 - HOSE, RADIATOR, OUTLET
16572-64280

2C,3CT..CR4#,5#

 1
16572-64280

3CTE..CR40,50

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-42001

2C,3CT..CR4#,5#

NO.2

 1
90467-37001

2C,3CT..CR4#,5#

NO.1

 1
90467-37005

3CTE..CR40,50

NO.1

 1
90467-41002

3CTE..CR40,50

NO.2

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90467-42001

2C,3CT..CR4#,5#

NO.2

 1
90467-37001

2C,3CT..CR4#,5#

NO.1

 1
90467-37005

3CTE..CR40,50

NO.1

 1
90467-41002

3CTE..CR40,50

NO.2

 1
16573B - HOSE, RADIATOR, NO.3
16573-64091

3CTE..CR40,50

 1
16573-64090

3CT..CR40,50

PNC 16285参照

 1
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-42001

3CT..CR40,50

 2
90467-41002

3CTE..CR40,50

 2
16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3
90467-42001

3CT..CR40,50

 2
90467-41002

3CTE..CR40,50

 2
16577 - PIPE, RADIATOR, NO.7
16577-64040

3CT..CR40,50

 1
16577-64040

3CTE..CR40,50

 1
16611 - BRACKET, RADIATOR RESERVE TANK
16611-64050

3CTE..CR40,50

 1
16701A - CLIP(FOR FAN SHROUD)
90468-06013

2C,3CT..CR4#,5#

 2
90468-06013

3CTE..CR40,50

 2
16711 - SHROUD, FAN
16711-64490

3CTE..CR40,50

 1
16711-64440

2C,3CT..CR4#,5#

 1
16712 - SHROUD, FAN, NO.2
16712-64190

2C,3CT..CR4#,5#

 1
16712-64210

3CTE..CR40,50

 1
Common parts
90105-08160
90119-08908
90119-08A25
90119-08B20
90179-06299
90462-08053
90929-01420
91621-60640
91631-60618
91635-60622
91641-80814
91641-C0612
Linked diagrams
1503
8716
