CR50G-GRSDX (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 9(9610-9812)CR4#,5#

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 82121 82122 82124 827111E350 8271528370 8271528470 8271528480 8271528520 8271528690 8271528710 8271528720 8271528770 8271528820 8271589108 8271589119 82823T 9011908063 9026903069 9026905044 9161160620 9161160814 9165140610 9165140610 9165140614 9165160610 9165161016 9418560600 9418560800
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-28400

SR40,50..ATM

 1
82121-28331

CR40,50..ATM

 1
82121-28330

CR40,50..ATM

 1
82121-28401

SR40,50..ATM

 1
82121-28530

CR50..ATM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82122 - WIRE, ENGINE, NO.2
82122-28050

SR40,50

 1
82122-28290

CR4#,5#

 1
82122-28370

CR4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

CR41,51,KR4#,SR40,50

 1
82823-24010

CR4#,5#

ｵﾙﾀﾈ-ﾀ 12V 90A OR 12V 120A

 1
Common parts
82711-1E350
82715-28370
82715-28470
82715-28480
82715-28520
82715-28690
82715-28710
82715-28720
82715-28770
82715-28820
82715-89108
82715-89119
90119-08063
90269-03069
90269-05044
91611-60620
91611-60814
91651-40610
91651-40614
91651-60610
91651-61016
94185-60600
94185-60800

ILLUST NO. 4 OF 9(9610-9812)

Click highlighted areas on diagram

ｶｳﾙ ﾜｲﾔ

diagram 82131 82132 82210C 827111A770 827111E260 827111E300 827111E350 827113F230 8401 8401 8401 9011906005 9011906005 9011906005 9017906083 9165160620 9165160620
Part # Description Qty Price
82131 - WIRE, COWL
82131-2X350

SR40,50..B

ｱﾘ(*80,ｳﾝﾃﾝｾｷ)

 1
82131-2X270

CR40,50..D

 1
82129-28500

SR40,50..ATM..D

ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ *(F), *(H)

 1
82131-2X360

SR40,50..B

 1
82131-2X340

SR40,50..D

 1
82131-2X860

CR50..D

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82131-2X361

SR40,50..B

 1
82131-2X861

CR40,50..D

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82131-2X341

SR40,50..D

 1
82131-2X351

SR40,50..B

ｱﾘ(*80,ｳﾝﾃﾝｾｷ)

 1
82132 - WIRE, COWL, NO.2
82132-28540

CR4#,5#,KR4#,SR40,50..ATM

 1
82210C - FUSIBLE LINK
90982-08202

CR4#,5#,KR4#,SR40,50

60A,ｵｽ端子,黄

 1
90982-08285

CR4#,5#,KR4#,SR40,50

50A,ﾒｽ端子,赤

 1
90982-08286

CR4#,5#,KR4#,SR40,50

140A,ｵｽ端子,赤茶

 1
90982-08203

CR4#,5#,KR4#,SR40,50

80A,ｵｽ端子,黒

 1
90982-08280

CR4#,5#,KR4#,SR40,50

30A,ﾒｽ端子,桃

 1
90982-08254

CR4#,5#,KR4#,SR40,50

120A,ｵｽ端子,白

 1
90982-08284

CR4#,5#,KR4#,SR40,50

40A,ﾒｽ端子,緑

 1
90982-08246

CR4#,5#,KR4#,SR40,50

100A,ｵｽ端子,青

 1
Common parts
82711-1A770
82711-1E260
82711-1E300
82711-1E350
82711-3F230
90119-06005
90179-06083
91651-60620
Linked diagrams
8401

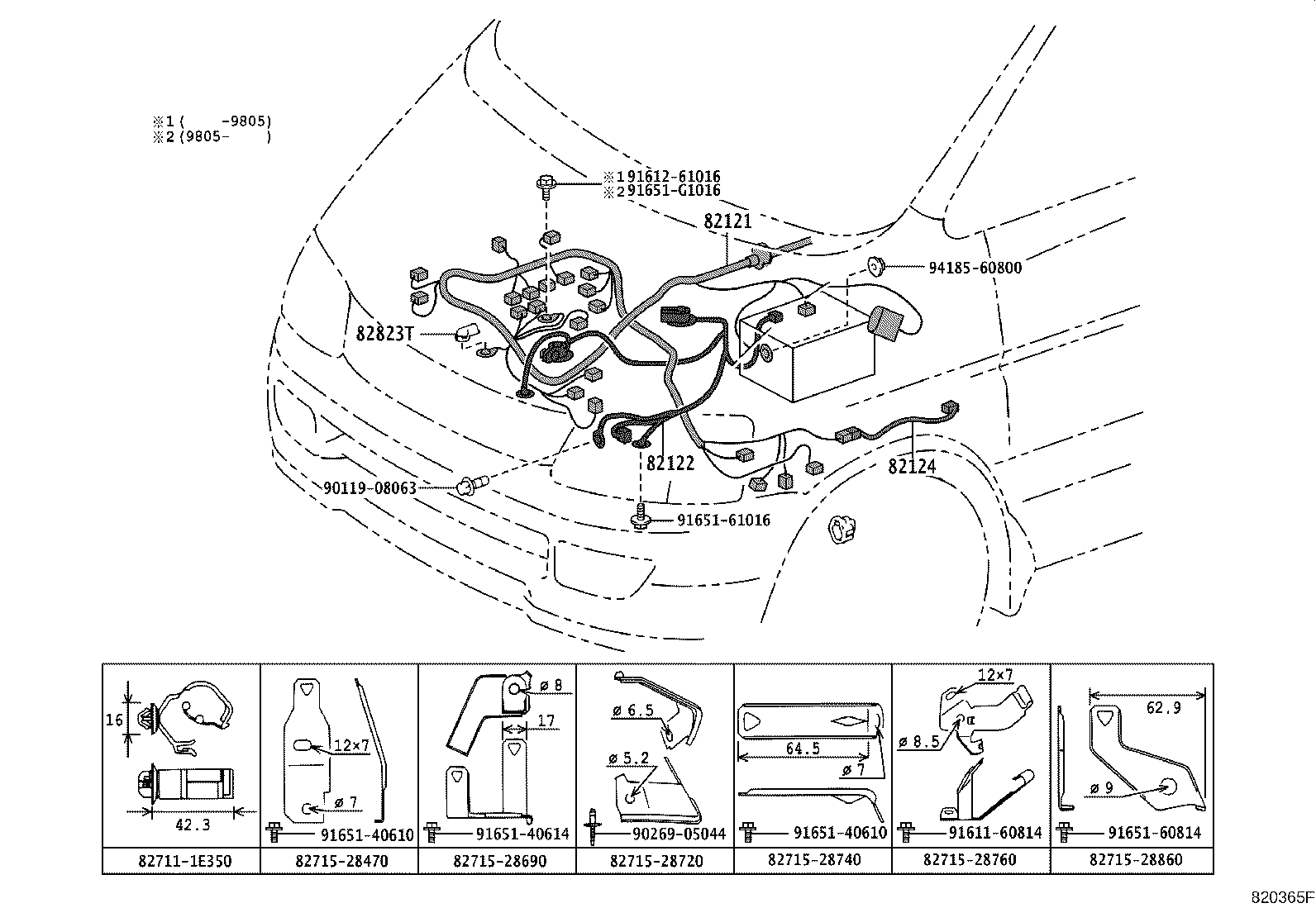

ILLUST NO. 1 OF 9(9610-9812)SR40,50

Click highlighted areas on diagram

ｴﾝｼﾞﾝ ﾜｲﾔ

diagram 82121 82122 82124 827111E350 8271528470 8271528690 8271528720 8271528740 8271528760 8271528860 82823T 9011908063 9026905044 9161160814 9161261016 9165140610 9165140610 9165140614 9165160814 9165161016 91651G1016 9418560800
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-28400

SR40,50..ATM

 1
82121-28331

CR40,50..ATM

 1
82121-28330

CR40,50..ATM

 1
82121-28401

SR40,50..ATM

 1
82121-28530

CR50..ATM

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82122 - WIRE, ENGINE, NO.2
82122-28050

SR40,50

 1
82122-28290

CR4#,5#

 1
82122-28370

CR4#,5#

ｶﾝﾚｲﾁ ｼﾖｳ

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

CR41,51,KR4#,SR40,50

 1
82823-24010

CR4#,5#

ｵﾙﾀﾈ-ﾀ 12V 90A OR 12V 120A

 1
Common parts
82711-1E350
82715-28470
82715-28690
82715-28720
82715-28740
82715-28760
82715-28860
90119-08063
90269-05044
91611-60814
91612-61016
91651-40610
91651-40614
91651-60814
91651-61016
91651-G1016
94185-60800
