CR50G-GRSDX (1996)
Toyota Lite/Townace Noah,V

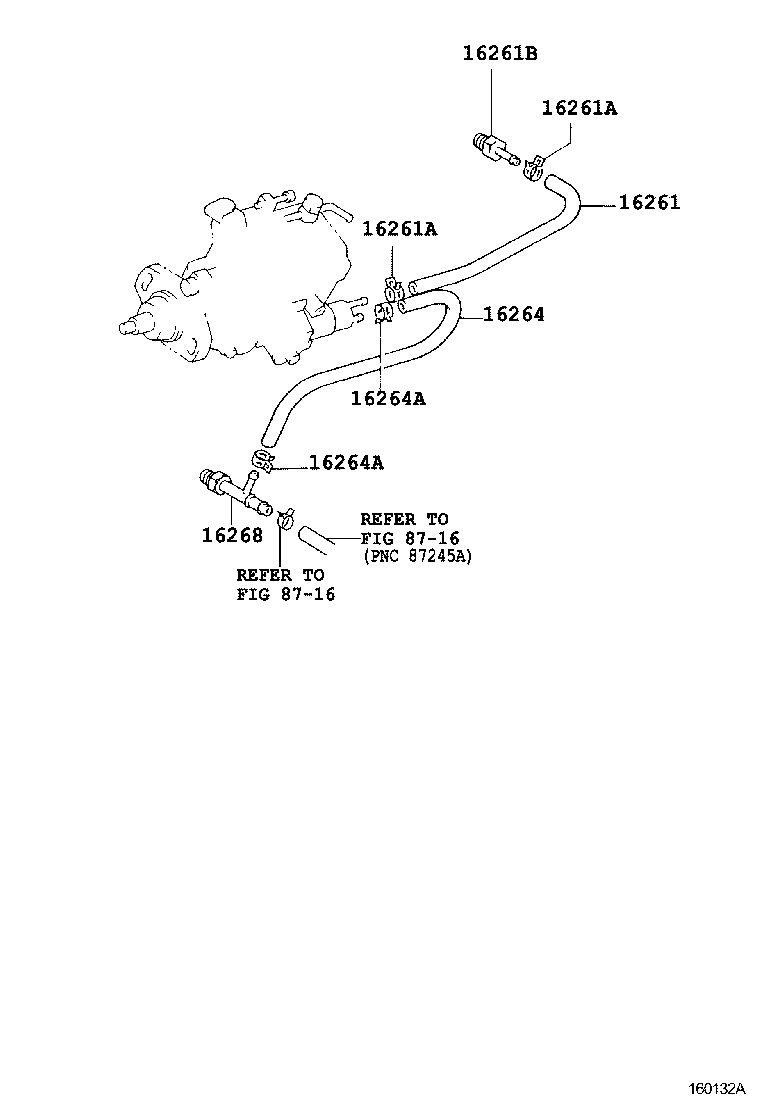

ILLUST NO. 2 OF 3(9610-9812)2C,3CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-64020 |
2C,3CT..CR4#,5# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2C,3CT..CR4#,5# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
2C,3CT..CR4#,5# |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90404-53059 |
2C,3CT..CR4#,5# |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-64090 |
2C,3CT..CR4#,5# |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2C,3CT..CR4#,5# |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
2C,3CT..CR4#,5# |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-64080 |
2C,3CT..CR4#,5# |
1 | ||
| Linked diagrams | ||||
| 8716 | ||||

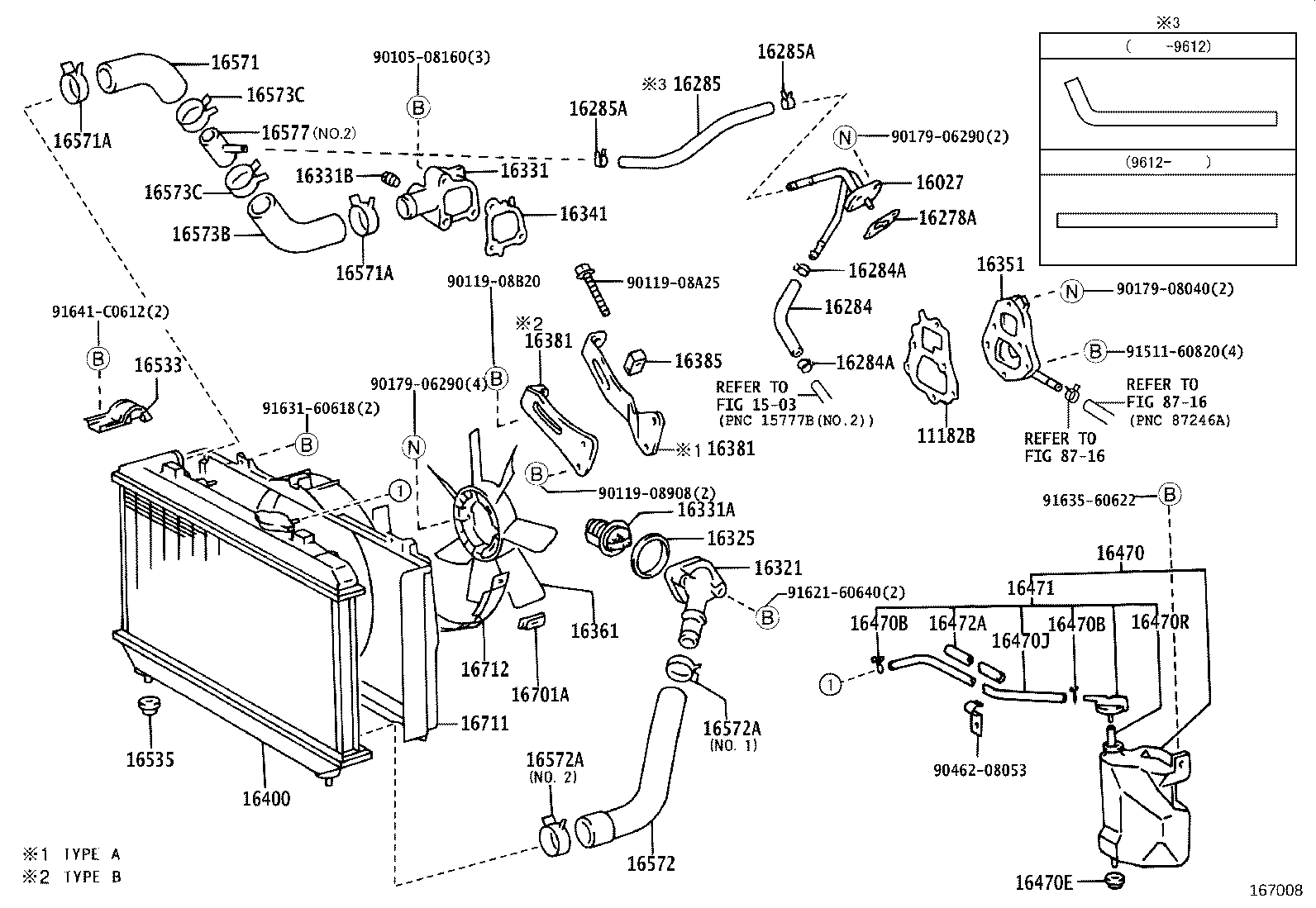

ILLUST NO. 1 OF 3(9610-9812)3CT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11182B - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-64021 |
2C,3CT..CR4#,5# |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-64080 |
3CT..CR40,50 |
1 | ||
| 16278A - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
3CT..CR40,50 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-64080 |
3CT..CR40,50 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
3CT..CR40,50 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 90467-15022 |
3CT..CR40,50 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-64041 |
3CT..CR40,50 ｲﾗｽﾄ参照 |
1 | ||
| 16285-64040 |
3CT..CR40,50 ｲﾗｽﾄ参照 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
3CT..CR40,50 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 90467-15022 |
3CT..CR40,50 |
2 | ||
| 16321 - INLET, WATER | ||||
| 16321-64080 |
2C,3CT..CR4#,5# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-63011 |
2C,3CT..CR4#,5# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-64130 |
2C,3CT..CR4#,5# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
2C,3CT..CR4#,5# *WAX 82−95 |
1 | ||
| 16331B - PLUG(FOR WATER OUTLET) | ||||
| 90345-53030 |
2C,3CT..CR4#,5# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-64021 |
2C,3CT..CR4#,5# |
1 | ||
| 16341-64021 |
2C,3CT..CR4#,5# |
1 | ||
| 16341-64030 |
2C,3CT..CR4#,5# |
1 | ||
| 16351 - OUTLET, WATER BY-PASS | ||||
| 16351-64010 |
2C,3CT..CR4#,5# |
1 | ||
| 16361 - FAN | ||||
| 16361-56070 |
2C,3CT..CR4#,5# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64110 |
3CT..CR40,50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381-64140 |
2C,3CT..CR4#,5# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-64110 |
3CT..CR40,50 TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16381-64140 |
2C,3CT..CR4#,5# TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-64030 |
2C,3CT..CR4#,5# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-6A130 |
3CT..CR40,50..ATM |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-64220 |
2C,3CT..CR4#,5# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2C,3CT..CR4#,5# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
2C,3CT..CR4#,5# |
2 | ||
| 16470E - GROMMET, RADIATOR RESERVE TANK HOSE | ||||
| 90480-20014 |
2C,3CT..CR4#,5# |
1 | ||
| 16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
2C,3CT..CR4#,5# 長さ=640 |
1 | ||
| 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12078 |
2C,3CT..CR4#,5# *H,L=215 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16471-64060 |
2C,3CT..CR4#,5# |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 16479-64220 |
2C,3CT..CR4#,5# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-64010 |
2C,3CT..CR4#,5# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
2C,3CT..CR4#,5# |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-64271 |
3CT..CR40,50 PNC 16285参照 |
1 | ||
| 16571-64270 |
3CT..CR40,50 PNC 16285参照 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-41007 |
3CT..CR40,50 |
2 | ||
| 90467-42001 |
2C,3CT..CR4#,5# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-41007 |
3CT..CR40,50 |
2 | ||
| 90467-42001 |
2C,3CT..CR4#,5# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-64280 |
2C,3CT..CR4#,5# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-42001 |
2C,3CT..CR4#,5# NO.2 |
1 | ||
| 90467-37001 |
2C,3CT..CR4#,5# NO.1 |
1 | ||
| 90467-41007 |
3CT..CR40,50 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90467-42001 |
2C,3CT..CR4#,5# NO.2 |
1 | ||
| 90467-37001 |
2C,3CT..CR4#,5# NO.1 |
1 | ||
| 90467-41007 |
3CT..CR40,50 NO.2 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-64090 |
3CT..CR40,50 PNC 16285参照 |
1 | ||
| 16573-64091 |
3CT..CR40,50 PNC 16285参照 |
1 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-42001 |
3CT..CR40,50 |
2 | ||
| 90467-41007 |
3CT..CR40,50 |
2 | ||
| 16573C - CLAMP OR CLIP, RADIATOR HOSE, NO.3 | ||||
| 90467-42001 |
3CT..CR40,50 |
2 | ||
| 90467-41007 |
3CT..CR40,50 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-64040 |
3CT..CR40,50 |
1 | ||
| 16701A - CLIP(FOR FAN SHROUD) | ||||
| 90468-06013 |
2C,3CT..CR4#,5# |
2 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-64440 |
2C,3CT..CR4#,5# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-64190 |
2C,3CT..CR4#,5# |
1 | ||
| Common parts | ||||
| 90105-08160 | ||||
| 90119-08908 | ||||
| 90119-08A25 | ||||
| 90119-08B20 | ||||
| 90179-06290 | ||||
| 90179-08040 | ||||
| 90462-08053 | ||||
| 91511-60820 | ||||
| 91621-60640 | ||||
| 91631-60618 | ||||
| 91635-60622 | ||||
| 91641-C0612 | ||||
| Linked diagrams | ||||
| 1503 | ||||
| 8716 | ||||
