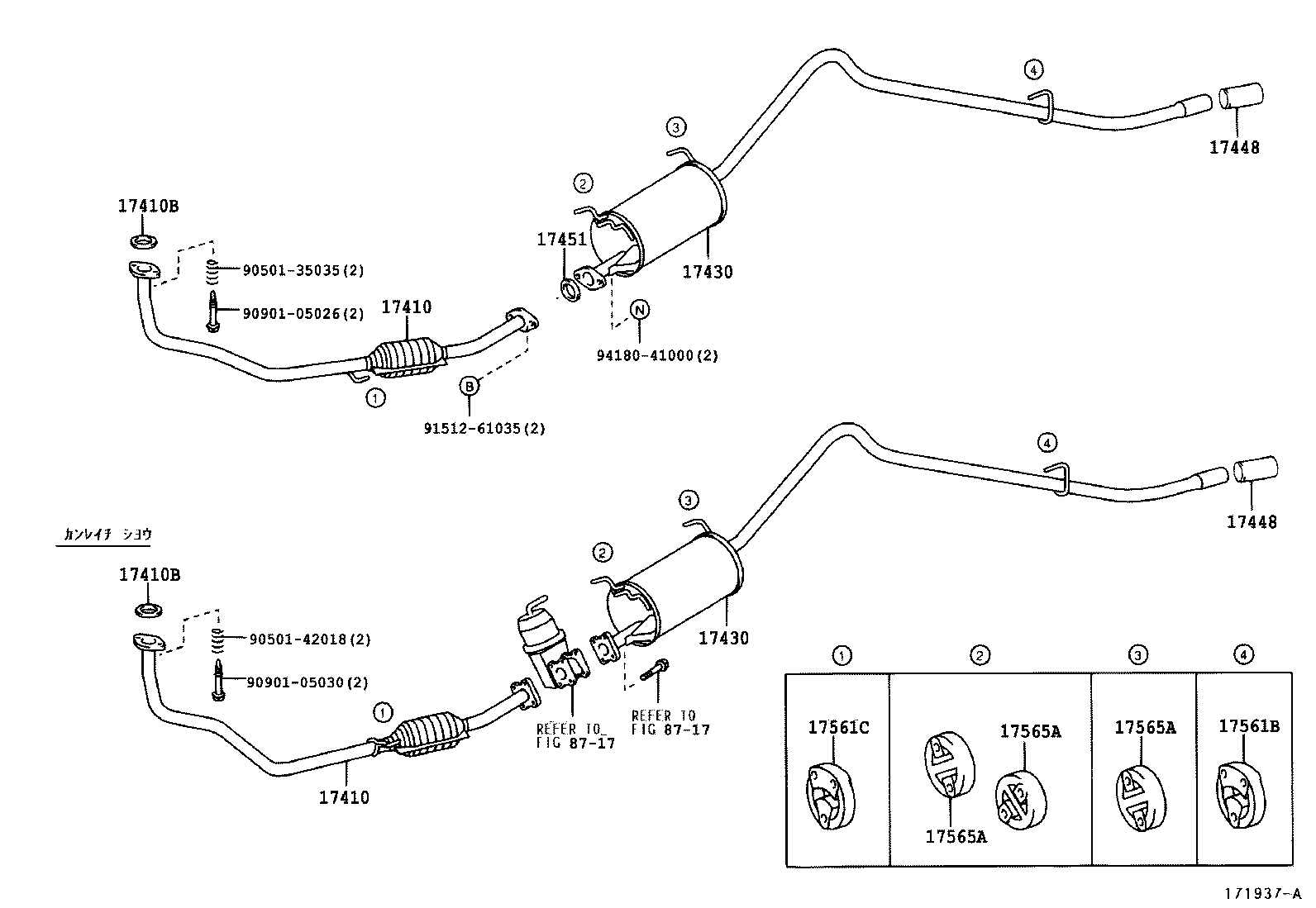

CR50G-GRSDT (1998)
Toyota Lite/Townace Noah,V
(9812- )3CTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-64740 |
3CT..CR50 |
1 | ||
| 17410-64870 |
3CTE..CR50 |
1 | ||
| 17410-64880 |
3CTE..CR50 ｱﾘ(ﾋ-ﾀ ﾊﾞｷﾕ-ﾑ ﾀﾞｲﾔﾌﾗﾑ--ｶﾝﾚｲﾁ ｼﾖｳ) |
1 | ||
| 17410-64770 |
3CT..CR50 ｱﾘ(ﾋ-ﾀ ﾊﾞｷﾕ-ﾑ ﾀﾞｲﾔﾌﾗﾑ--ｶﾝﾚｲﾁ ｼﾖｳ) |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-64740 |
3CT..CR50 |
1 | ||
| 17410-64870 |
3CTE..CR50 |
1 | ||
| 17410-64880 |
3CTE..CR50 ｱﾘ(ﾋ-ﾀ ﾊﾞｷﾕ-ﾑ ﾀﾞｲﾔﾌﾗﾑ--ｶﾝﾚｲﾁ ｼﾖｳ) |
1 | ||
| 17410-64770 |
3CT..CR50 ｱﾘ(ﾋ-ﾀ ﾊﾞｷﾕ-ﾑ ﾀﾞｲﾔﾌﾗﾑ--ｶﾝﾚｲﾁ ｼﾖｳ) |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-64040 |
3CTE..CR40,50 |
1 | ||
| 17451-64040 |
3CT..CR40,50 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-64040 |
3CTE..CR40,50 |
1 | ||
| 17451-64040 |
3CT..CR40,50 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-6A170 |
3CT..CR50..D,E,Q ｱﾘ(ﾋ-ﾀ ﾊﾞｷﾕ-ﾑ ﾀﾞｲﾔﾌﾗﾑ--ｶﾝﾚｲﾁ ｼﾖｳ) |
1 | ||
| 17430-6A140 |
3CT..CR40,50..D,E,Q |
1 | ||
| 17430-6A401 |
3CTE..CR50 ｱﾘ(ﾋ-ﾀ ﾊﾞｷﾕ-ﾑ ﾀﾞｲﾔﾌﾗﾑ--ｶﾝﾚｲﾁ ｼﾖｳ) |
1 | ||
| 17430-6A391 |
3CTE..CR40,50 |
1 | ||
| 17430-6A400 |
3CTE..CR50 ｱﾘ(ﾋ-ﾀ ﾊﾞｷﾕ-ﾑ ﾀﾞｲﾔﾌﾗﾑ--ｶﾝﾚｲﾁ ｼﾖｳ) |
1 | ||
| 17430-6A390 |
3CTE..CR40,50 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-6A170 |
3CT..CR50..D,E,Q ｱﾘ(ﾋ-ﾀ ﾊﾞｷﾕ-ﾑ ﾀﾞｲﾔﾌﾗﾑ--ｶﾝﾚｲﾁ ｼﾖｳ) |
1 | ||
| 17430-6A140 |
3CT..CR40,50..D,E,Q |
1 | ||
| 17430-6A401 |
3CTE..CR50 ｱﾘ(ﾋ-ﾀ ﾊﾞｷﾕ-ﾑ ﾀﾞｲﾔﾌﾗﾑ--ｶﾝﾚｲﾁ ｼﾖｳ) |
1 | ||
| 17430-6A391 |
3CTE..CR40,50 |
1 | ||
| 17430-6A400 |
3CTE..CR50 ｱﾘ(ﾋ-ﾀ ﾊﾞｷﾕ-ﾑ ﾀﾞｲﾔﾌﾗﾑ--ｶﾝﾚｲﾁ ｼﾖｳ) |
1 | ||
| 17430-6A390 |
3CTE..CR40,50 |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-74150 |
3CTE,3SFE..CR40,50,SR40,50..S,V |
1 | ||
| 17448 - BAFFLE, TAIL PIPE | ||||
| 17448-74150 |
3CTE,3SFE..CR40,50,SR40,50..S,V |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06062 |
3CT..CR40,50 |
1 | ||
| 90917-06045 |
3CTE,3SFE..CR40,50,SR40,50 ﾘﾔ |
1 | ||
| 17561B - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-73020 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 |
1 | ||
| 17561-73020 |
3SFE..SR40..MTM;3CTE,3SFE..CR40,50,SR50 |
1 | ||
| 17561C - SUPPORT, EXHAUST PIPE, NO.1 | ||||
| 17561-74110 |
3CTE,3SFE..CR40,50,SR40 |
1 | ||
| 17561-74110 |
5K,7K..KR4#..SJL;2C,3CT,3SFE..CR4#,5#,SR40 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15140 |
3CTE,3SFE..CR40,50,SR40,50 |
3 | ||
| 17565-15140 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15140 |
3CTE,3SFE..CR40,50,SR40,50 |
3 | ||
| 17565-15140 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 |
3 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-15140 |
3CTE,3SFE..CR40,50,SR40,50 |
3 | ||
| 17565-15140 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 |
3 | ||
| Common parts | ||||
| 90501-35035 | ||||
| 90501-42018 | ||||
| 90901-05026 | ||||
| 90901-05030 | ||||
| 91512-61035 | ||||
| 94180-41000 | ||||
| Linked diagrams | ||||
| 8717 | ||||
