CR50G-GRMEX (1996)
Toyota Lite/Townace Noah,V
Production
Oct 1996
-
Dec 1998
Engine
3CT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)

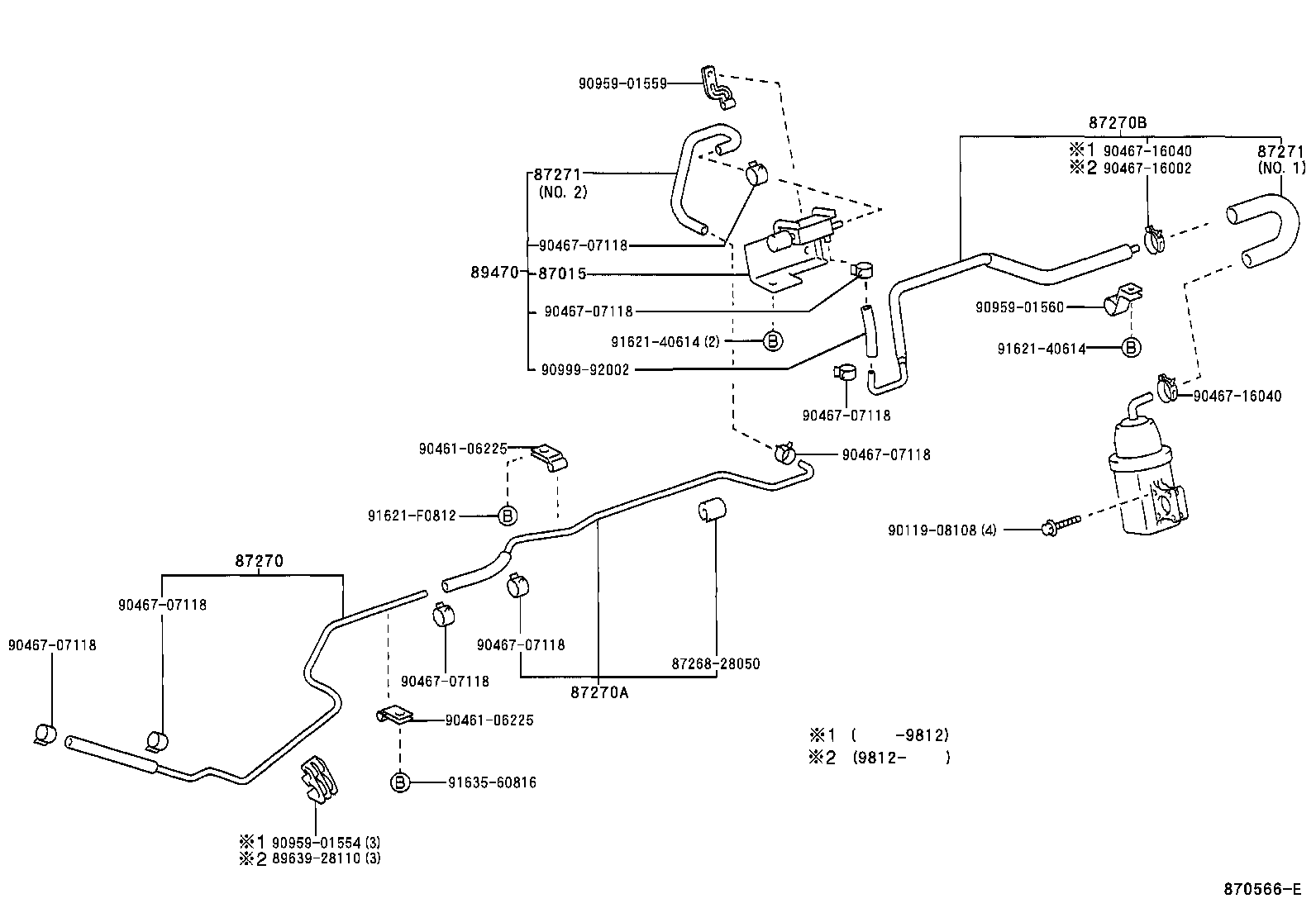

ILLUST NO. 1 OF 2(9610- )CR4#,5#
Click highlighted areas on diagram
ｶﾝﾚｲﾁｼﾖｳ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87015 - VALVE SUB-ASSY, VACUUM | ||||
| 87015-28020 |
CR50 |
1 | ||
| 87270 - PIPE ASSY, VACUUM | ||||
| 87270-28060 |
CR50 |
1 | ||
| 87270A - PIPE ASSY, VACUUM NO.2 | ||||
| 87270-28070 |
CR50 |
1 | ||
| 87270B - PIPE ASSY, VACUUM NO.3 | ||||
| 87270-28080 |
CR50 |
1 | ||
| 87271 - HOSE, HEATER VACUUM | ||||
| 87271-28040 |
CR50 NO.2 |
1 | ||
| 87271-28030 |
CR50 NO.1 |
1 | ||
| 87271 - HOSE, HEATER VACUUM | ||||
| 87271-28040 |
CR50 NO.2 |
1 | ||
| 87271-28030 |
CR50 NO.1 |
1 | ||
| 89470 - VALVE ASSY, VACUUM SWITCHING, W/BRACKET | ||||
| 89470-28010 |
CR50 |
1 | ||
| Common parts | ||||
| 87268-28050 | ||||
| 89639-28110 | ||||
| 90119-08108 | ||||
| 90461-06225 | ||||
| 90467-07118 | ||||
| 90467-16002 | ||||
| 90467-16040 | ||||
| 90959-01554 | ||||
| 90959-01559 | ||||
| 90959-01560 | ||||
| 90999-92002 | ||||
| 91621-40614 | ||||
| 91621-F0812 | ||||
| 91635-60816 | ||||

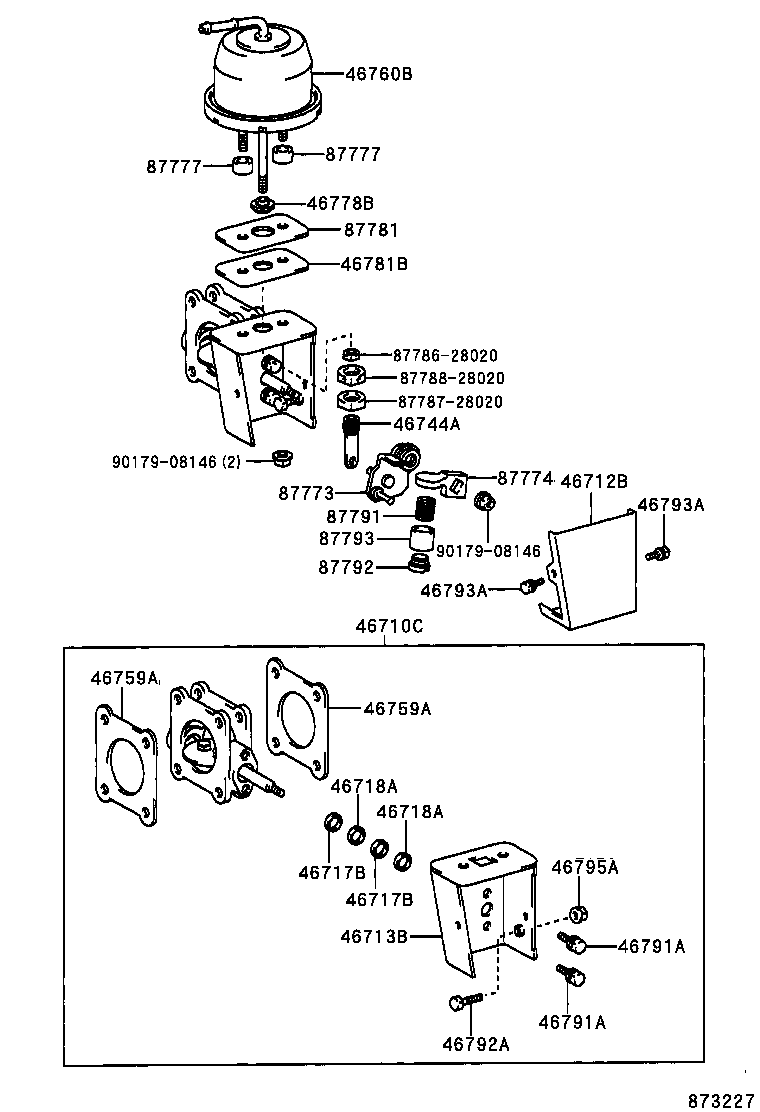

ILLUST NO. 2 OF 2(9610- )KR42..CBR ; (9610- )KR42..CBU..EFI; (9610- )CR4#,5#,KR41,SR40,50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46710C - VALVE ASSY, HEATER VACUUM DIAPHRAGM | ||||
| 87708-28020 |
CR50 |
1 | ||
| 46712B - COVER, HEATER VACUUM DIAPHRAGM | ||||
| 87771-28020 |
CR50 |
1 | ||
| 46713B - BRACKET, HEATER VACUUM DIAPHRAGM | ||||
| 87772-28020 |
CR50 |
1 | ||
| 46717B - RING, HEATER VACUUM DIAPHRAGM S | ||||
| 46717-36010 |
CR50 |
2 | ||
| 46717B - RING, HEATER VACUUM DIAPHRAGM S | ||||
| 46717-36010 |
CR50 |
2 | ||
| 46718A - RING, HEATER VACUUM DIAPHRAGM | ||||
| 46718-36020 |
CR50 |
2 | ||
| 46718A - RING, HEATER VACUUM DIAPHRAGM | ||||
| 46718-36020 |
CR50 |
2 | ||
| 46744A - CLEVIS, HEATER VACUUM DIAPHRGM | ||||
| 87784-28020 |
CR50 |
1 | ||
| 46759A - GASKET, HEATEA VACUUM DIAPHRAGM | ||||
| 46759-36030 |
CR50 |
2 | ||
| 46759A - GASKET, HEATEA VACUUM DIAPHRAGM | ||||
| 46759-36030 |
CR50 |
2 | ||
| 46760B - CYLINDER ASSY, HEATER VACUUM DIAPHRAGM | ||||
| 87709-28020 |
CR50 |
1 | ||
| 46778B - BEARING, HEATER VACUUM DIAPHRAGM | ||||
| 46778-36060 |
CR50 |
1 | ||
| 46781B - INSULATOR, HEATER VACUUM DIAPHRAGM | ||||
| 46781-28010 |
CR50 |
1 | ||
| 46791A - BOLT, HEATER VACUUM DIAPHRAGM, NO.1 | ||||
| 87779-28020 |
CR50 |
2 | ||
| 46791A - BOLT, HEATER VACUUM DIAPHRAGM, NO.1 | ||||
| 87779-28020 |
CR50 |
2 | ||
| 46792A - BOLT, HEATER VACUUM DIAPHRAGM, NO.2 | ||||
| 46792-36010 |
CR50 |
1 | ||
| 46793A - SCREW, HEATER VACUUM DIAPHRAM | ||||
| 46793-28010 |
CR50 |
2 | ||
| 46793A - SCREW, HEATER VACUUM DIAPHRAM | ||||
| 46793-28010 |
CR50 |
2 | ||
| 46795A - NUT, HEATER VACUUM DIAPHRAGM | ||||
| 46795-36010 |
CR50 |
1 | ||
| 87773 - LEVER, HEATER VACUUM DIAPHRAGM, NO.1 | ||||
| 87773-28020 |
CR50 |
1 | ||
| 87774 - LEVER, HEATER VACUUM DIAPHRAGM, NO.2 | ||||
| 87774-28020 |
CR50 |
1 | ||
| 87777 - COLLAR, HEATER VACUUM DIAPHRAGM | ||||
| 87777-28020 |
CR50 |
2 | ||
| 87777 - COLLAR, HEATER VACUUM DIAPHRAGM | ||||
| 87777-28020 |
CR50 |
2 | ||
| 87781 - INSULATOR, HEATER VACUUM DIAPHRAGM | ||||
| 87781-28020 |
CR50 |
1 | ||
| 87791 - SPRING, HEATER VACUUM DIAPHRAGM | ||||
| 87791-28020 |
CR50 |
1 | ||
| 87792 - JOINT, HEATER VACUUM DIAPHRAGM | ||||
| 87792-28020 |
CR50 |
1 | ||
| 87793 - GUIDE, HEATER VACUUM DIAPHRAGM | ||||
| 87793-28020 |
CR50 |
1 | ||
| Common parts | ||||
| 87786-28020 | ||||
| 87787-28020 | ||||
| 87788-28020 | ||||
| 90179-08146 | ||||
