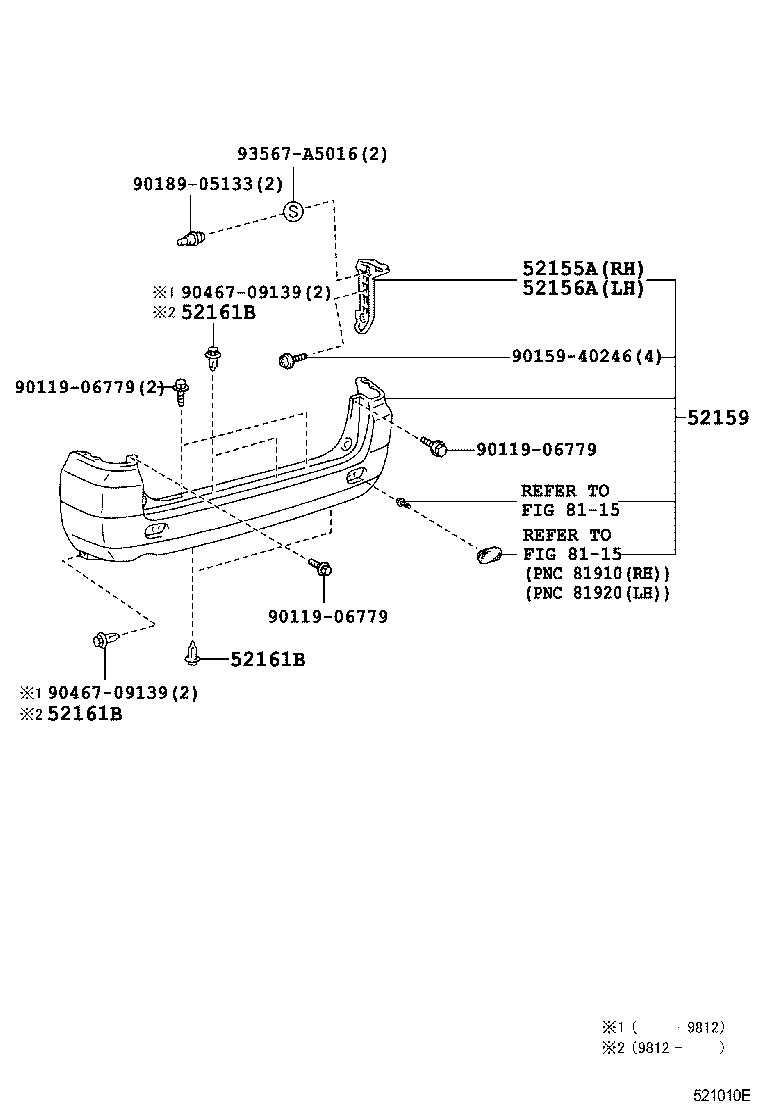

CR50G-GRMEX (1996)
Toyota Lite/Townace Noah,V
(9610- )B,D,E,N,Q,S
ﾅｼ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-28130A1 |
CR40,50,SR40,50..D,E WHITE,056 |
1 | ||
| 52150-28260C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) & ｱﾘ(ﾊﾞﾂｸｿﾅ-),NIGHT STORM TONNING,2EP |
1 | ||
| 52159-28120 |
CR41,51,KR4#;CR40,50,SR40,50..B,E 材着 黒 |
1 | ||
| 52159-28160C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),NIGHT STORM TONNING,2EP |
1 | ||
| 52150-28250B2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) & ｱﾘ(ﾊﾞﾂｸｿﾅ-),SILVER PEARL ME.,1A7 |
1 | ||
| 52150-28250G0 |
CR40,50,SR40,50..E ｱﾘ(ﾊﾞﾂｸｿﾅ-),LT. OLIVE ME.,6Q3 |
1 | ||
| 52150-28260C0 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾊﾞﾂｸｿﾅ-),HARBOR SIDE TONING,2CM |
1 | ||
| 52159-28130B2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),SILVER PEARL ME.,1A7 |
1 | ||
| 52150-28260C1 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾊﾞﾂｸｿﾅ-),SHINNING PARM TONING,2CP |
1 | ||
| 52159-28130B1 |
CR40,50,SR40,50..E DK.GRAY ME.,1B5 |
1 | ||
| 52150-28250B0 |
CR40,50,SR40,50..E ｱﾘ(ﾊﾞﾂｸｿﾅ-),BLUISH SILVER ME.,1A0 |
1 | ||
| 52150-28260C2 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾊﾞﾂｸｿﾅ-),MISTY TOPAZ TONING,2CQ |
1 | ||
| 52159-28130A1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,WHITE,056 |
1 | ||
| 52159-28130B0 |
CR40,50,SR40,50..D,E BLUISH SILVER ME.,1A0 |
1 | ||
| 52159-28130A0 |
CR40,50,SR40,50..D WHITE,058 |
1 | ||
| 52159-28160C0 |
CR40,50,SR40,50..E HARBOR SIDE TONING,2CM |
1 | ||
| 52150-28250B1 |
CR40,50,SR40,50..E ｱﾘ(ﾊﾞﾂｸｿﾅ-),DK.GRAY ME.,1B5 |
1 | ||
| 52159-28130G0 |
CR40,50,SR40,50..E LT.OLIVE ME.,6Q3 |
1 | ||
| 52150-28250B3 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M),*(N) & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),CRYSTAL PEARL ME,1C1 |
1 | ||
| 52159-28130B3 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),CRYSTAL PEARL ME,1C1 |
1 | ||
| 52150-28260C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N) & ｱﾘ(ﾊﾞﾂｸｿﾅ-),NIGHT STORM TONNING,2EP |
1 | ||
| 52159-28160C1 |
CR40,50,SR40,50..E,Q SHINNING PARM TONING,2CP |
1 | ||
| 52159-28130E0 |
CR40,50,SR40,50..E BEIGE M.M.OP.,4N9 |
1 | ||
| 52159-28160C4 |
CR40,50,SR40,50..E JASPER GLOW TONING,2EN |
1 | ||
| 52159-28120 |
CR4#,5#,KR4#,SR40,50..B,D,E,N 材着 黒 |
1 | ||
| 52159-28130B4 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 52159-28160C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),NIGHT STORM TONNING,2EP |
1 | ||
| 52159-28160C2 |
CR40,50,SR40,50..E,Q MISTY TOPAZ TONING,2CQ |
1 | ||
| 52159-28130B0 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ & ﾋﾞﾚﾂﾄ,BLUISH SILVER ME.,1A0 |
1 | ||
| 52159-28160C3 |
CR40,50,SR40,50..E PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52159-28130C5 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ & ﾋﾞﾚﾂﾄ,BLACK,205 |
1 | ||
| 52159-28130A1 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ & ﾋﾞﾚﾂﾄ,WHITE,056 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-28130A1 |
CR40,50,SR40,50..D,E WHITE,056 |
1 | ||
| 52150-28260C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) & ｱﾘ(ﾊﾞﾂｸｿﾅ-),NIGHT STORM TONNING,2EP |
1 | ||
| 52159-28120 |
CR41,51,KR4#;CR40,50,SR40,50..B,E 材着 黒 |
1 | ||
| 52159-28160C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),NIGHT STORM TONNING,2EP |
1 | ||
| 52150-28250B2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) & ｱﾘ(ﾊﾞﾂｸｿﾅ-),SILVER PEARL ME.,1A7 |
1 | ||
| 52150-28250G0 |
CR40,50,SR40,50..E ｱﾘ(ﾊﾞﾂｸｿﾅ-),LT. OLIVE ME.,6Q3 |
1 | ||
| 52150-28260C0 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾊﾞﾂｸｿﾅ-),HARBOR SIDE TONING,2CM |
1 | ||
| 52159-28130B2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),SILVER PEARL ME.,1A7 |
1 | ||
| 52150-28260C1 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾊﾞﾂｸｿﾅ-),SHINNING PARM TONING,2CP |
1 | ||
| 52159-28130B1 |
CR40,50,SR40,50..E DK.GRAY ME.,1B5 |
1 | ||
| 52150-28250B0 |
CR40,50,SR40,50..E ｱﾘ(ﾊﾞﾂｸｿﾅ-),BLUISH SILVER ME.,1A0 |
1 | ||
| 52150-28260C2 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾊﾞﾂｸｿﾅ-),MISTY TOPAZ TONING,2CQ |
1 | ||
| 52159-28130A1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,WHITE,056 |
1 | ||
| 52159-28130B0 |
CR40,50,SR40,50..D,E BLUISH SILVER ME.,1A0 |
1 | ||
| 52159-28130A0 |
CR40,50,SR40,50..D WHITE,058 |
1 | ||
| 52159-28160C0 |
CR40,50,SR40,50..E HARBOR SIDE TONING,2CM |
1 | ||
| 52150-28250B1 |
CR40,50,SR40,50..E ｱﾘ(ﾊﾞﾂｸｿﾅ-),DK.GRAY ME.,1B5 |
1 | ||
| 52159-28130G0 |
CR40,50,SR40,50..E LT.OLIVE ME.,6Q3 |
1 | ||
| 52150-28250B3 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M),*(N) & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),CRYSTAL PEARL ME,1C1 |
1 | ||
| 52159-28130B3 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),CRYSTAL PEARL ME,1C1 |
1 | ||
| 52150-28260C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N) & ｱﾘ(ﾊﾞﾂｸｿﾅ-),NIGHT STORM TONNING,2EP |
1 | ||
| 52159-28160C1 |
CR40,50,SR40,50..E,Q SHINNING PARM TONING,2CP |
1 | ||
| 52159-28130E0 |
CR40,50,SR40,50..E BEIGE M.M.OP.,4N9 |
1 | ||
| 52159-28160C4 |
CR40,50,SR40,50..E JASPER GLOW TONING,2EN |
1 | ||
| 52159-28120 |
CR4#,5#,KR4#,SR40,50..B,D,E,N 材着 黒 |
1 | ||
| 52159-28130B4 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 52159-28160C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),NIGHT STORM TONNING,2EP |
1 | ||
| 52159-28160C2 |
CR40,50,SR40,50..E,Q MISTY TOPAZ TONING,2CQ |
1 | ||
| 52159-28130B0 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ & ﾋﾞﾚﾂﾄ,BLUISH SILVER ME.,1A0 |
1 | ||
| 52159-28160C3 |
CR40,50,SR40,50..E PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52159-28130C5 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ & ﾋﾞﾚﾂﾄ,BLACK,205 |
1 | ||
| 52159-28130A1 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ & ﾋﾞﾚﾂﾄ,WHITE,056 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| Common parts | ||||
| 90119-06779 | ||||
| 90159-40246 | ||||
| 90189-05133 | ||||
| 90467-09139 | ||||
| 93567-A5016 | ||||
| Linked diagrams | ||||
| 8115 | ||||

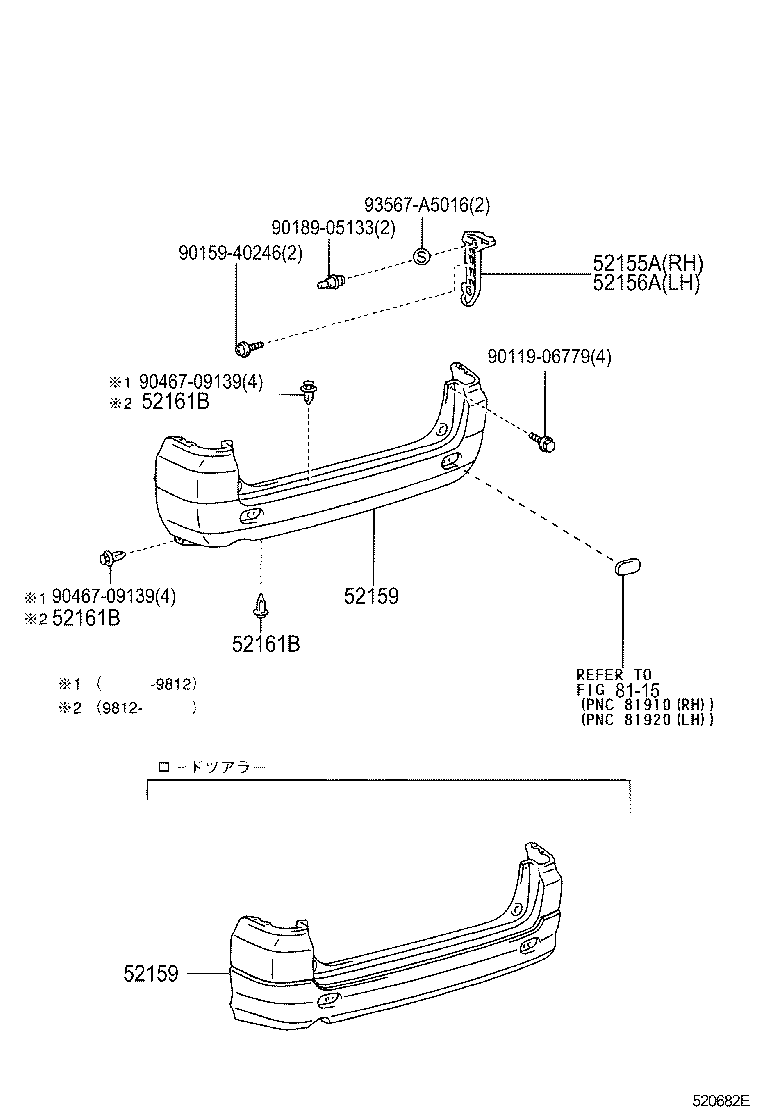

(9610- )E,Q
ｱﾘ(ｸﾘｱﾗﾝｽ & ﾊﾞﾂｸｿﾅ-)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-28050 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-28030 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-28130A1 |
CR40,50,SR40,50..D,E WHITE,056 |
1 | ||
| 52150-28260C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) & ｱﾘ(ﾊﾞﾂｸｿﾅ-),NIGHT STORM TONNING,2EP |
1 | ||
| 52159-28120 |
CR41,51,KR4#;CR40,50,SR40,50..B,E 材着 黒 |
1 | ||
| 52159-28160C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),NIGHT STORM TONNING,2EP |
1 | ||
| 52150-28250B2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E) & ｱﾘ(ﾊﾞﾂｸｿﾅ-),SILVER PEARL ME.,1A7 |
1 | ||
| 52150-28250G0 |
CR40,50,SR40,50..E ｱﾘ(ﾊﾞﾂｸｿﾅ-),LT. OLIVE ME.,6Q3 |
1 | ||
| 52150-28260C0 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾊﾞﾂｸｿﾅ-),HARBOR SIDE TONING,2CM |
1 | ||
| 52159-28130B2 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(A), *(B) OR ﾘﾓ *(D), *(E),SILVER PEARL ME.,1A7 |
1 | ||
| 52150-28260C1 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾊﾞﾂｸｿﾅ-),SHINNING PARM TONING,2CP |
1 | ||
| 52159-28130B1 |
CR40,50,SR40,50..E DK.GRAY ME.,1B5 |
1 | ||
| 52150-28250B0 |
CR40,50,SR40,50..E ｱﾘ(ﾊﾞﾂｸｿﾅ-),BLUISH SILVER ME.,1A0 |
1 | ||
| 52150-28260C2 |
CR40,50,SR40,50..E,Q ｱﾘ(ﾊﾞﾂｸｿﾅ-),MISTY TOPAZ TONING,2CQ |
1 | ||
| 52159-28130A1 |
SR40,50..SRF..E TECS=ﾛ-ﾄﾞ ﾂｱﾗ-,WHITE,056 |
1 | ||
| 52159-28130B0 |
CR40,50,SR40,50..D,E BLUISH SILVER ME.,1A0 |
1 | ||
| 52159-28130A0 |
CR40,50,SR40,50..D WHITE,058 |
1 | ||
| 52159-28160C0 |
CR40,50,SR40,50..E HARBOR SIDE TONING,2CM |
1 | ||
| 52150-28250B1 |
CR40,50,SR40,50..E ｱﾘ(ﾊﾞﾂｸｿﾅ-),DK.GRAY ME.,1B5 |
1 | ||
| 52159-28130G0 |
CR40,50,SR40,50..E LT.OLIVE ME.,6Q3 |
1 | ||
| 52150-28250B3 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M),*(N) & ｱﾘ(ｸﾘｱﾗﾝｽ ｿﾅ- = ﾒ-ｶｵﾌﾟｼﾖﾝ-ｼｶｸ ｱﾅ),CRYSTAL PEARL ME,1C1 |
1 | ||
| 52159-28130B3 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),CRYSTAL PEARL ME,1C1 |
1 | ||
| 52150-28260C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N) & ｱﾘ(ﾊﾞﾂｸｿﾅ-),NIGHT STORM TONNING,2EP |
1 | ||
| 52159-28160C1 |
CR40,50,SR40,50..E,Q SHINNING PARM TONING,2CP |
1 | ||
| 52159-28130E0 |
CR40,50,SR40,50..E BEIGE M.M.OP.,4N9 |
1 | ||
| 52159-28160C4 |
CR40,50,SR40,50..E JASPER GLOW TONING,2EN |
1 | ||
| 52159-28120 |
CR4#,5#,KR4#,SR40,50..B,D,E,N 材着 黒 |
1 | ||
| 52159-28130B4 |
CR40,50,SR40,50..E..CBU ﾘﾐﾃﾂﾄﾞ *(G), *(H), *(R), *(S),SILVER ME.,1C0 |
1 | ||
| 52159-28160C5 |
CR40,50,SR40,50..E..CBU ｴｸｻ-ﾌﾞ *(J), *(K) OR ﾘﾓ *(M), *(N),NIGHT STORM TONNING,2EP |
1 | ||
| 52159-28160C2 |
CR40,50,SR40,50..E,Q MISTY TOPAZ TONING,2CQ |
1 | ||
| 52159-28130B0 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ & ﾋﾞﾚﾂﾄ,BLUISH SILVER ME.,1A0 |
1 | ||
| 52159-28160C3 |
CR40,50,SR40,50..E PREMIERE QUARTZ TONI,2EM |
1 | ||
| 52159-28130C5 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ & ﾋﾞﾚﾂﾄ,BLACK,205 |
1 | ||
| 52159-28130A1 |
CR40,50,SR40,50..(E,Q)..CBU ﾓﾃﾞﾘｽﾀ-ｱﾒﾘｶﾝ ﾋﾞﾚﾂﾄ & ﾋﾞﾚﾂﾄ,WHITE,056 |
1 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| 52161B - PIECE, REAR BUMPER | ||||
| 52161-16010 |
CR4#,5#,KR4#,SR40,50 |
2 | ||
| Common parts | ||||
| 90119-06779 | ||||
| 90159-40246 | ||||
| 90189-05133 | ||||
| 90467-09139 | ||||
| 93567-A5016 | ||||
| Linked diagrams | ||||
| 8115 | ||||
