CR50G-GRMEX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )2C,3CT#,3CE

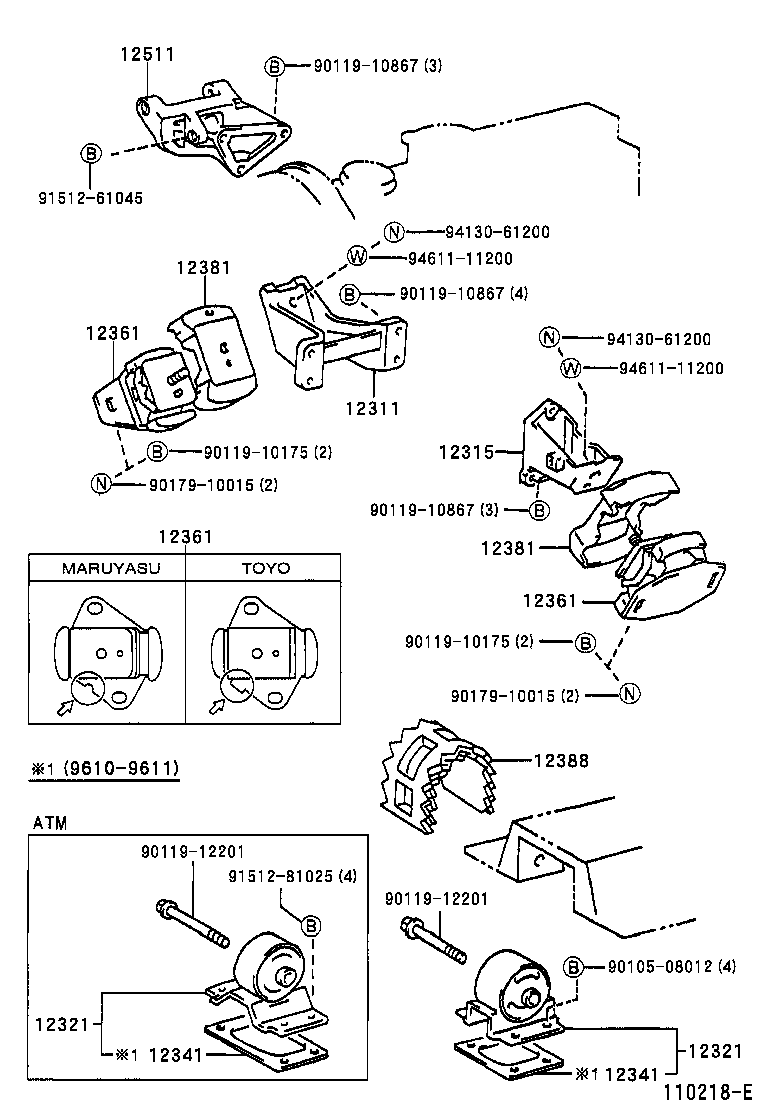

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12341 12341 12361 12361 12361 12381 12381 12388 12511 9010508012 9011910175 9011910175 9011910867 9011910867 9011910867 9011912201 9011912201 9017910015 9017910015 9151261045 9151281025 9413061200 9413061200 9461111200 9461111200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-64220

2C,3CT..CR4#,5#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-64120

2C,3CT..CR4#,5#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64130

3CT..CR50..MTM

 1
12303-64131

2C,3CT..CR5#..MTM

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-64130

3CT..CR50..MTM

 1
12303-64131

2C,3CT..CR5#..MTM

 1
12341 - SPACER, ENGINE MOUNTING
12341-64030

3CT..CR40,50..MTM

 1
12341 - SPACER, ENGINE MOUNTING
12341-64030

3CT..CR40,50..MTM

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64320

2C,3CT..CR4#,5#

TOYO

 2
12361-64330

2C,3CT..CR4#,5#

東海ｺﾞﾑ

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64320

2C,3CT..CR4#,5#

TOYO

 2
12361-64330

2C,3CT..CR4#,5#

東海ｺﾞﾑ

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-64320

2C,3CT..CR4#,5#

TOYO

 2
12361-64330

2C,3CT..CR4#,5#

東海ｺﾞﾑ

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64011

2C,3CT..CR4#,5#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-64011

2C,3CT..CR4#,5#

 2
12388 - STOPPER, ENGINE MOUNTING BRACKET, REAR
12388-67011

2C,3CT..CR4#,5#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-64080

2C,3CT..CR4#,5#

 1
Common parts
90105-08012
90119-10175
90119-10867
90119-12201
90179-10015
91512-61045
91512-81025
94130-61200
94611-11200
