CR50G-GFSQX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )

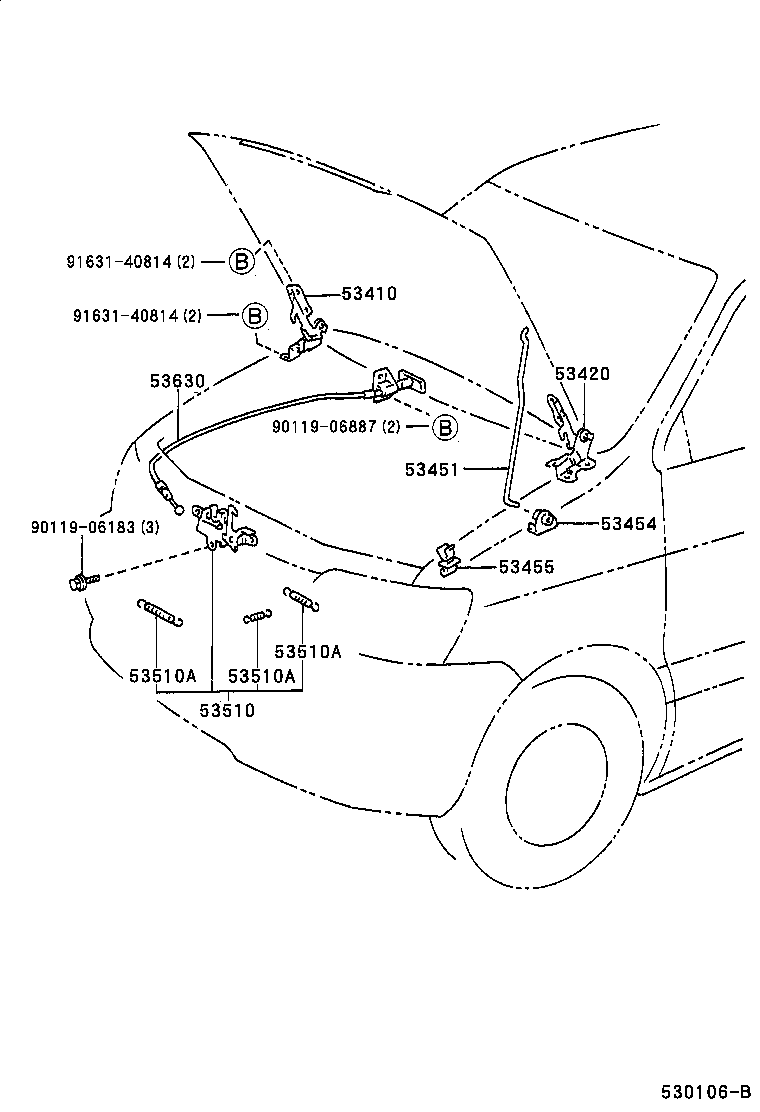

Click highlighted areas on diagram

diagram 53410 53420 53451 53454 53455 53510 53510A 53510A 53510A 53630 9011906183 9011906887 9163140814 9163140814
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-28010

CR4#,5#,KR4#,SR40,50

 1
53420 - HINGE ASSY, HOOD, LH
53420-28010

CR4#,5#,KR4#,SR40,50

 1
53451 - ROD, HOOD SUPPORT
53451-28040

CR4#,5#,KR4#,SR40,50

 1
53454 - CLIP, HOOD SUPPORT ROD
53454-16010

CR4#,5#,KR4#,SR40,50

 1
53455 - CLAMP, HOOD SUPPORT ROD
53455-28010

CR4#,5#,KR4#,SR40,50

 1
53510 - LOCK ASSY, HOOD
53510-28030

CR4#,5#,KR4#,SR40,50

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-12067

CR4#,5#,KR4#,SR40,50

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20071

CR4#,5#,KR4#,SR40,50

線径=2.0,ｺｲﾙ巻数=17.0

 1
90506-09057

CR4#,5#,KR4#,SR40,50

線径=0.9,ｺｲﾙ巻数=23

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-12067

CR4#,5#,KR4#,SR40,50

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20071

CR4#,5#,KR4#,SR40,50

線径=2.0,ｺｲﾙ巻数=17.0

 1
90506-09057

CR4#,5#,KR4#,SR40,50

線径=0.9,ｺｲﾙ巻数=23

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-12067

CR4#,5#,KR4#,SR40,50

線径=1.4,ｺｲﾙ巻数=7.25

 1
90506-20071

CR4#,5#,KR4#,SR40,50

線径=2.0,ｺｲﾙ巻数=17.0

 1
90506-09057

CR4#,5#,KR4#,SR40,50

線径=0.9,ｺｲﾙ巻数=23

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-28040

CR4#,5#,KR4#,SR40,50

 1
Common parts
90119-06183
90119-06887
91631-40814
