CR50G-GFSQX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )CR5#,KR52,SR50

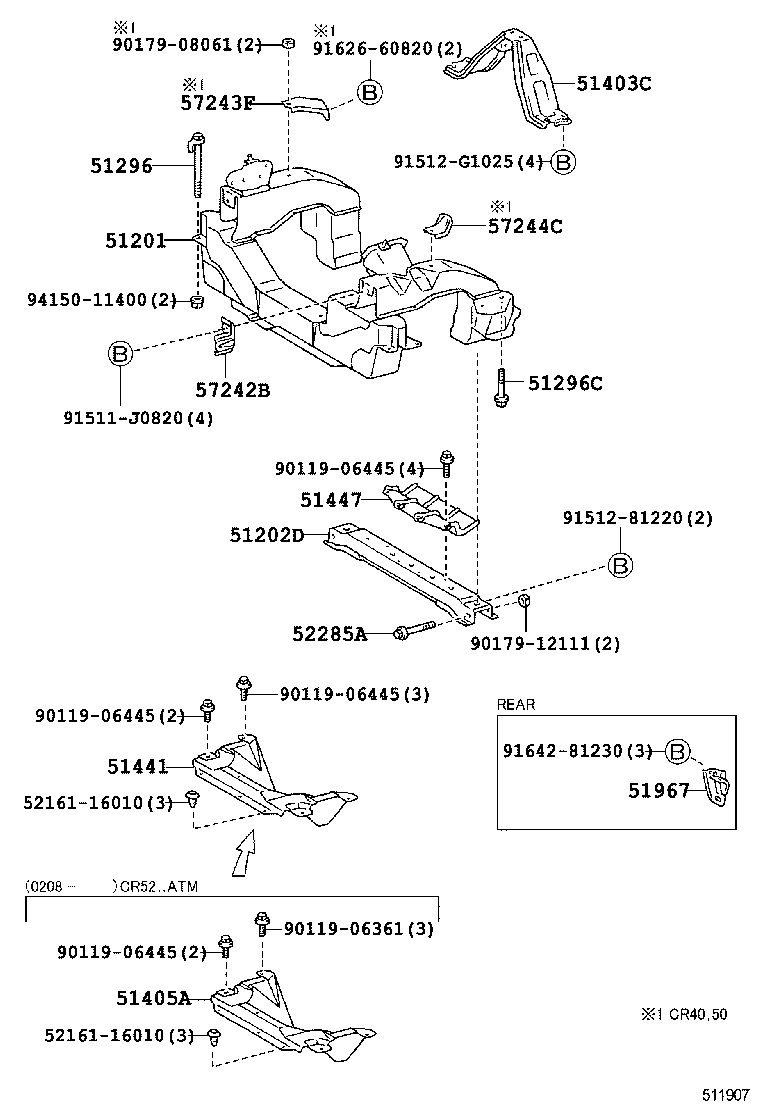

Click highlighted areas on diagram

diagram 51201 51202D 51296 51296C 51403C 51405A 51441 51447 51967 5216116010 5216116010 52285A 57242B 57243F 57244C 9011906361 9011906445 9011906445 9011906445 9011906445 9017908061 9017912111 91511J0820 9151281220 91512G1025 9162660820 9164281230 9415011400
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51210-28050

CR5#

 1
51202D - CROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER
51202-28030

CR5#,SR50

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-28020

CR4#,5#,KR4#,SR40,50

 2
51296C - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-28010

CR5#,SR50

 6
51403C - BRACKET SUB-ASSY, ENGINE REAR MOUNTING
51403-28010

CR5#..ATM;KR4#..MTM;CR4#,SR40,50

 1
51403-28010

CR4#,SR40;CR5#..ATM;KR4#..MTM

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-28110

CR5#,SR50

 1
51447 - GUIDE, ENGINE UNDER COVER AIR
51447-28050

CR5#,SR50

 1
51967 - HOOK, TRANSPORT, REAR
51095-28050

CR41,KR4#..V1;CR40,5#,SR40,50

 1
52285A - BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52285-28010

CR5#,SR50

 2
57242B - STAY, ENGINE FRONT SUPPORT
57242-28030

CR41,51,SR40,50

 2
57243F - STAY, ENGINE FRONT SUPPORT, RH
57243-28050

CR50

 1
57244C - STAY, ENGINE FRONT SUPPORT, LH
57244-28030

CR50

 1
Common parts
52161-16010
90119-06361
90119-06445
90179-08061
90179-12111
91511-J0820
91512-81220
91512-G1025
91626-60820
91642-81230
94150-11400
