CR50G-GFSQX (1996)

Toyota Lite/Townace Noah,V

Production Oct 1996 - Dec 1998
Engine 3CT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610- )2C,3CT#,3CE

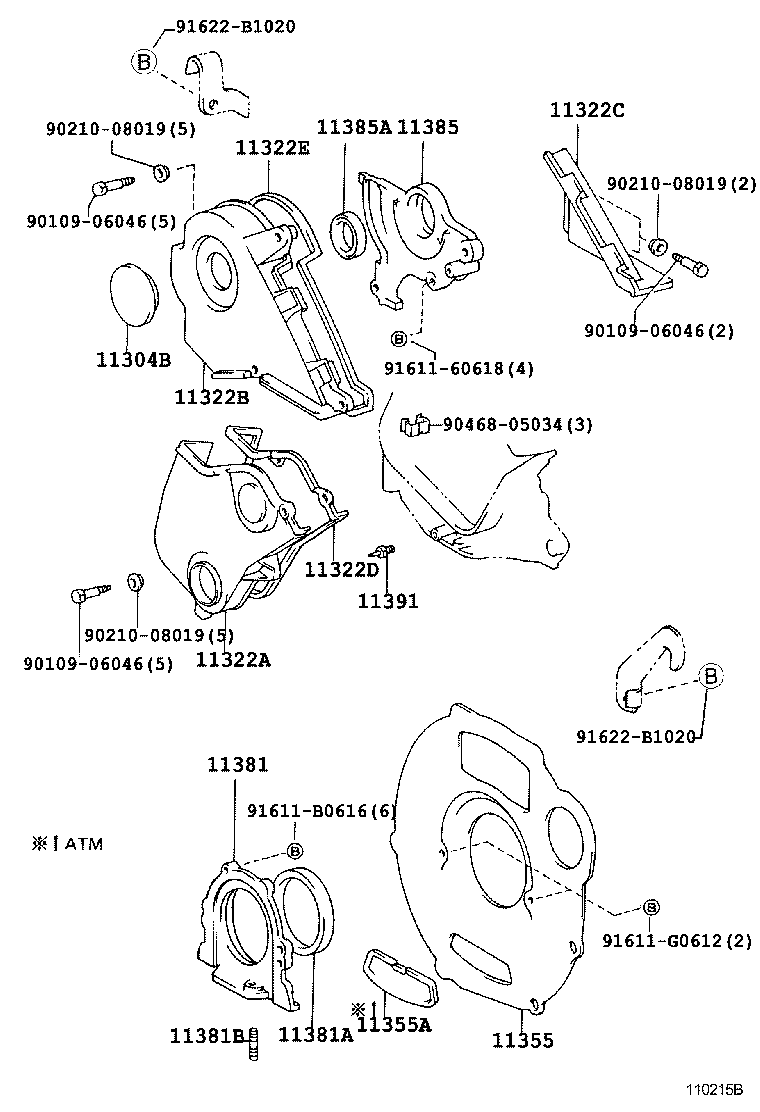

Click highlighted areas on diagram

diagram 11304B 11322A 11322B 11322C 11322D 11322E 11355 11355A 11381 11381A 11381B 11385 11385A 11391 9010906046 9010906046 9010906046 9021008019 9021008019 9021008019 9046805034 9161160618 91611B0616 91611G0612 91622B1020 91622B1020
Part # Description Qty Price
11304B - PLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
90950-01357

2C,3CT..CR4#,5#

外径=64

 1
11322A - COVER, TIMING BELT, NO.1
11321-64011

2C,3CT..CR4#,5#

 1
11321-64010

2C,3CT..CR4#,5#

 1
11322B - COVER, TIMING BELT, NO.2
11322-64010

2C,3CT..CR4#,5#

 1
11322C - COVER, TIMING BELT, NO.3
11323-64011

2C,3CT..CR4#,5#

 1
11322D - GASKET, TIMING BELT COVER, NO.1
11328-64020

2C,3CT..CR4#,5#

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-64020

2C,3CT..CR4#,5#

 1
11355 - PLATE, REAR END
11355-64021

2C,3CT..CR4#,5#..ATM

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01548

2C,3CT..CR4#,5#..ATM

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-64012

2C,3CT..CR4#,5#

 1
11381A - SEAL, ENGINE REAR OIL
90311-90005

2C,3CT..CR4#,5#

 1
90311-90008

2C,3CT..CR4#,5#

 1
11381B - BOLT, STUD(FOR ENGINE REAR OIL SEAL RETAINER)
90116-06134

2C,3CT..CR4#,5#

 2
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-64011

2C,3CT..CR4#,5#

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-38061

2C,3CT..CR4#,5#

 1
90311-38044

3CT..CR40,50

 1
11391 - POINTER, TIMING
11391-64020

2C,3CT..CR4#,5#

 1
Common parts
90109-06046
90210-08019
90468-05034
91611-60618
91611-B0616
91611-G0612
91622-B1020
