CR42V-FSMNE (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Jul 2004
Engine 3CE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9812- )3CE

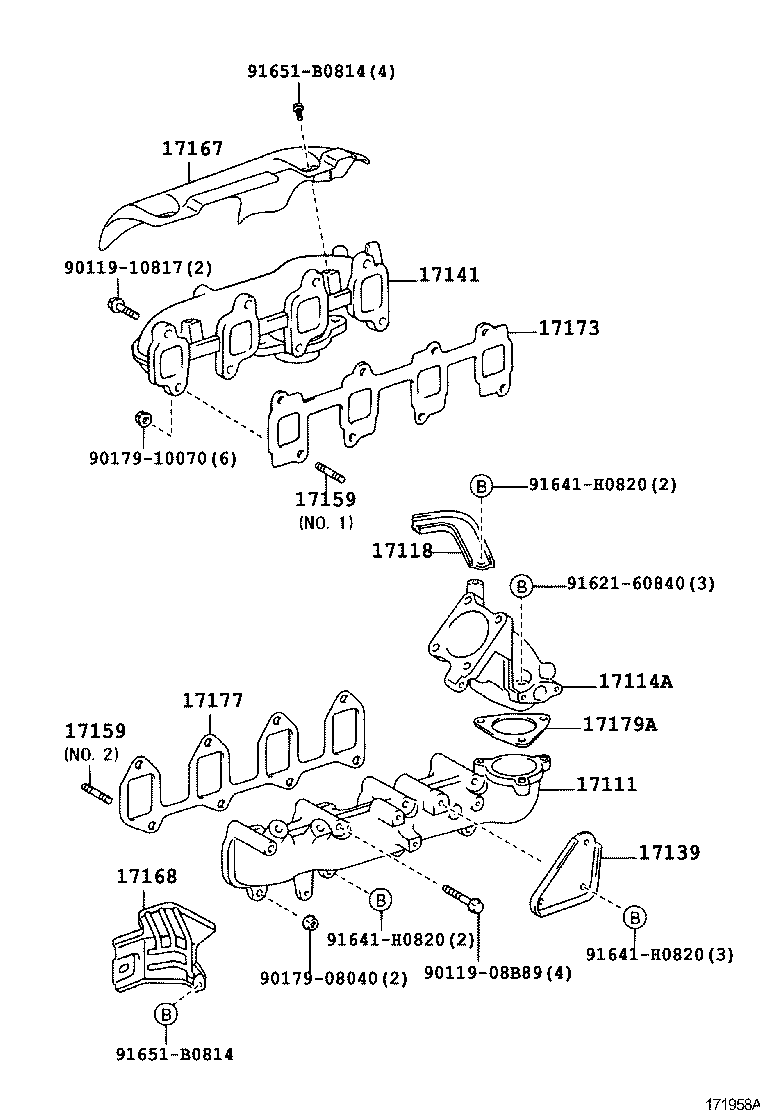

Click highlighted areas on diagram

diagram 17111 17114A 17118 17139 17141 17159 17159 17167 17168 17173 17177 17179A 9011908B89 9011910817 9017908040 9017910070 9162160840 91641H0820 91641H0820 91641H0820 91651B0814 91651B0814
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17101-64200

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

 1
17114A - FLANGE, INTAKE
17114-64030

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

 1
17118 - STAY, MANIFOLD
17118-64060

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

 1
17139 - STAY, MANIFOLD, NO.2
17139-64020

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

 1
17141 - MANIFOLD, EXHAUST
17141-64290

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

 1
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

NO.2

 2
90126-10017

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

NO.1

 6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-60820

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

NO.2

 2
90126-10017

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

NO.1

 6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-64130

3CE..CR42,52

 1
17167-64131

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-64100

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-64051

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-64020

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

 1
17179A - GASKET, INTAKE MANIFOLD, NO.2
17179-64040

3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5

 1
Common parts
90119-08B89
90119-10817
90179-08040
90179-10070
91621-60840
91641-H0820
91651-B0814
