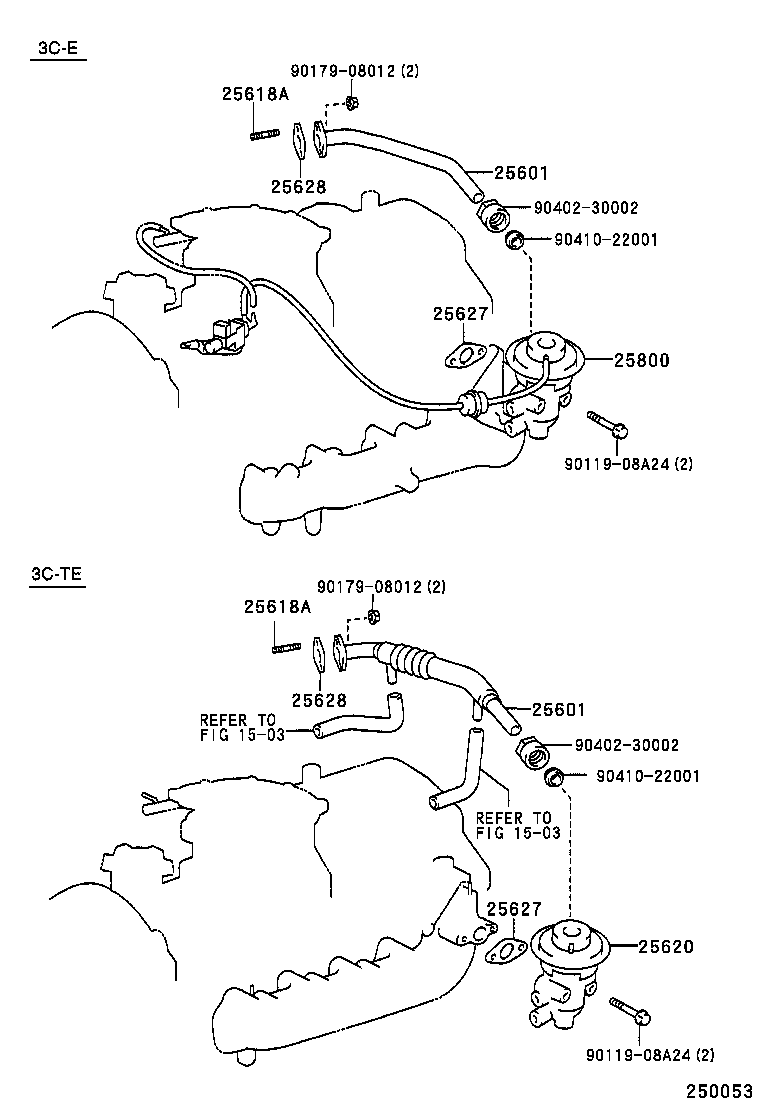

Toyota Lite/townace noah,v CR42 EXHAUST GAS RECIRCULATION SYSTEM

Part #	Description	Period	Qty
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-64090	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-64090	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
25618A - BOLT, STUD(FOR EGR INLET)
92122-60822	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
25618A - BOLT, STUD(FOR EGR INLET)
92122-60822	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	2
25627 - GASKET, EGR VALVE
25627-64041	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
25627 - GASKET, EGR VALVE
25627-64041	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
25628 - GASKET, EGR INLET
25628-64030	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
25628 - GASKET, EGR INLET
25628-64030	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-64170	3CE..CR52;3CE..CR42..03S,05S;3CE..CR42..06S..CBU;3CE..CR42..ATM..IV5	12/1998 - 07/2004	1
Common parts
90119-08A24
90179-08012
90402-30002
90410-22001
Linked diagrams
1503

CR42V-FLMDE (1998)
