CR42V-EMMDE5 (1998)
Toyota Lite/Townace Noah,V

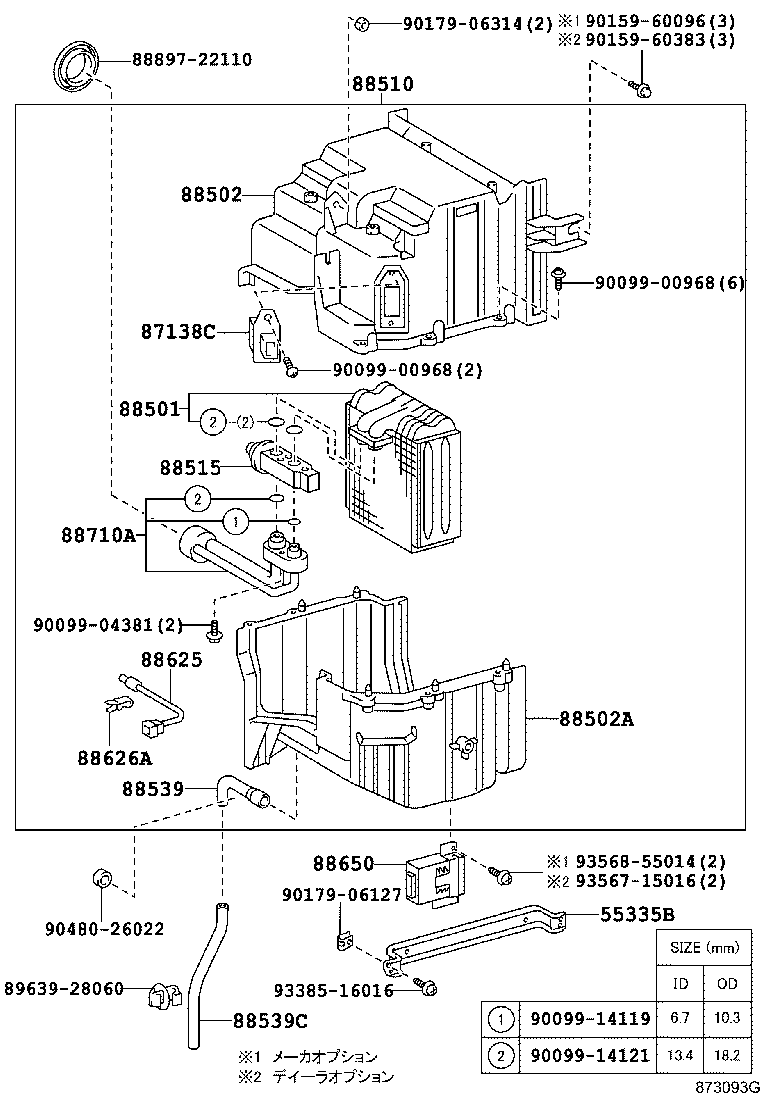

ILLUST NO. 1 OF 2(9812- )
ﾌﾛﾝﾄ---ﾏﾆﾕｱﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55335B - REINFORCEMENT, INSTRUMENT PANEL, LWR LH | ||||
| 55335-28040 |
CR42,52,KR42..D |
1 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-28160 |
CR4#,5#,KR42,SR40,50..(05S,06S,08S)..(D,E,N,V) |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28290 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88501-28290 |
CR42..06S..MTM..IV5 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28460 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 88502-28460 |
CR42..06S..MTM..IV5 |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28470 |
CR42..06S..MTM..IV5 |
1 | ||
| 88502-28470 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28620 |
CR42,52,KR42,SR40,50..03S,06S |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22240 |
CR42..06S..MTM..IV5 |
1 | ||
| 88515-22240 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28140 |
CR42..06S..MTM..IV5 |
1 | ||
| 88539-28140 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60140 |
CR42..06S..MTM..IV5 |
1 | ||
| 88625-28170 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
CR42..06S..MTM..IV5 |
1 | ||
| 88626-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-28680 |
CR42,52,KR42,52 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-2R090 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88710-2R330 |
CR42..06S..MTM..IV5 |
1 | ||
| Common parts | ||||
| 88897-22110 | ||||
| 89639-28060 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90159-60096 | ||||
| 90159-60383 | ||||
| 90179-06127 | ||||
| 90179-06314 | ||||
| 90480-26022 | ||||
| 93385-16016 | ||||
| 93567-15016 | ||||
| 93568-55014 | ||||

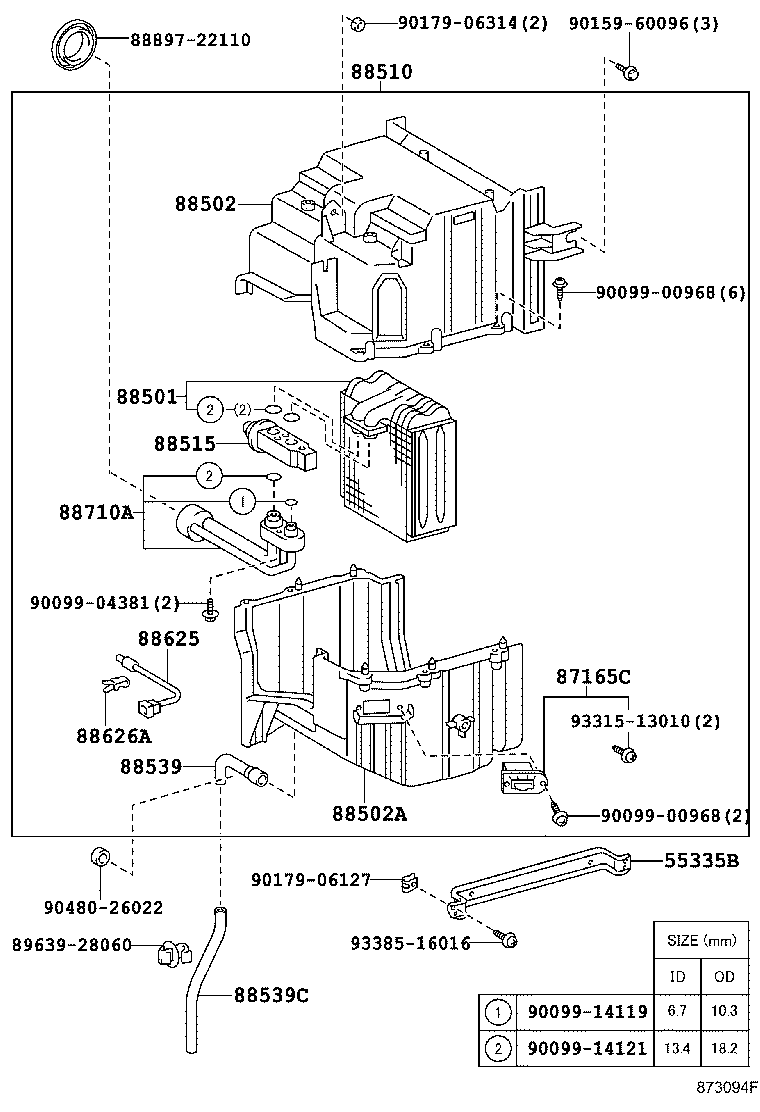

ILLUST NO. 1 OF 2(9812- )CR4#,5#,KR42,SR40,50
ﾌﾛﾝﾄ---ｵ-ﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55335B - REINFORCEMENT, INSTRUMENT PANEL, LWR LH | ||||
| 55335-28040 |
CR42,52,KR42..D |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-28290 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88501-28290 |
CR42..06S..MTM..IV5 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28460 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 88502-28460 |
CR42..06S..MTM..IV5 |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-28470 |
CR42..06S..MTM..IV5 |
1 | ||
| 88502-28470 |
CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-28620 |
CR42,52,KR42,SR40,50..03S,06S |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22240 |
CR42..06S..MTM..IV5 |
1 | ||
| 88515-22240 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-28140 |
CR42..06S..MTM..IV5 |
1 | ||
| 88539-28140 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-60140 |
CR42..06S..MTM..IV5 |
1 | ||
| 88625-28170 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
CR42..06S..MTM..IV5 |
1 | ||
| 88626-28010 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-2R090 |
CR4#,5#,KR4#,SR40,50 |
1 | ||
| 88710-2R330 |
CR42..06S..MTM..IV5 |
1 | ||
| Common parts | ||||
| 88897-22110 | ||||
| 89639-28060 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90099-14119 | ||||
| 90099-14121 | ||||
| 90159-60096 | ||||
| 90179-06127 | ||||
| 90179-06314 | ||||
| 90480-26022 | ||||
| 93315-13010 | ||||
| 93385-16016 | ||||
