CR42V-EMMDE (1998)

Toyota Lite/Townace Noah,V

Production Dec 1998 - Jul 2004
Engine 3CE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

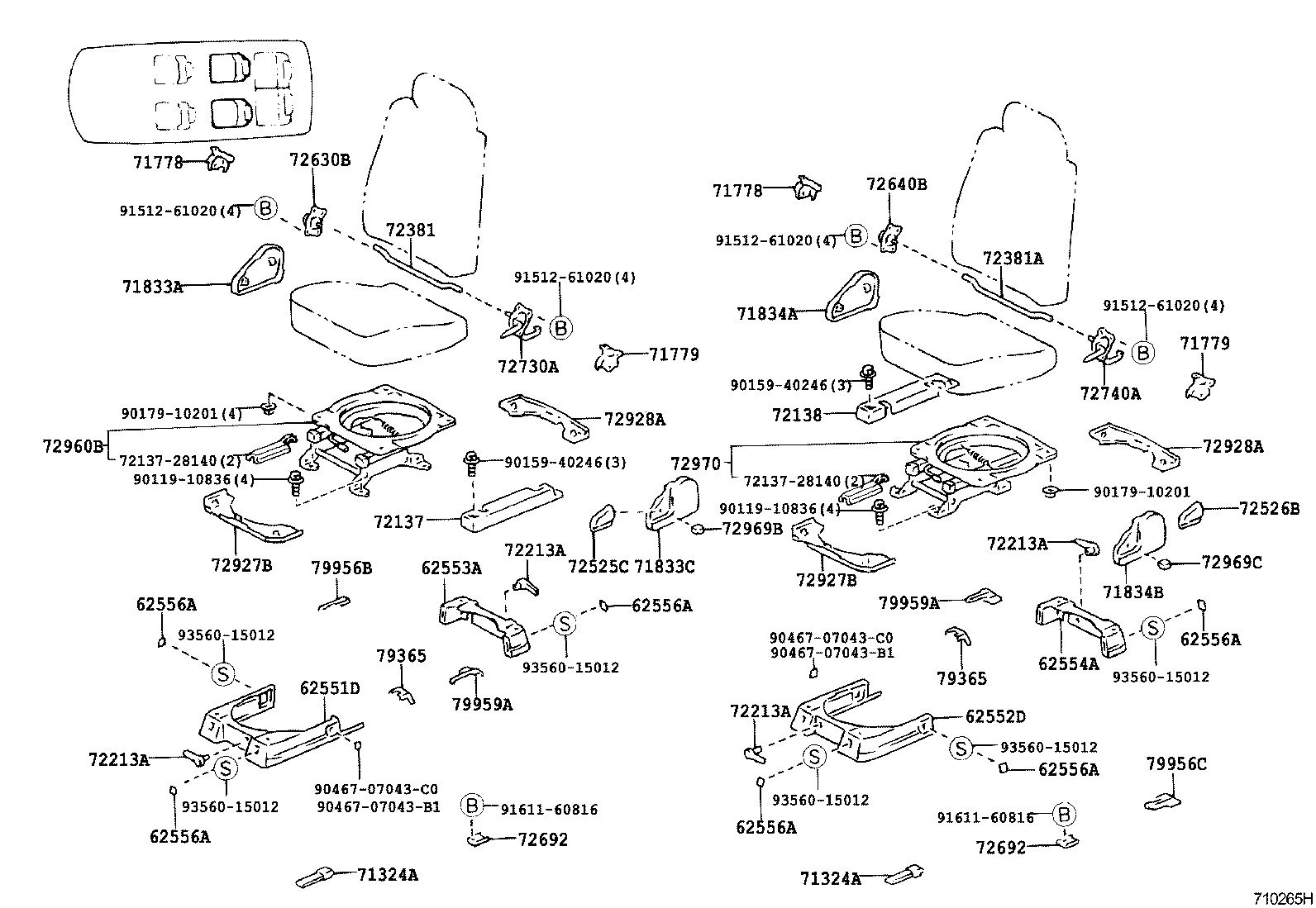

ILLUST NO. 2 OF 2(9610-0111)Q,V ; (9610-0111)CR40,50,SR40,50..IV5

Click highlighted areas on diagram

ﾘﾔ NO.1 ｼ-ﾄ=ｷﾔﾌﾟﾃﾝｼｰﾄ

diagram 62551D 62552D 62553A 62554A 62556A 62556A 62556A 62556A 62556A 62556A 71324A 71324A 71778 71778 71779 71779 71833A 71833C 71834A 71834B 72137 7213728140 7213728140 72138 72213A 72213A 72213A 72213A 72381 72381A 72525C 72526B 72630B 72640B 72692 72692 72730A 72740A 72927B 72927B 72928A 72928A 72960B 72969B 72969C 72970 79365 79365 79956B 79956C 79959A 79959A 9011910836 9011910836 9015940246 9015940246 9017910201 9017910201 9046707043B1 9046707043B1 9046707043C0 9046707043C0 9151261020 9151261020 9151261020 9151261020 9161160816 9161160816 9356015012 9356015012 9356015012 9356015012 9356015012 9356015012
Part # Description Qty Price
Common parts
72137-28140
90119-10836
90159-40246
90179-10201
90467-07043B1
90467-07043C0
91512-61020
91611-60816
93560-15012

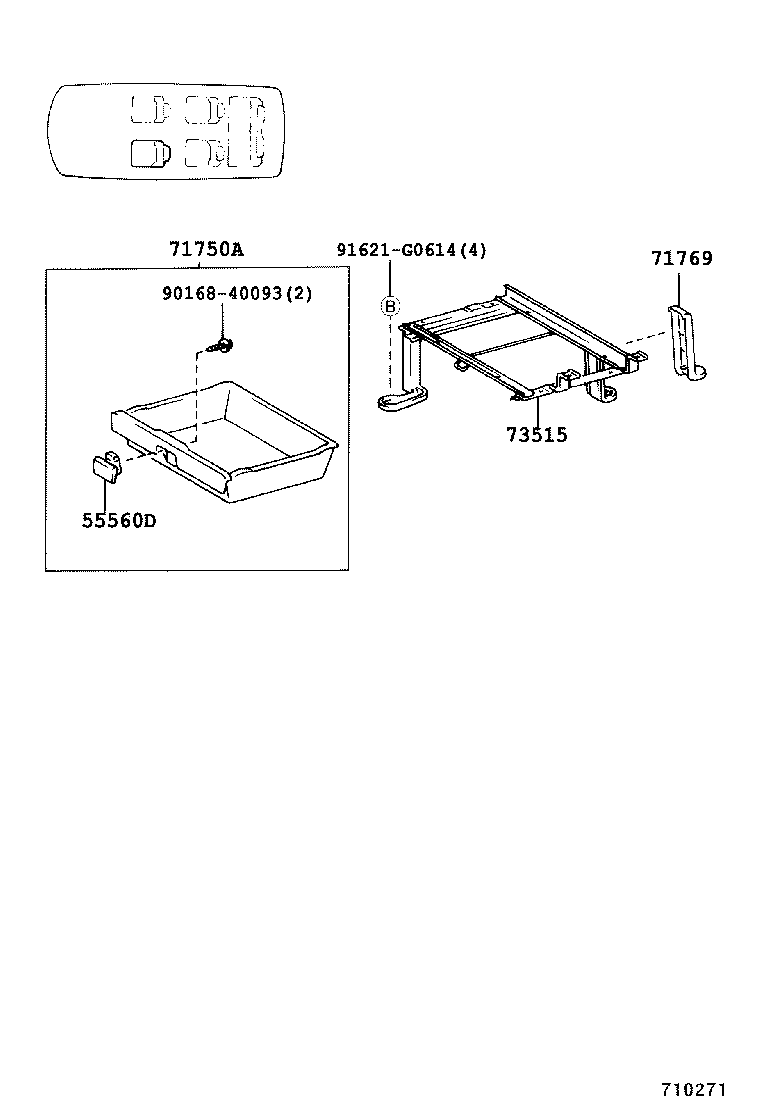

ILLUST NO. 2 OF 2(9610-0111)07S,08S ; (9611-0111)N

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼ-ﾄ(ｼｰﾄ ｱﾝﾀﾞ ﾄﾚｲ)

diagram 55560D 71750A 71769 73515 9016840093 91621G0614
Part # Description Qty Price
Common parts
90168-40093
91621-G0614

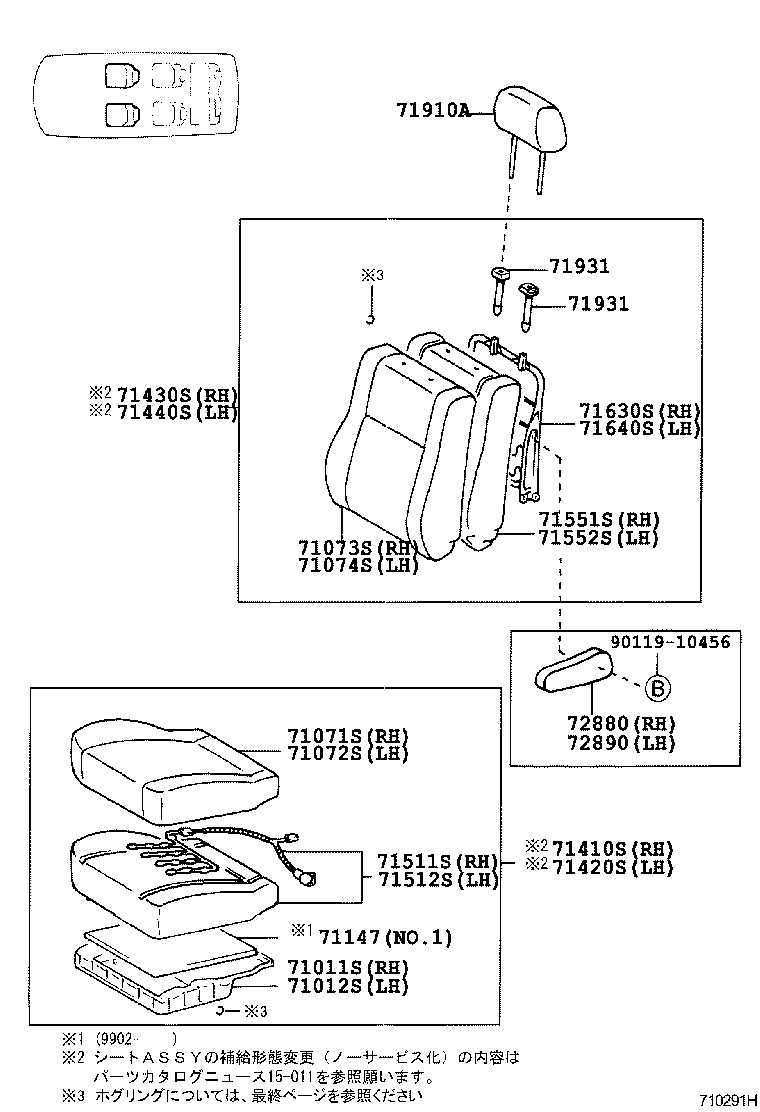

ILLUST NO. 1 OF 2(9610-0111)07S,08S ; (9611-0111)SR40,50..5D..ATM; (9611-0407)CR41,42,51,52..N ; (9

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼ-ﾄ

diagram 71011S 71012S 71071S 71072S 71073S 71074S 71147 71410S 71420S 71430S 71440S 71511S 71512S 71551S 71552S 71630S 71640S 71910A 71931 71931 72880 72890 9011910456
Part # Description Qty Price
71011S - FRAME SUB-ASSY, FRONT SEAT CUSHION, RH
71011-28130

CR4#,5#,KR42,52,SR40,50..B,D,N

 1
71011-28130

CR4#,5#,KR4#,SR40,50

 1
71012S - FRAME SUB-ASSY, FRONT SEAT CUSHION, LH
71620-28010

CR42,52,KR42,52,SR40,50..03S,06S

 1
71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71071-2J120B0

CR42,52,KR42,52,SR40,50..03S,06S

MEDIUM MOON MIST,TRIM1#

 1
71071-2J140B0

CR42,52,KR42,52..N

MEDIUM MOON MIST,TRIM1#

 1
71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71072-2J120B0

CR42,52,KR42,52..N

MEDIUM MOON MIST,TRIM1#

 1
71072-2J100B0

CR42,52,KR42,52,SR40,50..03S,06S

MEDIUM MOON MIST,TRIM1#

 1
71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71073-2J150B0

CR42,52,KR42,52..N

MEDIUM MOON MIST,TRIM1#

 1
71073-2J130B0

CR42,52,KR42,52,SR40,50..03S,06S

MEDIUM MOON MIST,TRIM1#

 1
71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71074-2J210B0

CR42,52,KR42,52,SR40,50..03S,06S

MEDIUM MOON MIST,TRIM1#

 1
71073-2J150B0

CR42,52,KR42,52..N

MEDIUM MOON MIST,TRIM1#

 1
71147 - SILENCER, SEAT SPRING
71147-28020

CR42,52,KR42,52..N

NO.1

 2
71147-28030

CR42,52,KR42,52..N

NO.2

 2
71147-28030

CR4#,5#,KR42,52,SR40,50..03S,06S,07S,08S

NO.2

 1
71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
71420-28740B1

CR42,52,KR42..N

***,MD. MOON MIST,TRIM1#

 1
71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71511-28200

CR42,52,KR42,52,SR40,50..03S,06S

 1
71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71052-28020

CR52,KR42..D;CR42..SRF..D;CR42..ATM..IV5;CR42..HRF..D..CBU

ｱﾘ(ｼﾞﾖｼﾕｾｷ ｼ-ﾄﾍﾞﾙﾄ ｳｵ-ﾆﾝｸﾞ)

 1
71512-28160

CR42,52,KR42,52..D

 1
71512-28150

CR42,52,KR42,52..N

 1
71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71551-28230

CR42,52,KR42,52,SR40,50..03S,06S

 1
71551-28240

CR42,52,KR42,52..N

 1
71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71552-28210

CR42,52,KR42,52,SR40,50..03S,06S

 1
71551-28240

CR42,52,KR42,52..N

 1
71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE)
71630-28290

CR42,52,KR42,52,SR40,50..03S,06S

 1
71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE)
71014-28140

CR42,52,KR42,52,SR40,50..03S,06S

 1
71910A - HEADREST ASSY, FRONT SEAT
71910-28630B1

CR42,52,KR42,52..N

MEDIUM MOON MIST,TRIM1#

 2
Common parts
90119-10456

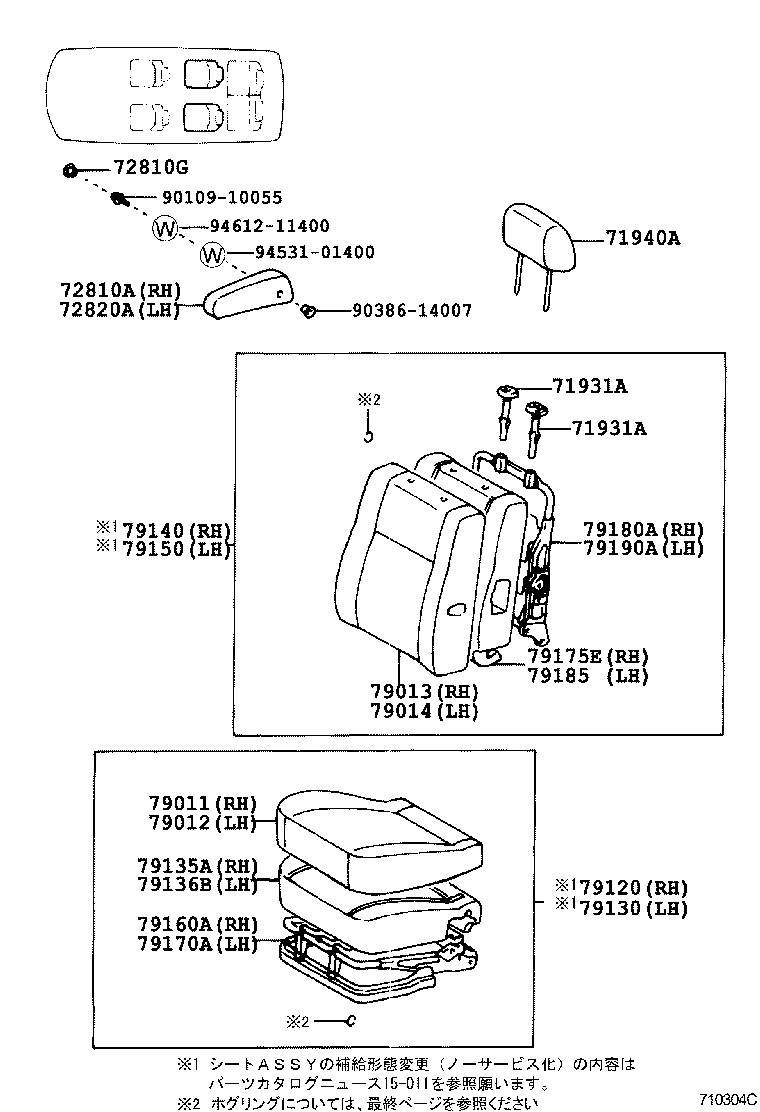

ILLUST NO. 1 OF 2(9610-0111)Q,V ; (9610-0111)CR40,50,SR40,50..IV5

Click highlighted areas on diagram

ﾘﾔ NO.1 ｼ-ﾄ=ｷﾔﾌﾟﾃﾝｼｰﾄ

diagram 71931A 71931A 71940A 72810A 72810G 72820A 79011 79012 79013 79014 79120 79130 79135A 79136B 79140 79150 79160A 79170A 79175E 79180A 79185 79190A 9010910055 9038614007 9453101400 9461211400
Part # Description Qty Price
Common parts
90109-10055
90386-14007
94531-01400
94612-11400

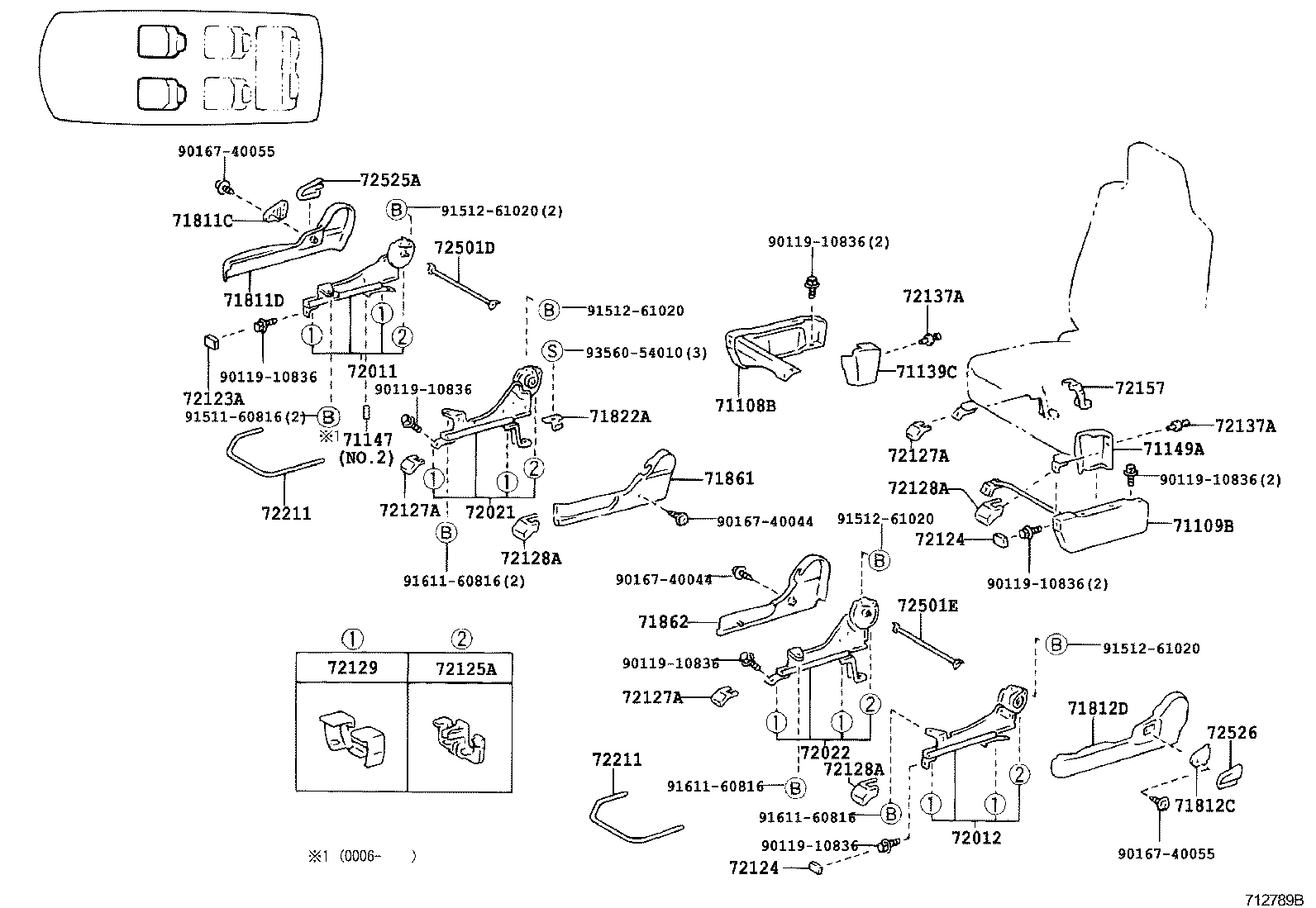

ILLUST NO. 2 OF 2(9610-0111)07S,08S ; (9611-0111)SR40,50..5D..ATM; (9611-0208)N

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼ-ﾄ

diagram 71108B 71109B 71139C 71147 71149A 71811C 71811D 71812C 71812D 71822A 71861 71862 72011 72012 72021 72022 72123A 72124 72124 72125A 72127A 72127A 72127A 72128A 72128A 72128A 72129 72137A 72137A 72157 72211 72211 72501D 72501E 72525A 72526 9011910836 9011910836 9011910836 9011910836 9011910836 9011910836 9011910836 9016740044 9016740044 9016740055 9016740055 9151160816 9151261020 9151261020 9151261020 9151261020 9161160816 9161160816 9161160816 9356054010
Part # Description Qty Price
71108B - LEG SUB-ASSY, FRONT SEAT, RH
71108-28050B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
71108-28020

CR52..D;CR42..SRF..D;CR42..ATM..IV5;CR42..HRF..D..CBU

 1
71108-28050B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
71109B - LEG SUB-ASSY, FRONT SEAT, LH
71109-28110

CR52..D;CR42..SRF..D;CR42..ATM..IV5;CR42..HRF..D..CBU

 1
71109-28090B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
71139C - COVER, FRONT SEAT LEG, RH
71139-28010B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
71139-28010B0

CR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5

MD.MOON MIST,TRIM1#

 1
71147 - SILENCER, SEAT SPRING
71147-28020

CR42,52,KR42,52..N

NO.1

 2
71147-28030

CR42,52,KR42,52..N

NO.2

 2
71147-28030

CR4#,5#,KR42,52,SR40,50..03S,06S,07S,08S

NO.2

 1
71149A - COVER, FRONT SEAT LEG, LH
71149-28030B0

CR52..D;CR42..SRF..D;CR42..ATM..IV5;CR42..HRF..D..CBU

ｱﾘ(ﾌﾛﾝﾄ 3ﾆﾝｶﾞｹ ｼ-ﾄ),MD.MOON MIST,TRIM1#

 1
71149-28020B0

CR42,52..N

ｱﾘ(ﾘﾔﾋ-ﾀ),MD.MOON MIST,TRIM1#

 1
71149-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-28150B0

CR4#,5#,KR42,52,SR40,50..B,D,N,S,V

MD.MOON MIST,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-28130B0

CR4#,5#,KR42,52,SR40,50..B,D,N

MD.MOON MIST,TRIM1#

 1
71811-28130B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-28010B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
71861-28010B0

CR4#,5#,KR42,52,SR40,50..B,D,N

MD.MOON MIST,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-28071

CR42,52,KR42,SR40,50..03S,05S,06S

 1
72011-28072

CR42,52,KR42,52,SR40,50..03S,05S,06S

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-28072

CR42,52,KR42,52..N

 1
72012-28071

CR42,52,KR42..N

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-28060

CR42,52,KR42,52..N

 1
72021-28070

CR42,52,KR42,52,SR40,50..03S,06S

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-28050

CR42,52,KR42,52..N

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-28040B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72123-28040B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-28020B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-28020B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

KR52..D;KR42..SRF..D;KR42..IV5..SJL;KR42..HRF..D..CBU;CR4#,5#,SR40,50..(03S,06S,07S,08S)..CBU

 2
72125-60070

CR42,52,KR42,52..N

 4
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72127-28010B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72127-28010B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72127-28010B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72128-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72128-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72128-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-28010

CR42,52,KR42,52..N

 8
72129-28010

CR4#,5#,KR42,52,SR40,50..B,D

 4
72137A - CLIP (FOR SEAT TRACK COVER)
90467-05063B3

CR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5

BLUISH GRAY,TRIM1#

 2
90467-05063B3

CR4#,5#,KR4#,SR40,50..B,D,N,V

BLUISH GRAY,TRIM1#

 2
72137A - CLIP (FOR SEAT TRACK COVER)
90467-05063B3

CR4#,5#,KR4#,SR40,50..B,D,N,V

BLUISH GRAY,TRIM1#

 2
90467-05063B3

CR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5

BLUISH GRAY,TRIM1#

 2
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 2
72157-28020B0

CR52..D;CR42..SRF..D;CR42..ATM..IV5;CR42..HRF..D..CBU

ｱﾘ(ﾌﾛﾝﾄ 3ﾆﾝｶﾞｹ ｼｰﾄ),MD.MOON MIST,TRIM1#

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-28030

CR4#,5#,KR42,52,SR40,50..03S,06S,07S,08S

 1
72211-28030

CR42,52,KR42,52..N

右側

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-28030

CR4#,5#,KR42,52,SR40,50..03S,06S,07S,08S

 1
72211-28030

CR42,52,KR42,52..N

右側

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-28060

CR4#,5#,KR4#,SR40,50

ﾌﾛﾝﾄ ｼｰﾄ

 1
72501-28060

CR4#,5#,KR42,52,SR40,50

ﾌﾛﾝﾄ ｼｰﾄ

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010B7

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
72525-16010B7

CR4#,5#,KR42,52,SR40,50..B,D,N,S,V

MD.MOON MIST,TRIM1#

 1
Common parts
90119-10836
90167-40044
90167-40055
91511-60816
91512-61020
91611-60816
93560-54010

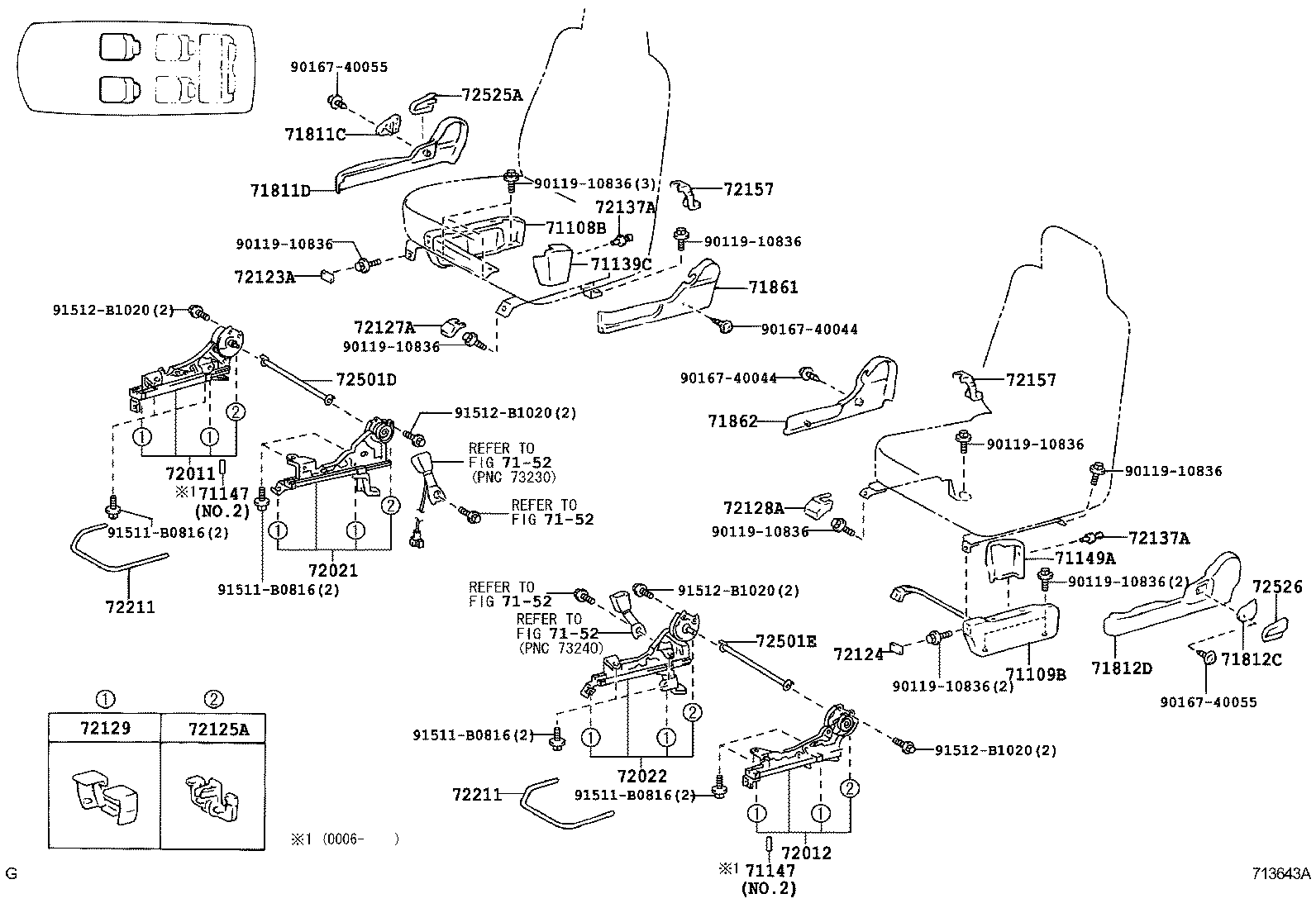

ILLUST NO. 2 OF 2(0208- )N

Click highlighted areas on diagram

ﾌﾛﾝﾄ ｼｰﾄ

diagram 71108B 71109B 71139C 71147 71147 71149A 7152 7152 7152 7152 71811C 71811D 71812C 71812D 71861 71862 72011 72012 72021 72022 72123A 72124 72125A 72127A 72128A 72129 72137A 72137A 72157 72157 72211 72211 72501D 72501E 72525A 72526 9011910836 9011910836 9011910836 9011910836 9011910836 9011910836 9011910836 9011910836 9011910836 9016740044 9016740044 9016740055 9016740055 91511B0816 91511B0816 91511B0816 91511B0816 91512B1020 91512B1020 91512B1020 91512B1020
Part # Description Qty Price
71108B - LEG SUB-ASSY, FRONT SEAT, RH
71108-28050B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
71108-28020

CR52..D;CR42..SRF..D;CR42..ATM..IV5;CR42..HRF..D..CBU

 1
71108-28050B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
71109B - LEG SUB-ASSY, FRONT SEAT, LH
71109-28110

CR52..D;CR42..SRF..D;CR42..ATM..IV5;CR42..HRF..D..CBU

 1
71109-28090B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
71139C - COVER, FRONT SEAT LEG, RH
71139-28010B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
71139-28010B0

CR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5

MD.MOON MIST,TRIM1#

 1
71147 - SILENCER, SEAT SPRING
71147-28020

CR42,52,KR42,52..N

NO.1

 2
71147-28030

CR42,52,KR42,52..N

NO.2

 2
71147-28030

CR4#,5#,KR42,52,SR40,50..03S,06S,07S,08S

NO.2

 1
71147 - SILENCER, SEAT SPRING
71147-28020

CR42,52,KR42,52..N

NO.1

 2
71147-28030

CR42,52,KR42,52..N

NO.2

 2
71147-28030

CR4#,5#,KR42,52,SR40,50..03S,06S,07S,08S

NO.2

 1
71149A - COVER, FRONT SEAT LEG, LH
71149-28030B0

CR52..D;CR42..SRF..D;CR42..ATM..IV5;CR42..HRF..D..CBU

ｱﾘ(ﾌﾛﾝﾄ 3ﾆﾝｶﾞｹ ｼ-ﾄ),MD.MOON MIST,TRIM1#

 1
71149-28020B0

CR42,52..N

ｱﾘ(ﾘﾔﾋ-ﾀ),MD.MOON MIST,TRIM1#

 1
71149-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
71811C - COVER, RECLINING ADJUSTER, RH
71811-28150B0

CR4#,5#,KR42,52,SR40,50..B,D,N,S,V

MD.MOON MIST,TRIM1#

 1
71811D - SHIELD, FRONT SEAT CUSHION, RH
71811-28130B0

CR4#,5#,KR42,52,SR40,50..B,D,N

MD.MOON MIST,TRIM1#

 1
71811-28130B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
71861 - SHIELD, FRONT SEAT CUSHION, INNER RH
71861-28010B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
71861-28010B0

CR4#,5#,KR42,52,SR40,50..B,D,N

MD.MOON MIST,TRIM1#

 1
72011 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER RH
72011-28071

CR42,52,KR42,SR40,50..03S,05S,06S

 1
72011-28072

CR42,52,KR42,52,SR40,50..03S,05S,06S

 1
72012 - ADJUSTER SUB-ASSY, FRONT SEAT, OUTER LH
72012-28072

CR42,52,KR42,52..N

 1
72012-28071

CR42,52,KR42..N

 1
72021 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER RH
72021-28060

CR42,52,KR42,52..N

 1
72021-28070

CR42,52,KR42,52,SR40,50..03S,06S

 1
72022 - ADJUSTER SUB-ASSY, FRONT SEAT, INNER LH
72022-28050

CR42,52,KR42,52..N

 1
72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH
72123-28040B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72123-28040B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH
72124-28020B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72125A - COVER, SEAT TRACK, UPPER REAR
72125-60070

KR52..D;KR42..SRF..D;KR42..IV5..SJL;KR42..HRF..D..CBU;CR4#,5#,SR40,50..(03S,06S,07S,08S)..CBU

 2
72125-60070

CR42,52,KR42,52..N

 4
72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH
72127-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72127-28010B0

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH
72128-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 1
72129 - PROTECTOR, SEAT TRACK LOWER RAIL, NO.1
72129-28010

CR42,52,KR42,52..N

 8
72129-28010

CR4#,5#,KR42,52,SR40,50..B,D

 4
72137A - CLIP (FOR SEAT TRACK COVER)
90467-05063B3

CR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5

BLUISH GRAY,TRIM1#

 2
90467-05063B3

CR4#,5#,KR4#,SR40,50..B,D,N,V

BLUISH GRAY,TRIM1#

 2
72137A - CLIP (FOR SEAT TRACK COVER)
90467-05063B3

CR52;CR42..03S,05S;CR42..06S..CBU;CR42..ATM..IV5

BLUISH GRAY,TRIM1#

 2
90467-05063B3

CR4#,5#,KR4#,SR40,50..B,D,N,V

BLUISH GRAY,TRIM1#

 2
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 2
72157-28020B0

CR52..D;CR42..SRF..D;CR42..ATM..IV5;CR42..HRF..D..CBU

ｱﾘ(ﾌﾛﾝﾄ 3ﾆﾝｶﾞｹ ｼｰﾄ),MD.MOON MIST,TRIM1#

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72157-28010B0

CR42,52..N

MD.MOON MIST,TRIM1#

 2
72157-28020B0

CR52..D;CR42..SRF..D;CR42..ATM..IV5;CR42..HRF..D..CBU

ｱﾘ(ﾌﾛﾝﾄ 3ﾆﾝｶﾞｹ ｼｰﾄ),MD.MOON MIST,TRIM1#

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-28030

CR4#,5#,KR42,52,SR40,50..03S,06S,07S,08S

 1
72211-28030

CR42,52,KR42,52..N

右側

 1
72211 - HANDLE, SEAT TRACK ADJUSTING
72211-28030

CR4#,5#,KR42,52,SR40,50..03S,06S,07S,08S

 1
72211-28030

CR42,52,KR42,52..N

右側

 1
72501D - PIPE SUB-ASSY, RECLINING CONNECTING, RH
72501-28060

CR4#,5#,KR4#,SR40,50

ﾌﾛﾝﾄ ｼｰﾄ

 1
72501-28060

CR4#,5#,KR42,52,SR40,50

ﾌﾛﾝﾄ ｼｰﾄ

 1
72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-16010B7

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM1#

 1
72525-16010B7

CR4#,5#,KR42,52,SR40,50..B,D,N,S,V

MD.MOON MIST,TRIM1#

 1
Common parts
90119-10836
90167-40044
90167-40055
91511-B0816
91512-B1020
Linked diagrams
7152
