CR41V-SRMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)2C

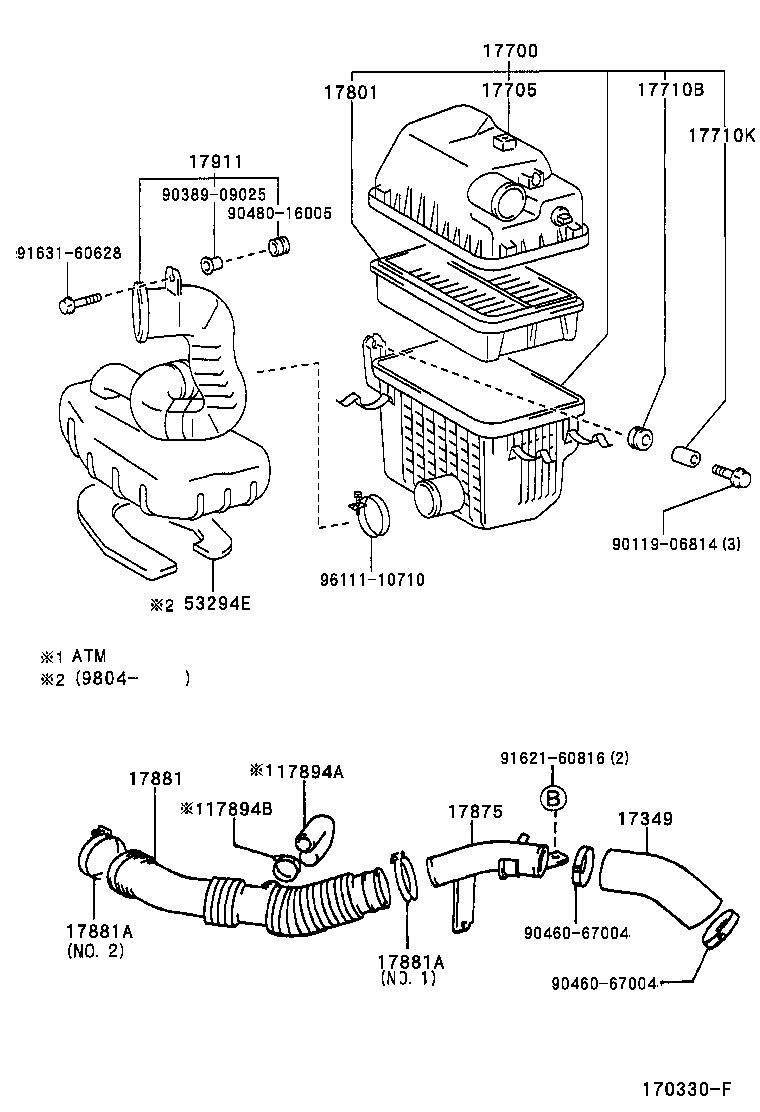

Click highlighted areas on diagram

diagram 17349 17700 17705 17710B 17710K 17801 17875 17881 17881A 17881A 17894A 17894B 17911 53294E 9011906814 9038909025 9046067004 9046067004 9048016005 9162160816 9163160628 9611110710
Part # Description Qty Price
17349 - HOSE, INTAKE PIPE
17349-64010

2C..CR41,51

 1
17700 - CLEANER ASSY, AIR
17700-64370

2C,3CT..CR4#,5#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-64250

2C,3CT..CR4#,5#

 1
17710B - GROMMET
90480-11015

2C,3CT..CR4#,5#

 3
17710K - COLLAR(FOR AIR CLEANER)
90387-09064

2C,3CT..CR4#,5#

 3
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-55020

2C,3CT..CR4#,5#

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-64090

2C..CR41,51

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-64340

2C..CR41,51..MTM

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2C..CR41,51

NO.1

 1
96111-10750

2C,3CT..CR4#,5#

NO.2

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10650

2C..CR41,51

NO.1

 1
96111-10750

2C,3CT..CR4#,5#

NO.2

 1
17911 - DUCT, COOL AIR INTAKE, NO.1
52810-28060

2C..CR41,51

 1
53294E - SEAL, COOL AIR INTAKE PIPE
53294-28010

CR41,51

 1
Common parts
90119-06814
90389-09025
90460-67004
90480-16005
91621-60816
91631-60628
96111-10710
