CR41V-RRSDS (1996)
Toyota Lite/Townace Noah,V
(9611- )2C,3CE
12V 55A

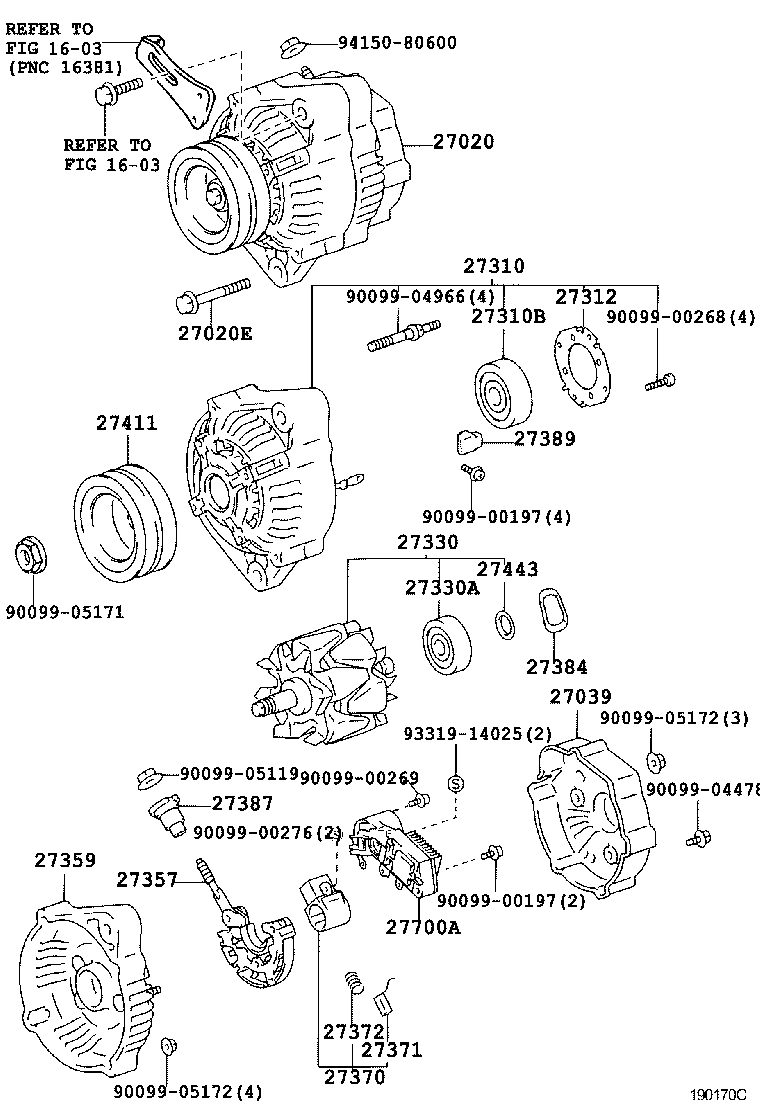

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-64320 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27060-64300 |
2C..CR41,51 12V 55A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10386 |
2C,3CT..CR4#,5# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A |
1 | ||
| 27039-73020 |
2C..CR41,51 12V 55A |
1 | ||
| 27039-16380 |
2C..CR41,51 12V 55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64460 |
2C..CR41,51 12V 55A |
1 | ||
| 27310-64510 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
2C..CR41,51 12V 55A |
1 | ||
| 90099-10192 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
2C..CR41,51 12V 55A |
1 | ||
| 27312-42010 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72280 |
3SFE..SR40..ATM;2C,3CT,3SFE..CR4#,5#,SR50 12V 90A |
1 | ||
| 27330-72101 |
2C..CR41,51 12V 55A |
1 | ||
| 27330-11250 |
2C..CR41,51 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 55A,70A,80A,90A,120A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-13360 |
2C..CR41,51 12V 55A |
1 | ||
| 27357-63060 |
2C..CR41,51 12V 55A |
1 | ||
| 27357-46130 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-64462 |
2C..CR41,51 12V 55A |
1 | ||
| 27359-64461 |
2C..CR41,51 12V 55A |
1 | ||
| 27359-64500 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27370-58320 |
2C..CR41,51 12V 55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
2C,5K,7K..CR41,51,KR4# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
2C,5K,7K..CR41,51,KR4# |
2 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27384-16380 |
2C..CR41,51 12V 55A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42040 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27387-70170 |
2C..CR41,51 12V 55A |
1 | ||
| 27387-70171 |
2C..CR41,51;7K..KR42..IV5 12V 55A,70A |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
4 | ||
| 27389-63020 |
2C..CR41,51 12V 55A |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64460 |
2C..CR41,51 12V 55A |
1 | ||
| 27411-64500 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50030 |
2C,3CT..CR4#,5# |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 1603 | ||||
(9610-9812)2C,3CT ; (9812- )3C#
12V 90A,12V 120A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-64320 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27060-64300 |
2C..CR41,51 12V 55A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 90105-10386 |
2C,3CT..CR4#,5# |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-55080 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A |
1 | ||
| 27039-73020 |
2C..CR41,51 12V 55A |
1 | ||
| 27039-16380 |
2C..CR41,51 12V 55A |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
2C,3CT,3SFE..CR4#,5#,SR40,50 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-64460 |
2C..CR41,51 12V 55A |
1 | ||
| 27310-64510 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
2C..CR41,51 12V 55A |
1 | ||
| 90099-10192 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-70200 |
2C..CR41,51 12V 55A |
1 | ||
| 27312-42010 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72280 |
3SFE..SR40..ATM;2C,3CT,3SFE..CR4#,5#,SR50 12V 90A |
1 | ||
| 27330-72101 |
2C..CR41,51 12V 55A |
1 | ||
| 27330-11250 |
2C..CR41,51 12V 55A |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 55A,70A,80A,90A,120A |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-13360 |
2C..CR41,51 12V 55A |
1 | ||
| 27357-63060 |
2C..CR41,51 12V 55A |
1 | ||
| 27357-46130 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-64462 |
2C..CR41,51 12V 55A |
1 | ||
| 27359-64461 |
2C..CR41,51 12V 55A |
1 | ||
| 27359-64500 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27365 - PLATE, TERMINAL | ||||
| 27365-55080 |
2C,3CT,3SFE..CR4#,5#,SR40,50 |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-75060 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27370-58320 |
2C..CR41,51 12V 55A |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
1 | ||
| 27384-16380 |
2C..CR41,51 12V 55A |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-42040 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27387-70170 |
2C..CR41,51 12V 55A |
1 | ||
| 27387-70171 |
2C..CR41,51;7K..KR42..IV5 12V 55A,70A |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
2C,3CT,3SFE..CR4#,5#,SR40,50 |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
2C,3CT,3SFE..CR4#,5#,SR40,50 12V 70A,80A,90A,120A |
4 | ||
| 27389-63020 |
2C..CR41,51 12V 55A |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-64460 |
2C..CR41,51 12V 55A |
1 | ||
| 27411-64500 |
2C,3CT..CR4#,5# 12V 90A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-50030 |
2C,3CT..CR4#,5# |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-00269 | ||||
| 90099-00276 | ||||
| 90099-04478 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05231 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
| 94150-80600 | ||||
