CR41V-REMDS5 (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

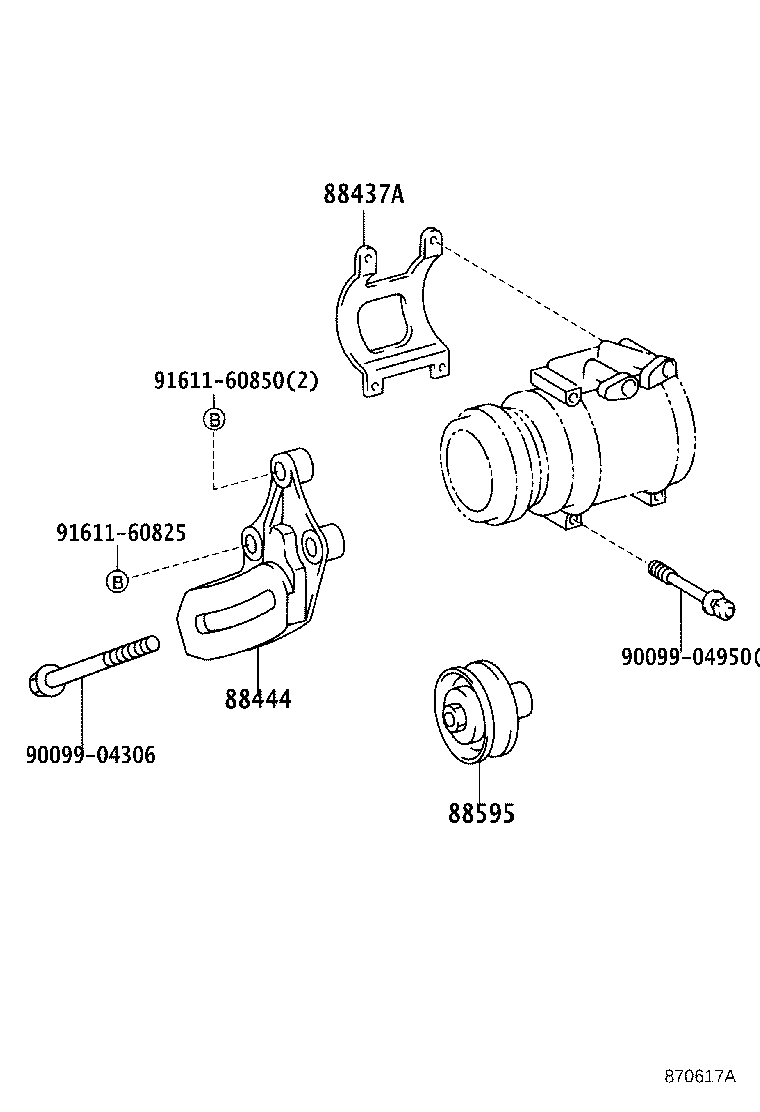

ILLUST NO. 2 OF 2(9610-9812)CR4#,5#

Click highlighted areas on diagram

diagram 88437A 88444 88595 9009904306 9009904950 9161160825 9161160850
Part # Description Qty Price
88444 - BRACKET, IDLE PULLEY
88444-27011

CR4#,5#

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-35020

CR4#,5#

 1
Common parts
90099-04306
90099-04950
91611-60825
91611-60850
