CR41V-REMDS5 (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9611-9812)2C

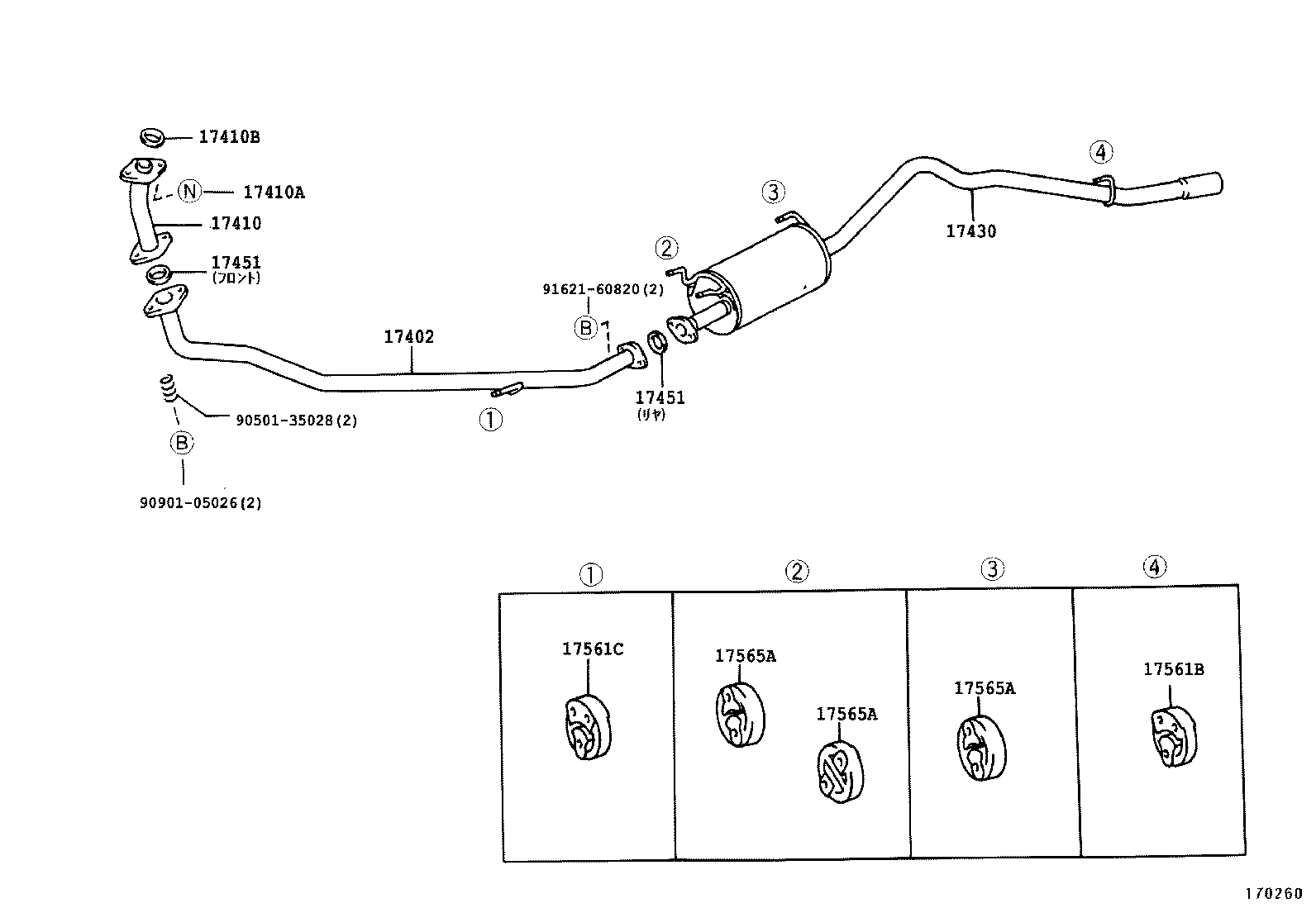

Click highlighted areas on diagram

diagram 17402 17410 17410A 17410B 17430 17451 17451 17561B 17561C 17565A 17565A 17565A 9050135028 9090105026 9162160820
Part # Description Qty Price
17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17402-64110

2C..CR41

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17401-64270

2C..CR41,51

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

2C..CR41,51

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

2C..CR41,51

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-6A150

2C..CR41,51..V1

 1
17451 - GASKET, EXHAUST PIPE
17451-64030

2C,5K,7K..CR41,51,KR4#

ﾌﾛﾝﾄ

 1
90917-06074

2C..CR41,51

ﾘﾔ

 1
17451 - GASKET, EXHAUST PIPE
17451-64030

2C,5K,7K..CR41,51,KR4#

ﾌﾛﾝﾄ

 1
90917-06074

2C..CR41,51

ﾘﾔ

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17561-73020

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 1
17561-73020

3SFE..SR40..MTM;2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR50

 1
17561C - SUPPORT, EXHAUST PIPE, NO.1
17561-74110

5K,7K..KR4#..SJL;2C,3CT,3SFE..CR4#,5#,SR40

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-15140

2C,3CT,5K,7K,3SFE..CR4#,5#,KR4#,SR40,50

 3
Common parts
90501-35028
90901-05026
91621-60820
