CR41V-FSSNS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9611- )5D

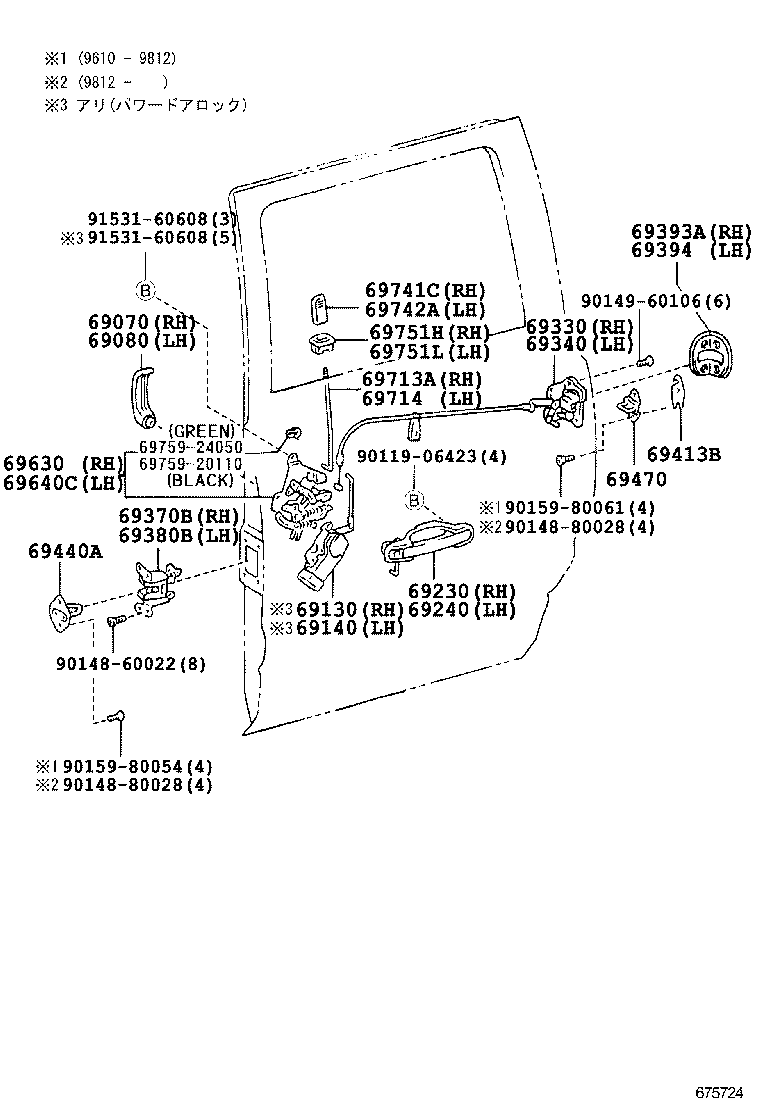

Click highlighted areas on diagram

diagram 69070 69080 69130 69140 69230 69240 69330 69340 69370B 69380B 69393A 69394 69413B 69440A 69470 69630 69640C 69713A 69714 69741C 69742A 69751H 69751L 9011906423 9014860022 9014880028 9014880028 9014960106 9015980054 9015980061 9153160608 9153160608
Part # Description Qty Price
69070 - HANDLE ASSY, SLIDE DOOR, INSIDE, RH
69070-28050B1

CR41,51,KR4#,SR40,50..5D

MD. MOON MIST,TRIM1#

 1
69080 - HANDLE ASSY, SLIDE DOOR, INSIDE, LH
69070-28050B1

CR4#,5#,KR4#,SR40,50

MD. MOON MIST,TRIM1#

 1
69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH
69130-28020

SR40..5D..MTM;CR41,51,KR4#,SR50..5D

 1
69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH
69140-28040

CR4#,5#,KR4#,SR40,50

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-28040

CR41,51,KR4#,SR40,50..5D

 1
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-28040

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
69330 - LOCK ASSY, REAR DOOR, RH
69330-28030

CR41,51,KR4#,SR40,50..5D

 1
69330-28010

CR41,51,KR4#,SR40,50..5D

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-28070

CR51..IV5;CR41..03S..IV5;CR51..(05S,06S)..CBU;CR4#,50,KR4#,SR40,50..05S,06S,08S

 1
69340-28020

CR51..IV5;CR41..03S..IV5;CR51..(05S,06S)..CBU;CR4#,50,KR4#,SR40,50..05S,06S,08S

 1
69370B - LOCK ASSY, SLIDE DOOR, FRONT RH
69370-28040

CR41,51,KR4#..5D..(05S,06S)

 1
69380B - LOCK ASSY, SLIDE DOOR, FRONT LH
69380-28040

CR41,51,KR4#..05S,06S

 1
69393A - COVER, REAR DOOR LOCK, OUTER RH
69394-28010

CR41,51,KR4#,SR40,50..5D

 1
69394 - COVER, REAR DOOR LOCK, OUTER LH
69394-28010

CR4#,5#,KR4#,SR40,50

 1
69413B - SHIM, DOOR LOCK STRIKER
69413-28020

CR4#,5#,KR4#,SR40,50

 1
69440A - PLATE ASSY, SLIDE DOOR FRONT LOCK STRIKER
69440-28010

CR41,51,KR4#,SR40,50..5D..(05S,06S)

 2
69470 - PLATE ASSY, SLIDE DOOR LOCK STRIKER
69470-28060

CR41,51,KR4#,SR40,50..5D

 2
69630 - CONTROL ASSY, SLIDE DOOR LOCK REMOTE
69630-28080

CR41,51,KR4#..5D

 1
69640C - CONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH
69640-28110

CR41,51,KR4#

 1
69713A - LINK, REAR DOOR LOCK REMOTE CONTROL, RH
69713-28010

CR41,51,KR4#,SR40,50..5D

 1
69714 - LINK, REAR DOOR LOCK REMOTE CONTROL, LH
69714-28030

CR4#,5#,KR4#,SR40,50..B,D,N

 1
69741C - KNOB, REAR DOOR LOCK CONTROL
69741-87003B5

CR41,51,KR4#,SR40,50..5D

MD.MOON MIST,TRIM10

 1
69742A - KNOB, REAR DOOR LOCK CONTROL, LH
69741-87003B5

CR4#,5#,KR4#,SR40,50

MD.MOON MIST,TRIM10

 1
69751H - HOLDER, REAR DOOR LOCK CONTRAL KNOB
69751-12060B2

CR41,51,KR4#,SR40,50..5D

DARK.SAGE,TRIM1#

 1
69751L - HOLDER, REAR DOOR LOCK CONTROL KNOB, LH
69751-12060B2

CR4#,5#,KR4#,SR40,50..B,D,N

DARK.SAGE,TRIM1#

 1
Common parts
90119-06423
90148-60022
90148-80028
90149-60106
90159-80054
90159-80061
91531-60608
