CR41V-FNSNS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 6(9610-9812)E,Q,V ; (9812-0111)E,Q,S,V

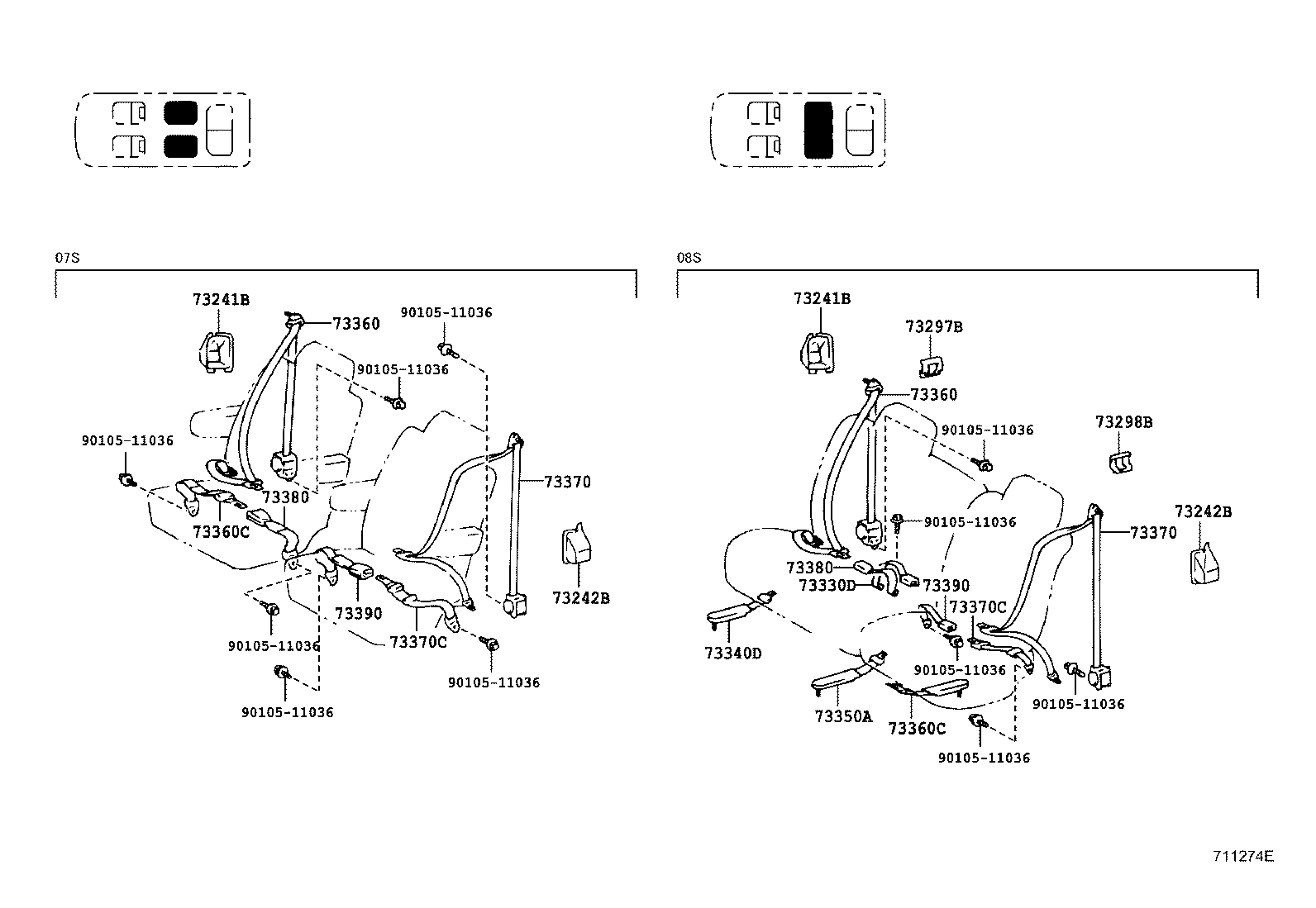

Click highlighted areas on diagram

ﾘﾔ NO.1ｼｰﾄ

diagram 73241B 73241B 73242B 73242B 73297B 73298B 73330D 73340D 73350A 73360 73360 73360C 73360C 73370 73370 73370C 73370C 73380 73380 73390 73390 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036 9010511036
Part # Description Qty Price
73330D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER RH
73330-28150B0

CR41,KR4#..(05S,06S)..CBU..SJL

BLUISH GRAY,TRIM1#

 1
73340D - BELT ASSY, REAR NO.1 SEAT LAP TYPE, CENTER LH
73340-28140B0

CR41,KR4#..(05S,06S)..CBU..SJL

BLUISH GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-28490B0

CR41,51,KR4#,SR40,50..5D..(05S,06S)

BLUISH GRAY,TRIM1#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-28490B0

CR41,51,KR4#,SR40,50..5D..(05S,06S)

BLUISH GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-28400B0

CR41,51,KR4#,SR40,50..(05S,06S)..CBU

BLUISH GRAY,TRIM1#

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-28400B0

CR41,51,KR4#,SR40,50..(05S,06S)..CBU

BLUISH GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-28270B0

CR41,KR4#..(05S,06S)..CBU..SJL

BLUISH GRAY,TRIM1#

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-28270B0

CR41,KR4#..(05S,06S)..CBU..SJL

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-28270B0

CR41,KR4#..(05S,06S)..CBU..SJL

BLUISH GRAY,TRIM1#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73380-28270B0

CR41,KR4#..(05S,06S)..CBU..SJL

BLUISH GRAY,TRIM1#

 1
Common parts
90105-11036
