CR41V-FMMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9812)CR4#,5#

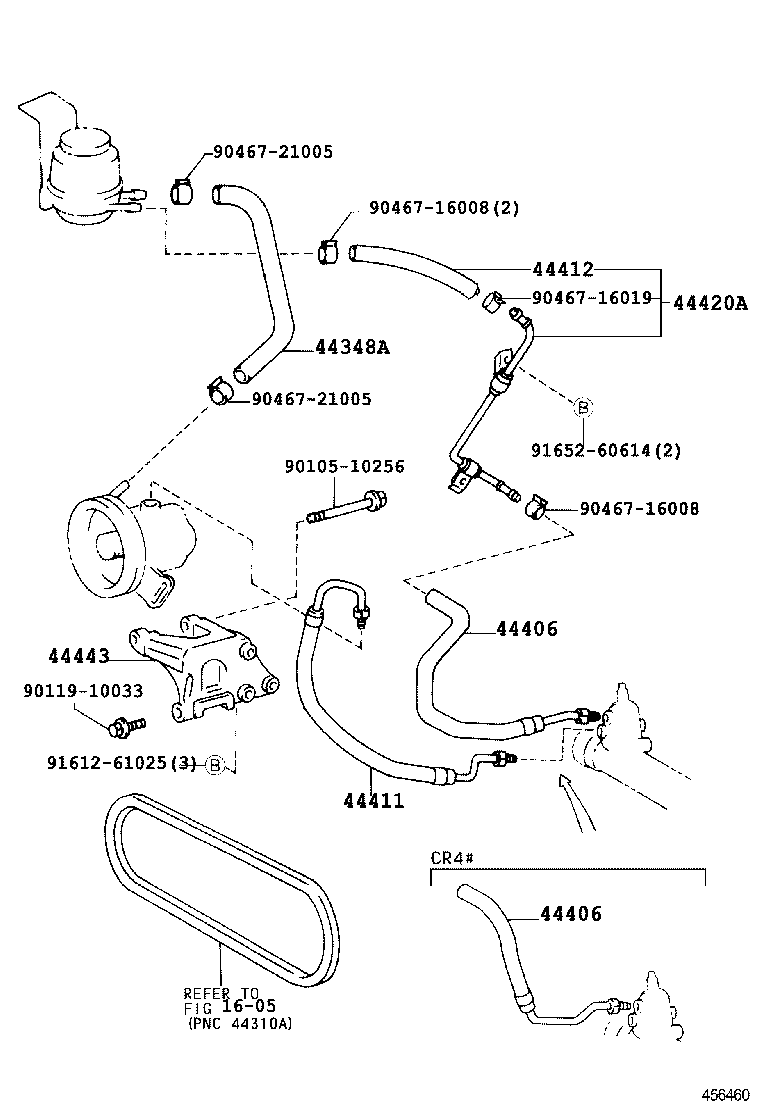

Click highlighted areas on diagram

diagram 1605 44348A 44406 44406 44411 44412 44420A 44443 9010510256 9011910033 9046716008 9046716008 9046716019 9046721005 9046721005 9161261025 9165260614
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-28210

CR4#,5#

 1
44406 - TUBE SUB-ASSY, RETURN
44406-28240

CR4#,KR4#,SR40

 1
44406 - TUBE SUB-ASSY, RETURN
44406-28240

CR4#,KR4#,SR40

 1
44411 - HOSE, PRESSURE FEED
44411-28190

CR4#,5#

 1
44412 - HOSE, RETURN
90445-18138

CR4#,5#,SR40,50

 1
44420A - TUBE ASSY, RETURN
44420-28050

CR4#,5#,SR40,50

 1
44443 - BRACKET, PUMP
44443-28030

CR4#,5#

 1
Common parts
90105-10256
90119-10033
90467-16008
90467-16019
90467-21005
91612-61025
91652-60614
Linked diagrams
1605
