CR41V-FMMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9812)2C,3CT

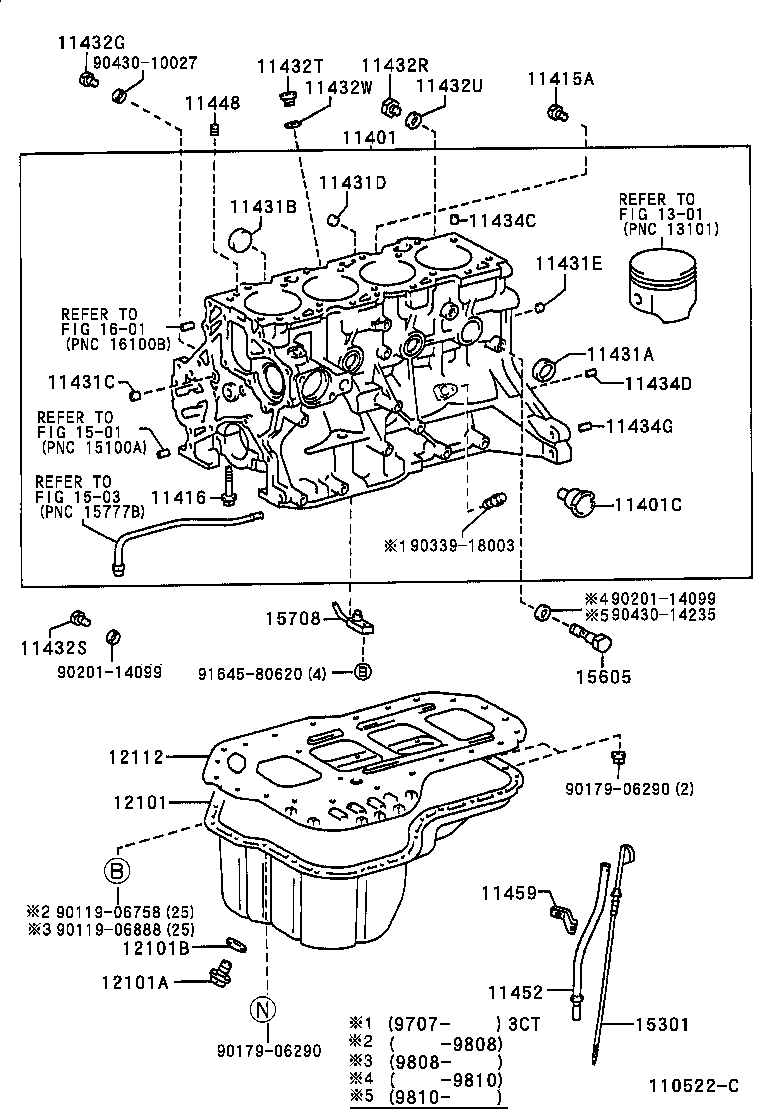

Click highlighted areas on diagram

diagram 11401 11401C 11415A 11416 11431A 11431B 11431C 11431D 11431E 11432G 11432R 11432S 11432T 11432U 11432W 11434C 11434D 11434G 11448 11452 11459 12101 12101A 12101B 12112 1301 1501 1503 15301 15605 15708 1601 9011906758 9011906888 9017906290 9017906290 9020114099 9020114099 9033918003 9043010027 9043014235 9164580620
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-69626

2C..CR41,51

 1
11401-69627

2C..CR41,51

 1
11401C - FLANGE(FOR WATER BY-PASS)
16353-64011

2C,3CT..CR4#,5#

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90345-52003

2C,3CT..CR4#,5#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02061

2C,3CT..CR4#,5#

 10
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-43500

2C,3CT..CR4#,5#

 4
96411-63500

2C..CR41,51

 4
96411-63500

2C,3CT..CR4#,5#

 4
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-43000

2C,3CT..CR4#,5#

 4
96411-63000

2C,3CT..CR4#,5#

 4
96411-63000

2C..CR41,51

 4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-41800

2C,3CT..CR4#,5#

 1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-41800

2C,3CT..CR4#,5#

 1
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-41800

2C,3CT..CR4#,5#

 3
11432G - PLUG, W/HEAD STRAIGHT SCREW, NO.5
90341-10002

2C,3CT..CR4#,5#

 1
11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK)
90341-18006

2C,3CT..CR4#,5#

 2
11432S - PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR CYLINDER BLOCK)
90341-14032

2C,3CT..CR4#,5#

 1
11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
90341-22001

2C,3CT..CR4#,5#

 1
11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
90430-18001

2C,3CT..CR4#,5#

 2
11432W - GASKET, STRAIGHT SCREW PLUG NO.3(FOR CYLINDER BLOCK)
90430-22003

2C,3CT..CR4#,5#

 1
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-14004

2C,3CT..CR4#,5#

長さ=20,外径=14

 2
90253-14002

2C,3CT..CR4#,5#

長さ=16,外径=14

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

2C,3CT..CR4#,5#

長さ=11,外径=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

2C,3CT..CR4#,5#

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-64020

2C,3CT..CR4#,5#

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-64021

2C,3CT..CR4#,5#

 1
11459 - SUPPORT, OIL LEVEL GAGE GUIDE
90929-01026

2C,3CT..CR4#,5#

 1
12101 - PAN SUB-ASSY, OIL
12101-64180

2C,3CT..CR4#,5#

 1
12101-64182

2C,3CT..CR4#,5#

 1
12101-64181

2C,3CT..CR4#,5#

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

2C,3CT..CR4#,5#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2C,3CT..CR4#,5#

 1
12112 - PAN, OIL NO.2
12112-64080

2C,3CT..CR4#,5#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-64100

2C,3CT..CR4#,5#

 1
15301-64101

2C,3CT..CR4#,5#

 1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-64020

2C,3CT..CR4#,5#

 1
15703-27010

2C,3CT..CR4#,5#

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15790-64021

2C,3CT..CR4#,5#

 4
Common parts
90119-06758
90119-06888
90179-06290
90201-14099
90339-18003
90430-10027
90430-14235
91645-80620
Linked diagrams
1301
1501
1503
1601
