CR41V-FLMDS (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9812)2C,3CT

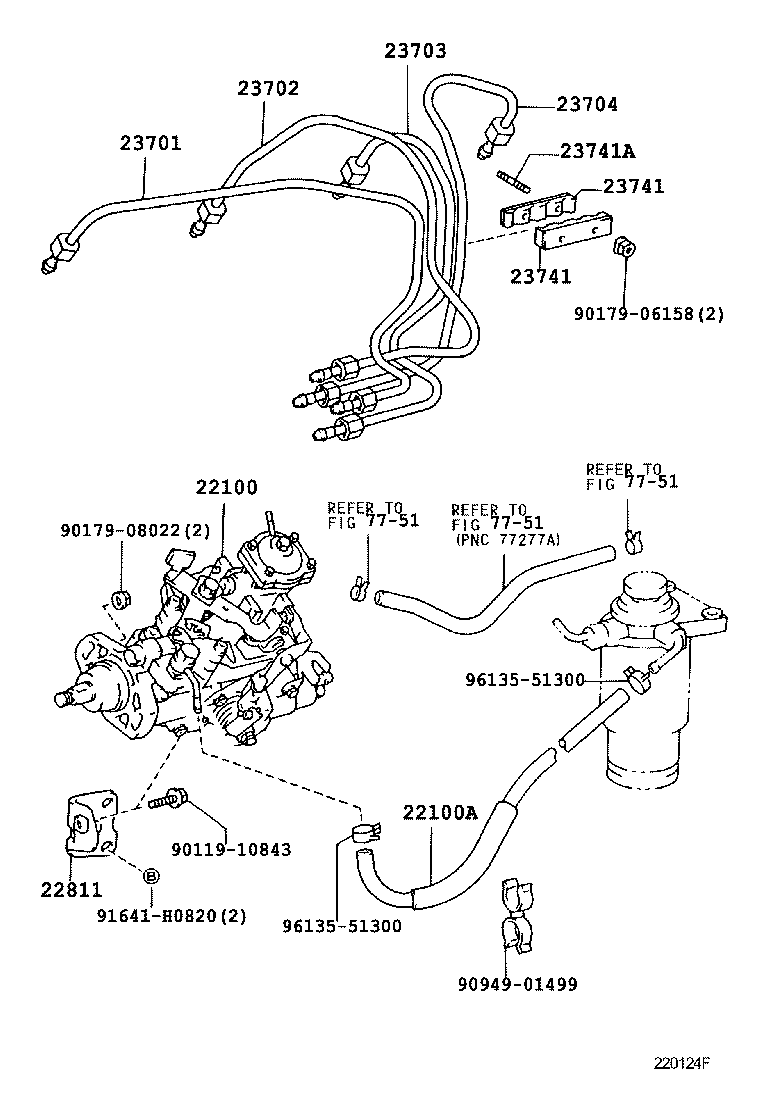

Click highlighted areas on diagram

diagram 22100 22100A 22811 23701 23702 23703 23704 23741 23741 23741A 7751 7751 7751 9011910843 9017906158 9017908022 9094901499 91641H0820 9613551300 9613551300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-6E090

2C..CR41..MTM

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-64240

2C,3CT..CR4#,5#

*H,L=525

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-64020

2C,3CT..CR4#,5#

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-64130

2C,3CT..CR4#,5#

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-64130

2C,3CT..CR4#,5#

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-64110

2C,3CT..CR4#,5#

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-64130

2C,3CT..CR4#,5#

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64020

2C,3CT..CR4#,5#

 2
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64020

2C,3CT..CR4#,5#

 2
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
90116-06275

2C,3CT..CR4#,5#

 2
Common parts
90119-10843
90179-06158
90179-08022
90949-01499
91641-H0820
96135-51300
Linked diagrams
7751
