CR41V-ERSDS5 (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

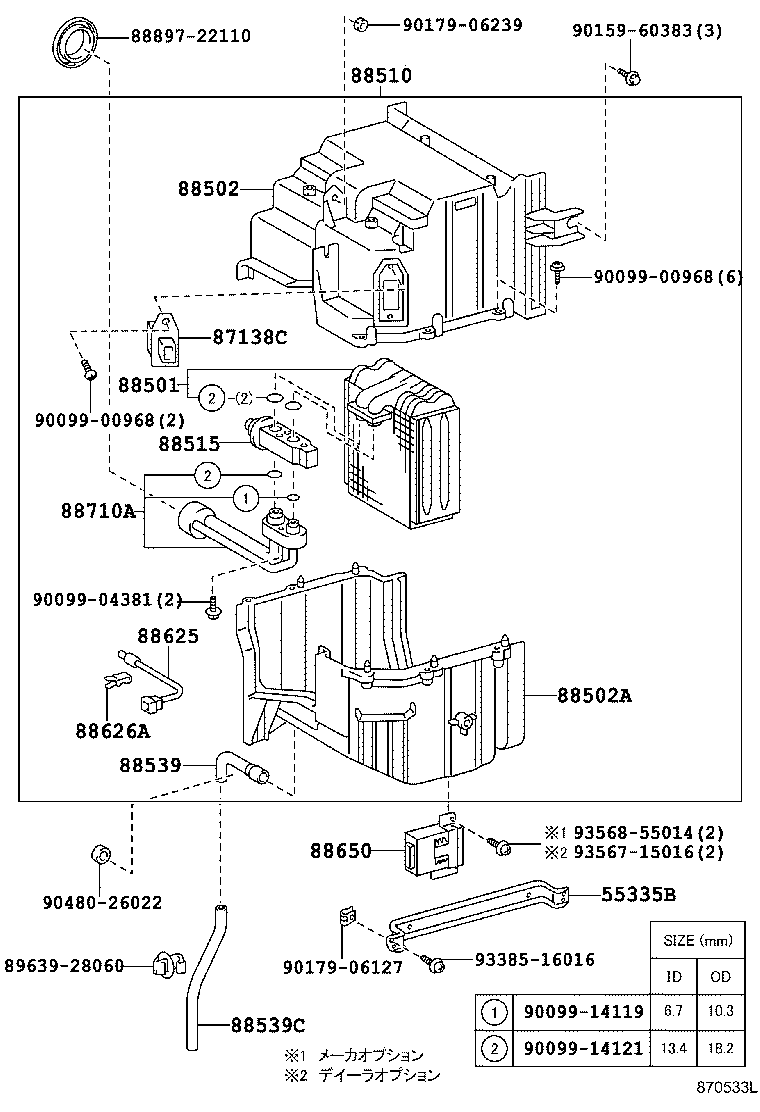

ILLUST NO. 1 OF 2(9610-9812)

Click highlighted areas on diagram

ﾌﾛﾝﾄ---ﾏﾆﾕｱﾙ

diagram 55335B 87138C 88501 88502 88502A 88510 88515 88539 88539C 88625 88626A 88650 88710A 8889722110 8963928060 9009900968 9009900968 9009904381 9009914119 9009914121 9015960383 9017906127 9017906239 9048026022 9338516016 9356715016 9356855014
Part # Description Qty Price
55335B - REINFORCEMENT, INSTRUMENT PANEL, LWR LH
55335-28030

CR41,51,KR4#,SR40,50..03S,06S

 1
87138C - RESISTOR, BLOWER
87138-28160

CR4#,5#,KR42,SR40,50..(05S,06S,08S)..(D,E,N,V)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-28290

CR4#,5#,KR4#,SR40,50

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-28460

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-28470

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
88510 - UNIT ASSY, COOLER
88510-28590

CR41,51,KR4#,SR40,50..03S,06S

 1
88515 - VALVE, COOLER EXPANSION
88515-22240

CR4#,5#,KR4#,SR40,50

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-28140

CR4#,5#,KR4#,SR40,50

 1
88625 - THERMISTOR, COOLER, NO.1
88625-28170

CR4#,5#,KR4#,SR40,50

 1
88626A - HOLDER, THERMISTOR
88626-28010

CR4#,5#,KR4#,SR40,50

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-28680

CR41,51

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-2R090

CR4#,5#,KR4#,SR40,50

 1
Common parts
88897-22110
89639-28060
90099-00968
90099-04381
90099-14119
90099-14121
90159-60383
90179-06127
90179-06239
90480-26022
93385-16016
93567-15016
93568-55014

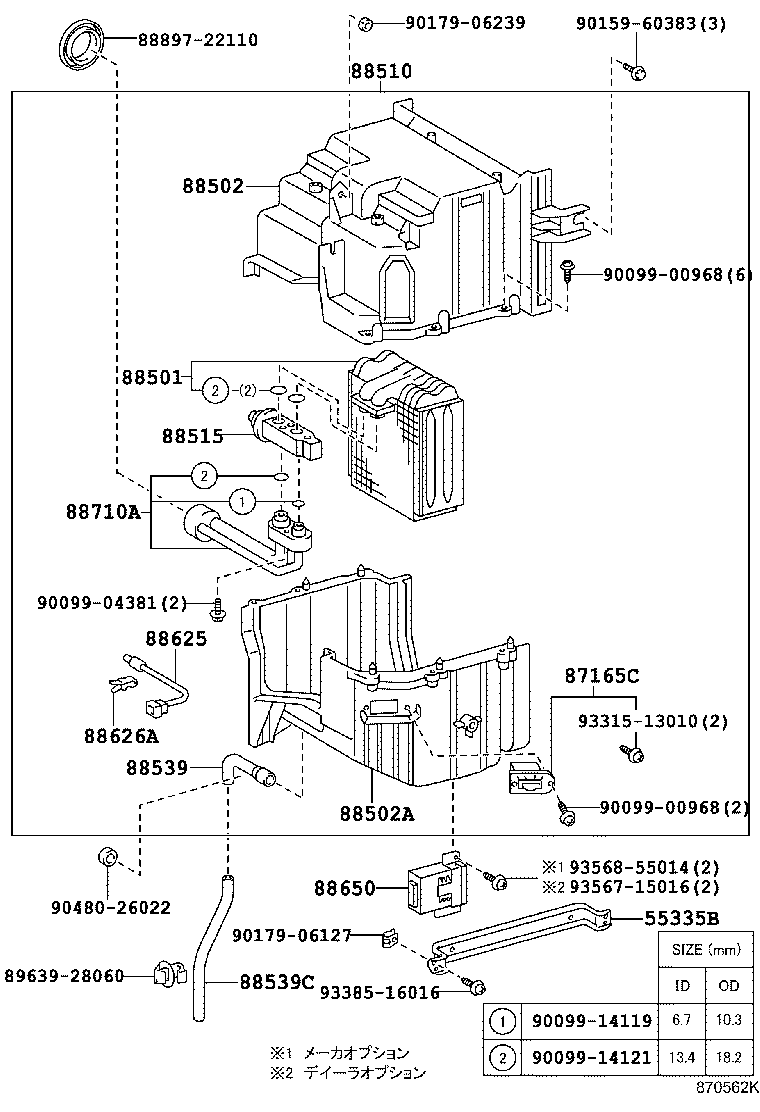

ILLUST NO. 1 OF 2(9610-9812)

Click highlighted areas on diagram

ﾌﾛﾝﾄ---ｵ-ﾄ

diagram 55335B 87165C 88501 88502 88502A 88510 88515 88539 88539C 88625 88626A 88650 88710A 8889722110 8963928060 9009900968 9009900968 9009904381 9009914119 9009914121 9015960383 9017906127 9017906239 9048026022 9331513010 9338516016 9356715016 9356855014
Part # Description Qty Price
55335B - REINFORCEMENT, INSTRUMENT PANEL, LWR LH
55335-28030

CR41,51,KR4#,SR40,50..03S,06S

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-28290

CR4#,5#,KR4#,SR40,50

 1
88502 - CASE SUB-ASSY, COOLING UNIT
88502-28460

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
88502A - CASE SUB-ASSY, COOLING UNIT
88502-28470

CR4#,5#,KR4#,SR40,50..03S,05S,06S,08S

 1
88510 - UNIT ASSY, COOLER
88510-28590

CR41,51,KR4#,SR40,50..03S,06S

 1
88515 - VALVE, COOLER EXPANSION
88515-22240

CR4#,5#,KR4#,SR40,50

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-28140

CR4#,5#,KR4#,SR40,50

 1
88625 - THERMISTOR, COOLER, NO.1
88625-28170

CR4#,5#,KR4#,SR40,50

 1
88626A - HOLDER, THERMISTOR
88626-28010

CR4#,5#,KR4#,SR40,50

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-28680

CR41,51

 1
88710A - TUBE ASSY, AIR CONDITIONER
88710-2R090

CR4#,5#,KR4#,SR40,50

 1
Common parts
88897-22110
89639-28060
90099-00968
90099-04381
90099-14119
90099-14121
90159-60383
90179-06127
90179-06239
90480-26022
93315-13010
93385-16016
93567-15016
93568-55014
