CR41V-ERSDS5 (1996)

Toyota Lite/Townace Noah,V

Production Nov 1996 - Dec 1998
Engine 2C
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9610-9812)V

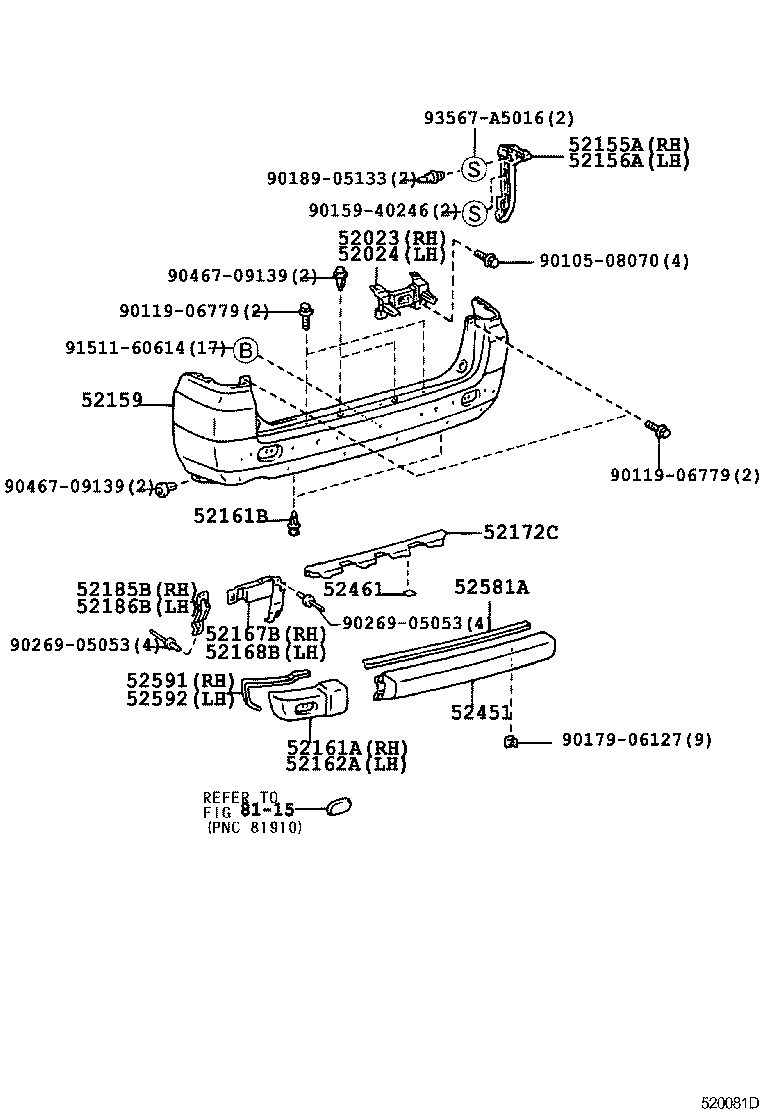

Click highlighted areas on diagram

diagram 52023 52024 52155A 52156A 52159 52161A 52161B 52162A 52167B 52168B 52172C 52185B 52186B 52451 52461 52581A 52591 52592 8115 8115 9010508070 9011906779 9011906779 9015940246 9017906127 9018905133 9026905053 9026905053 9046709139 9046709139 9151160614 93567A5016
Part # Description Qty Price
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-28050

CR4#,5#,KR4#,SR40,50

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-28030

CR4#,5#,KR4#,SR40,50

 1
52159 - COVER, REAR BUMPER
52159-28120

CR41,51,KR4#;CR40,50,SR40,50..B,E

材着 黒

 1
52159-28120

CR4#,5#,KR4#,SR40,50..B,D,E,N

材着 黒

 1
52161B - PIECE, REAR BUMPER
52161-16010

CR4#,5#,KR4#,SR40,50

 2
Common parts
90105-08070
90119-06779
90159-40246
90179-06127
90189-05133
90269-05053
90467-09139
91511-60614
93567-A5016
Linked diagrams
8115
